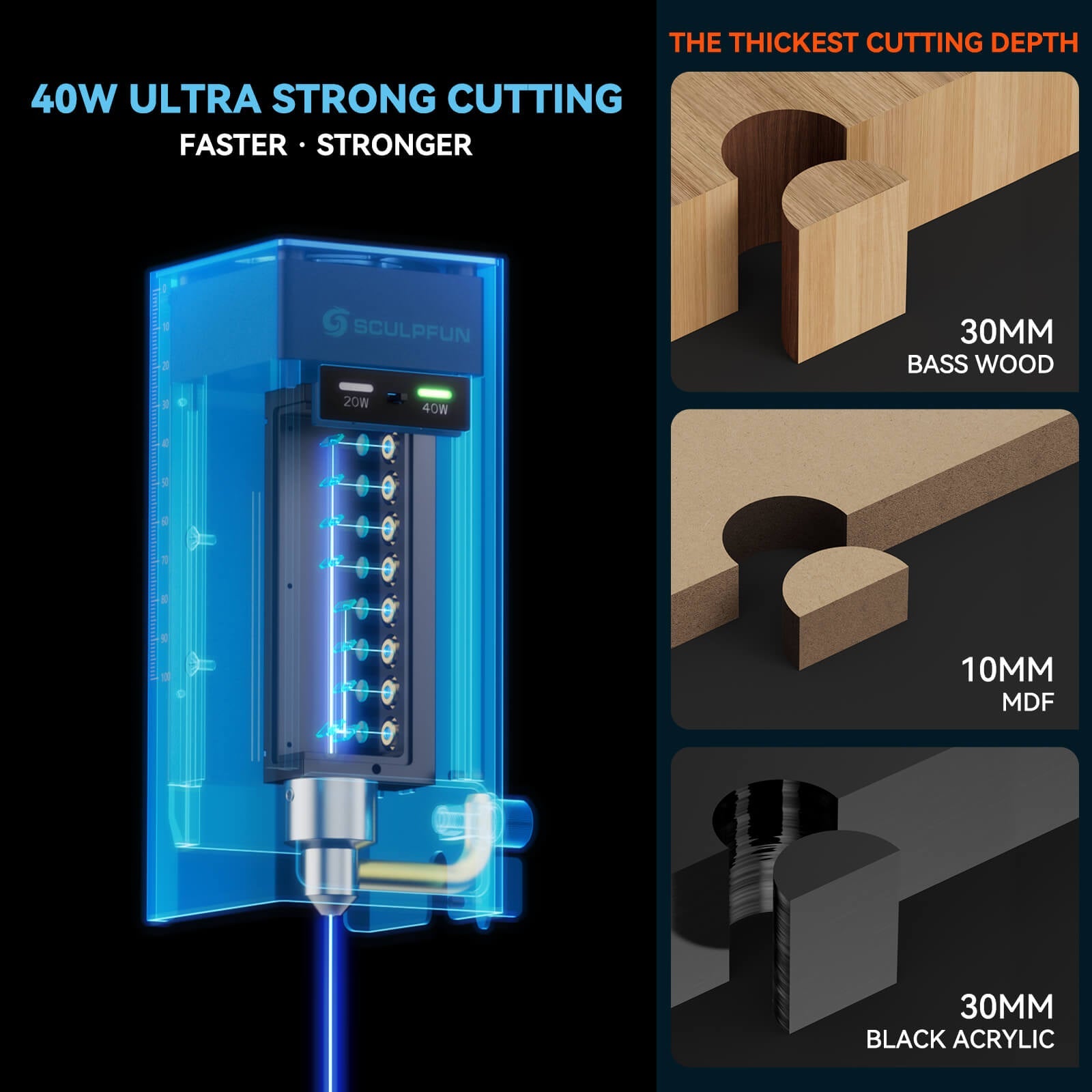

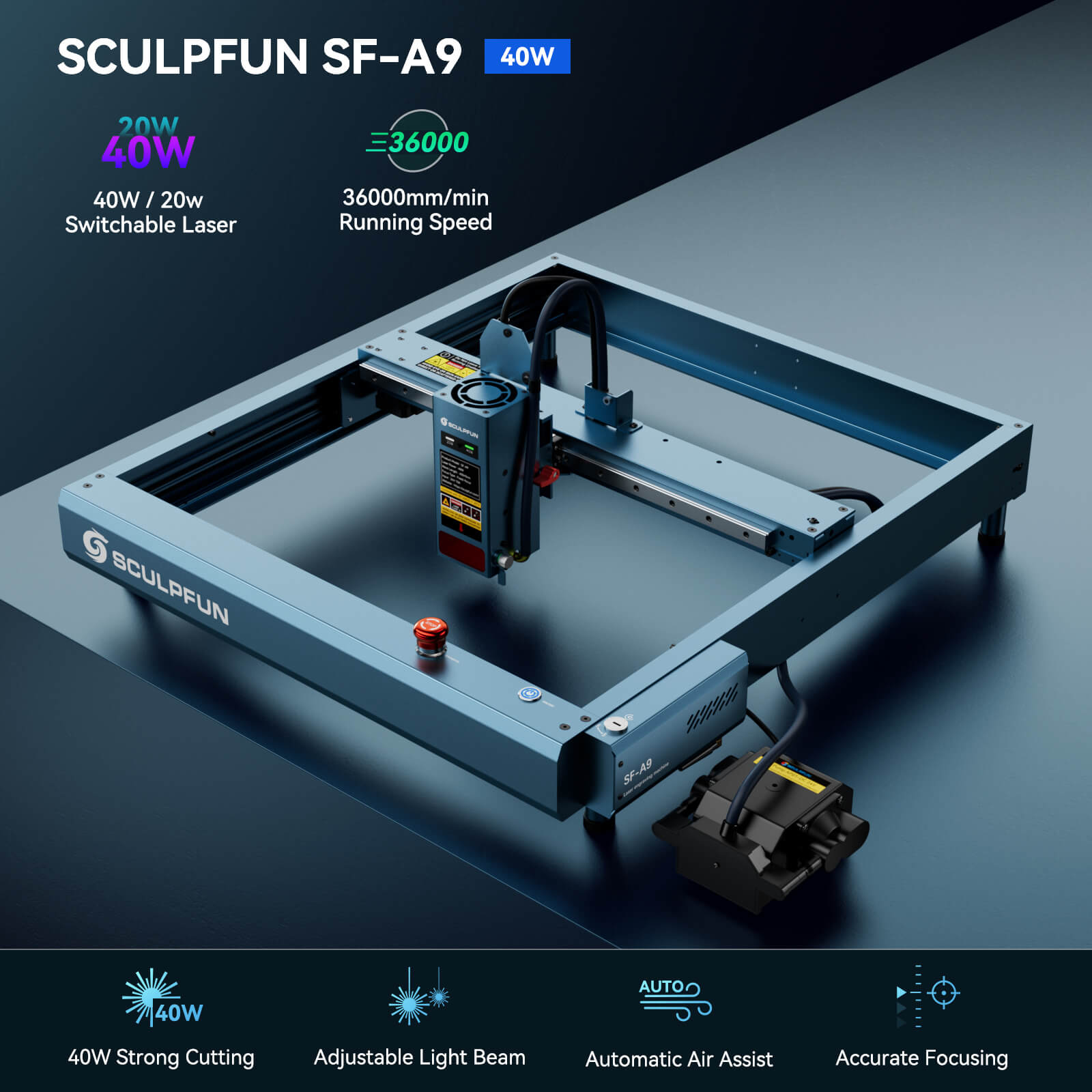

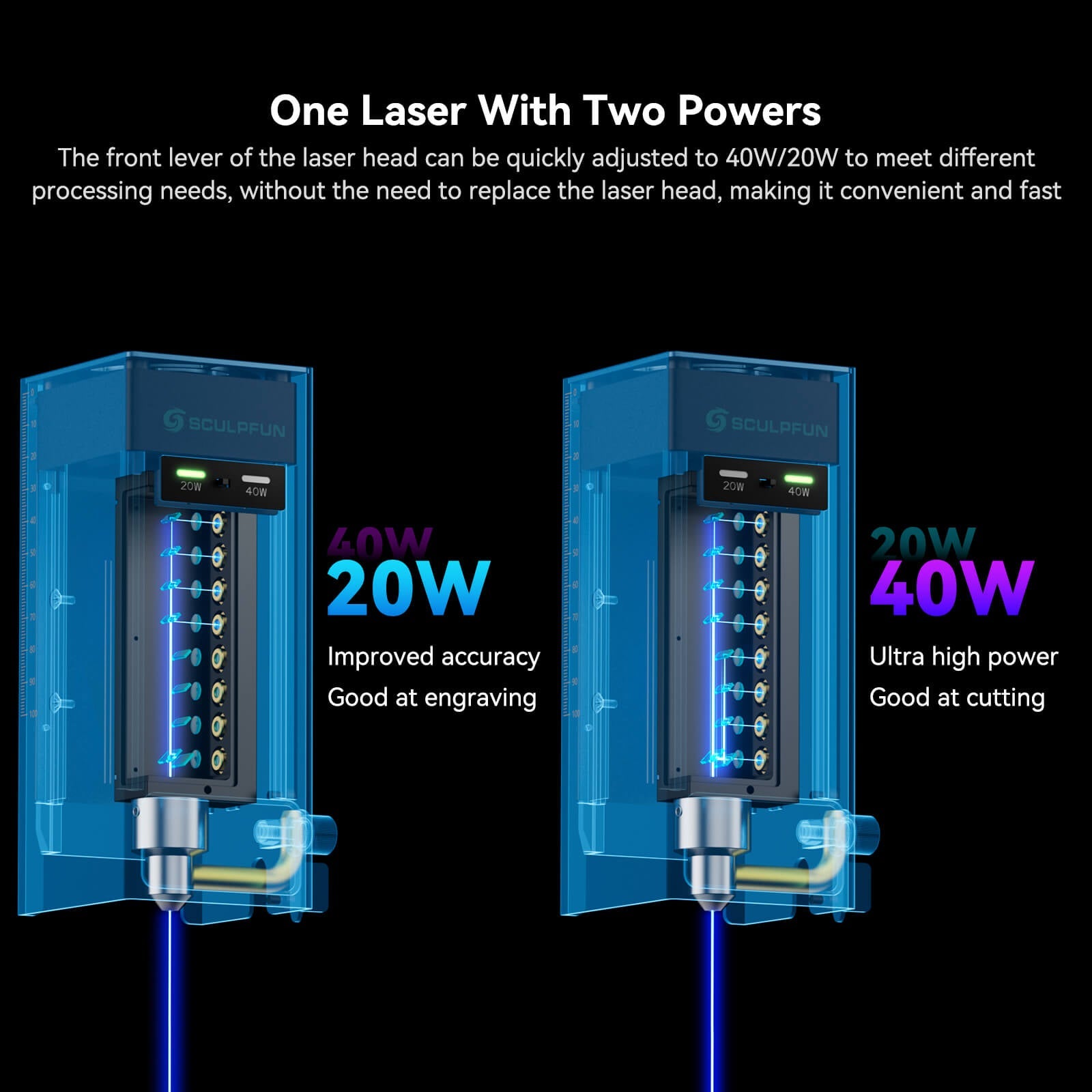

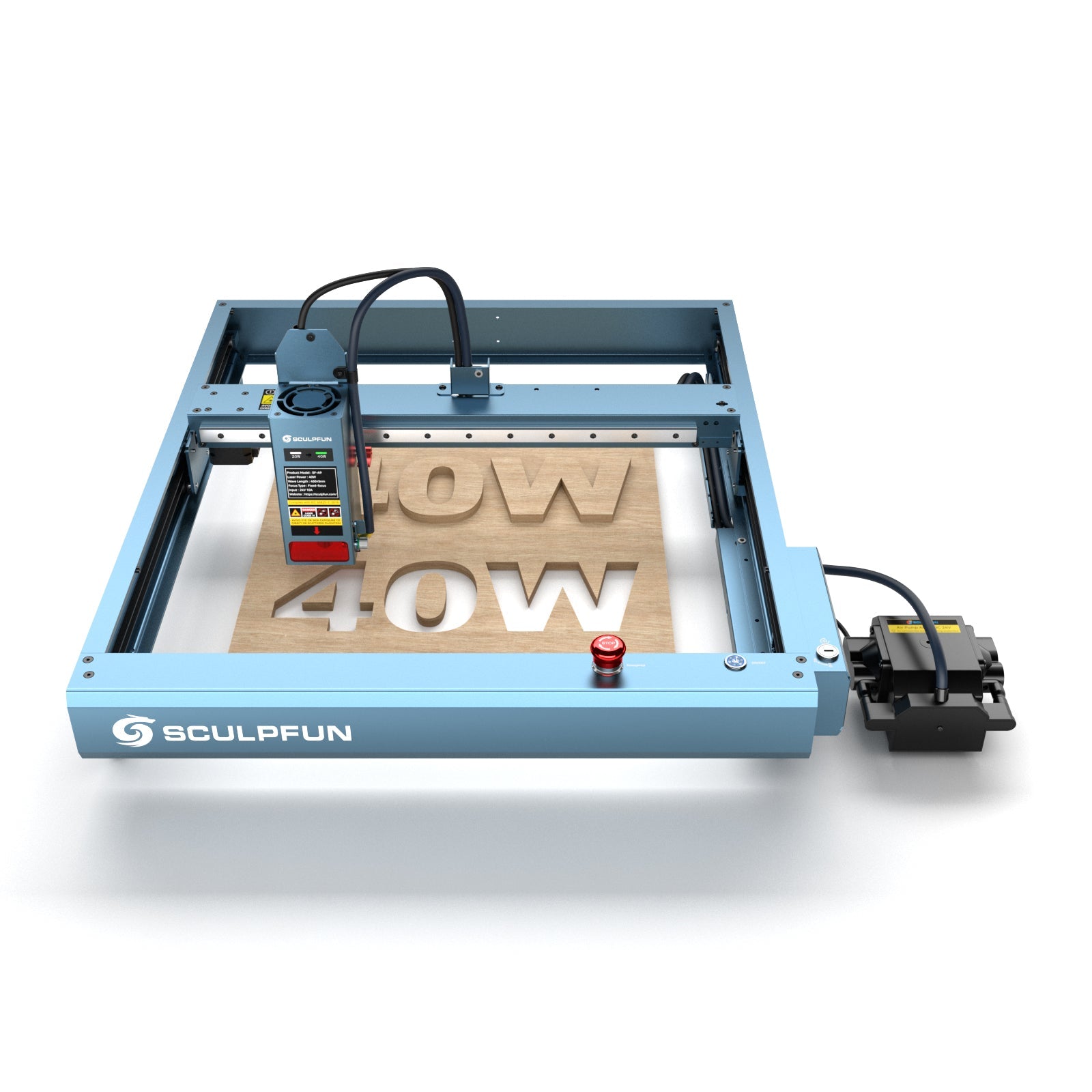

1. Powerful 40W Laser: The Sculpfun SF-A9 is equipped with a 40W laser head, providing high cutting power. The laser power can be switched between 40W and 20W. This allows cutting materials such as 20mm plywood or 6mm dark acrylic in a single pass. The integrated heat pipe cooling ensures fast and even heat dissipation.
2. Safety design: Equipped with a built-in tilt sensor, the laser automatically shuts off and an alarm is triggered if the tilt exceeds 15°. Additional safety features include an emergency stop button, child safety lock, and flame and temperature sensors. If the device detects flames or high temperatures during operation, it automatically stops, sounds an alarm, and moves to a safe position.

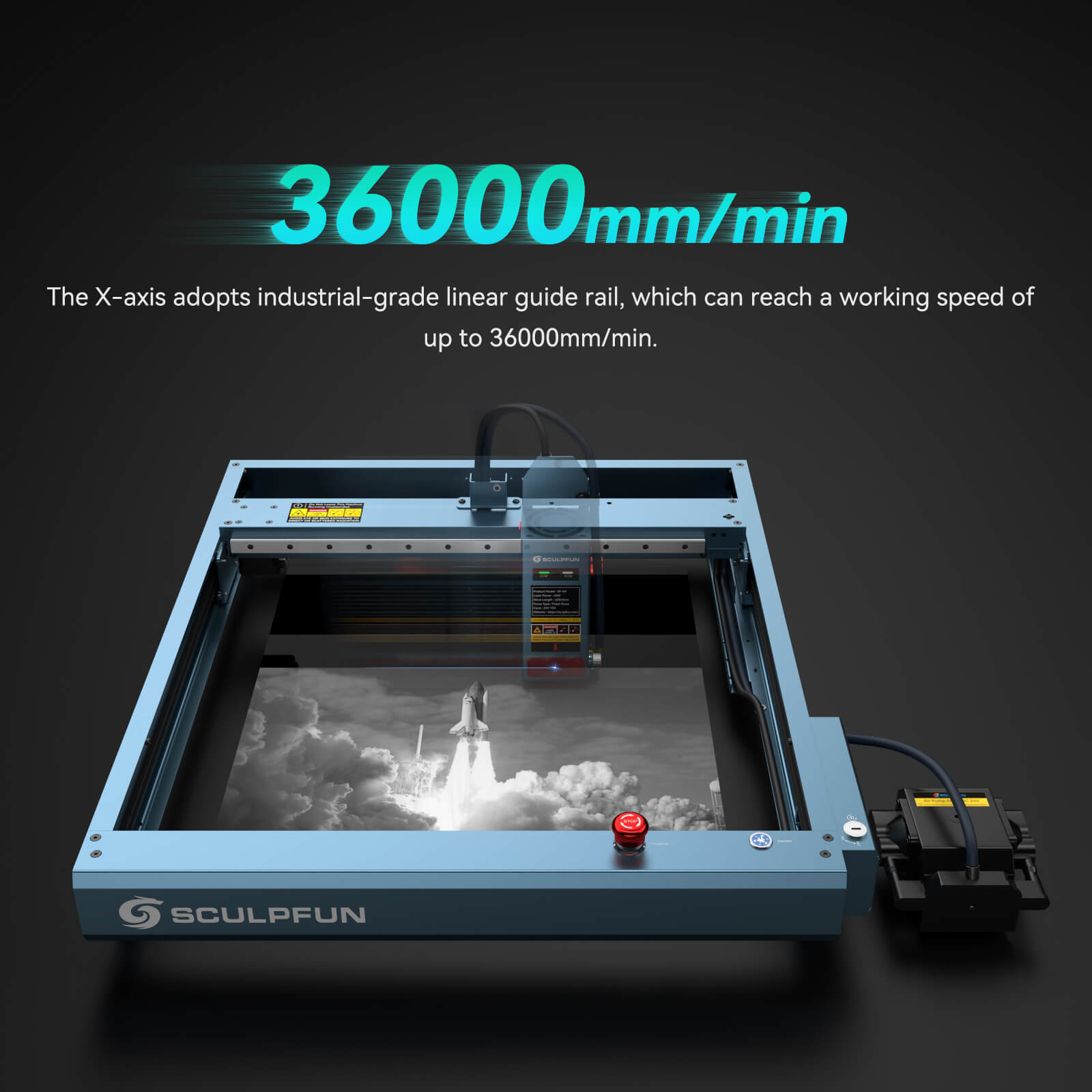

3.High speed up to 36,000 mm/min: The SF-A9 supports high-speed engraving at up to 36,000 mm/min. The sturdy frame construction ensures clean engraving results. In precision mode, the device can cut with exceptional precision—ideal for precisely fitting components.
4. Precise focus system: The focus lever on the laser head is securely mounted and allows for precise focus positioning. The red knob on the right side allows for rough adjustment of the height of the laser module to the material; the upper knob is used for fine adjustment.
5. Stable and easy to assemble: The all-metal construction ensures high stability. The leveling structure of the metal supports and the high-quality linear guide of the X-axis enable a movement accuracy of 0.01 mm. The Y-axis uses adaptive rollers for smooth movement. Complete assembly is completed in just one step.

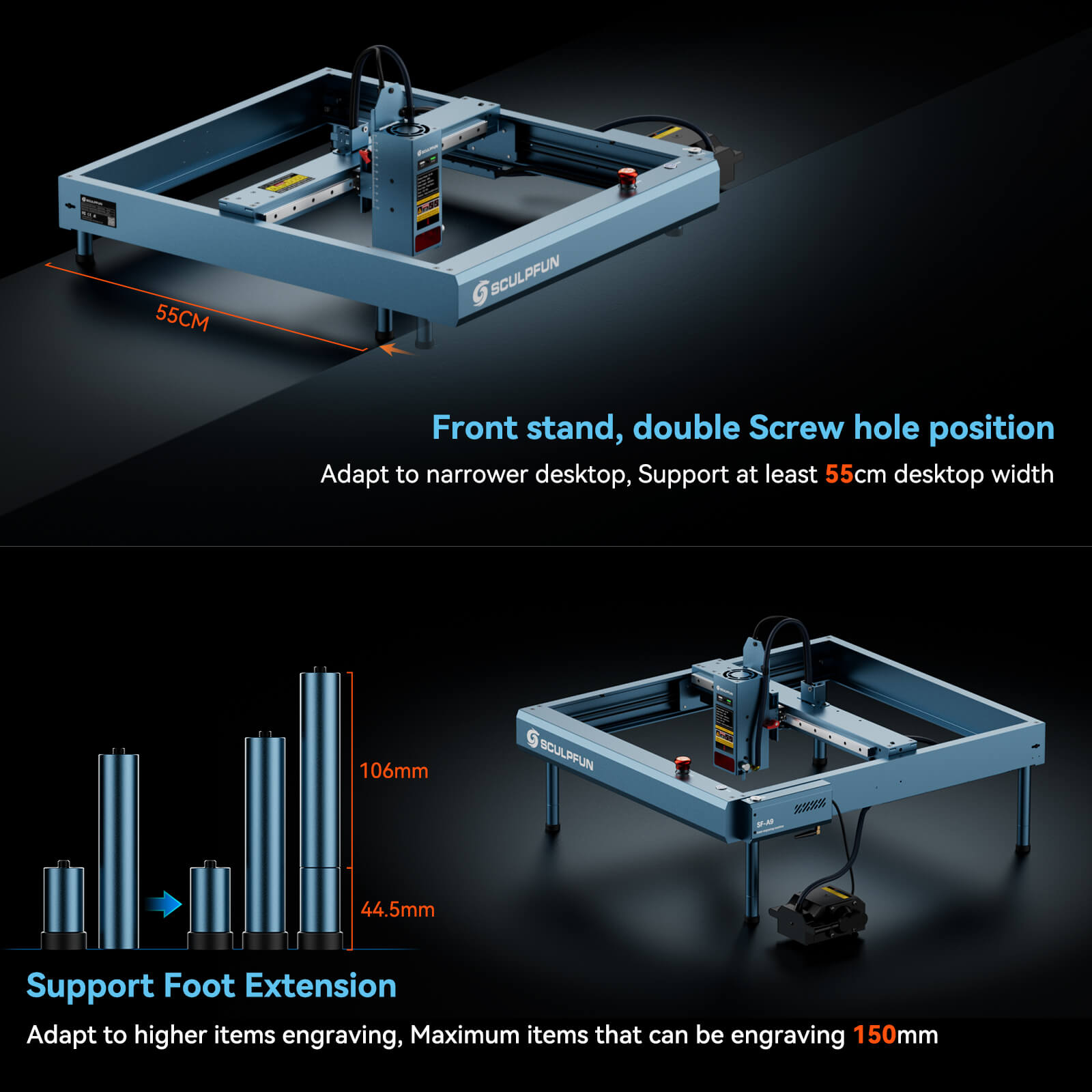

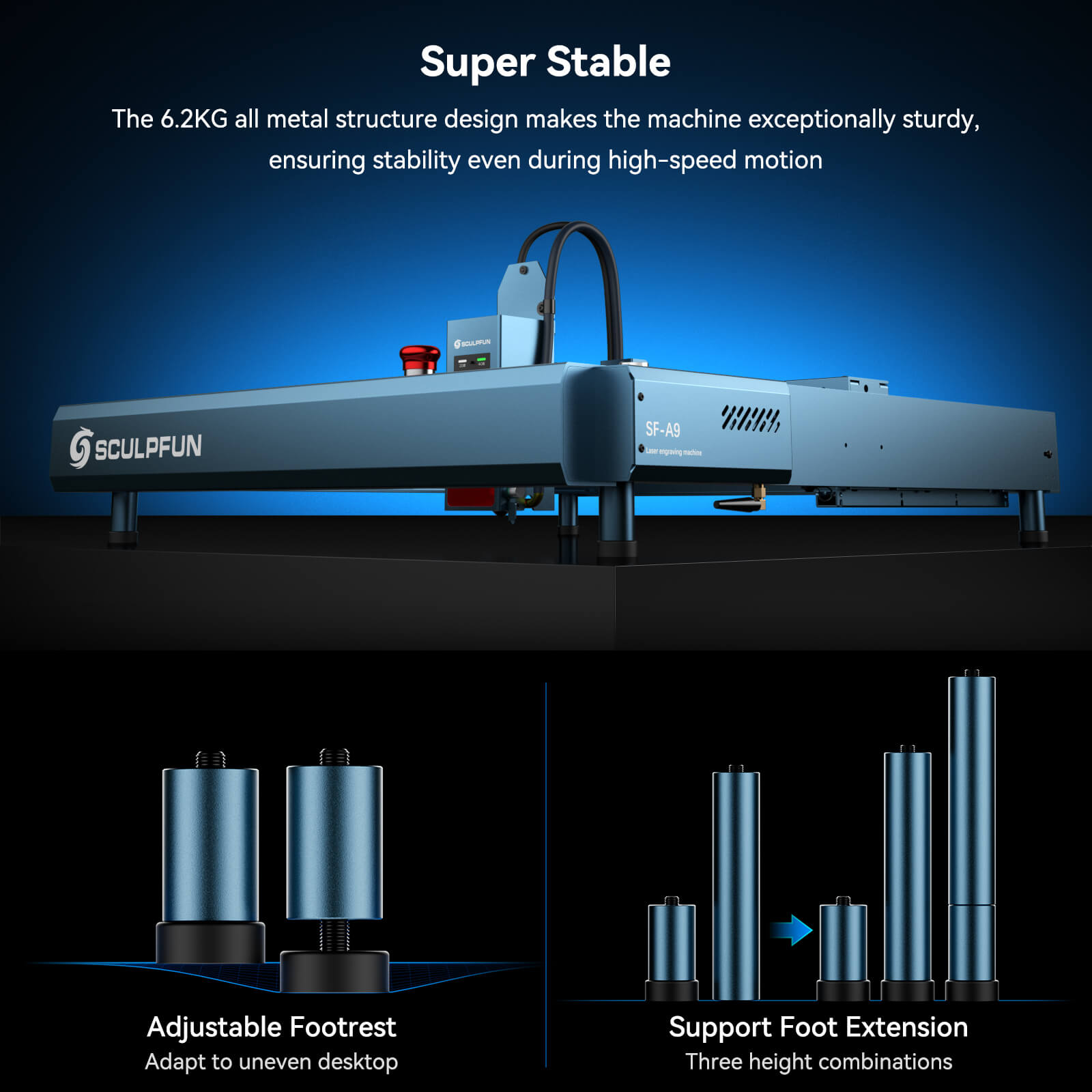

6. Height-adjustable machine: The included metal supports allow the height of the machine to be adjusted – ideal for processing taller objects and for a wide range of applications.
7. Multiple connectivity options: Supports Wi-Fi, USB, and Bluetooth. Compatible with the Sculpfun app for smartphones and the LightBurn and LaserGRBL programs on PCs.

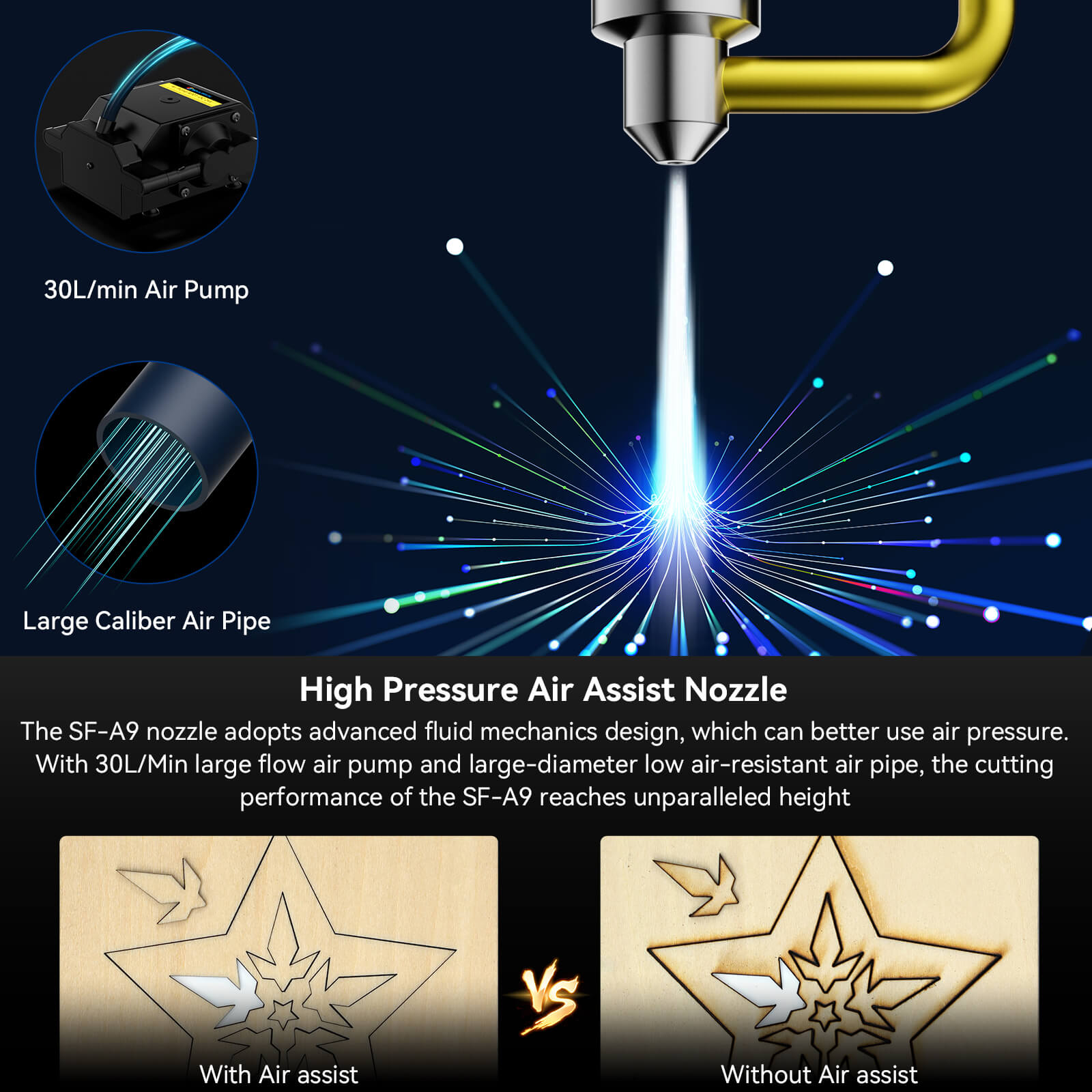

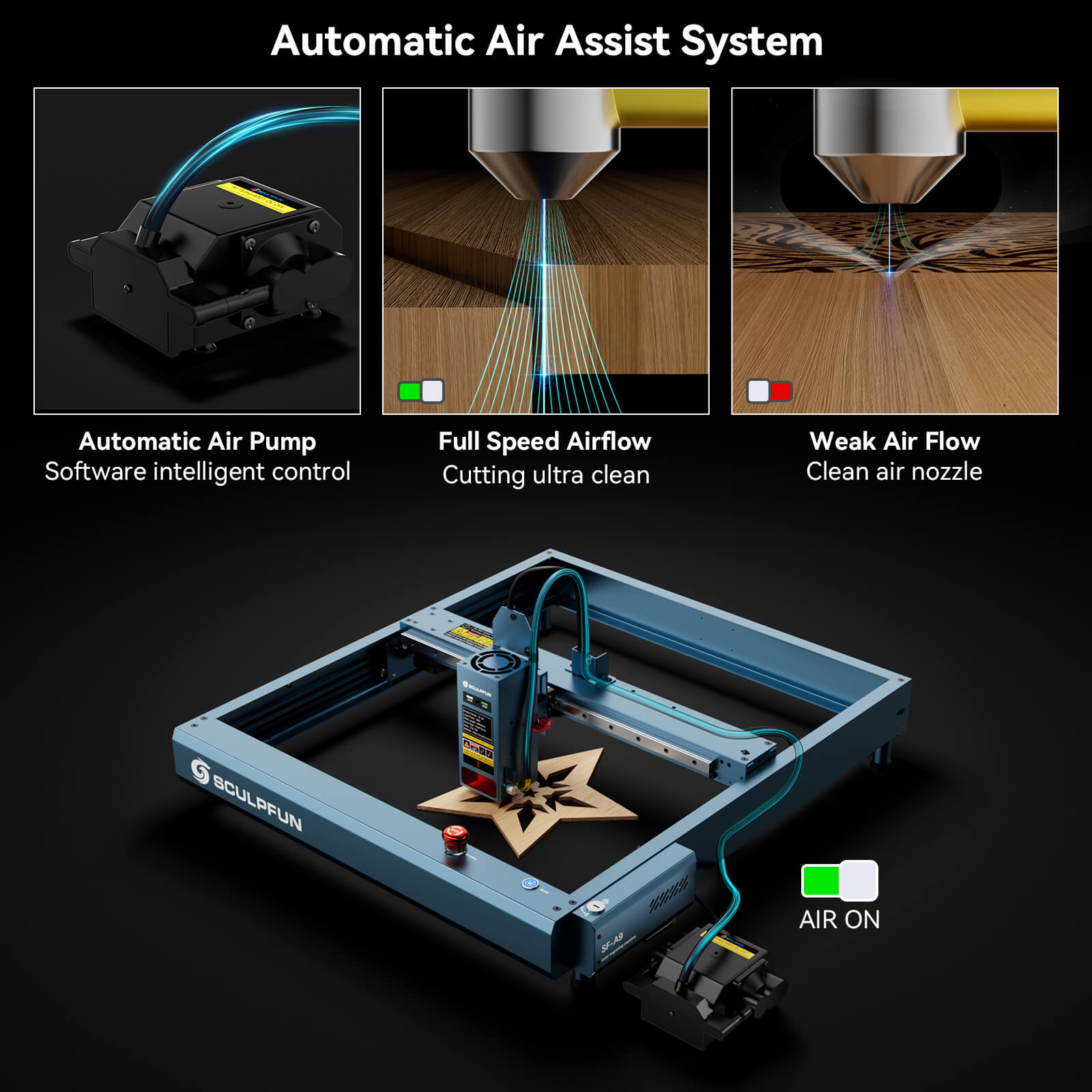

8. Automatic air support: An optimized air guide with a large inner diameter improves cutting quality and extends the life of the laser lens through better cleaning during cutting.
Specifications:
Product model
SCULPFUN SF-A9
Diode laser output power
20 W / 40 W light energy
Laser focus
0.10 mm / 0.15 mm
Laser wavelength
450 ± 5 nm
Focusing method
Fixed focus column + sliding device
Engraving area size
400 x 400 mm
Machine performance
240W, 24V 10A

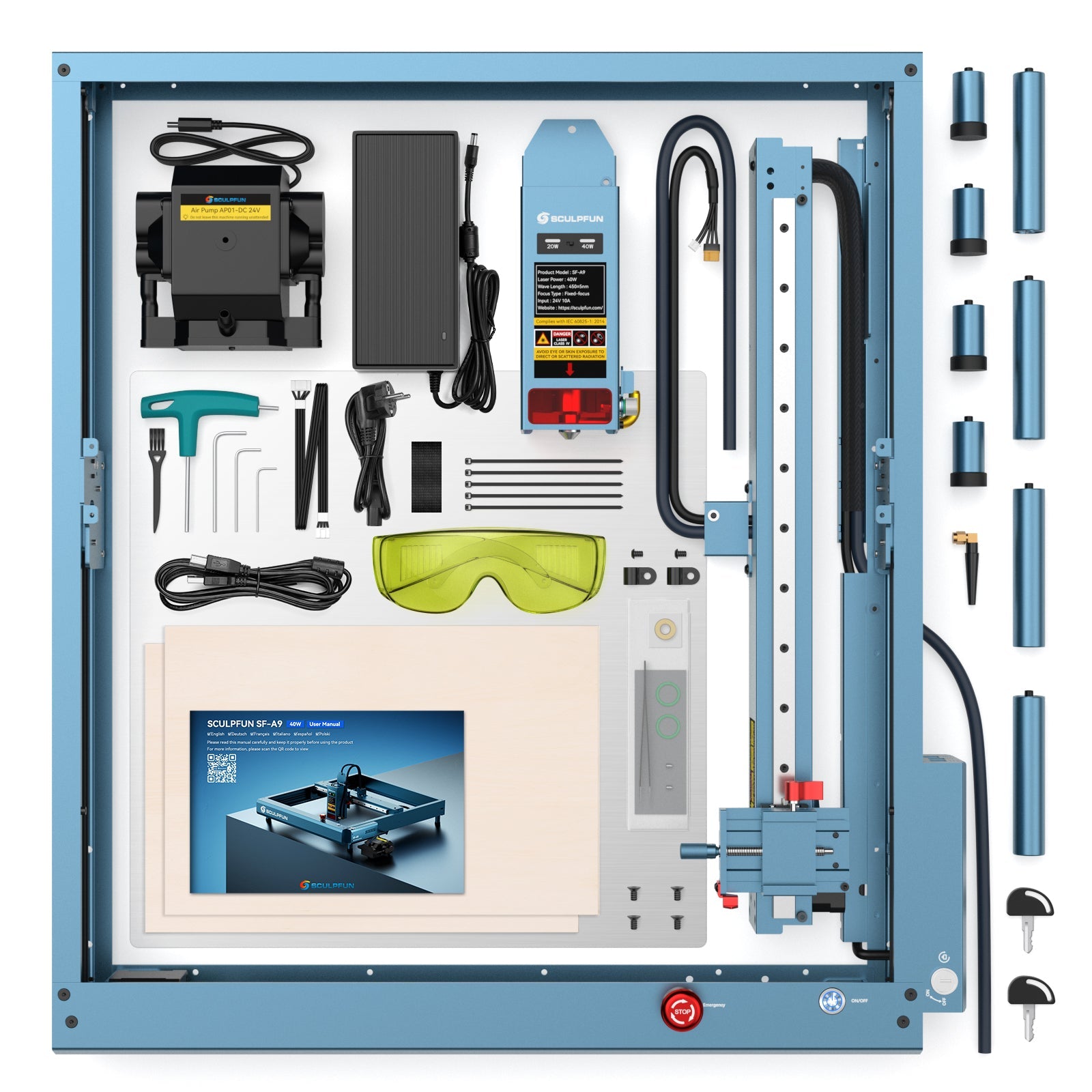

Scope of delivery:
1× SF-A9 Laser Engraver, 1× Laser Head, 1× Power Adapter, 1× Power Cable, 4× Metal Support, 4× Spare Metal Support, 1× Data Cable, 1× Air Pump, 1× Laser Safety Goggles, 1× Lens Repair Kit, 1× Tool Kit, 1× Cable Tie Set, 1× Antenna Set, 1× Screw Set, 1× Aluminum Plate, 2× Basswood Plates, 2× Wrenches
