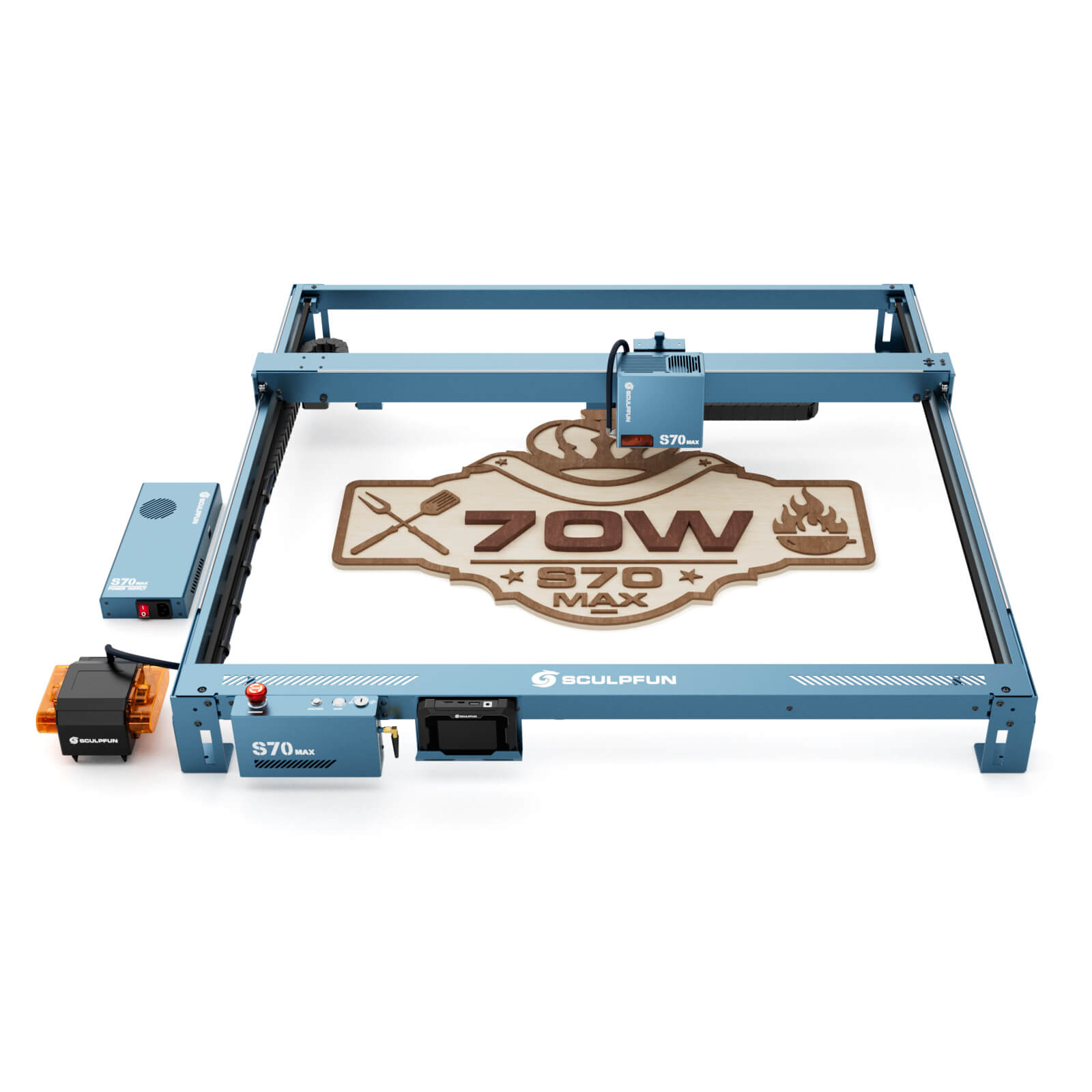

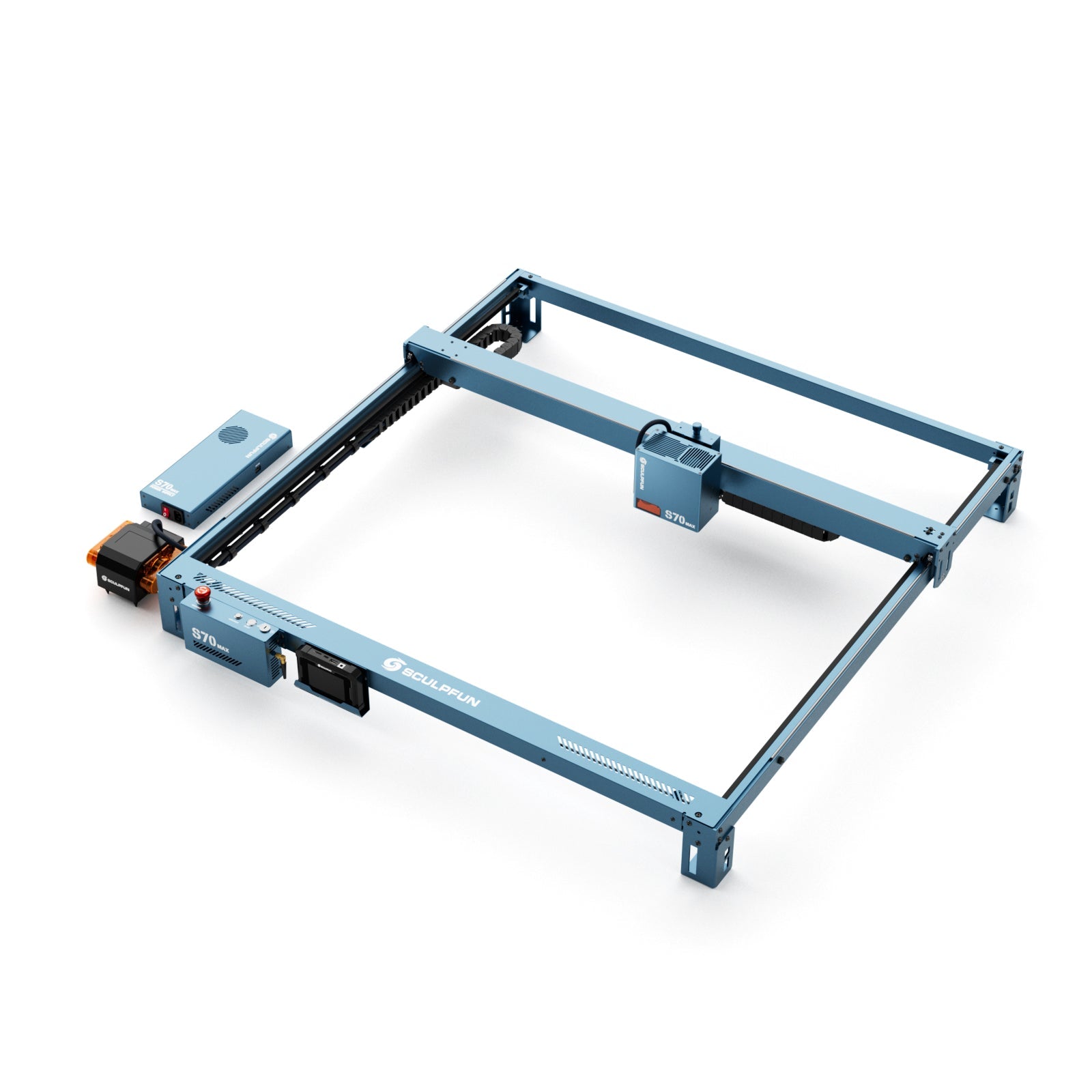

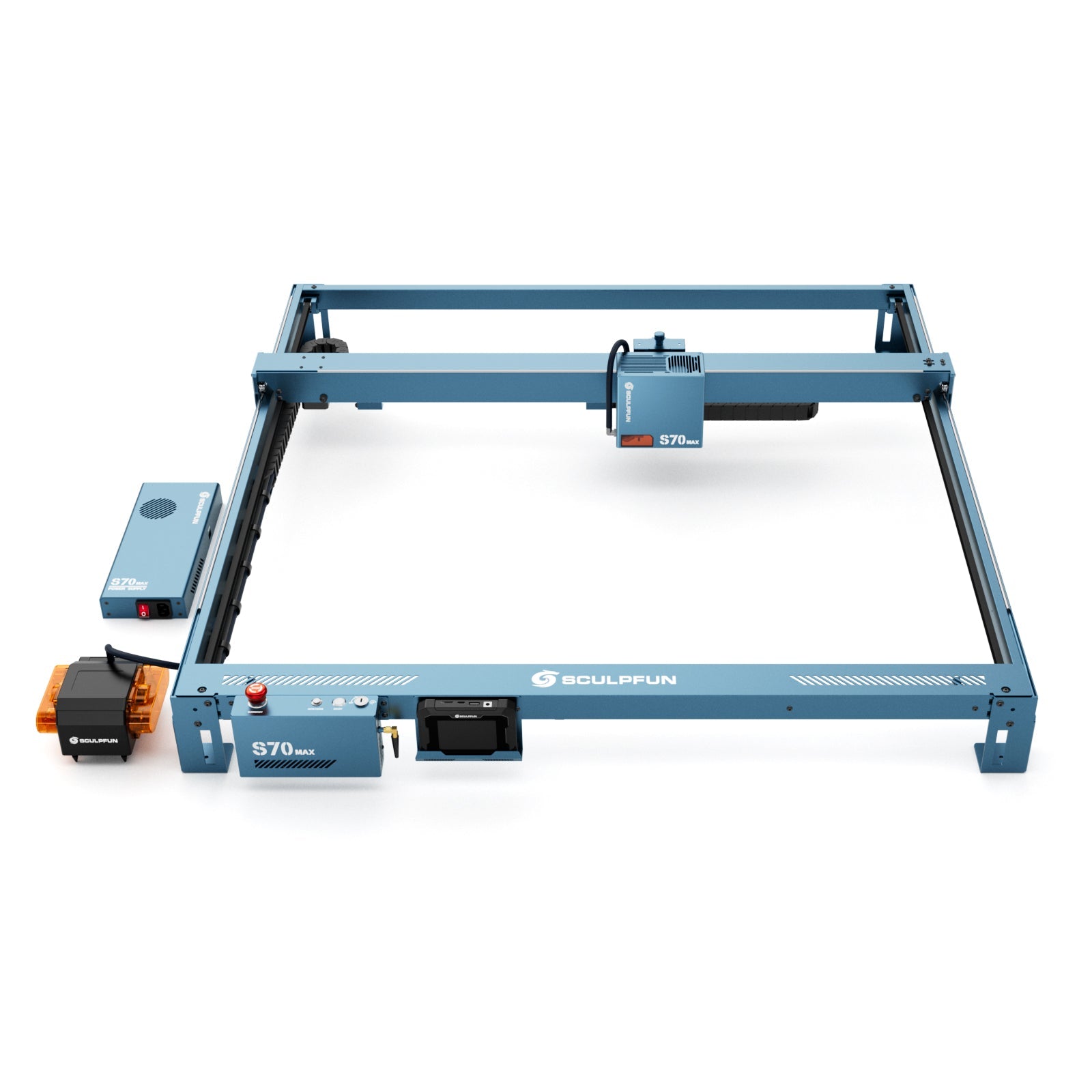

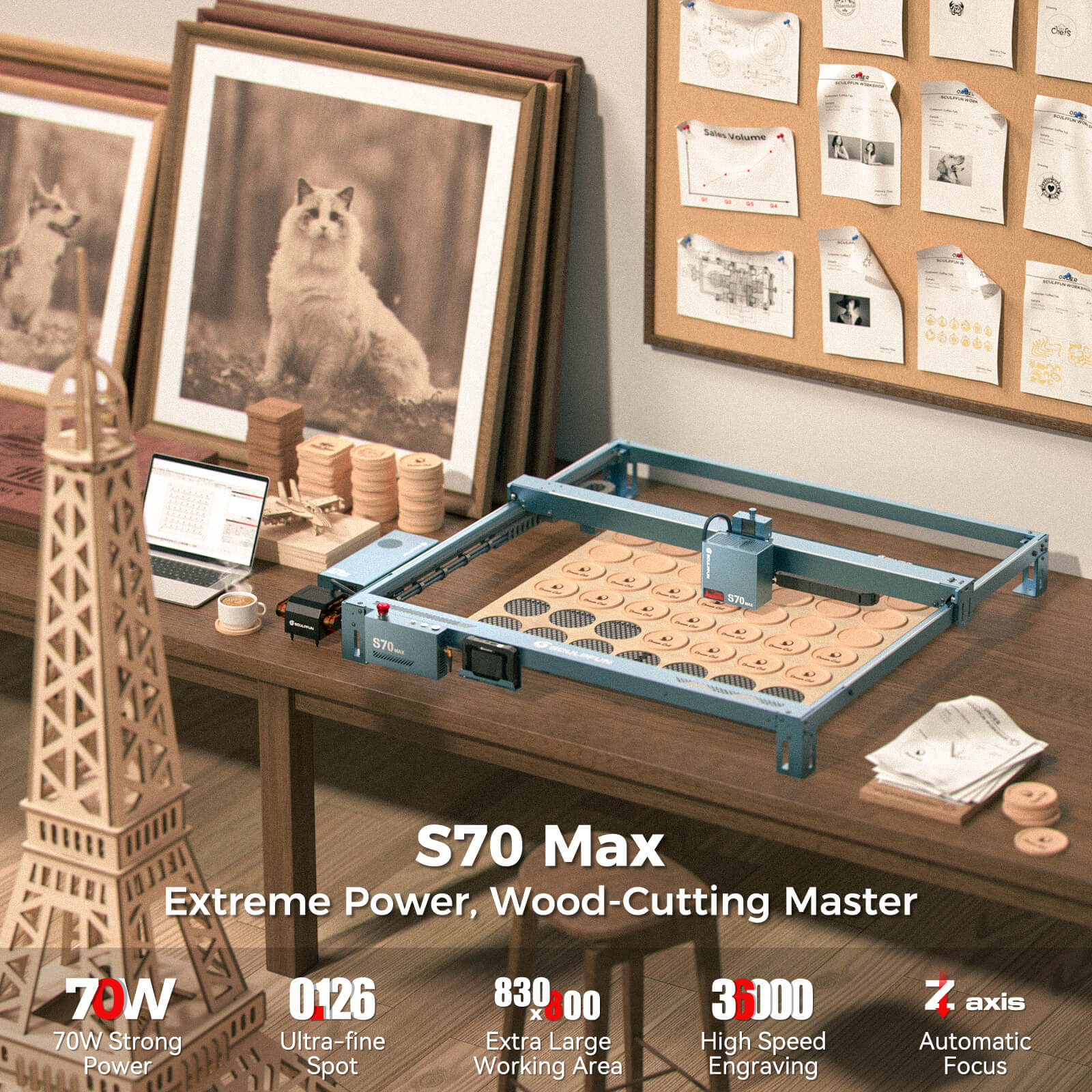

Sculpfun S70 MAX - 70W laser engraver

Main features:

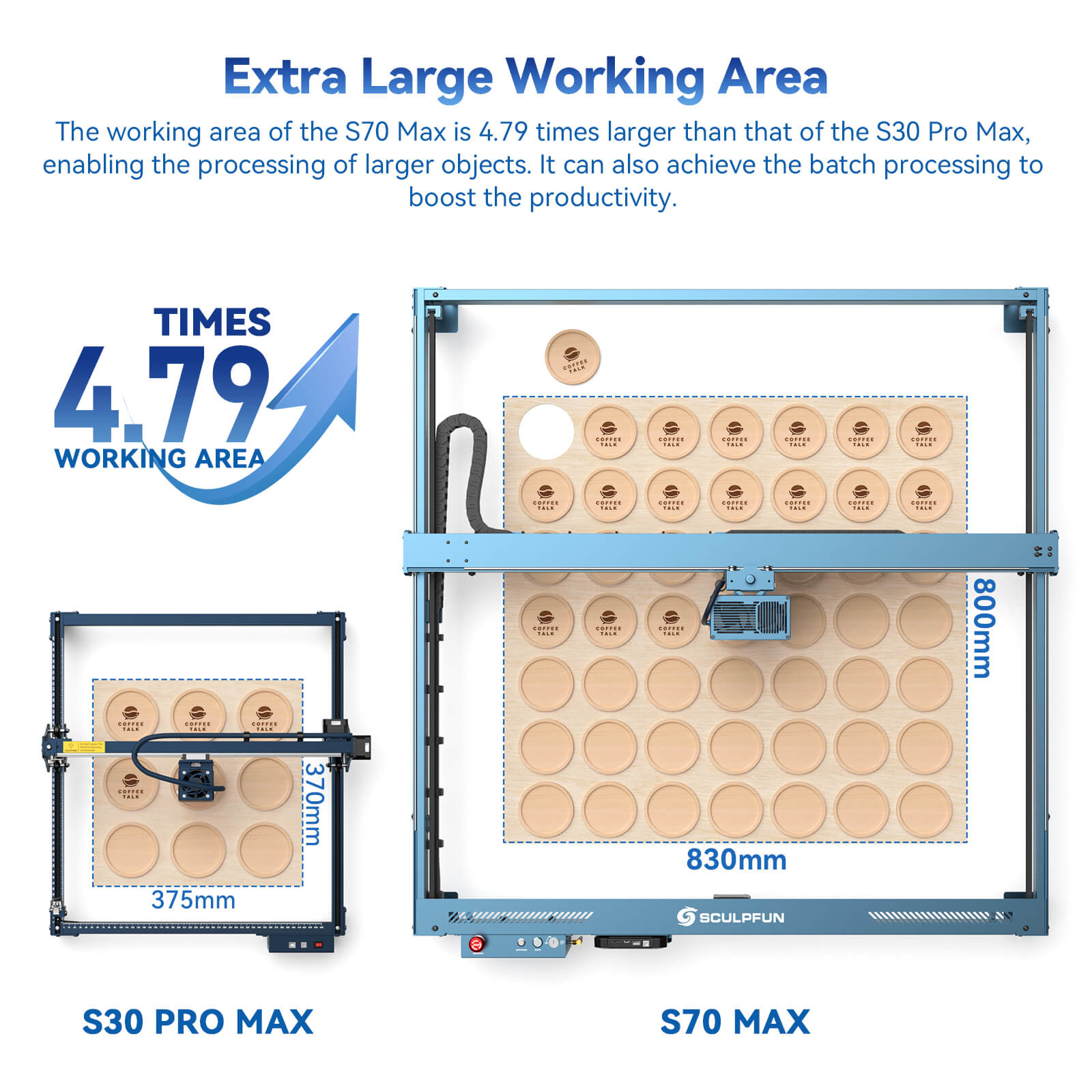

1. 830 × 800 mm extra large working area
With a footprint of 980 × 1000 mm, the Sculpfun S70 Max offers ample space for particularly large materials. The actual work area of ​​830 × 800 mm allows for the processing of large-format objects and meets a wide range of requirements. The maximum engraving speed of up to 36,000 mm/min makes it ideal for large-scale cutting and serial engraving – perfect for workshops, ambitious users, and professionals.

2. Ultra-strong 70 W laser

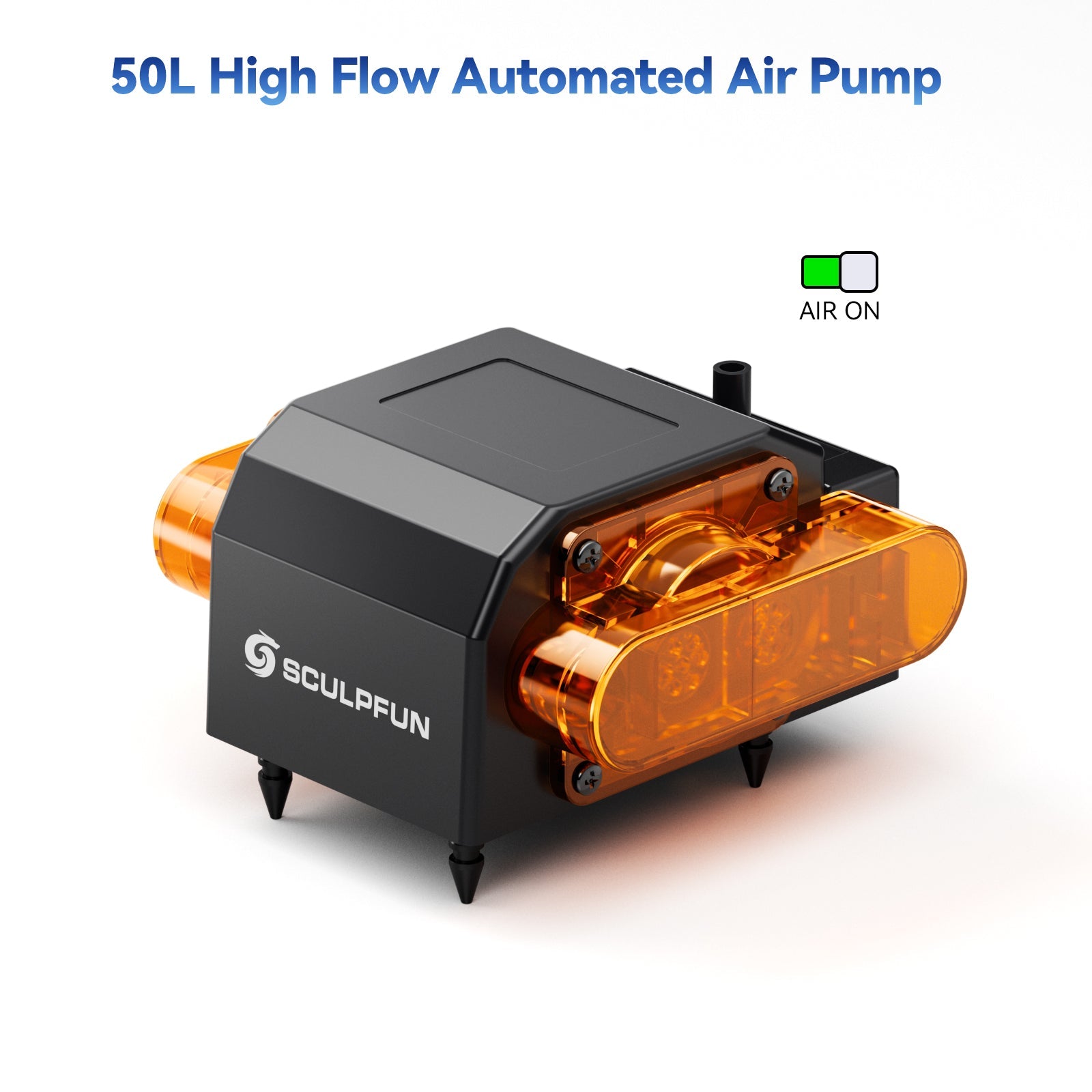

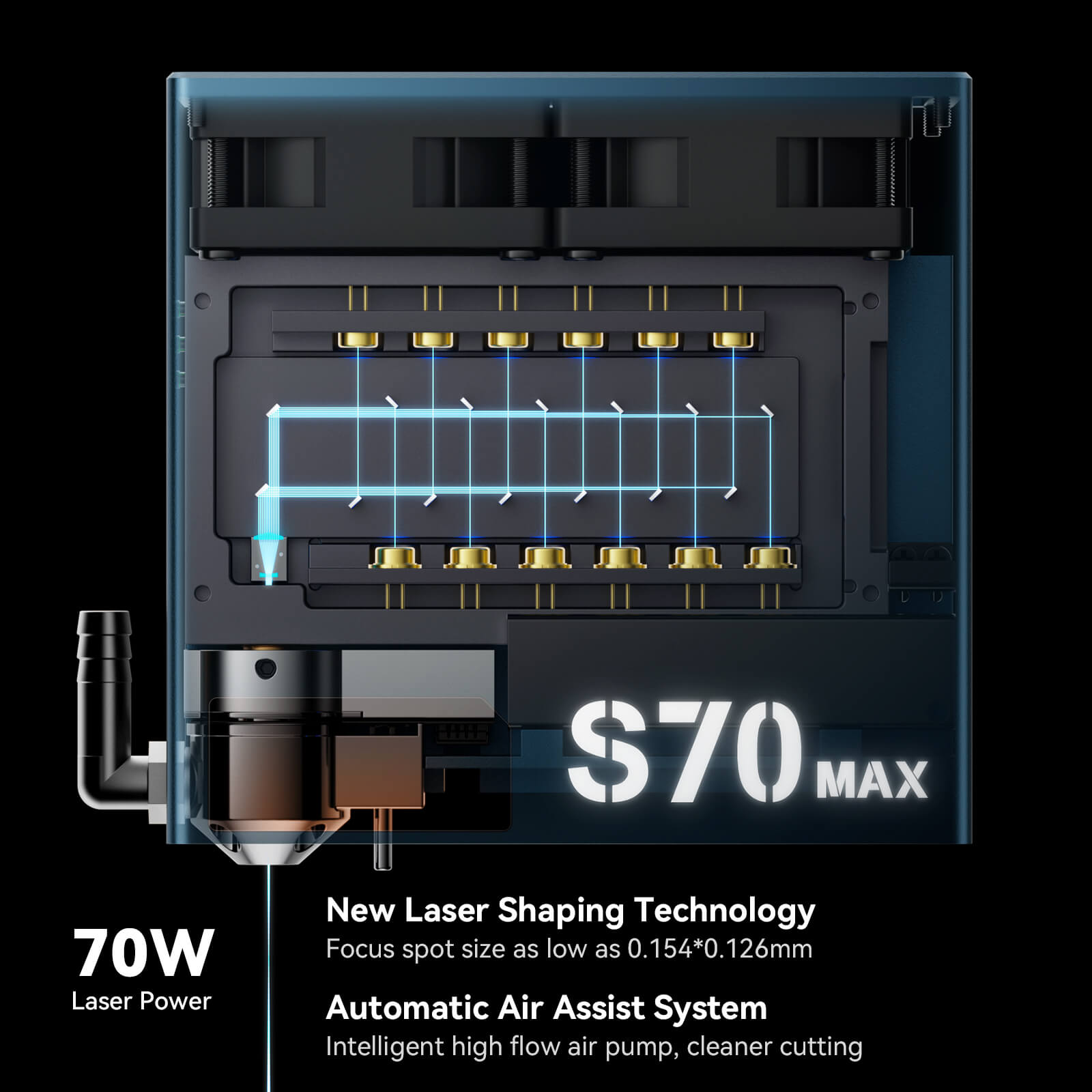

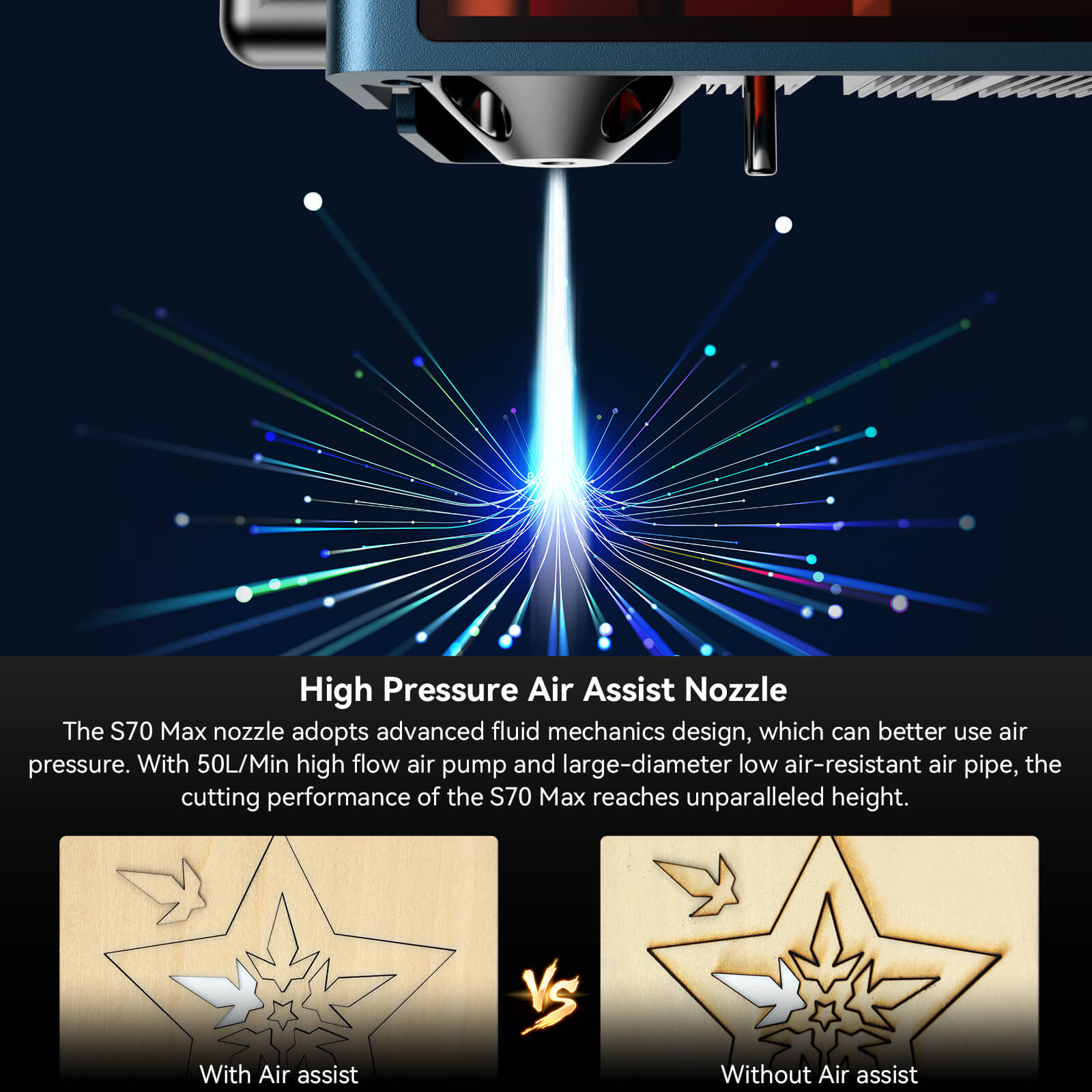

The S70 Max is a professional laser cutter with twelve 6 W semiconductor lasers, which together achieve a maximum chip power of up to 72 W. Combined with the included 50 L high-performance air pump at 100% power, it can cut, for example, 20 mm plywood, 30 mm paulownia wood, and 10 mm black acrylic in a single pass.

3. Strong cutting performance

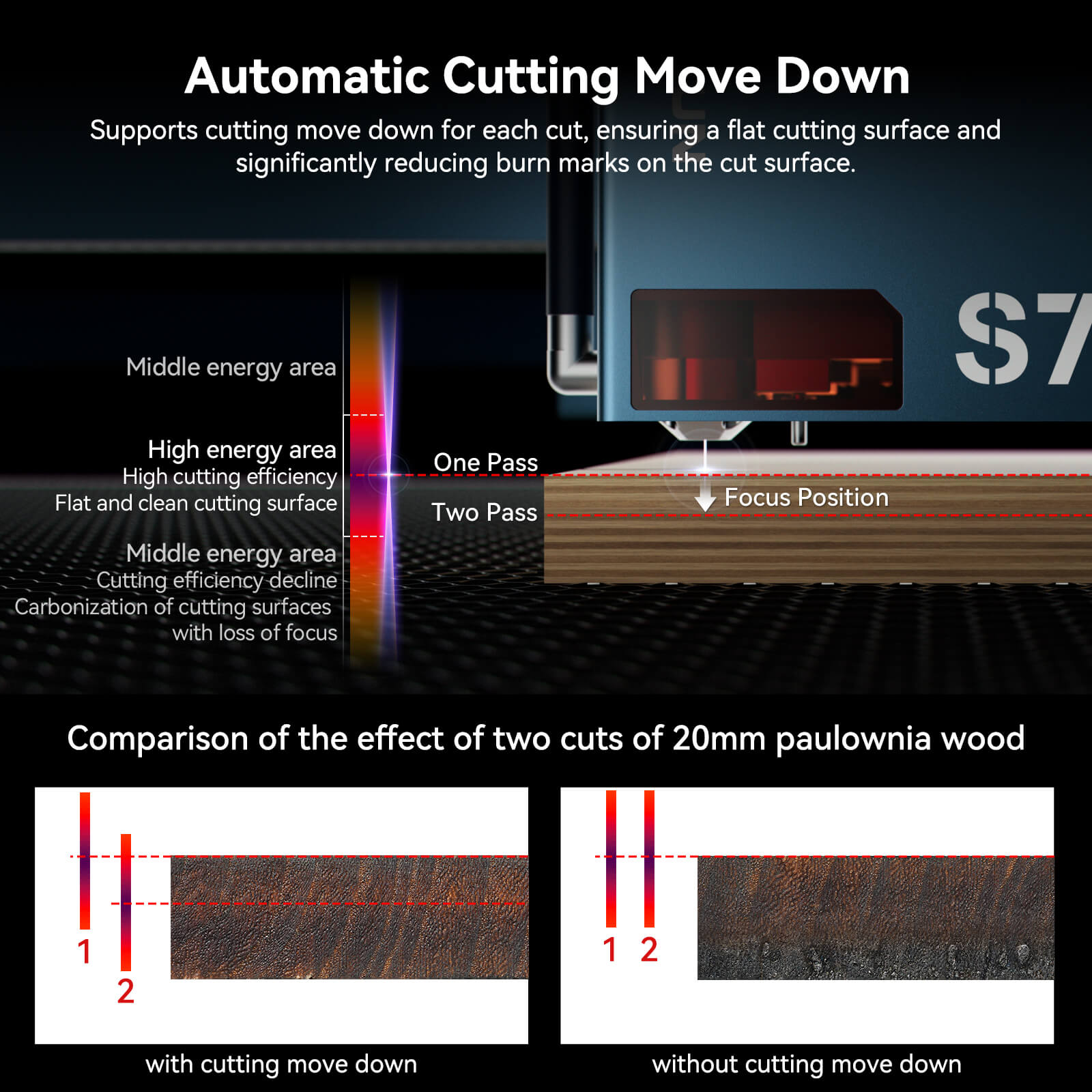

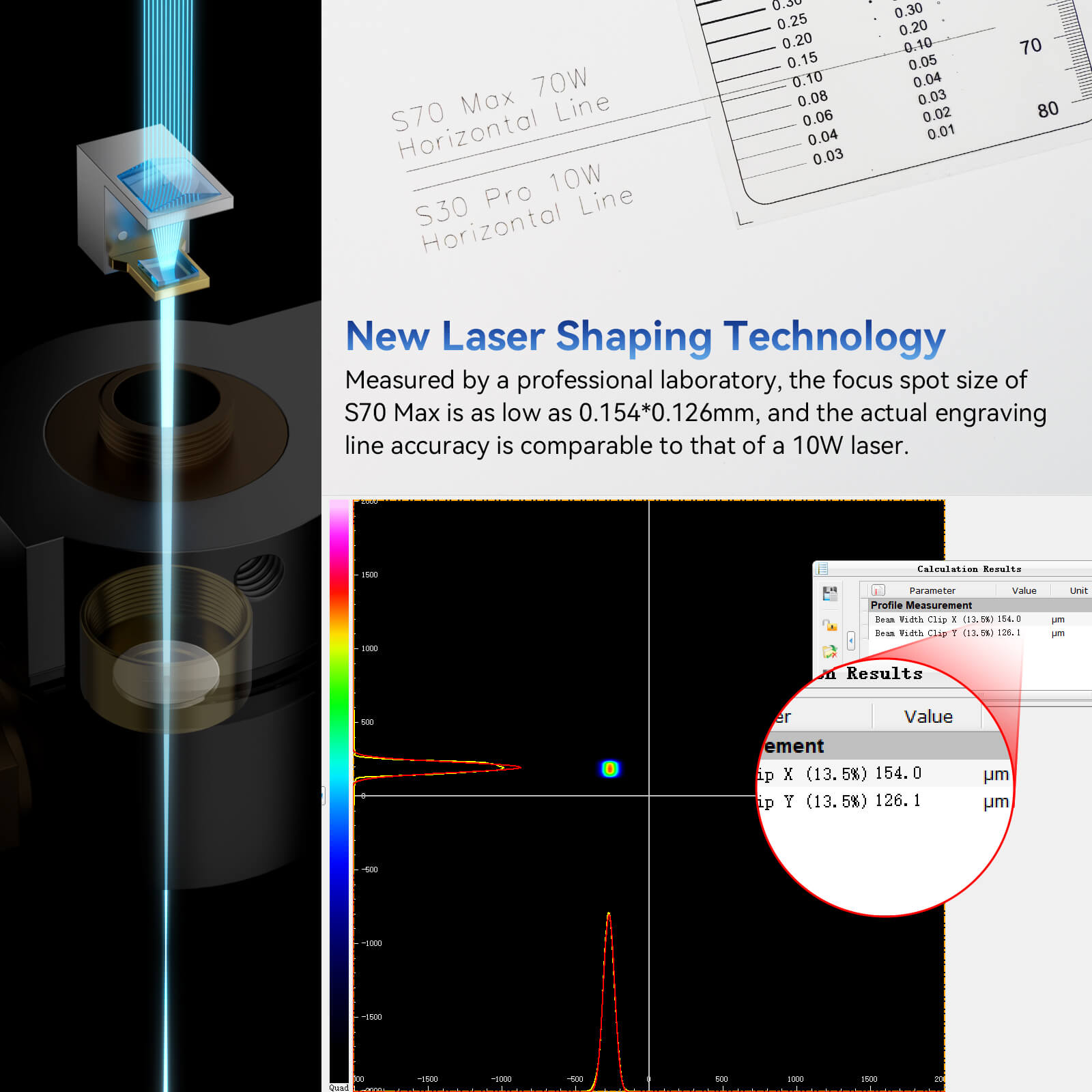

Thanks to state-of-the-art fiber optic spot compression technology, the laser produces an extremely fine spot of 0.15 × 0.12 mm. Z-axis offset is supported in the LightBurn software, as is a downdraft feature for each cut to ensure a uniform cut surface and significantly reduced gunk residue.

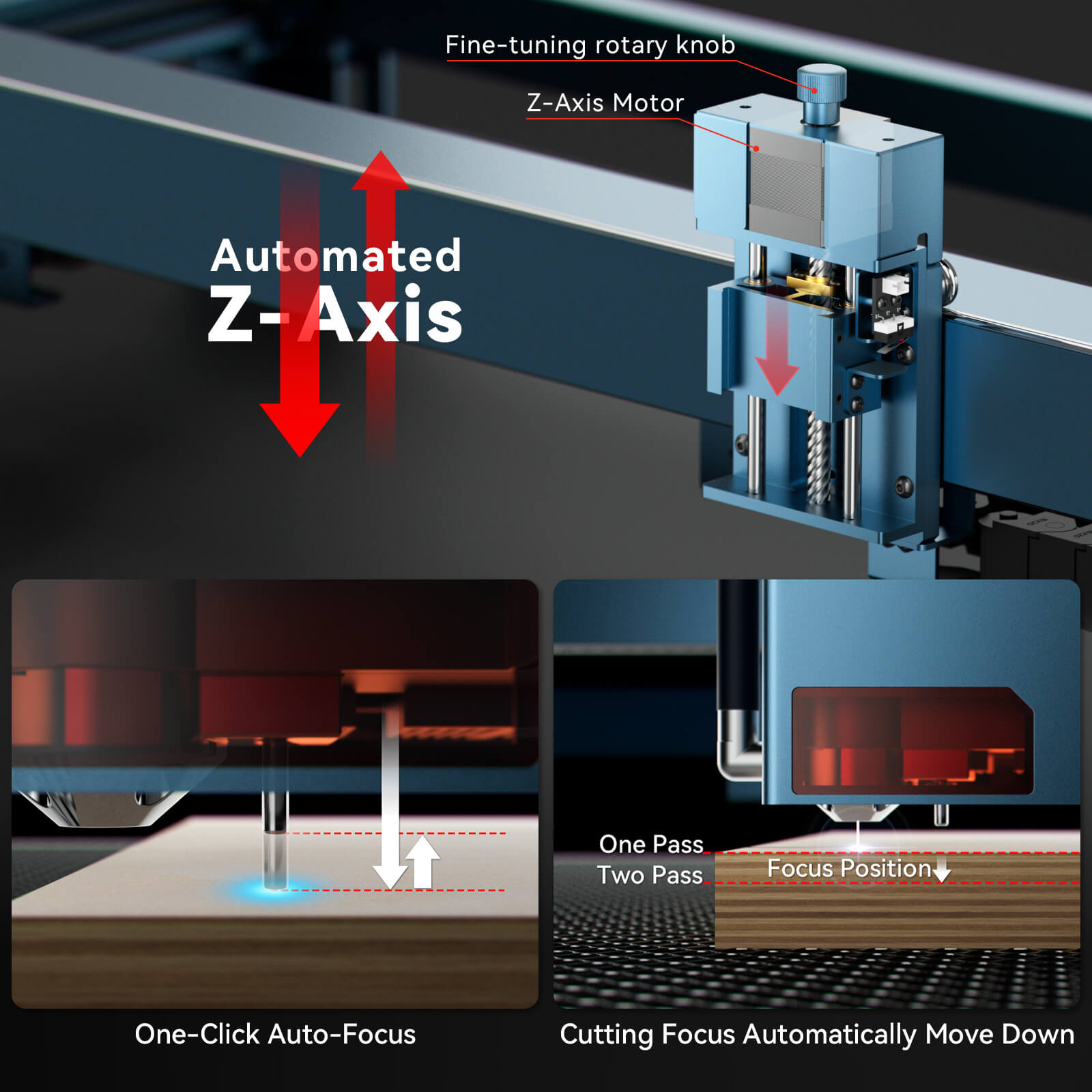

4. Autofocus function

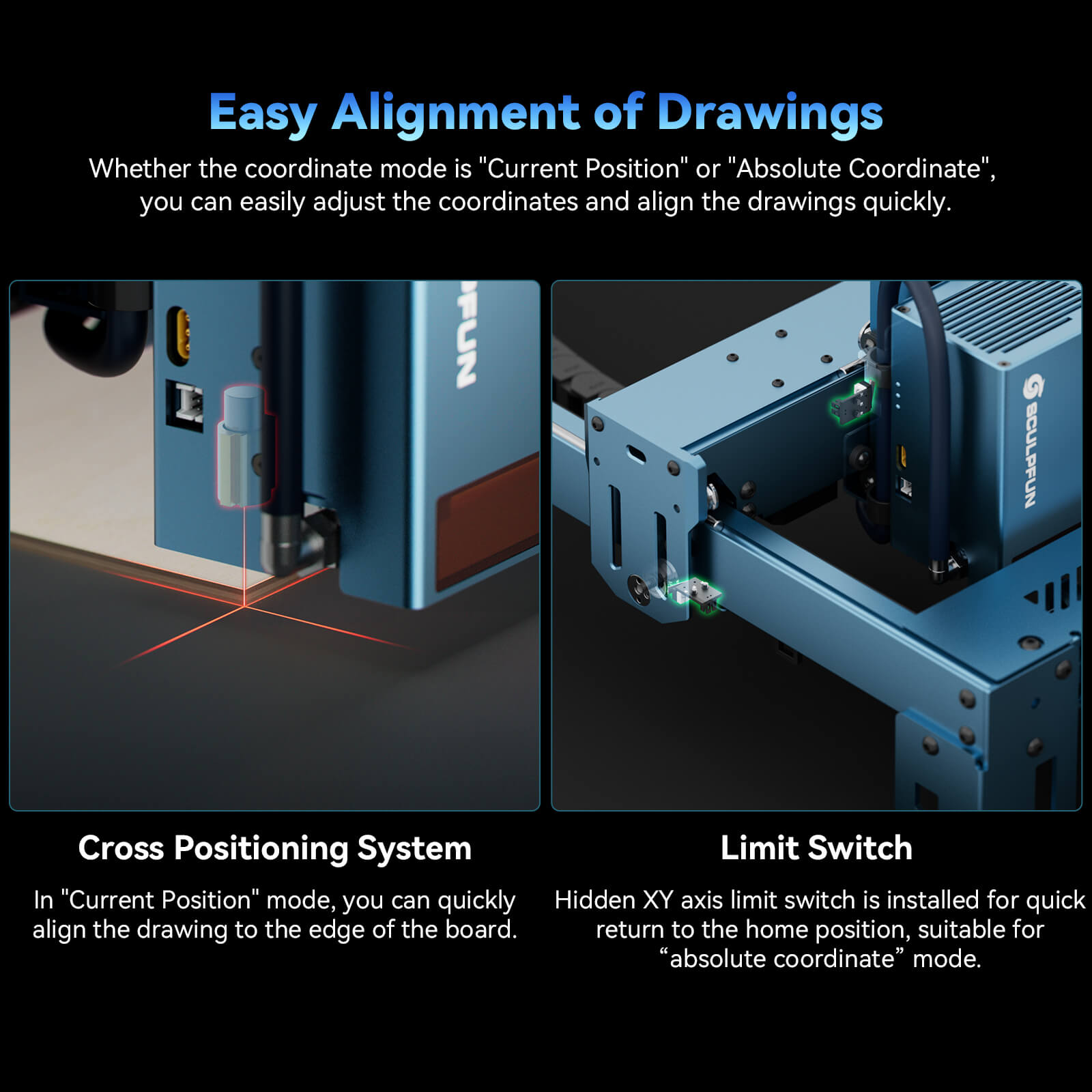

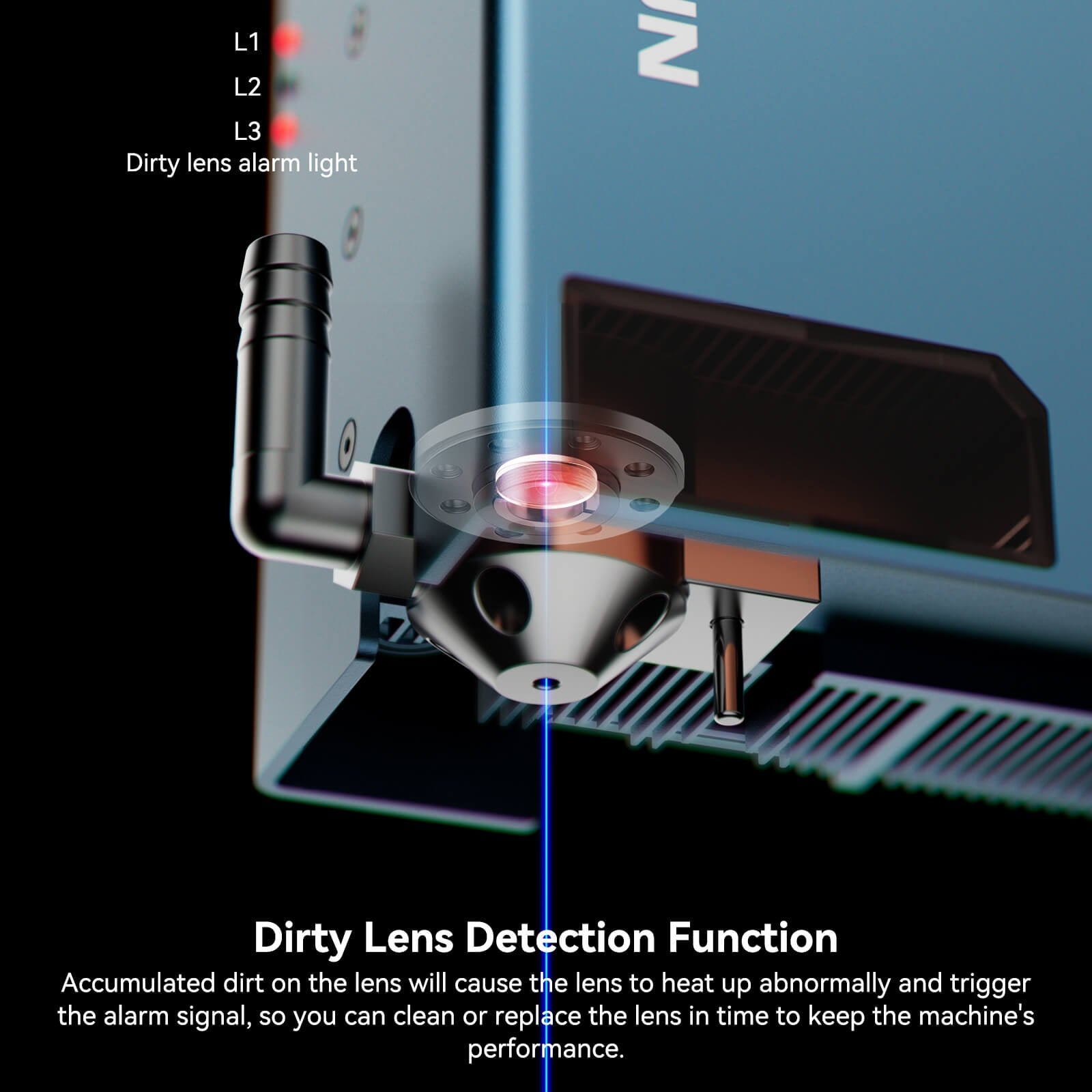

The S70 Max is equipped with an autofocus button that automatically starts and stops the focusing process. Combined with the integrated cross-positioning system, this significantly increases setup efficiency. The laser also detects dirty lenses and prompts you to replace them in a timely manner to maintain performance.

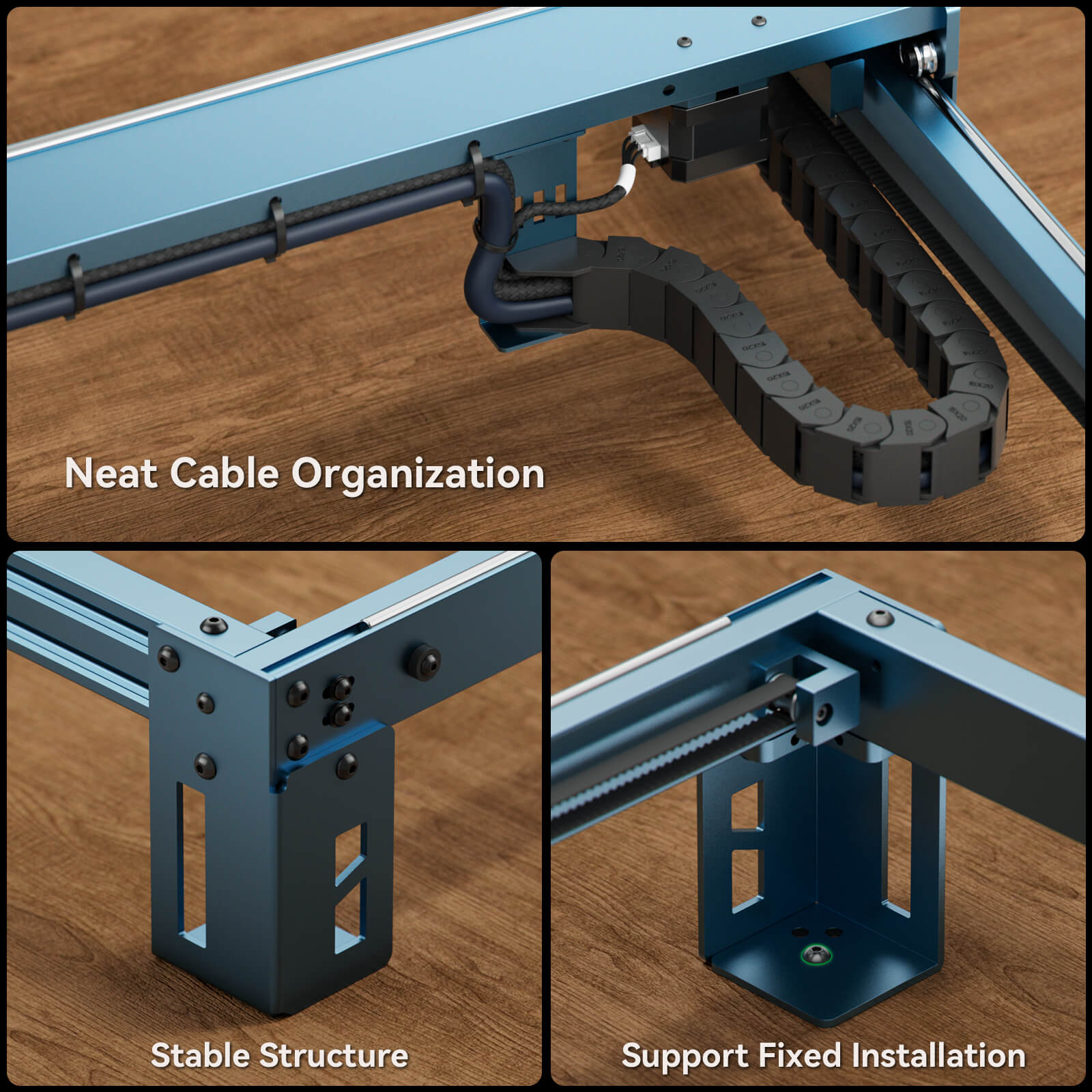

5. Stable construction

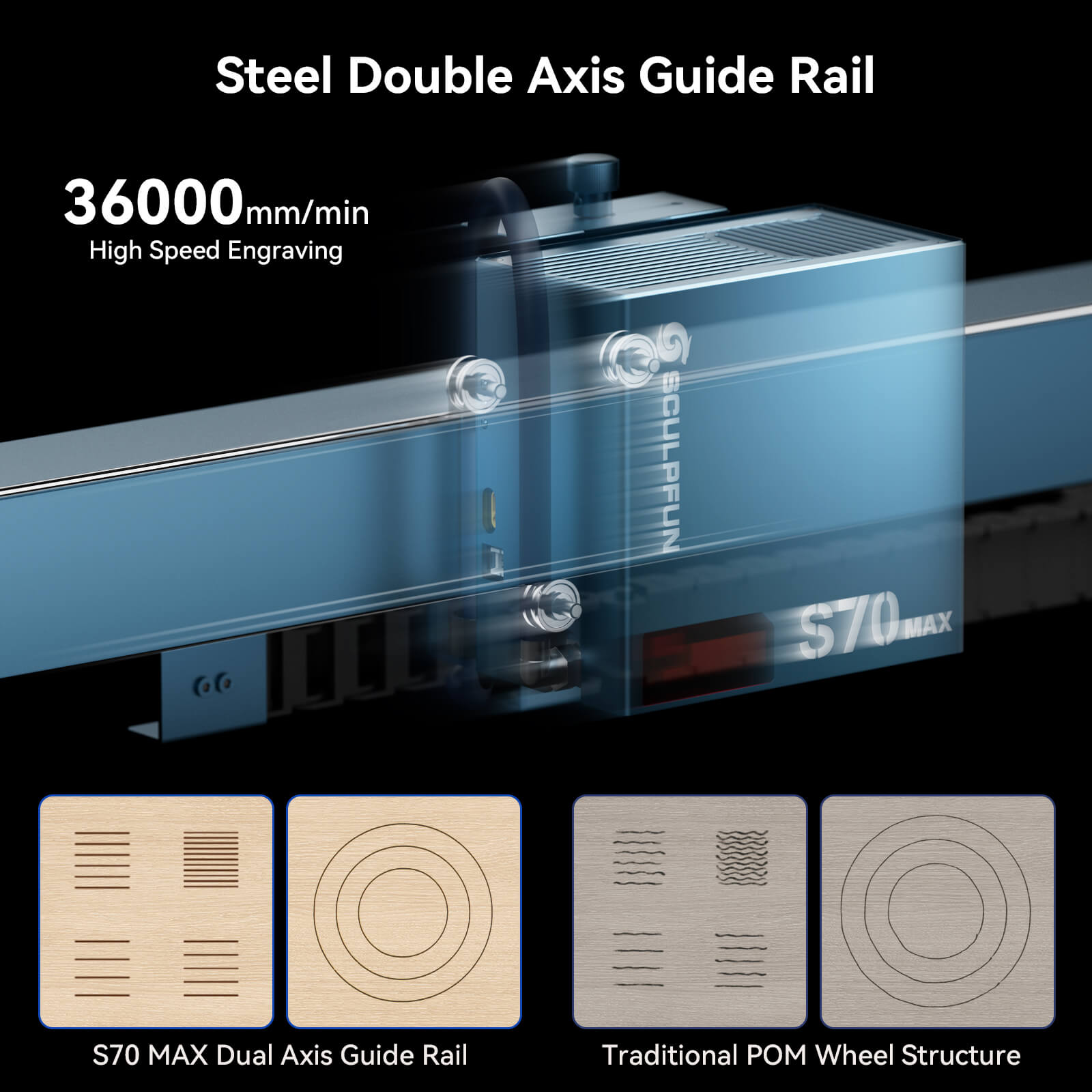

The machine stands on four feet with mounting holes and uses a new three-axis triple roller system. This ensures smooth, fast operation with low noise levels – even during intensive use.

6. Offline operation

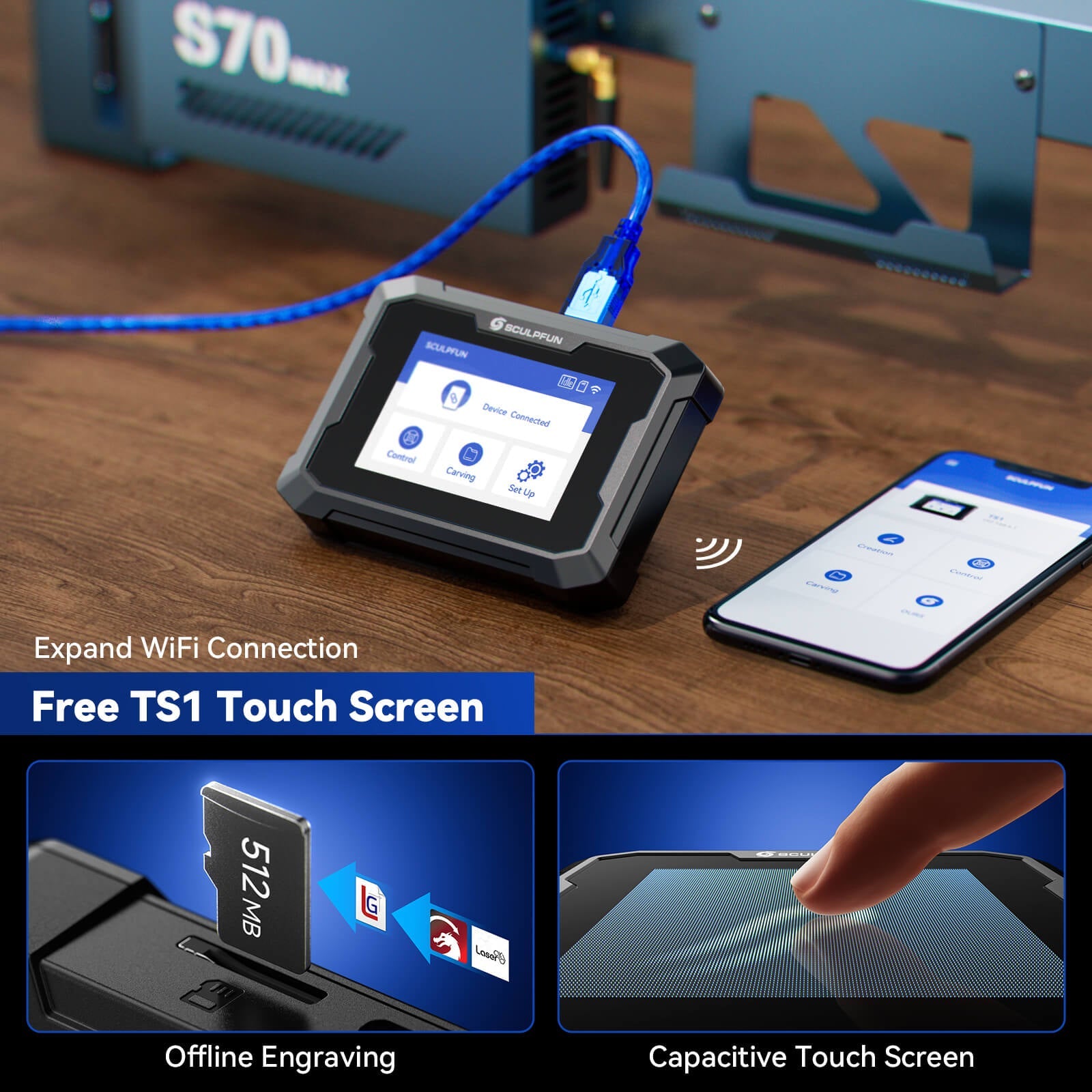

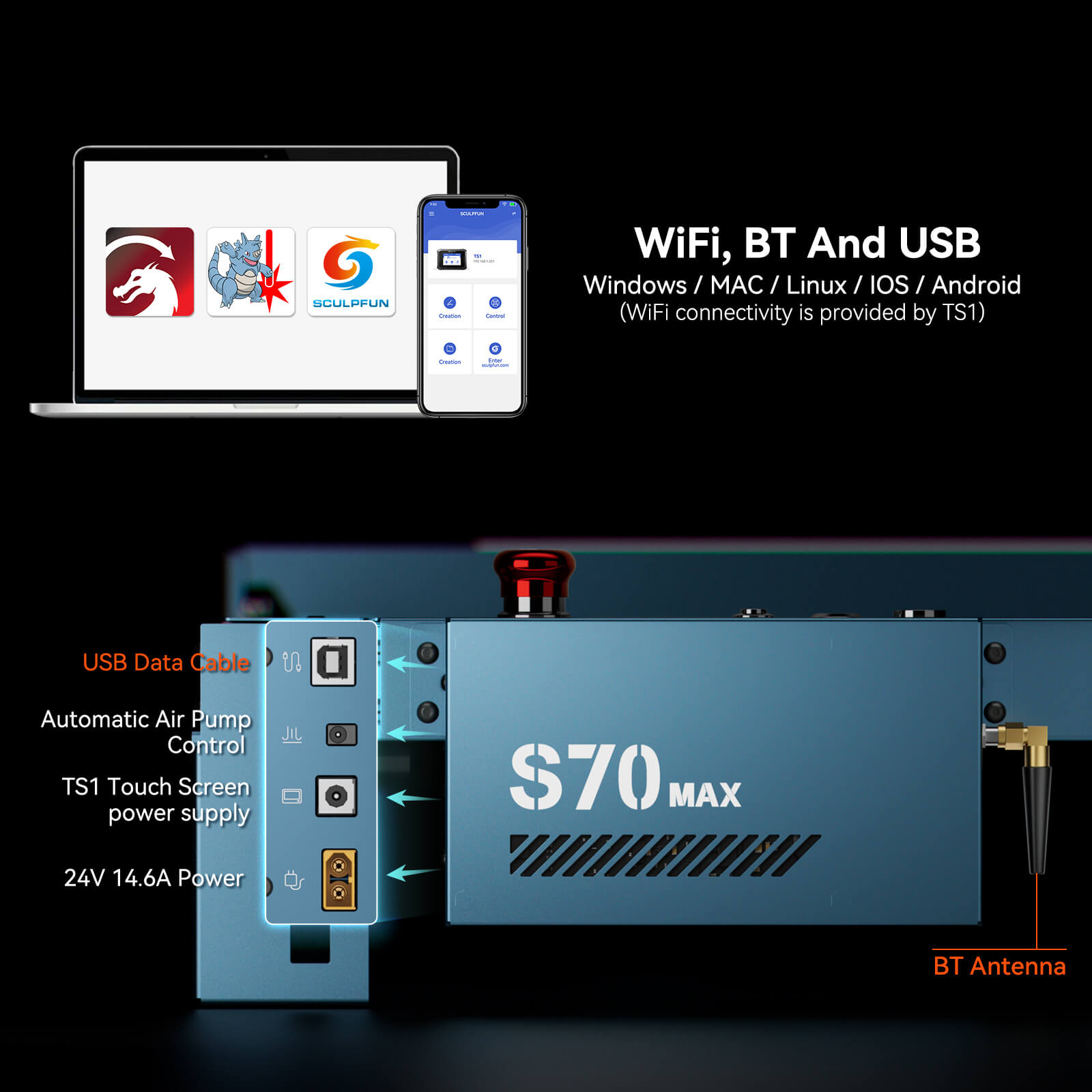

The S70 Max features a TS1 touchscreen for offline operation. After pre-importing files, no computer is required. The TS1's integrated Wi-Fi allows the machine to connect to the Sculpfun app, allowing preparation to be completed directly from your smartphone.

7. Security features

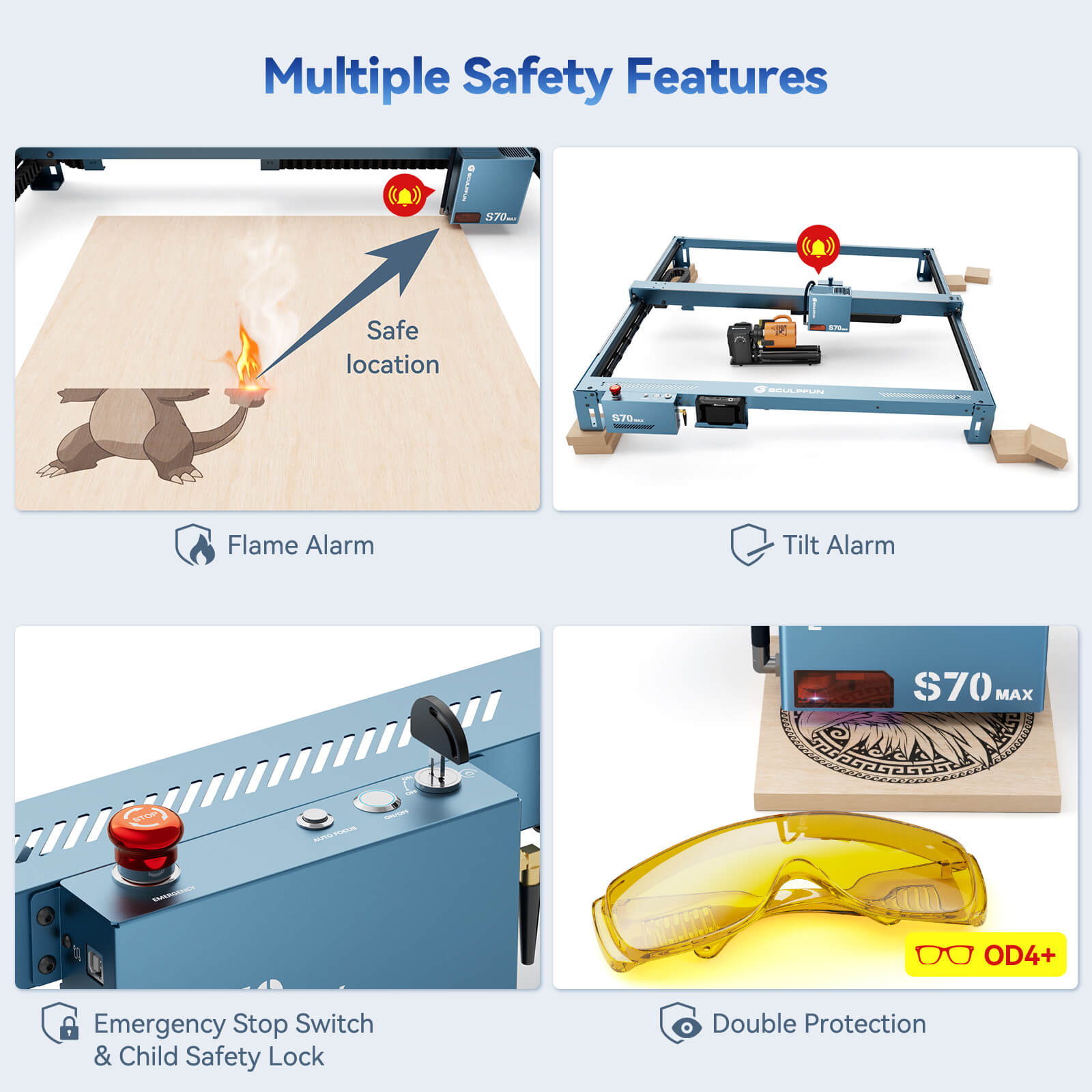

Several integrated sensors provide comprehensive protection: tilt detection, flame sensor, emergency stop switch, safety lock and OD4+ certified safety goggles are standard equipment and ensure maximum user safety.

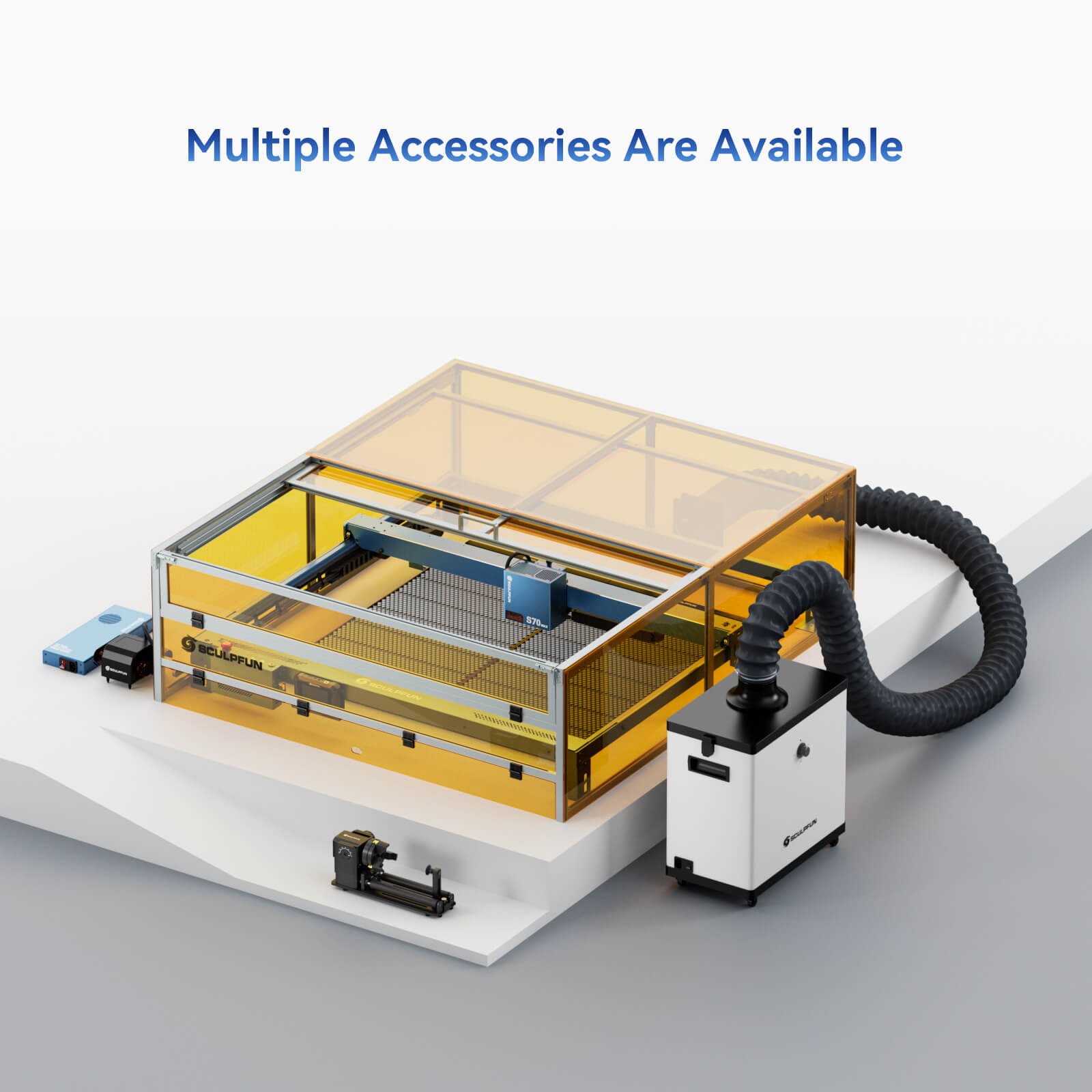

8. Compatibility with accessories

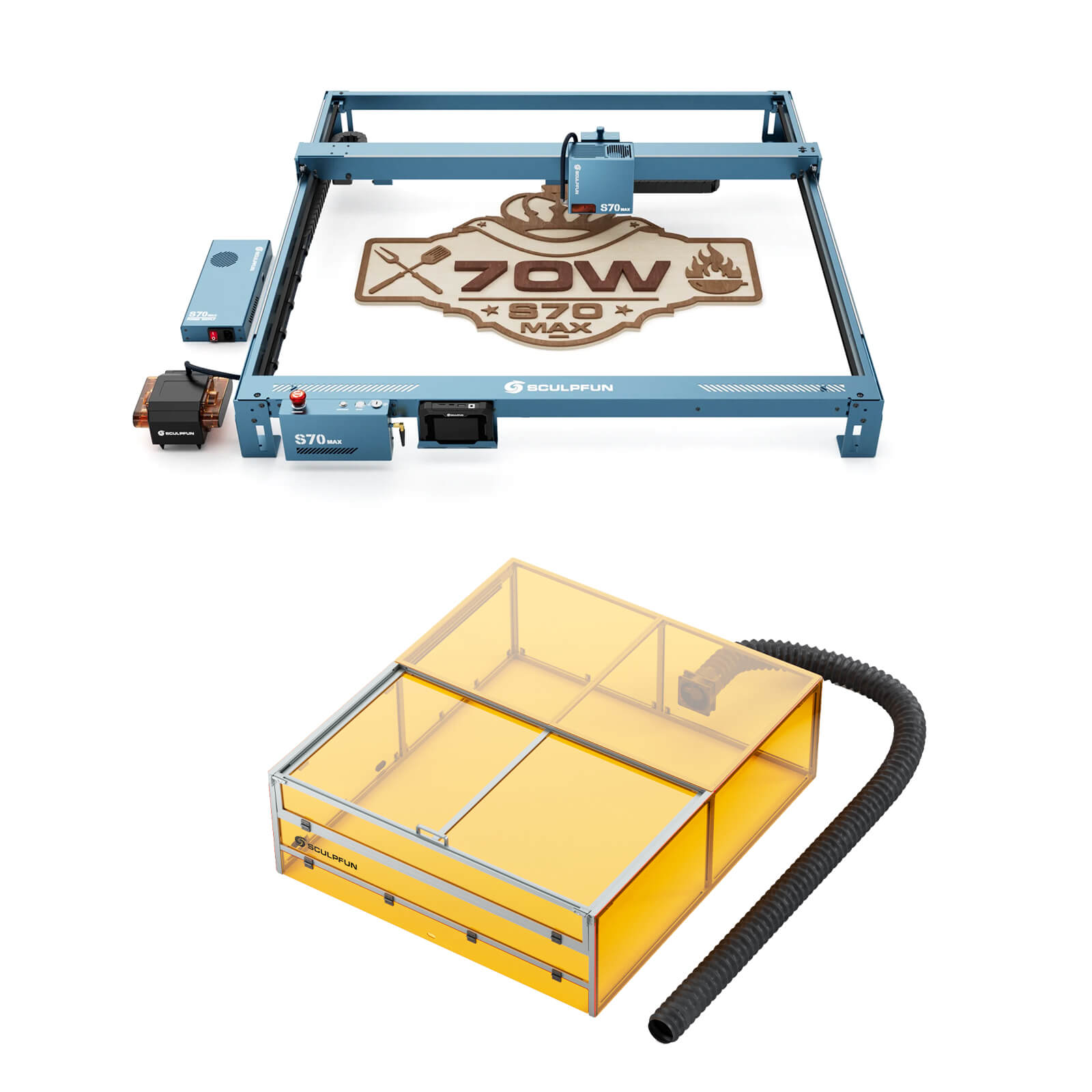

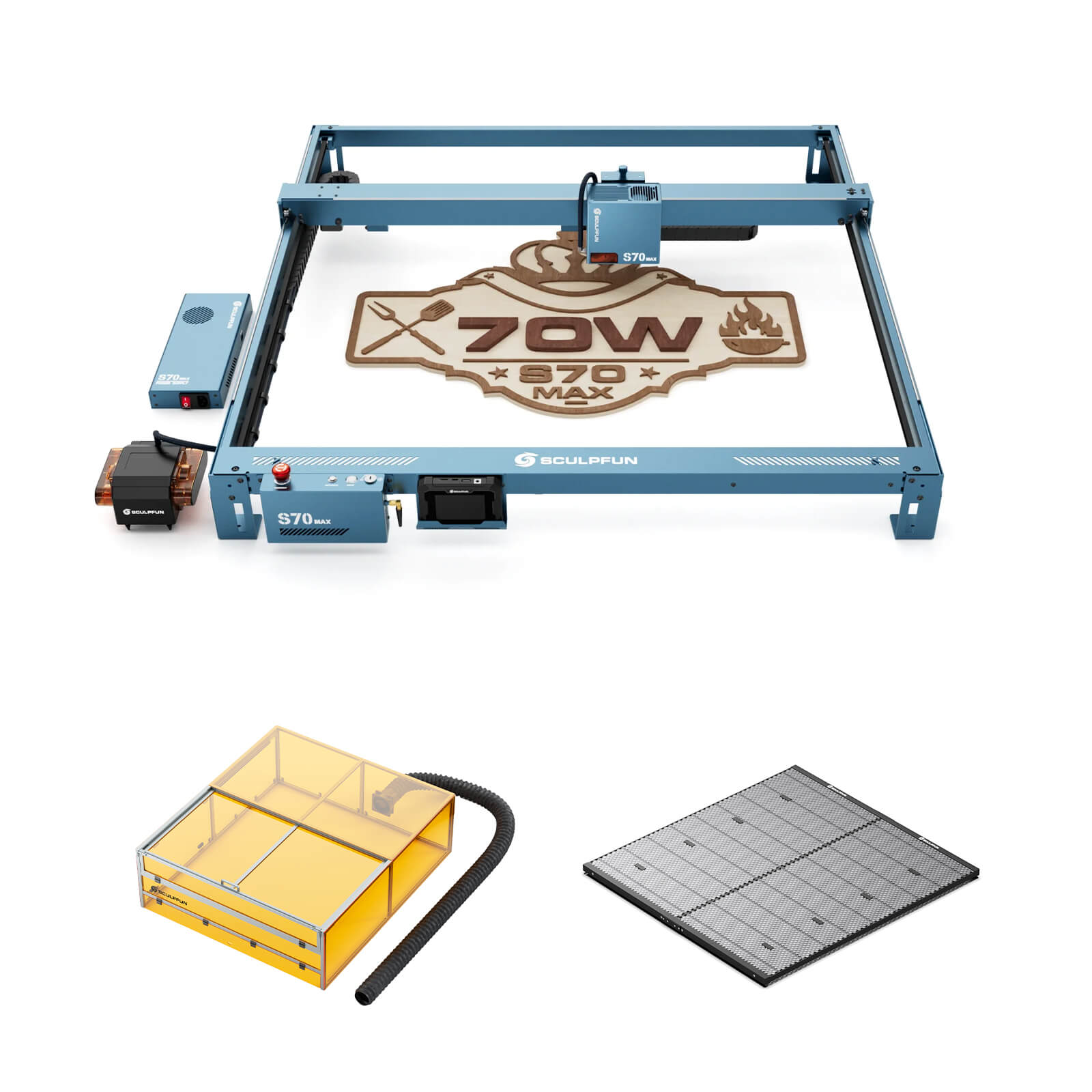

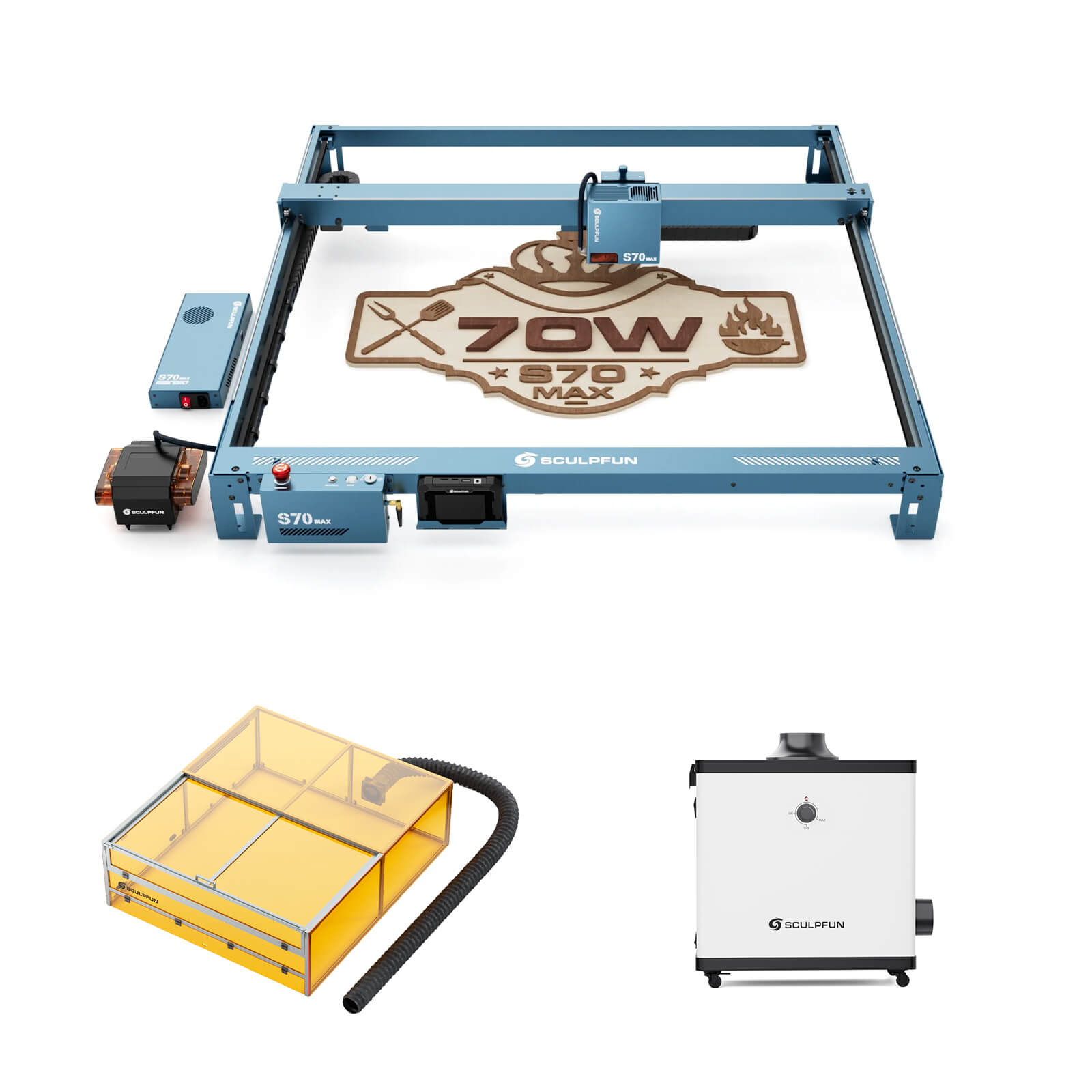

A wide range of accessories is available for the S70 Max. Optional accessories include the large 800 × 800 mm honeycomb base plate, the B70 housing, and the SP1 smoke filter to increase working comfort.

Note: Accessories must be purchased separately. The IR-2 laser head is not directly compatible with the S70 Max.

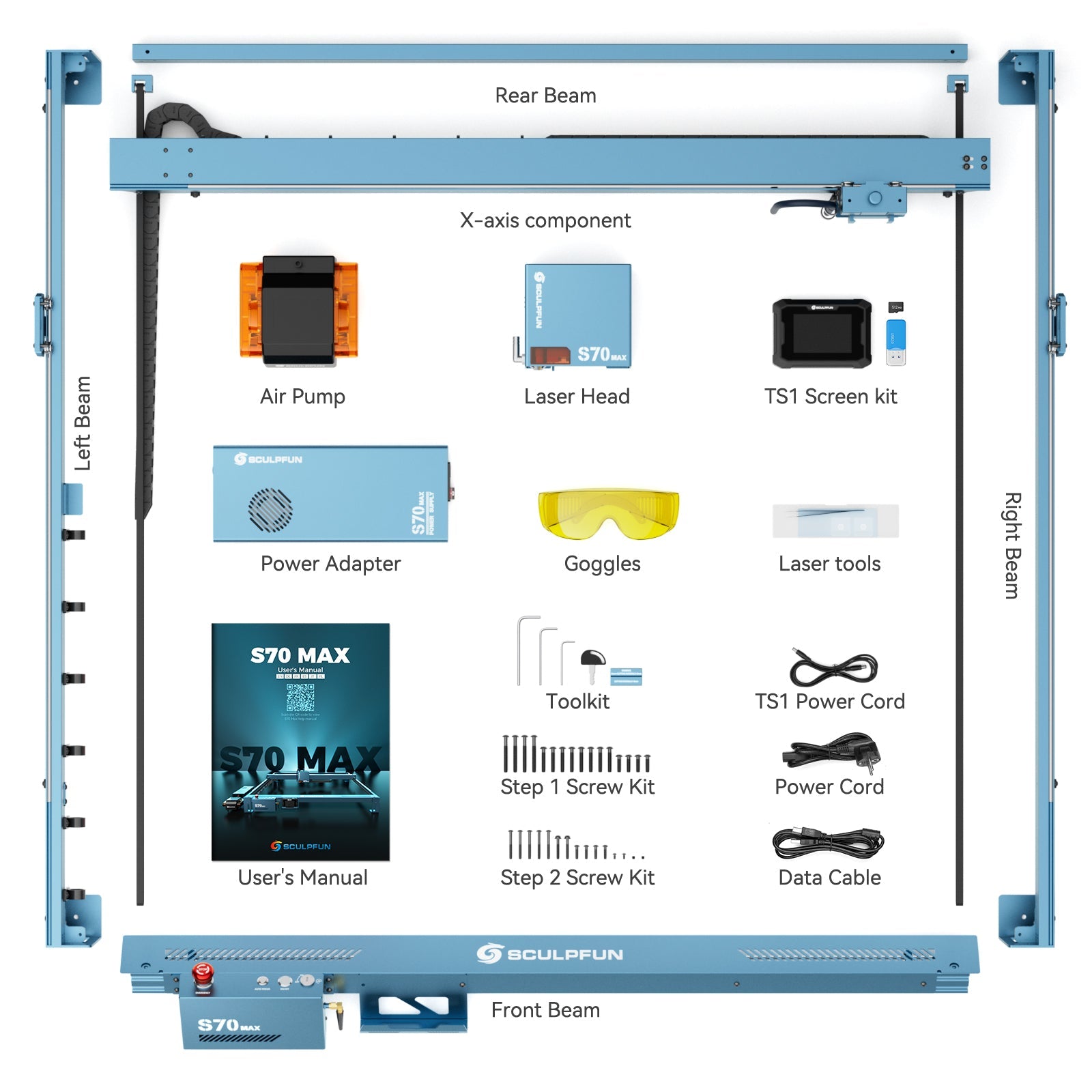

Scope of delivery:

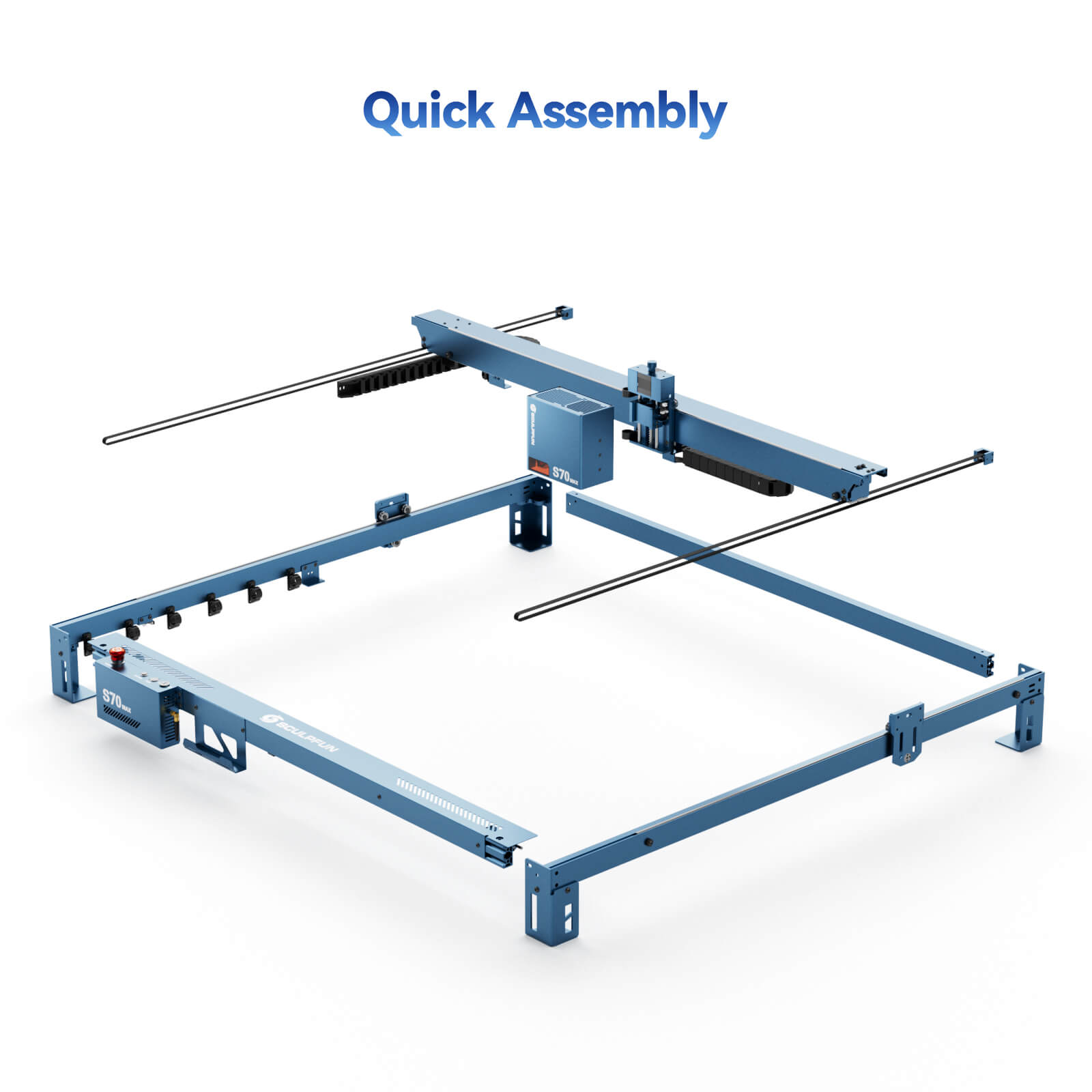

1× Sculpfun S70 MAX frame set (5 parts), 1× 70 W laser head, 1× laser accessory box, 1× TS1 touchscreen, 1× power adapter, 1× power cable, 1× TS1 adapter cable, 1× data cable, 1× air pump, 1× fixed focus column, 1× screw set, 1× tool kit, 1× laser safety goggles, 1× user manual
