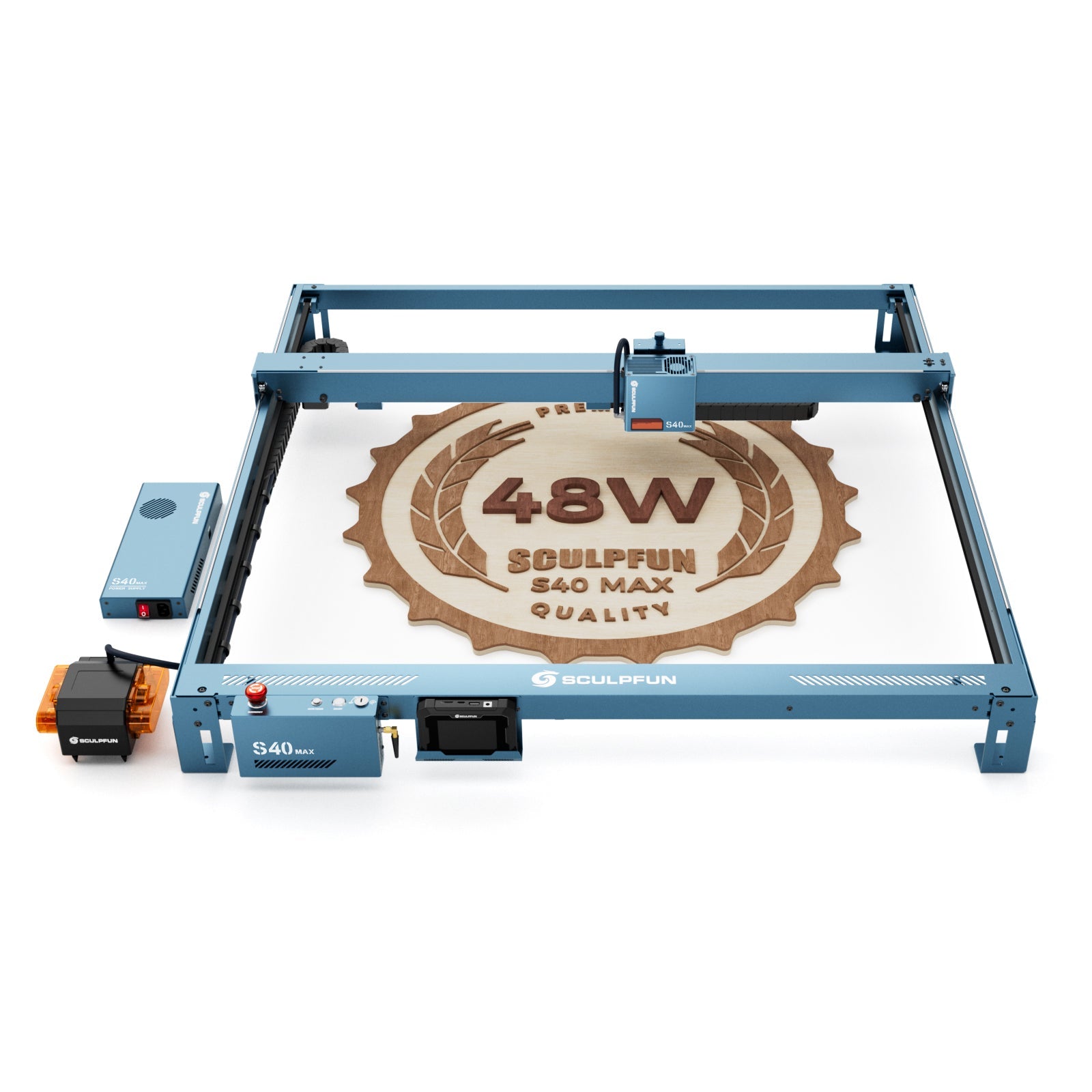

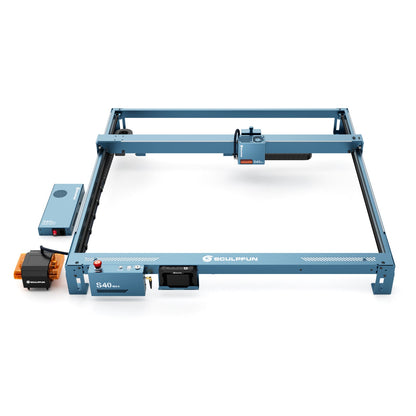

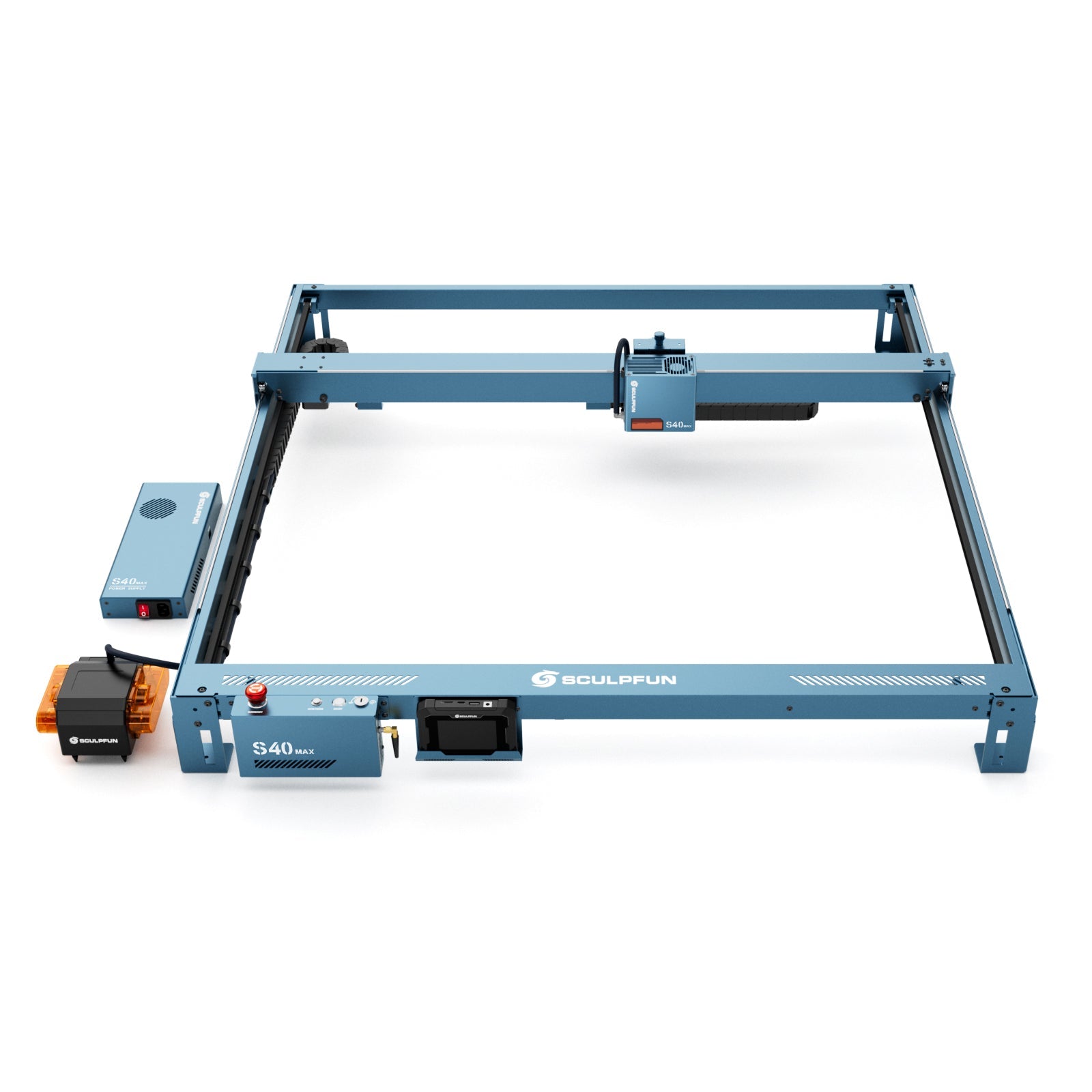

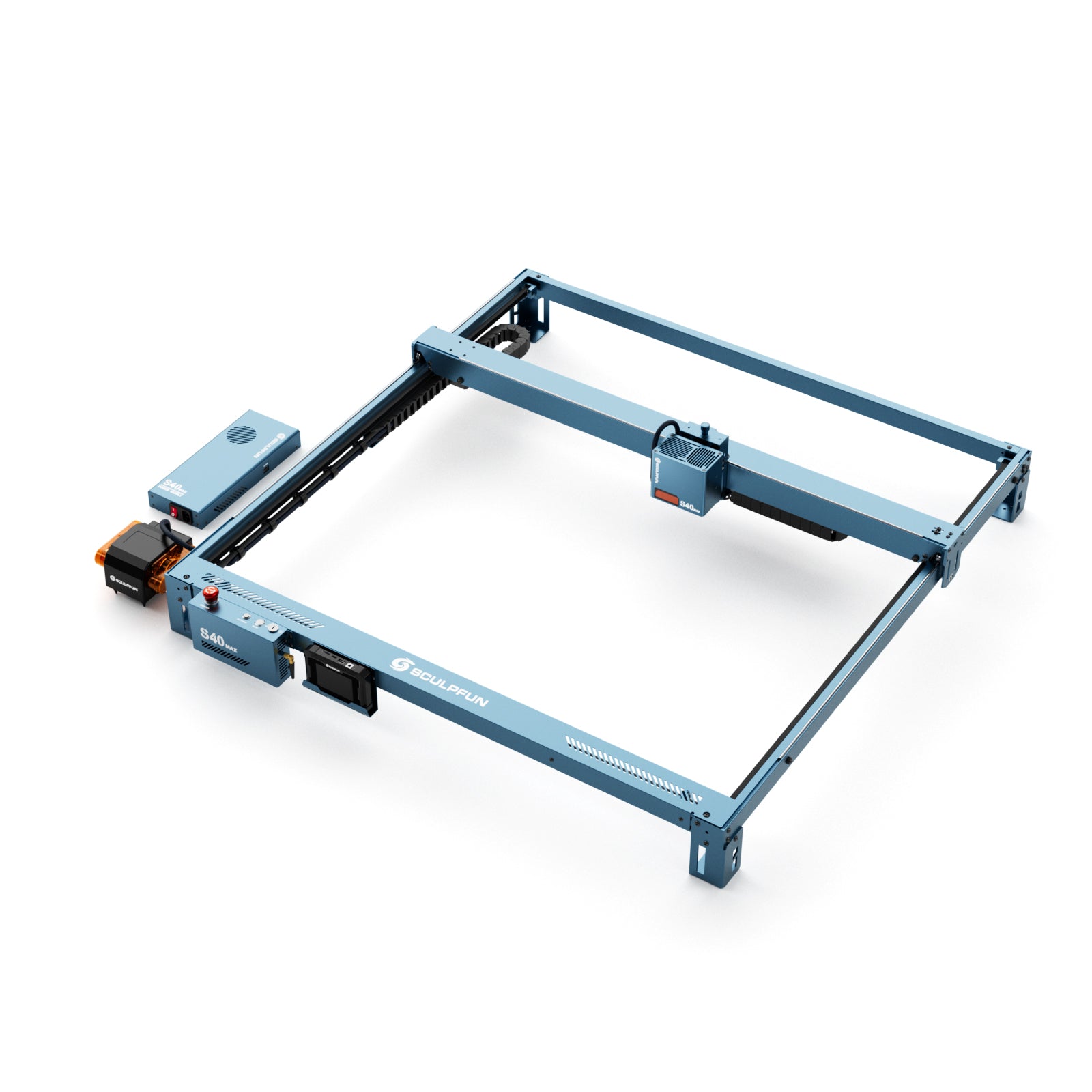

Sculpfun S40 MAX - 48W laser engraver

Main features:

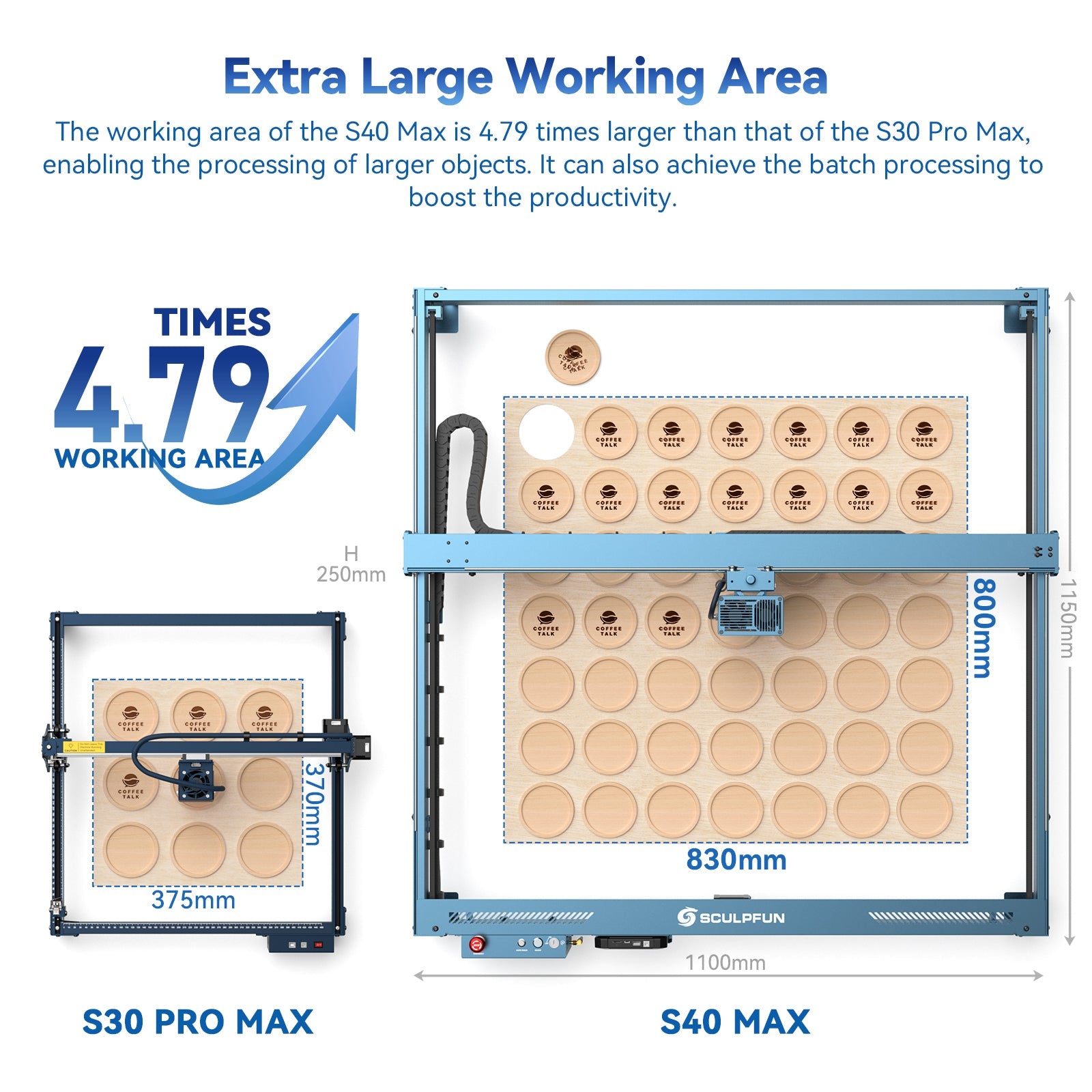

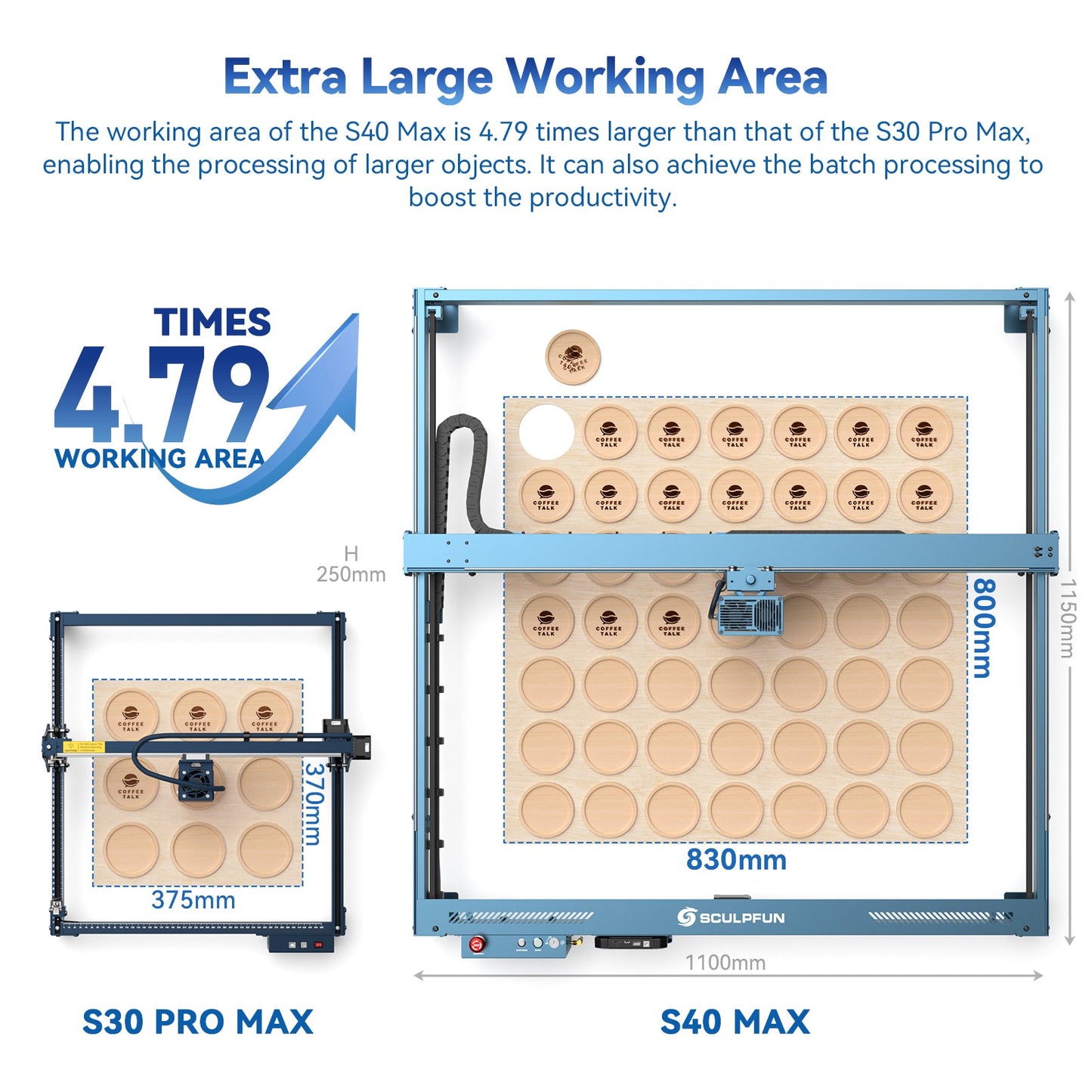

1. 830 × 800 mm extra large working area
With a footprint of 980 × 1000 mm, the Sculpfun S40 MAX is ideal for particularly large materials. The generous work area of ​​830 × 800 mm allows for processing large objects and meets a wide range of requirements. The maximum marking speed is up to 36,000 mm/min – ideal for large-area cutting and serial engraving in workshops, for hobbyists, and professionals.

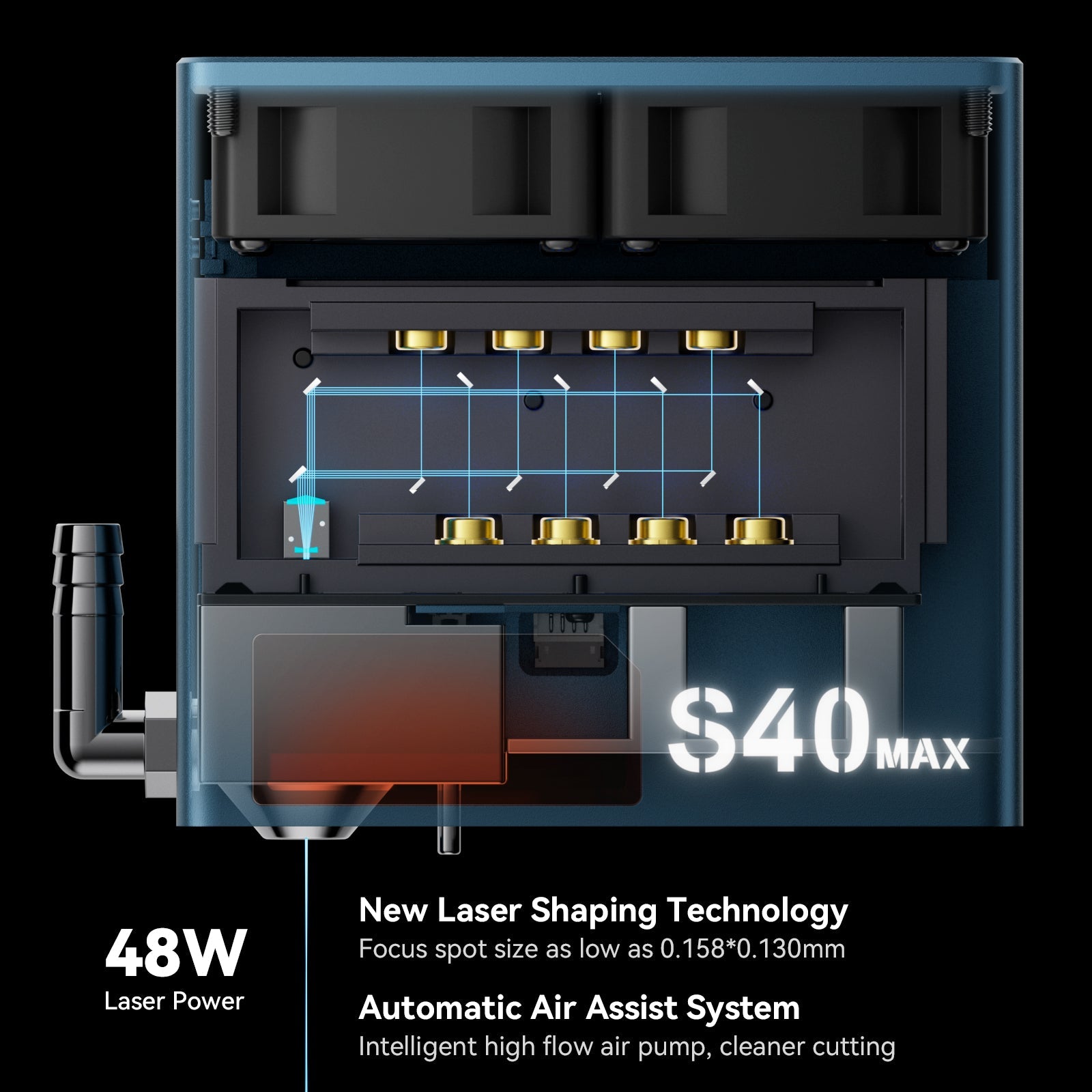

2. Ultra-strong 48 W laser

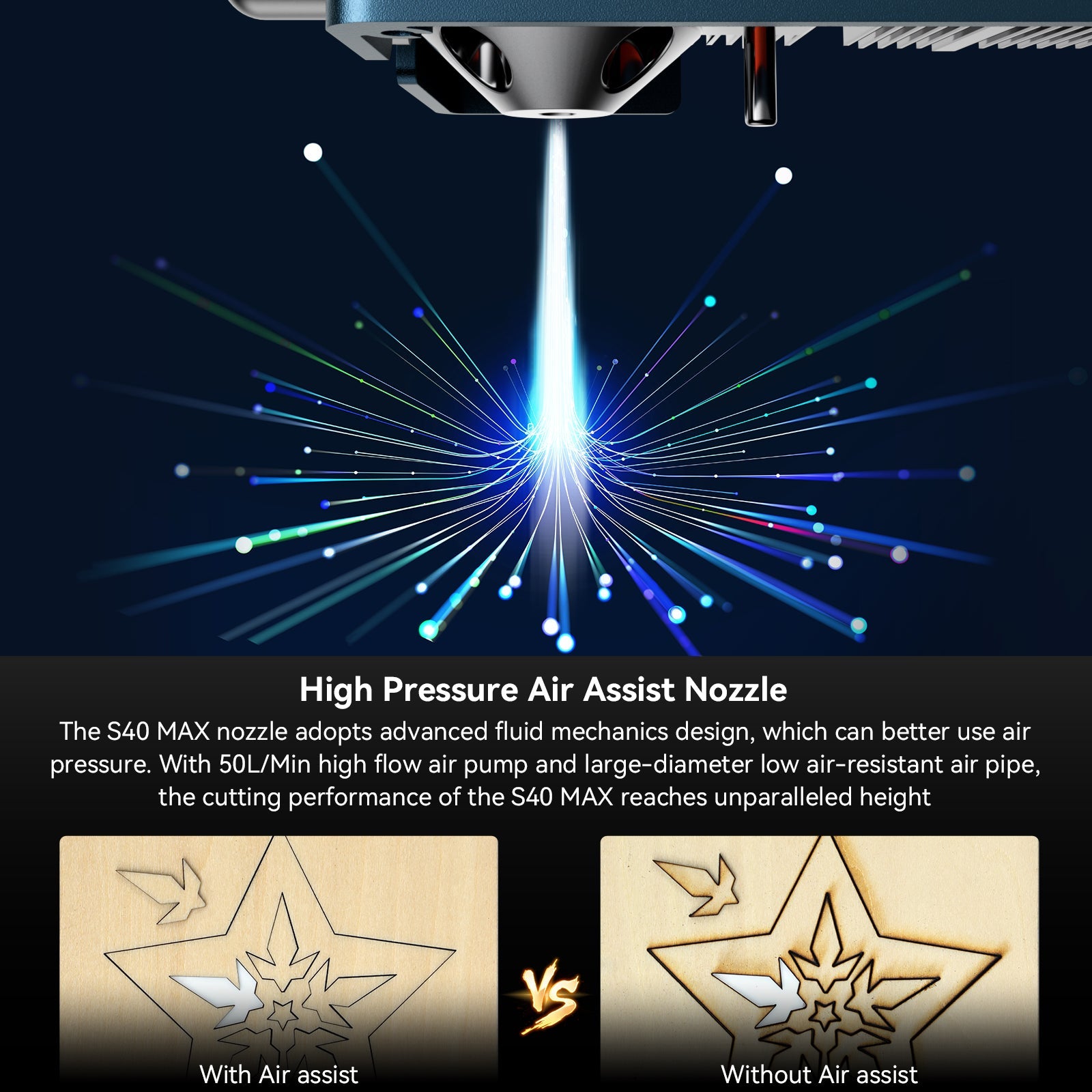

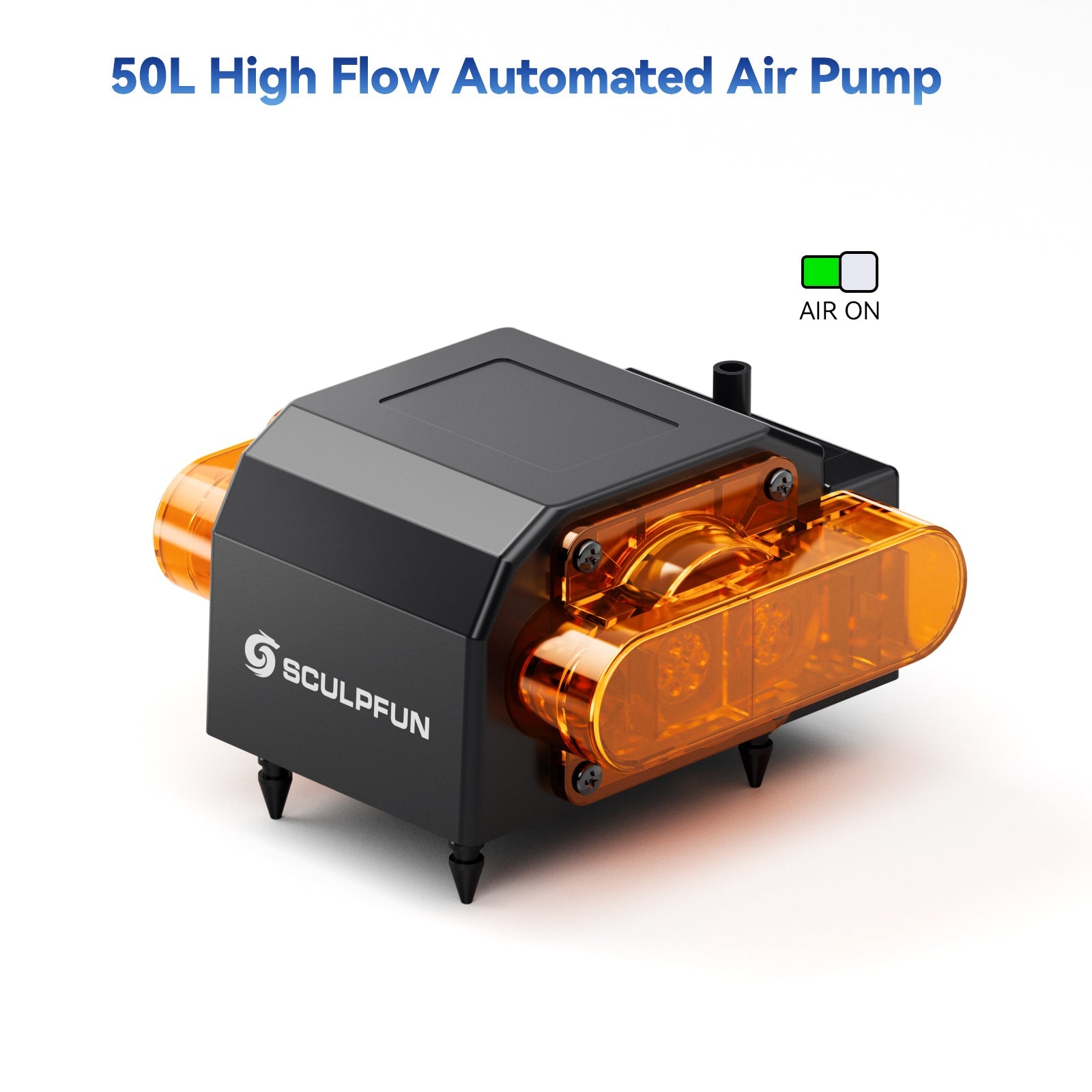

The S40 MAX uses twelve 6 W semiconductor laser diodes with a maximum chip power of up to 48 W. This high performance ensures maximum efficiency. At 100% power and with the included 50 L high-throughput air pump, it can cut 20 mm plywood or 6 mm dark acrylic in a single pass.

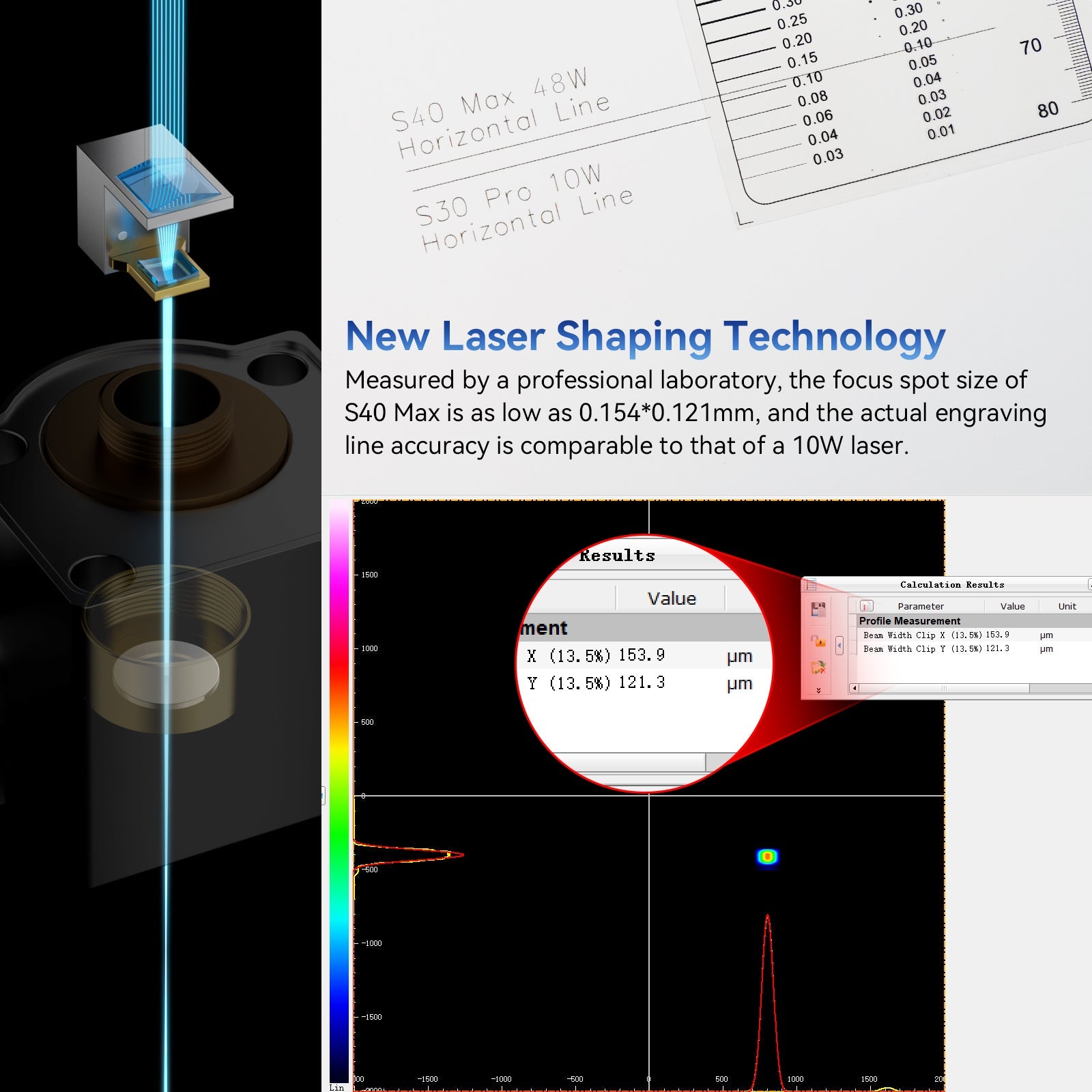

3. Strong cutting performance

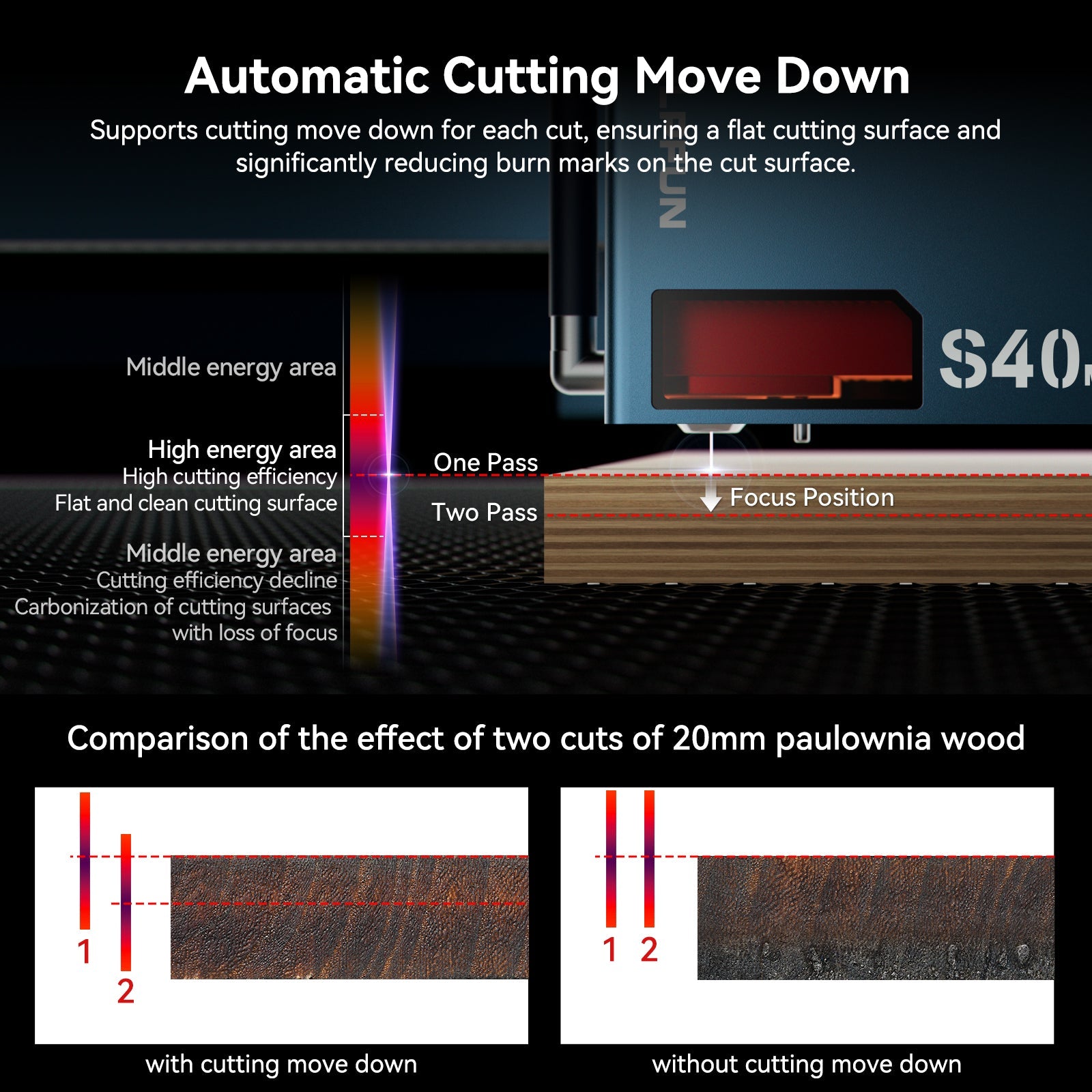

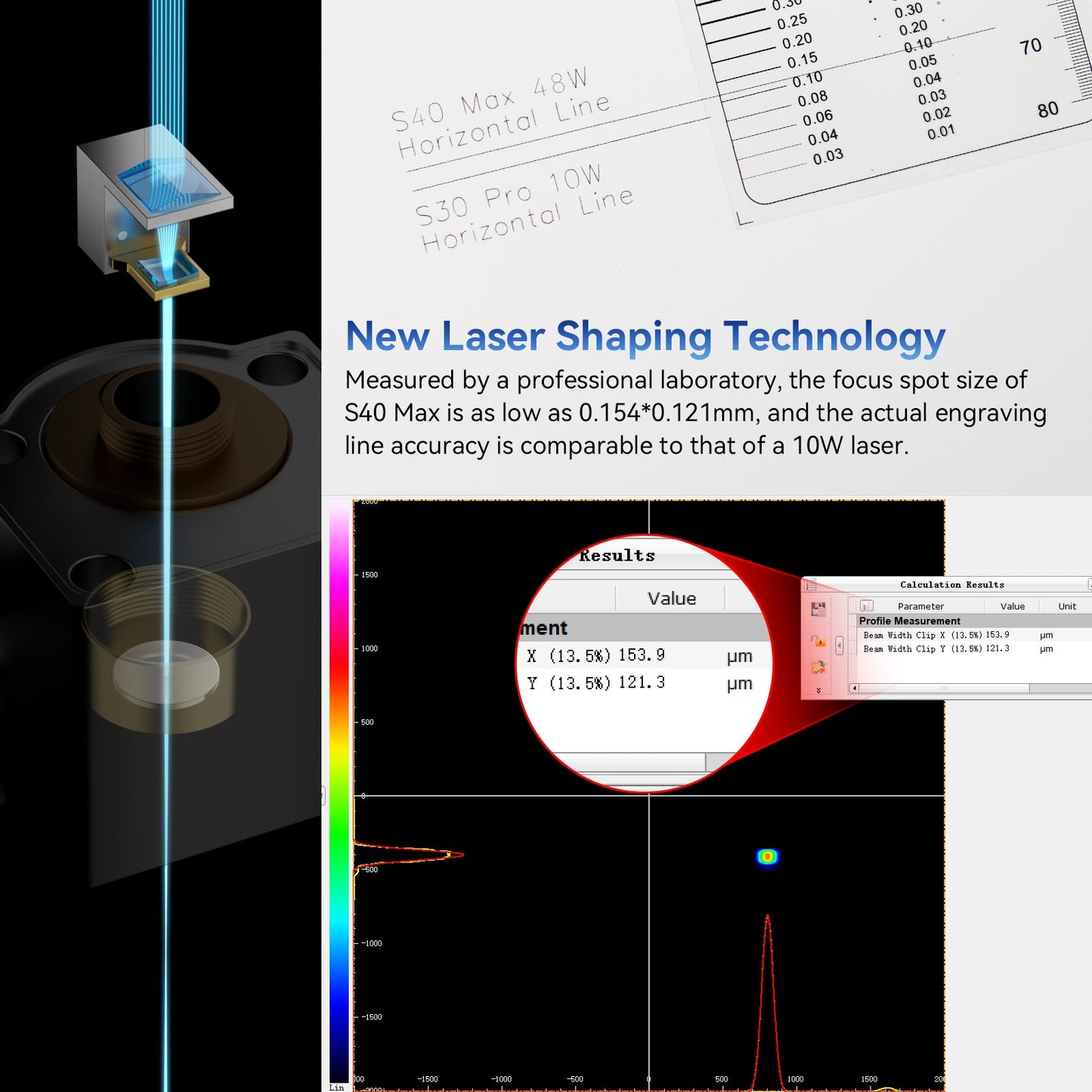

Thanks to modern fiber optic spot compression technology, the laser achieves an extremely fine spot size of 0.154 × 0.121 mm. The LightBurn software supports Z-axis offset and step-down cutting – for a flat cutting surface and significantly reduced gunshot residue.

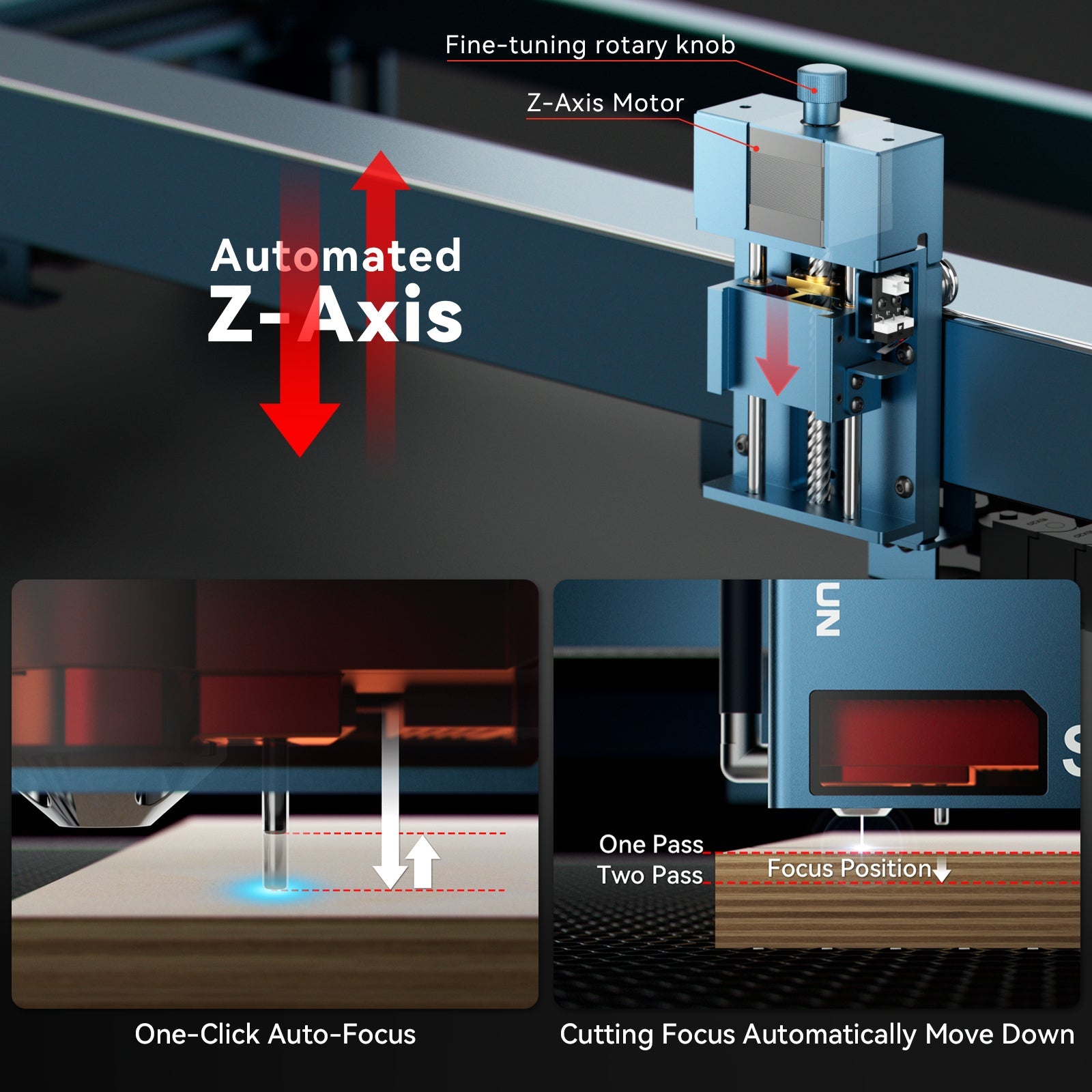

4. Autofocus function

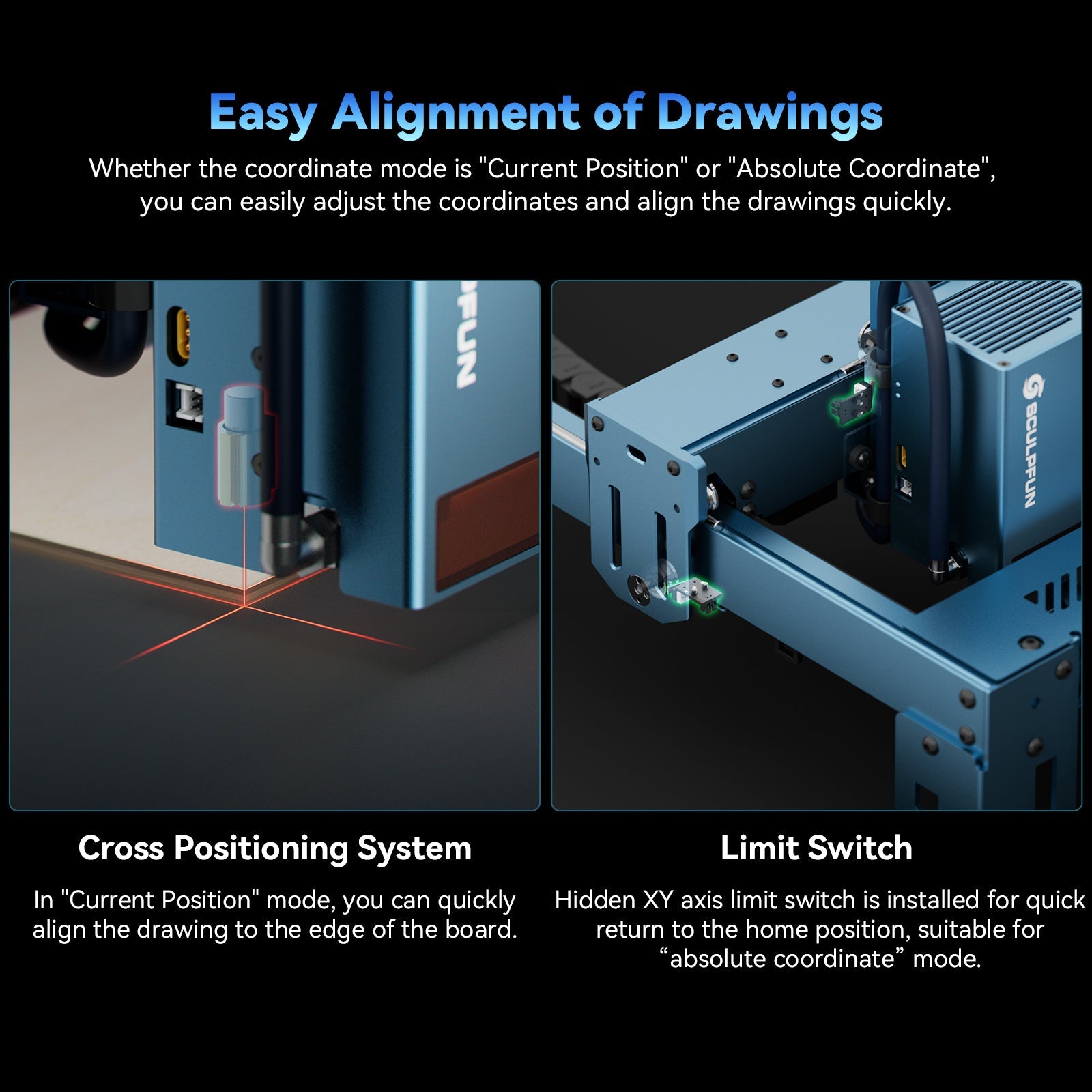

With just the push of a button, the S40 MAX automatically focuses. Combined with the integrated cross-positioning system, setup is significantly accelerated. The laser also features lens detection, which prompts replacement when it becomes dirty, to maintain consistently high performance.

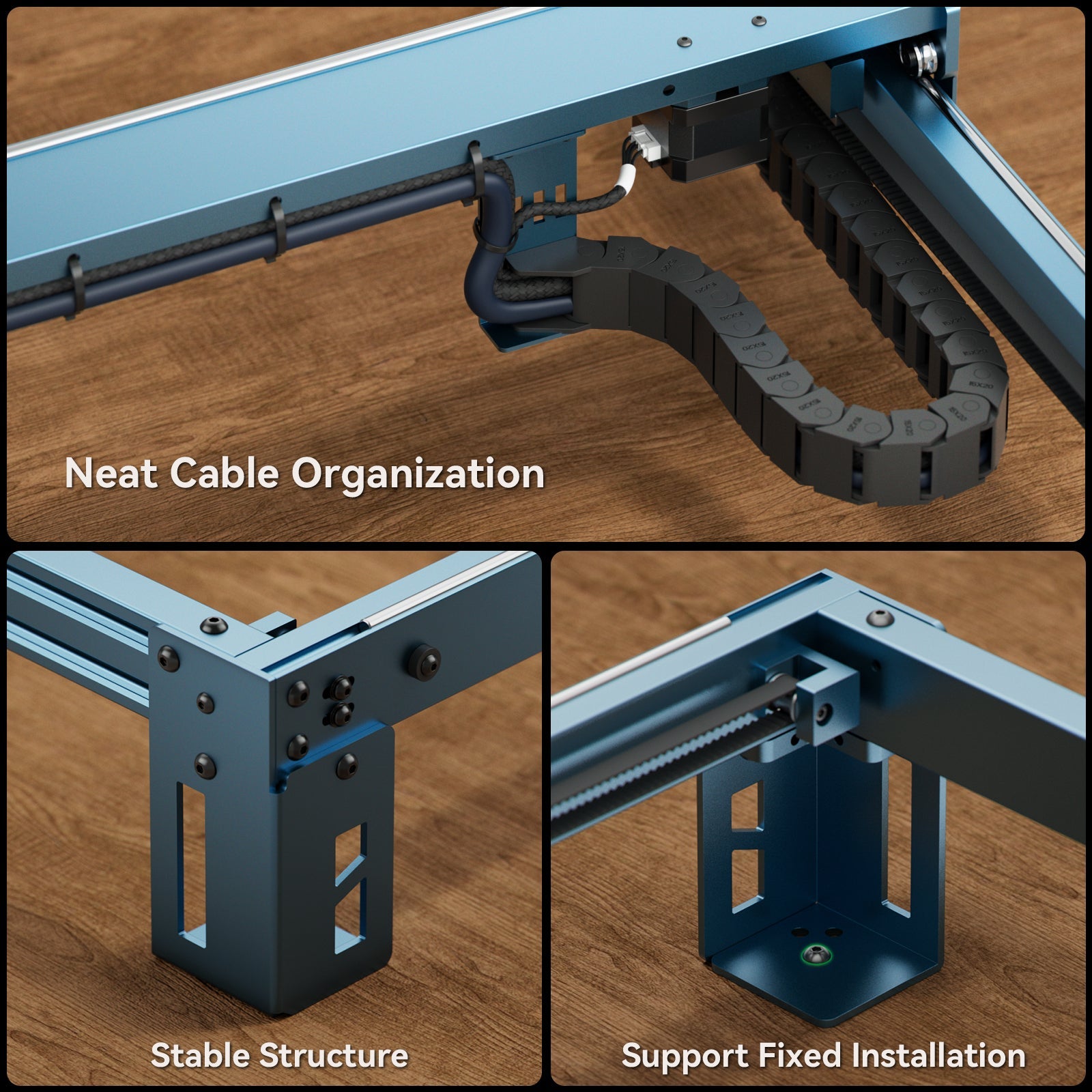

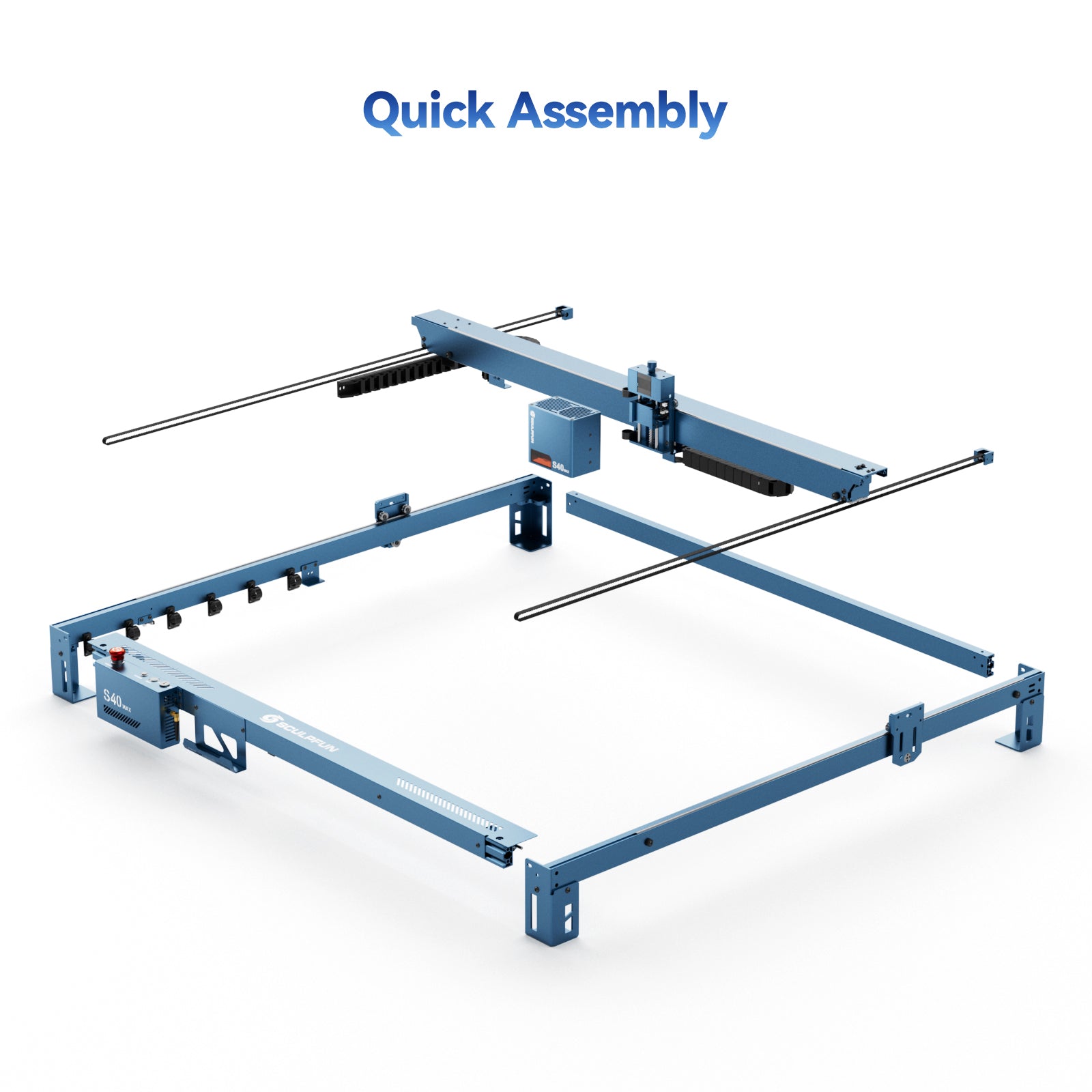

5. Stable construction

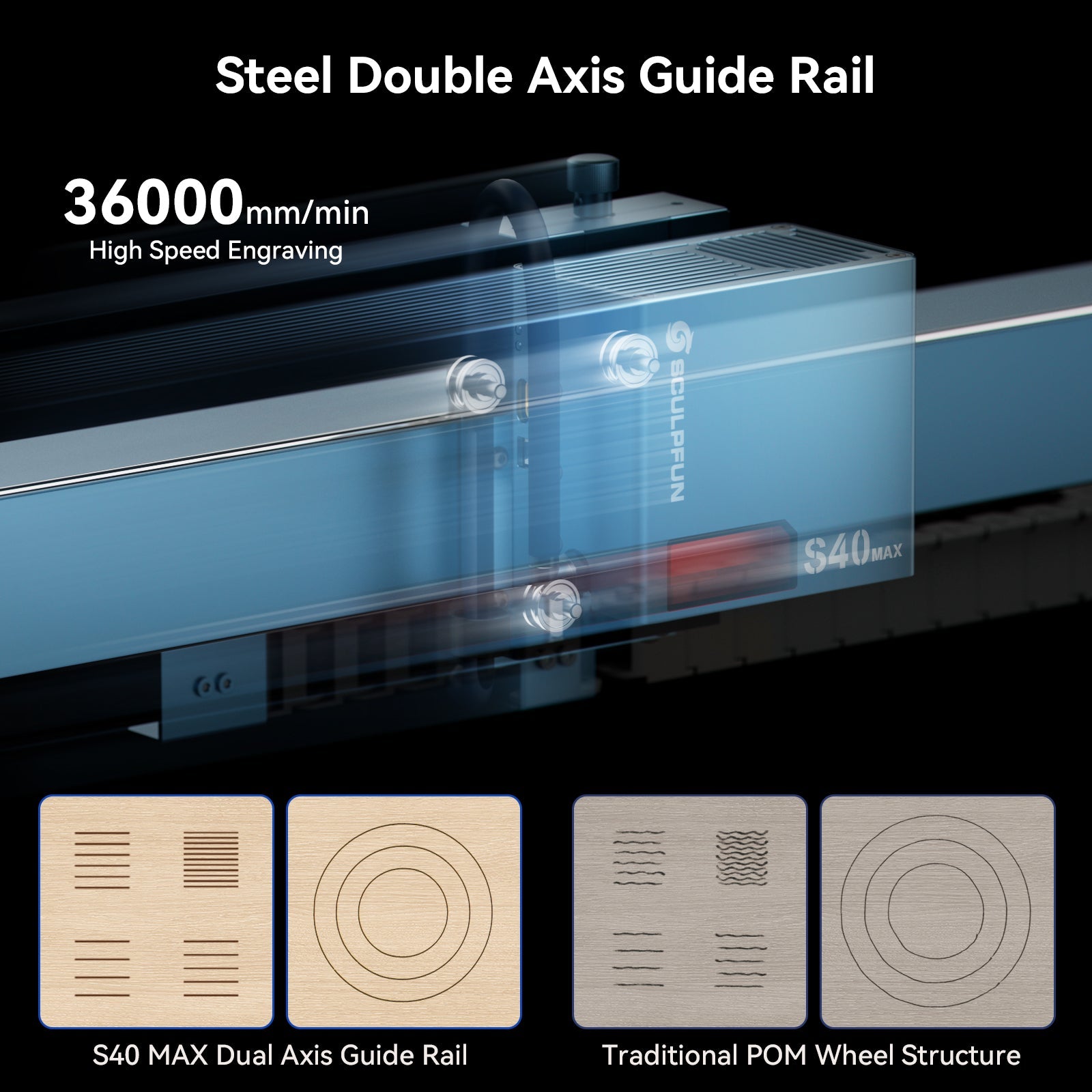

Equipped with four feet and mounting points, the S40 MAX features a modern three-axis triple roller system. This ensures fast, smooth movements and low noise levels – even during intensive engraving and cutting work.

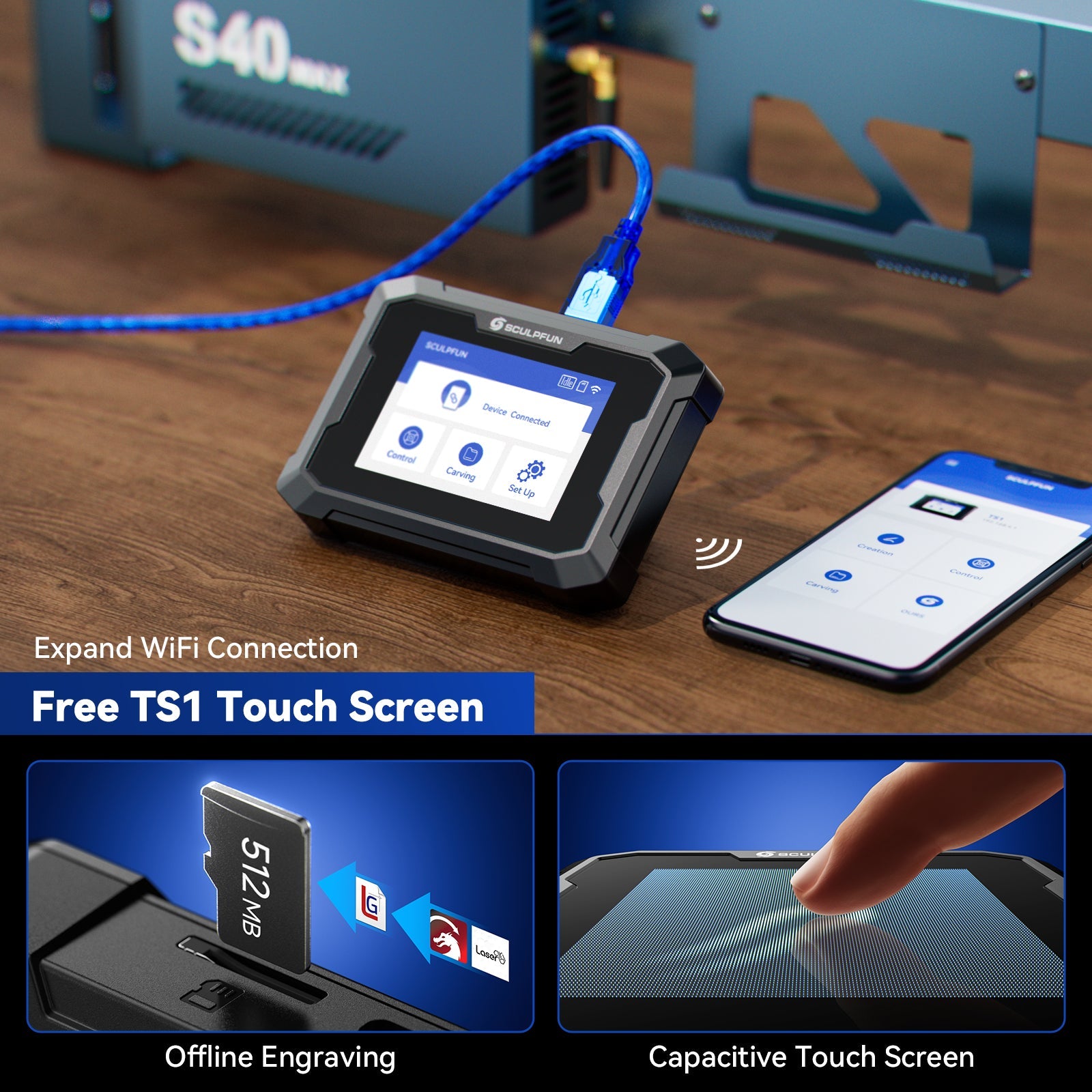

6. Offline operation

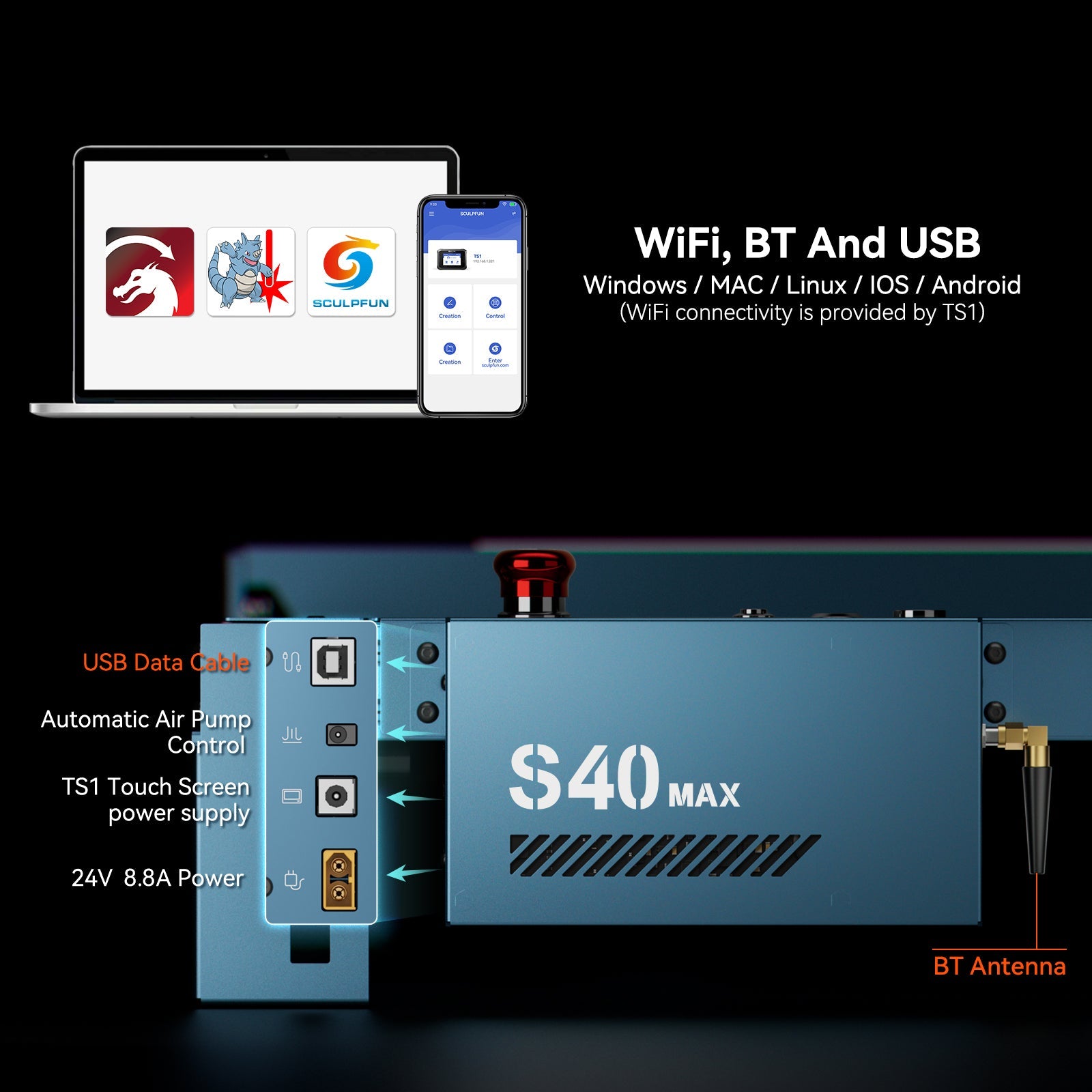

The included TS1 touchscreen allows operation without a computer. After pre-importing files, the machine operates completely offline. Additionally, it can connect to the Sculpfun app via Wi-Fi, allowing convenient preparation via smartphone.

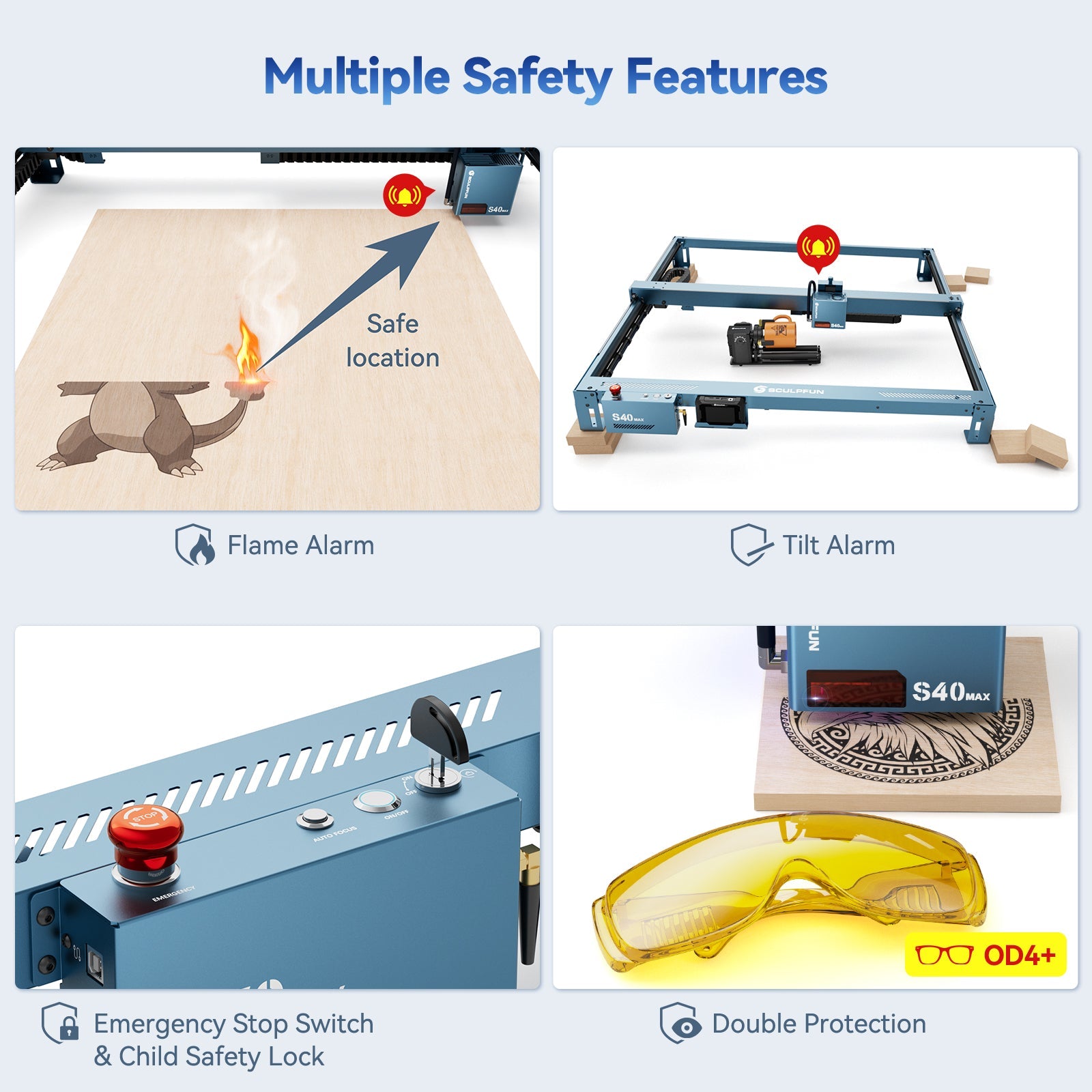

7. Security features
The S40 MAX is equipped with several protection systems: tilt sensor, flame sensor, emergency stop switch, safety lock and OD4+ certified laser safety goggles – for maximum user safety.

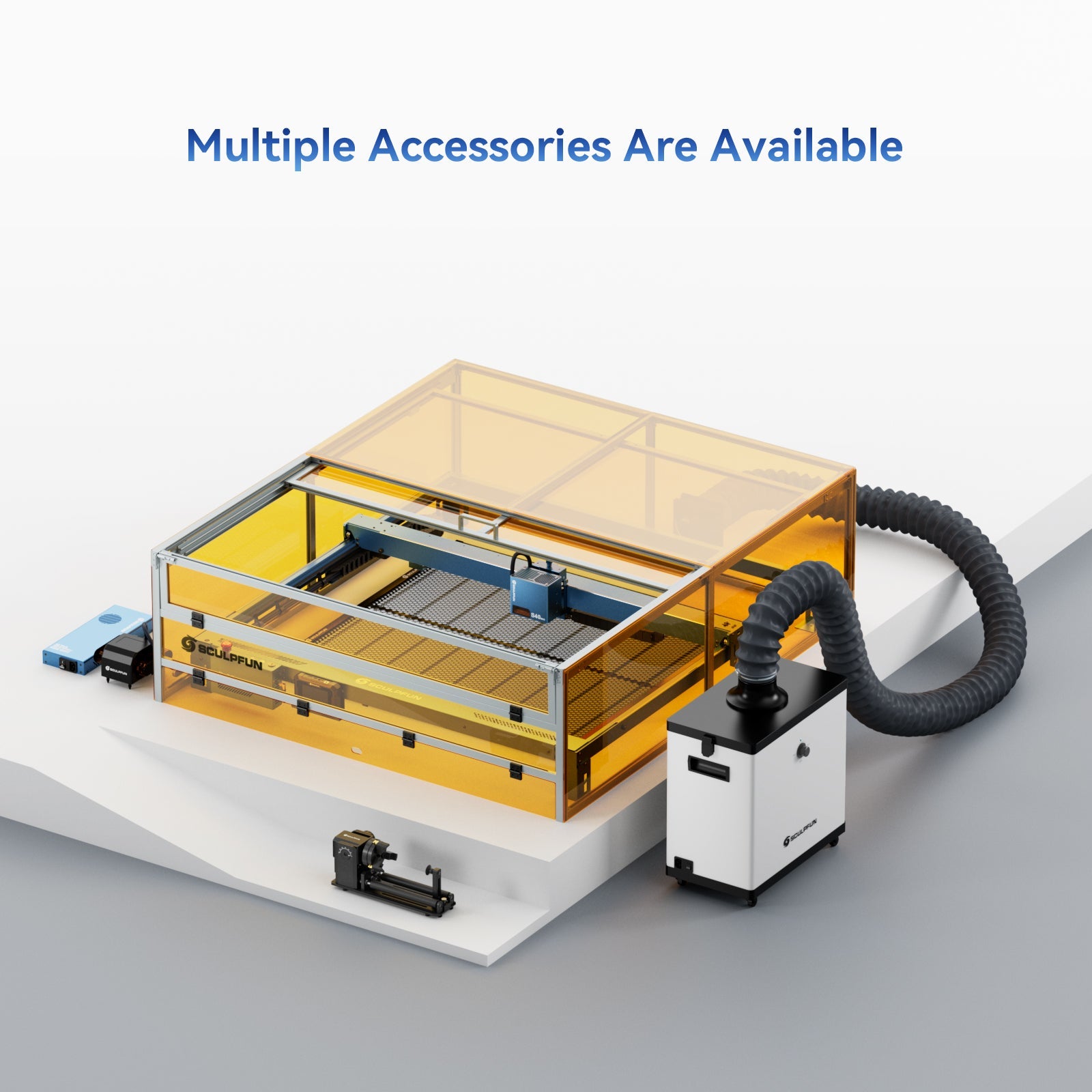

8. Compatible with extensive accessories
Various optional accessories are available for the S40 MAX – such as an 800 × 800 mm honeycomb base plate, the B70 protective housing or the SP1 smoke filter – to improve working comfort and safety.

Note: Accessories must be purchased separately. The IR-2 laser head is not directly compatible with the S40 Max.
