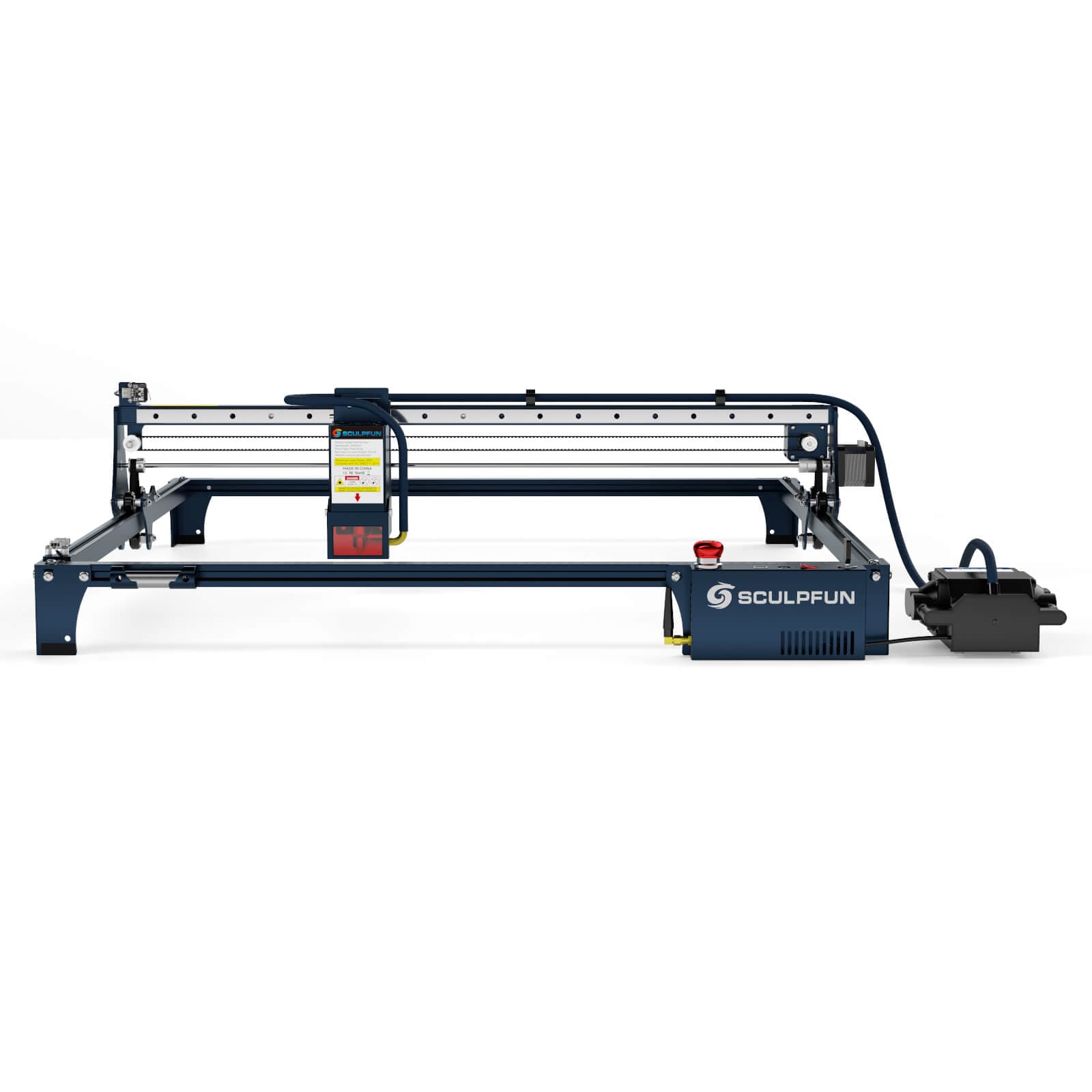

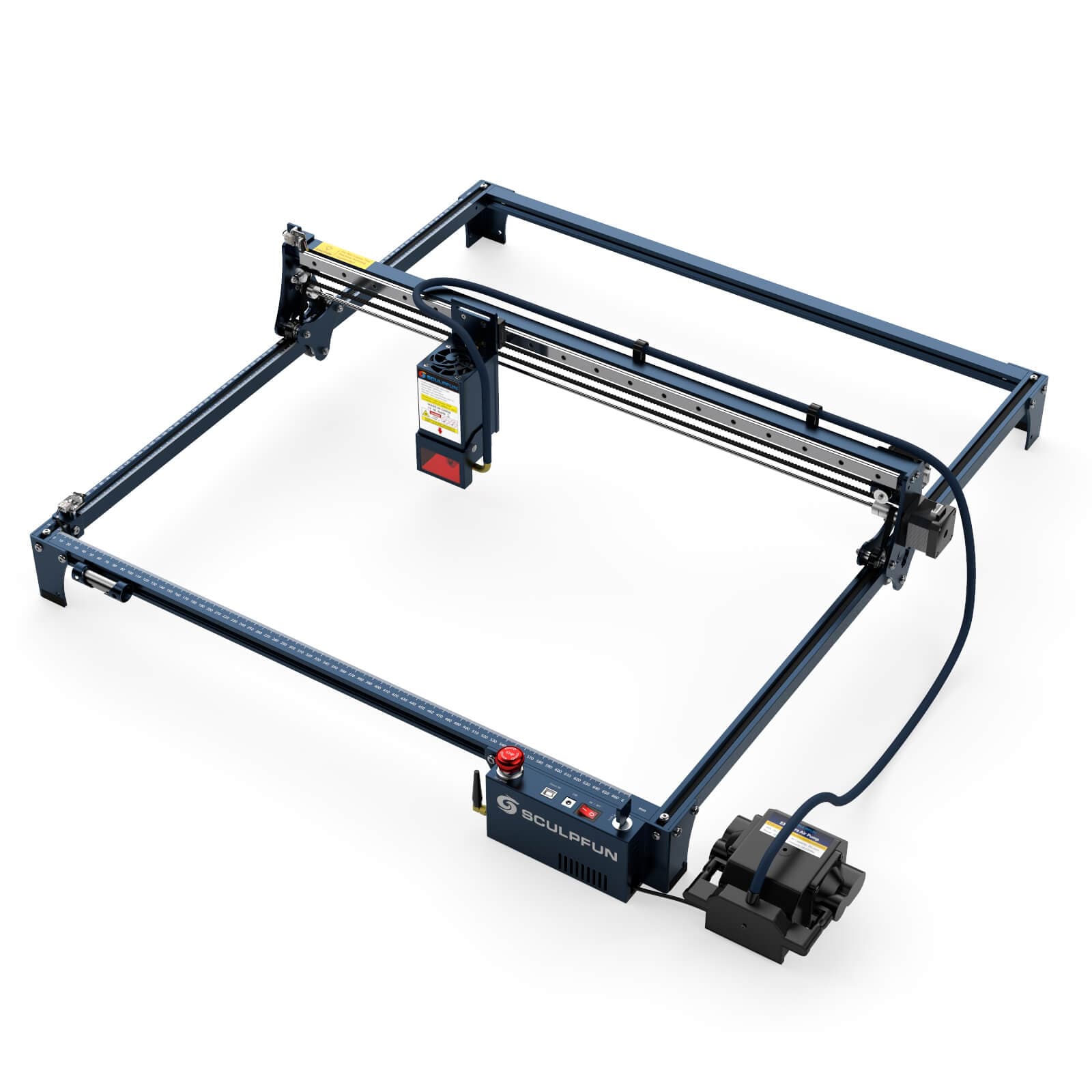

Sculpfun S30 Ultra - 22W laser engraver

Note: The S30 Ultra series can be enlarged to 935×905 mm with the S30 XY expansion kit, but requires an additional adapter cable.

Main features:

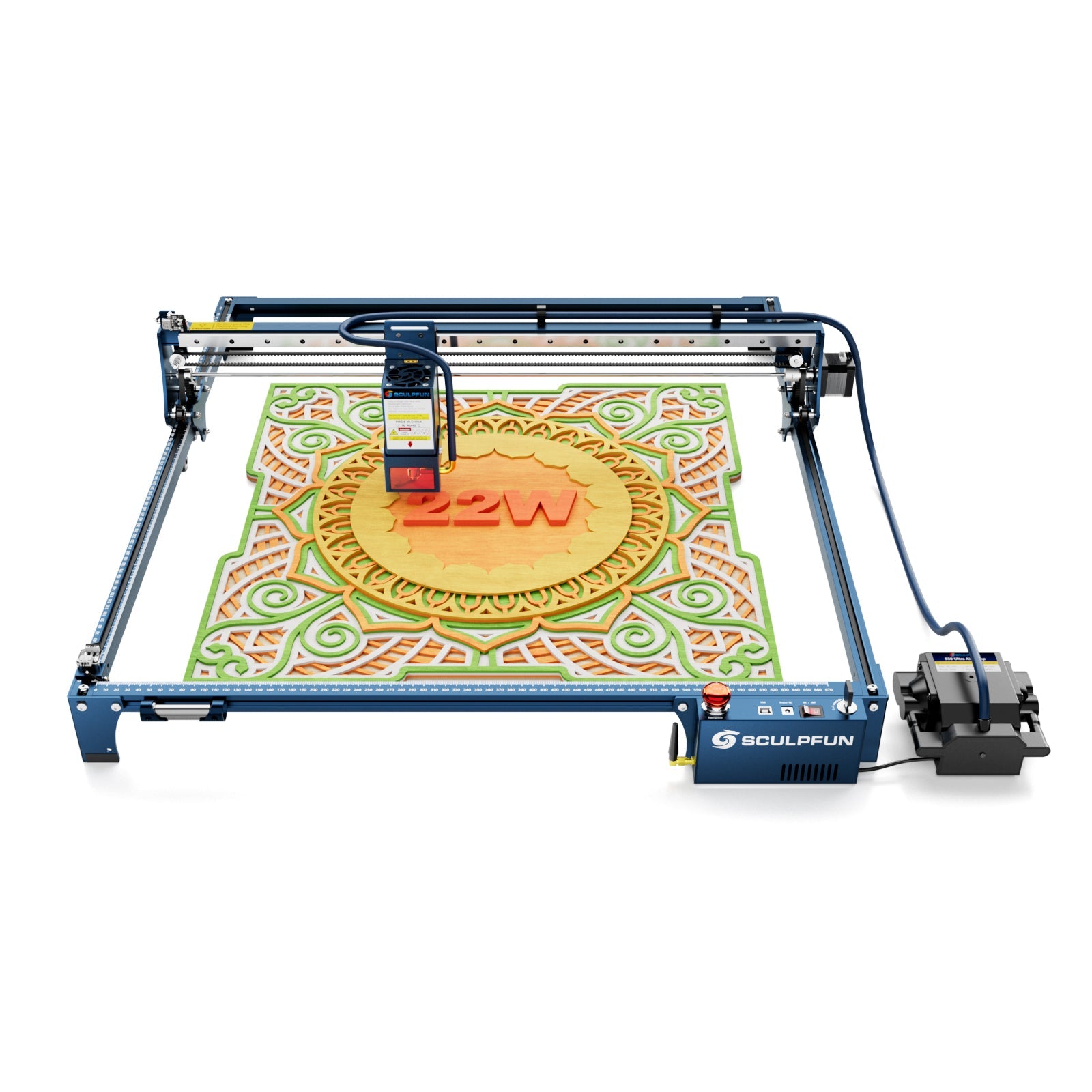

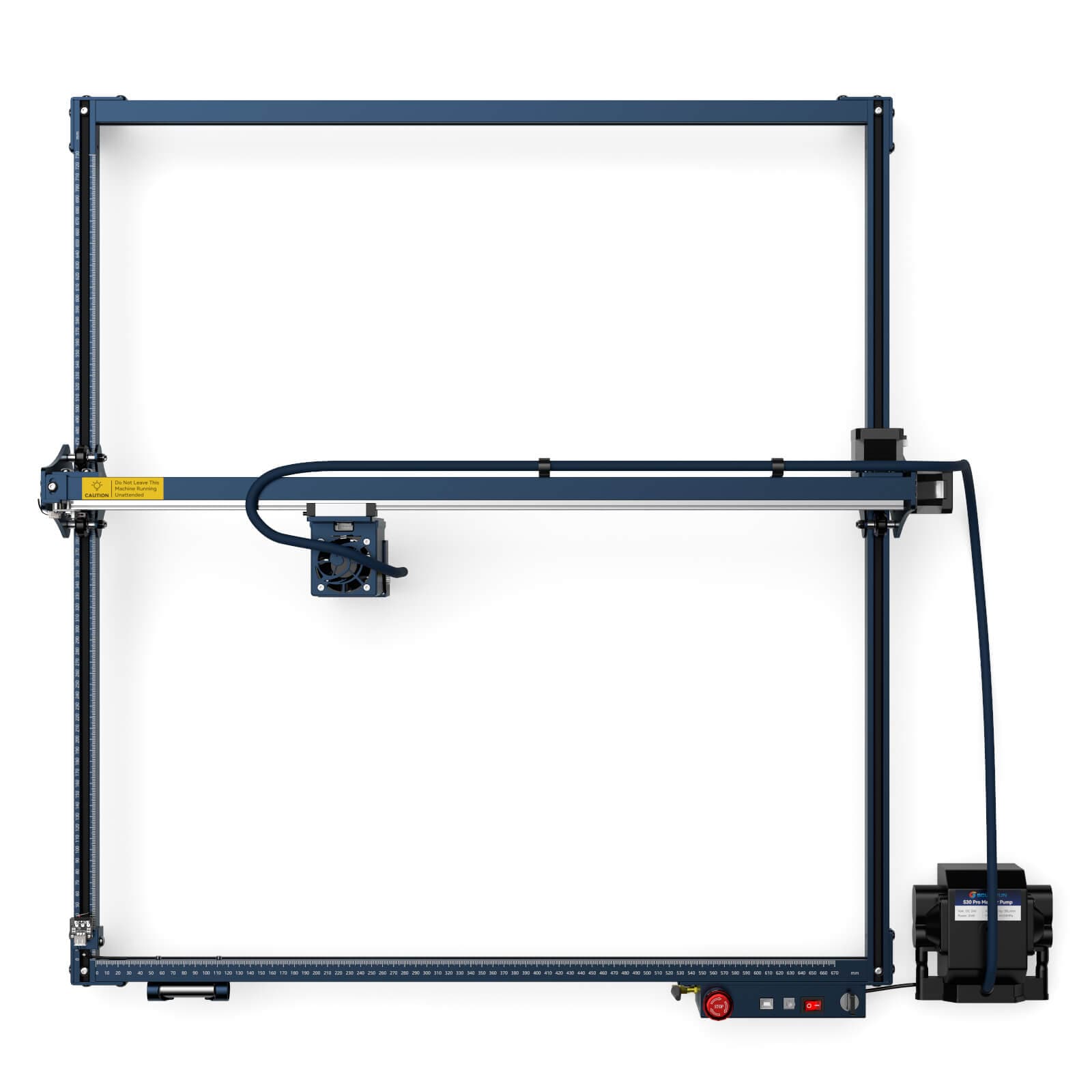

1. 600×600 mm working area: The actual engraving area is 600×600 mm, meaning your work is hardly limited by the space. This makes even large-format cutting projects easy to complete. The area is generously dimensioned and the build quality is very high, so future upgrades are unlikely to be necessary.

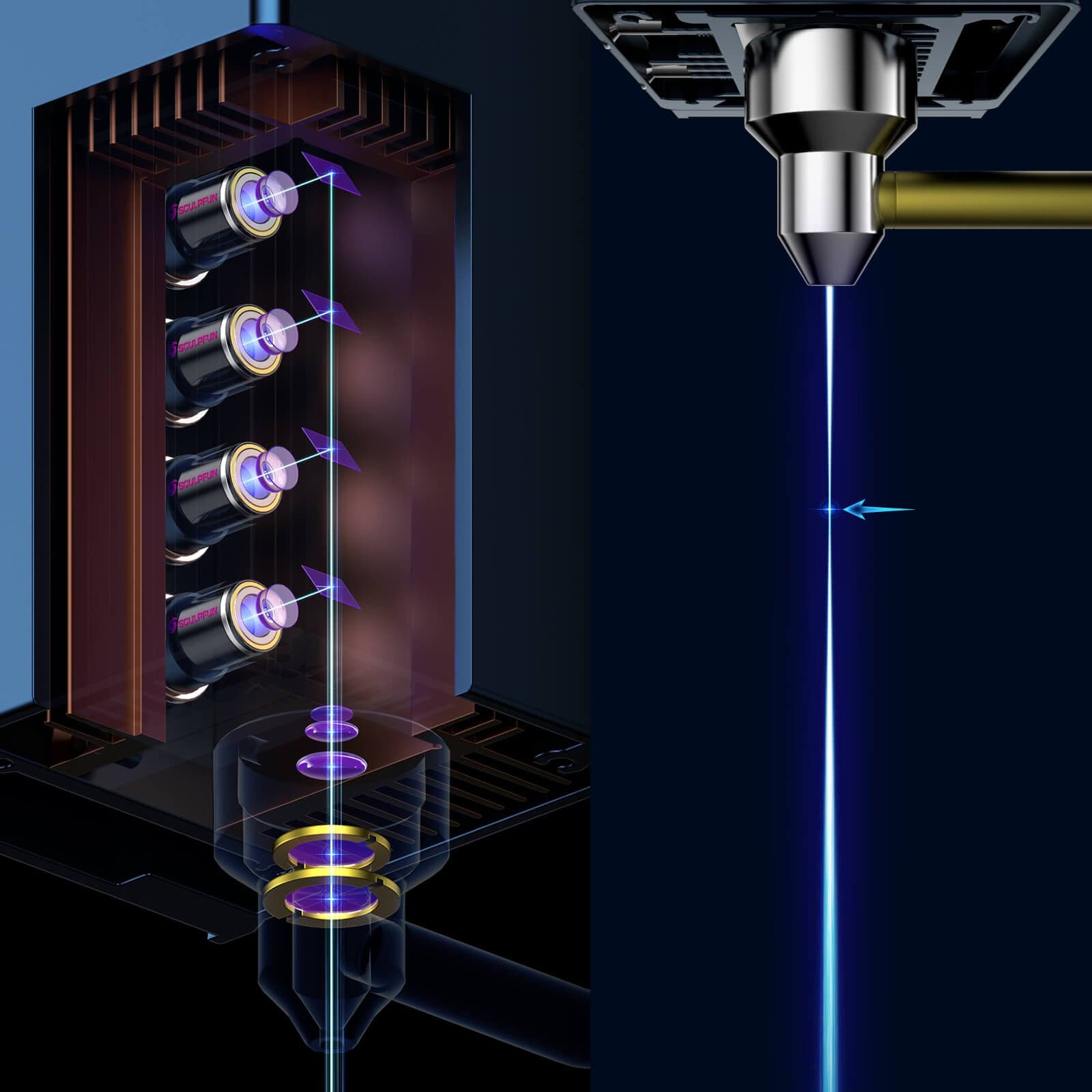

2. Powerful 22W and 33W laser options: The S30 Ultra series uses an improved 6W diode laser unit, resulting in higher actual power and cutting capability. 22W and 33W variants are available based on a combination design, depending on your needs.

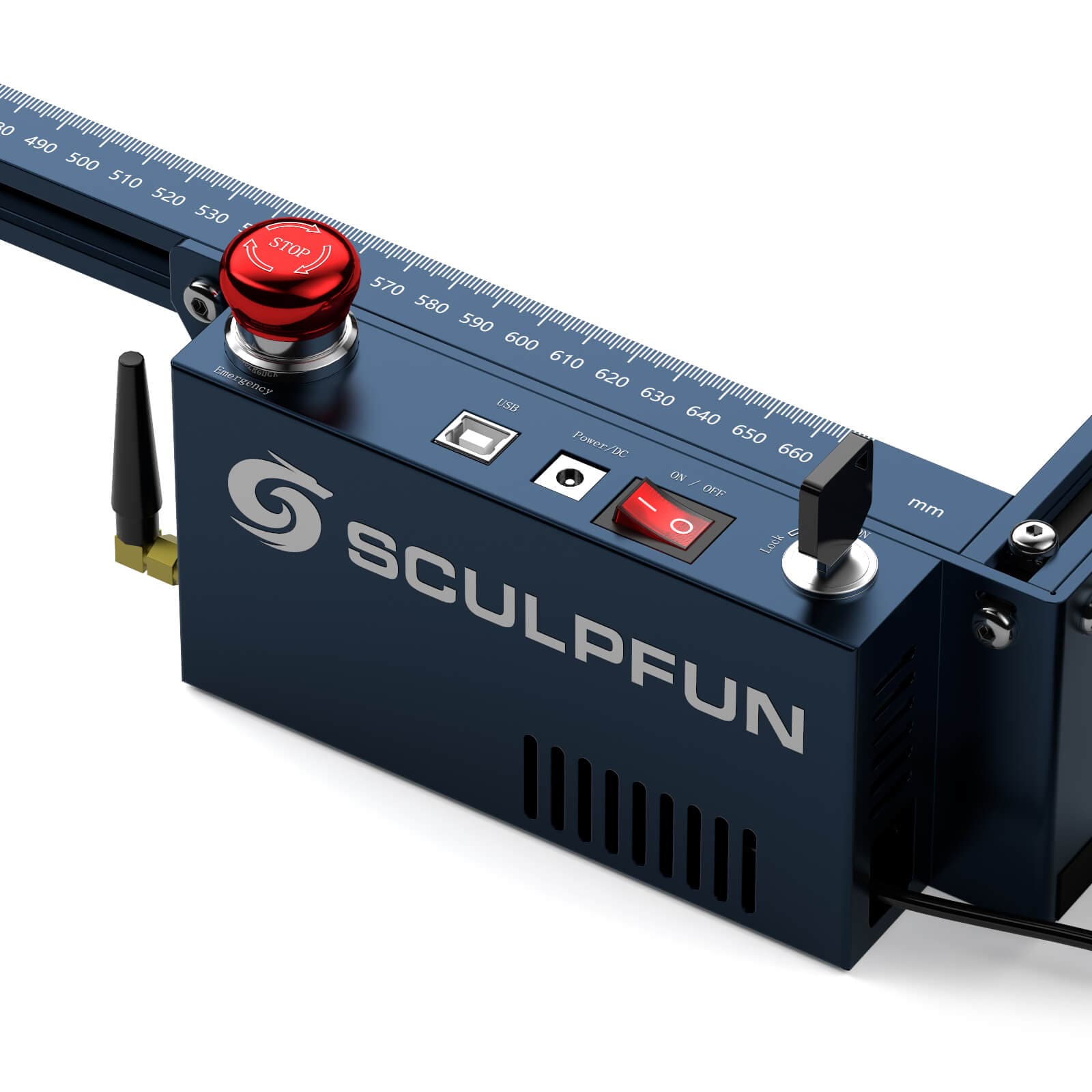

3. Professional safety design: The devices feature an emergency stop switch and a child safety lock. In an emergency, simply press a button to stop the machine immediately. If the key is removed, the machine can no longer be switched on – ideal for protecting against accidental use by children.

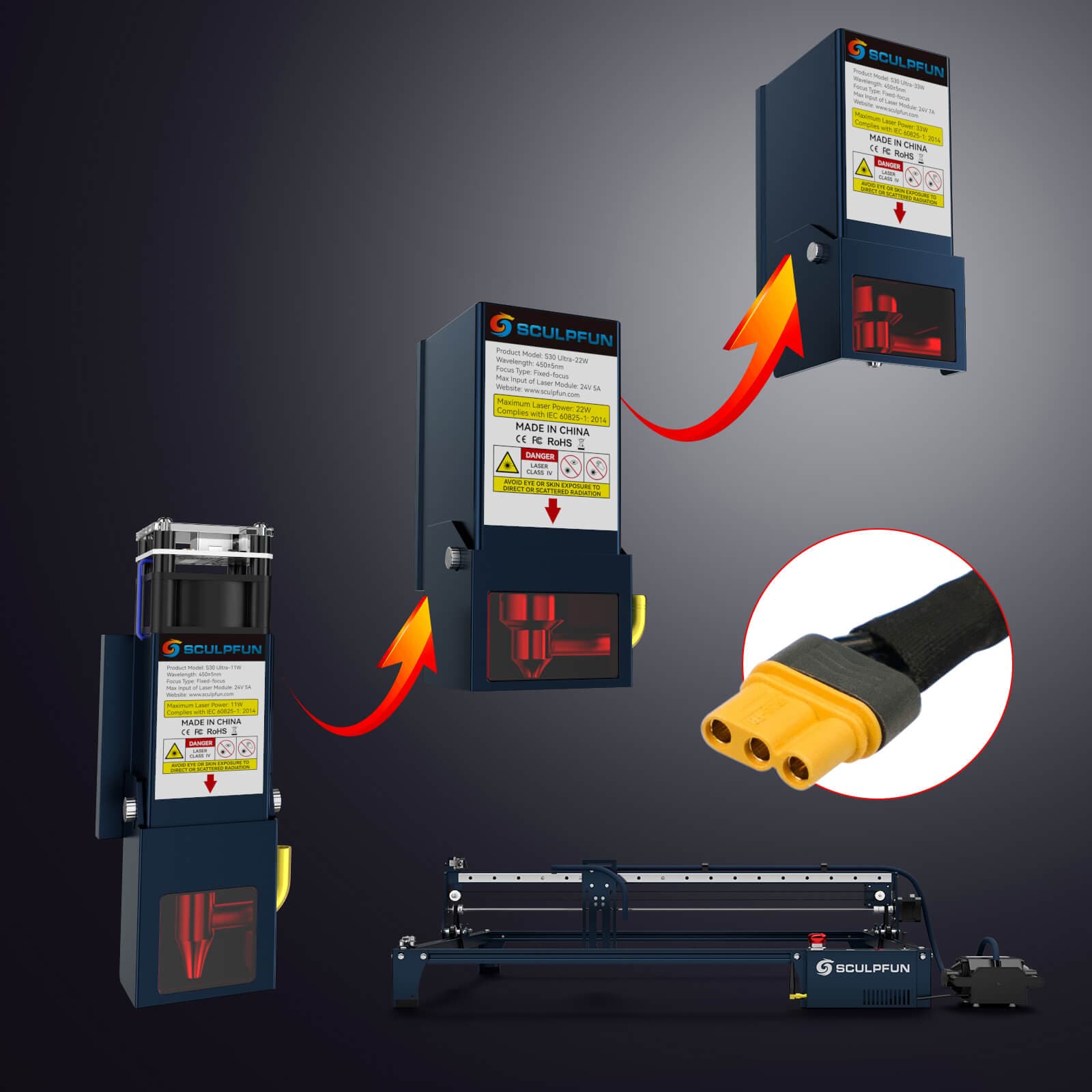

4. Uniform design for easy upgrades: The S30 Ultra models offer consistently high compatibility. The power supply, structure, and laser cable are identical for all variants. Therefore, for a later upgrade, simply swapping the laser head is sufficient.

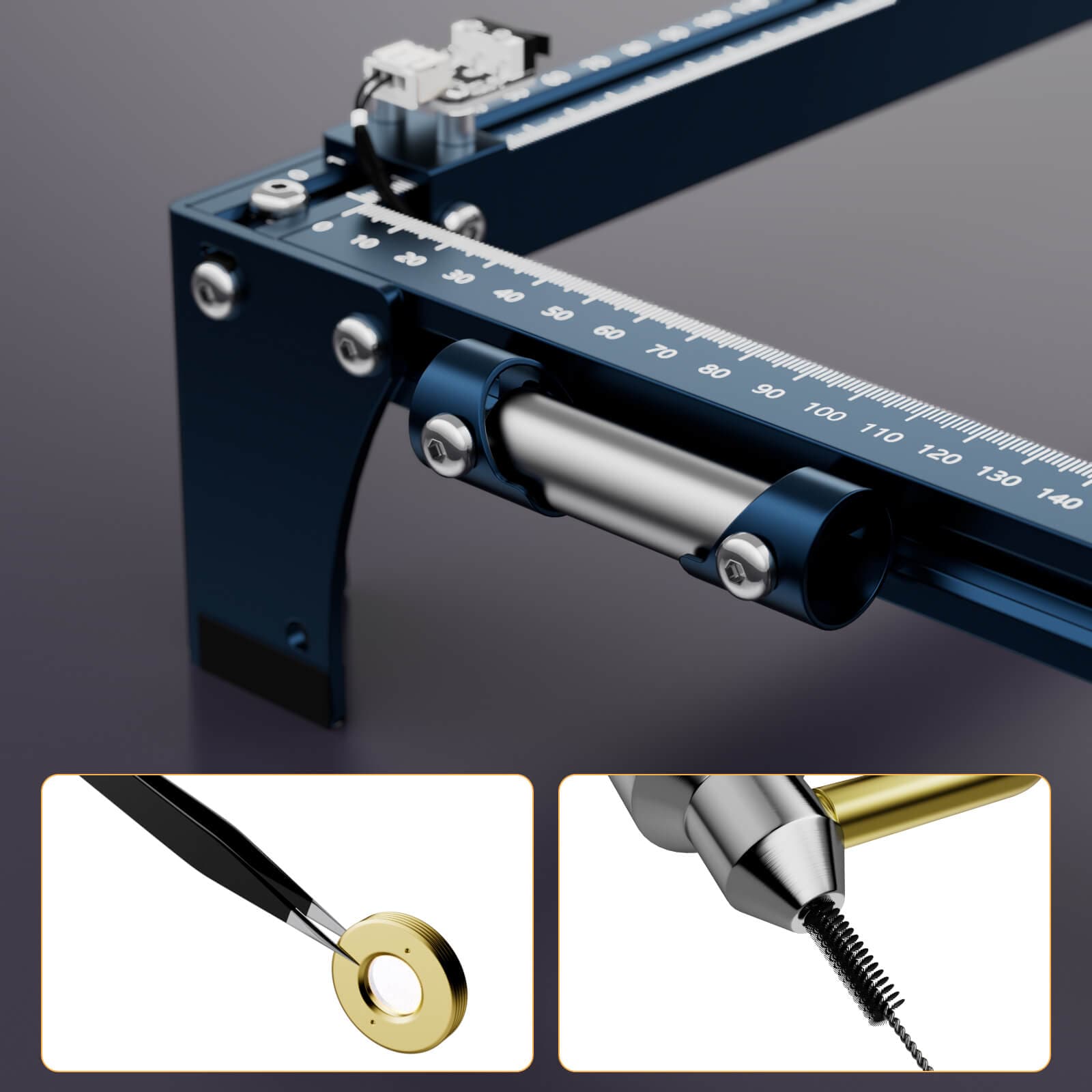

5. Toolbox, repair kit, and focus column holder: The S30 Ultra series includes professional storage solutions for tools and maintenance accessories such as open-end wrenches, tweezers, and nozzle cleaners. A special holder for secure storage of the fixed focus column is integrated directly into the machine.

6. Reinforced 32-bit stepper motor: The powerful stepper motor with 4.2 kg·cm torque (compared to approximately 3.1 kg·cm for standard devices) enables fast movements. Even with heavier lasers, motor replacement is unnecessary.

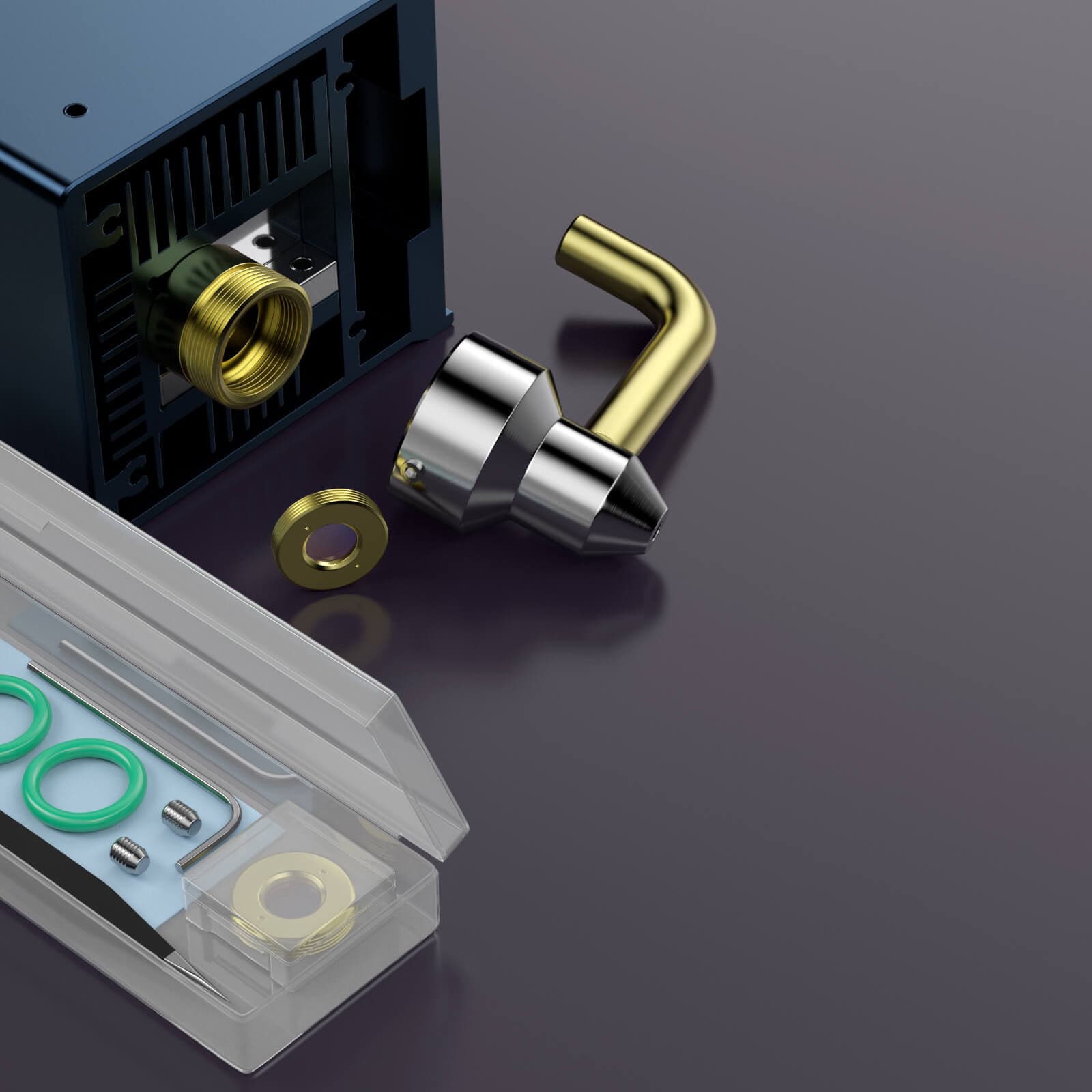

7. Replaceable protective lens: The S30 Ultra series laser is equipped with an innovative, replaceable lens. Its lifespan is more than ten times longer than conventional lasers. A replacement lens is included, and additional lenses are available at reasonable prices.

8. Integrated high-pressure air nozzle: The built-in metal air nozzle, with its connected pump, generates a powerful airflow. This increases cutting speed by up to five times, removes residue, and produces significantly cleaner cut edges.

9. Updated 32-bit mainboard with air support: The new board supports automatic air control, Bluetooth connection and wireless machine control – independent of the USB cable.

10. Industrial precision cutting: The high-precision linear guide of the X-axis enables industrial-quality engraving. Even fine details appear razor-sharp, without the typical wave patterns of simple machines.

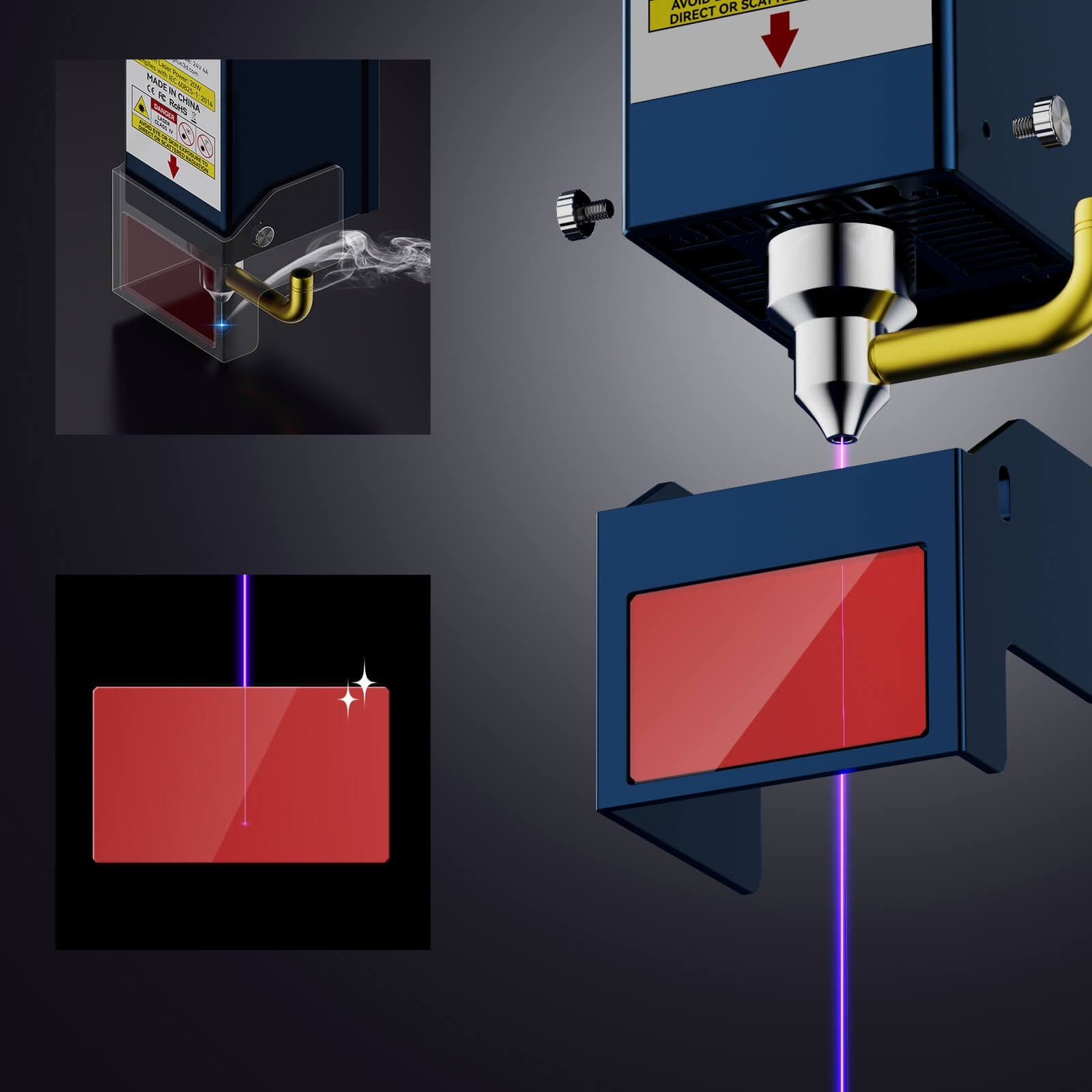

11. Removable laser protection shield: The S30 series is equipped with a removable protective glass shield, which can be removed if necessary.

12. Stable and durable frame: The frame is made of high-strength aluminum and can withstand a weight of up to 50 kg without warping. This makes the device extremely robust, long-term stable, and future-proof – simply replacing the laser is all it takes to upgrade.

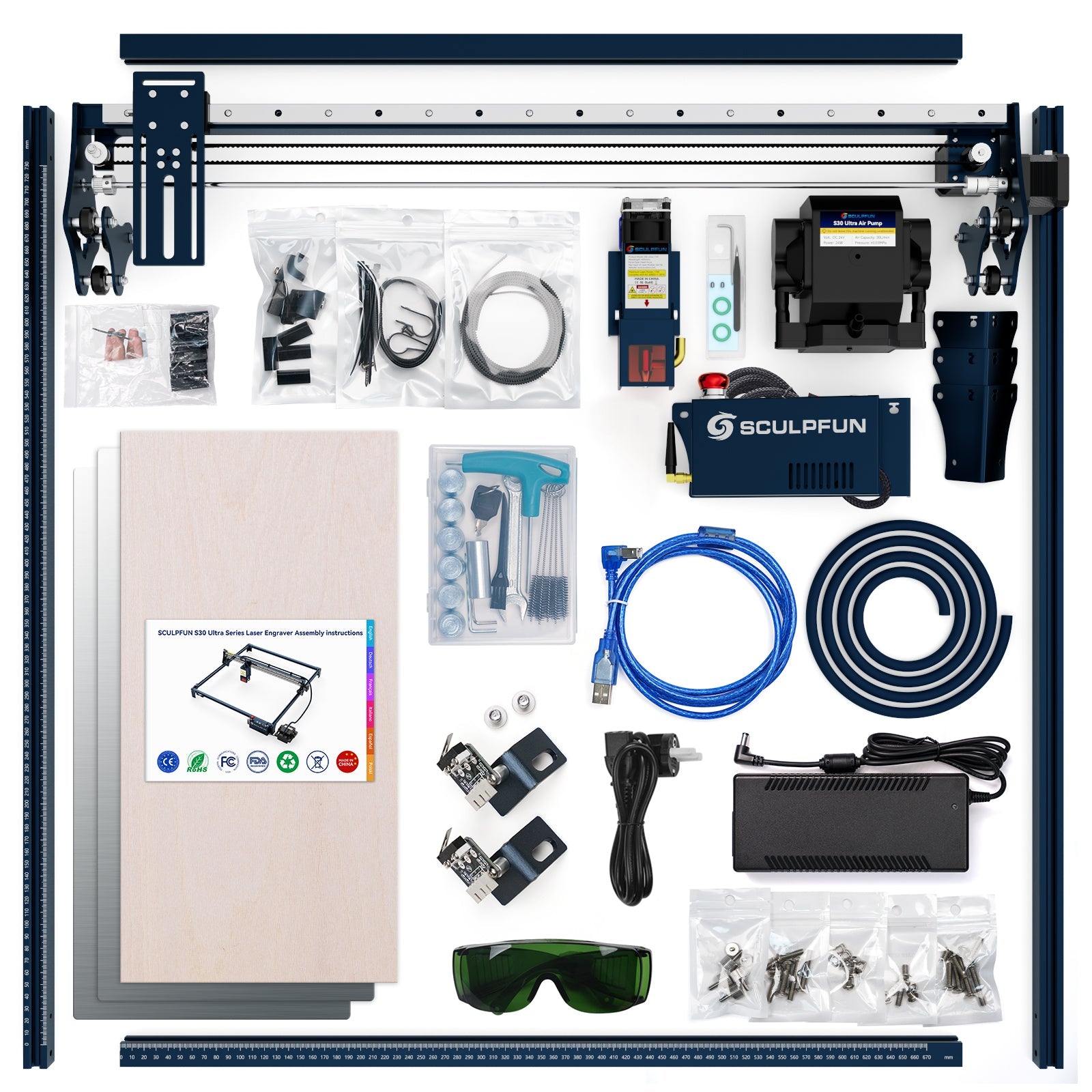

Scope of delivery:

1× S30 Ultra-22W laser, 1× laser protection shield, 1× laser repair kit, 1× 24V automatic air pump, 1× wooden plate 460 × 230 × 3 mm, 2× protective aluminum plate 460 × 230 mm, 2× limit switches, 1× 24V 5A power supply, 1× power cable, 1× USB cable, 1× air hose (rubber), 1× tool box, 1× laser safety goggles, installation instructions, 1× user manual, 1× X-axis unit, 2× X-profiles, 2× Y-profiles, 1× control box unit, 3× feet, 1× cable clamp set, 1× bracket for fixed focus column, 1× spare screw set, 1× Anti-slip foot set
