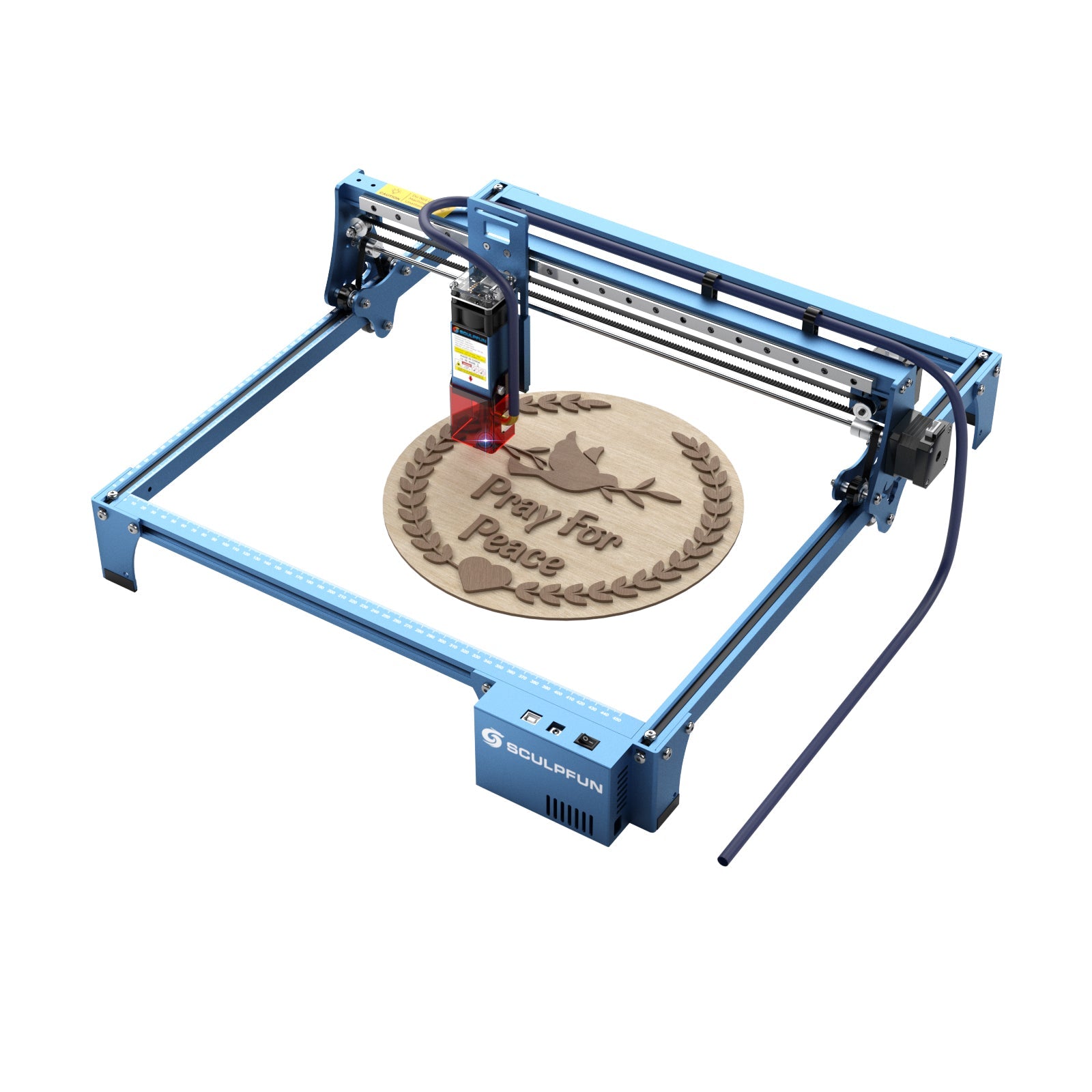

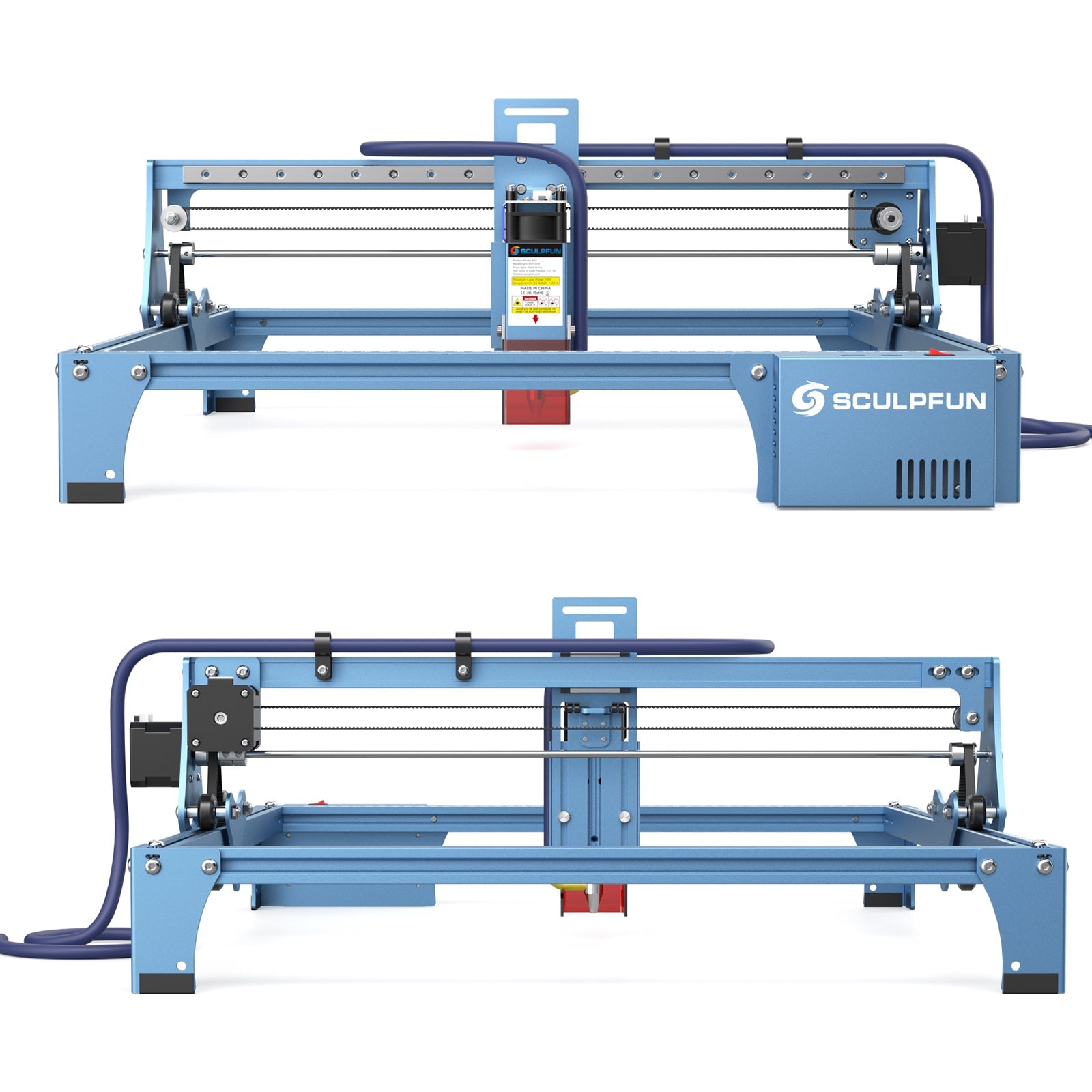

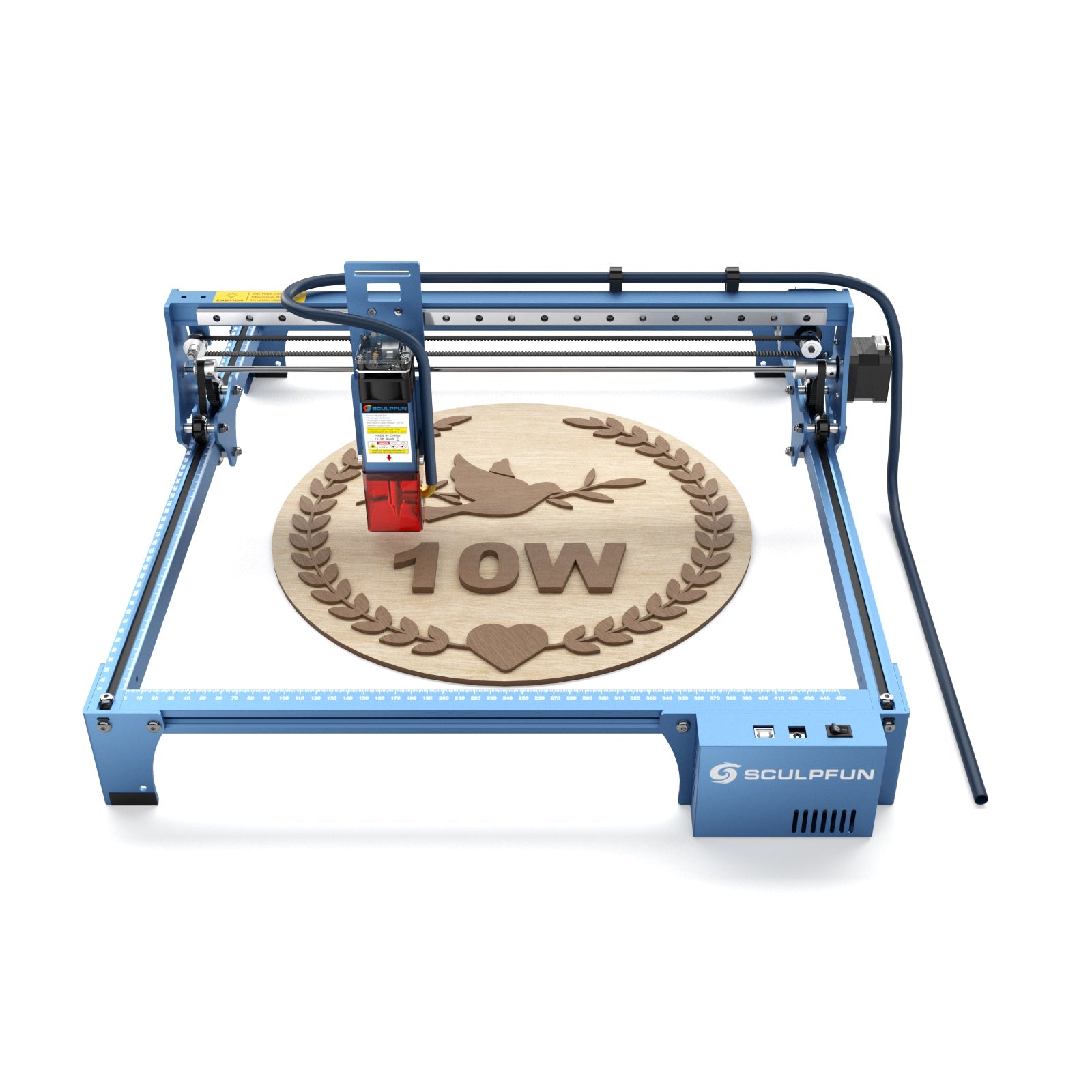

Sculpfun S10 - 10W laser engraver

Key features:

1. Powerful high-speed air support: The S10 is equipped with a high-speed air nozzle. The difference with this nozzle lies in its advanced fluid mechanics design, which allows for better utilization of air pressure. When using the same air compressor, the S10 sprays the airflow at a faster rate. Specifically, with a 30 l/min, 0.03 MPa air compressor, the S10 nozzle sprays a high-speed airflow of up to 14.5 m/s. This significantly improves cutting penetration and efficiency.

2. Ultra-thin 10W high-density laser beam shaping technology : The laser output power of the S10 has been increased to 10W, which is twice that of the S9. However, the S10 achieves the same ultra-thin laser beam with a 0.08 mm focus as the S9, meaning that the S10 has higher energy density, stronger cutting penetration, and engraving capabilities.

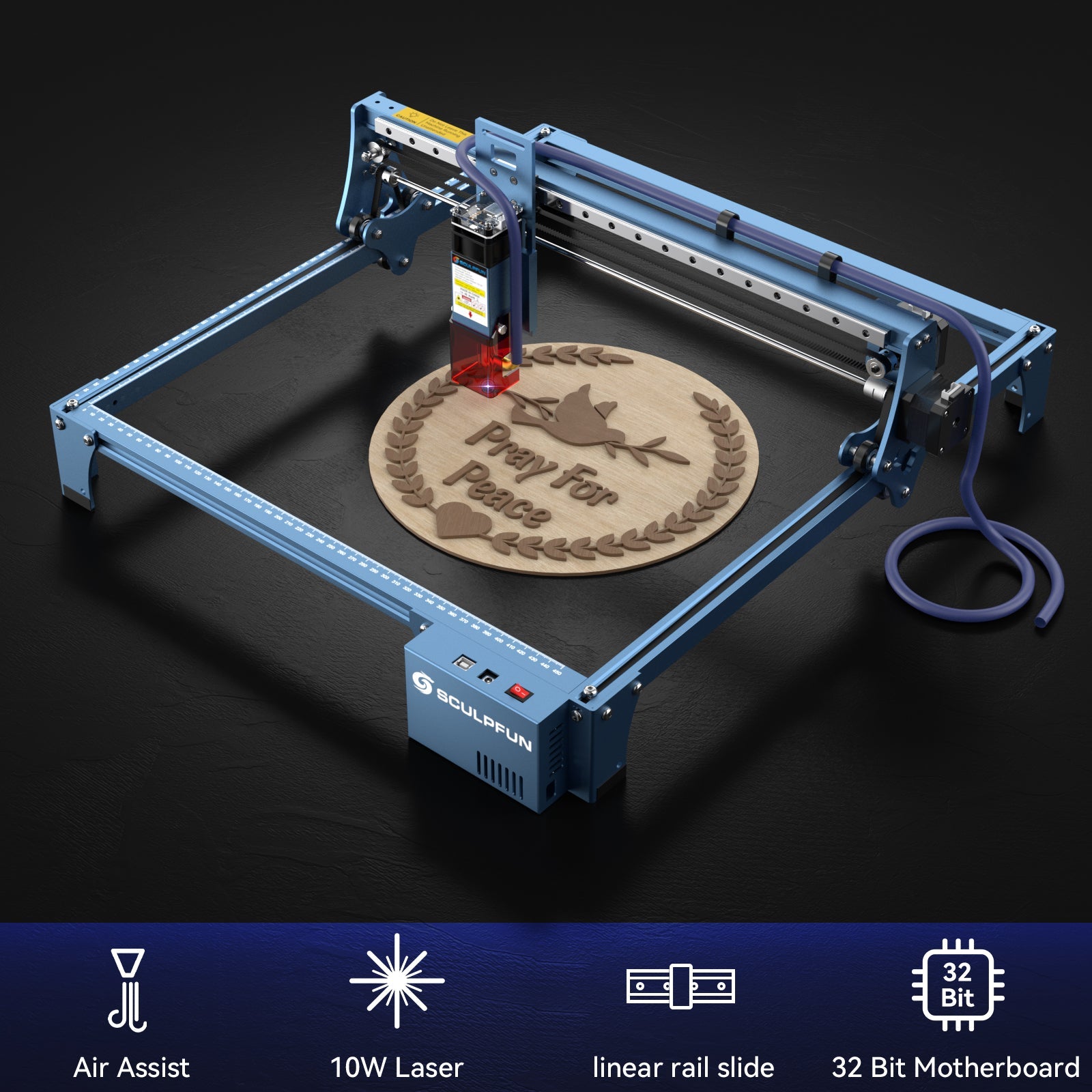

3. Faster, stronger, cleaner: By combining advanced high-speed air support and a 10-watt high-energy-density laser, the S10 demonstrates performance comparable to cutting industrial-grade wood: Firstly, cutting efficiency is greatly improved, resulting in faster cutting; Secondly, cutting penetration is stronger, and many high-density woods can be cut; Thirdly, the cut surface is cleaner, as the powerful airflow blows away residue, leaving no stains on the surface of the cut object.

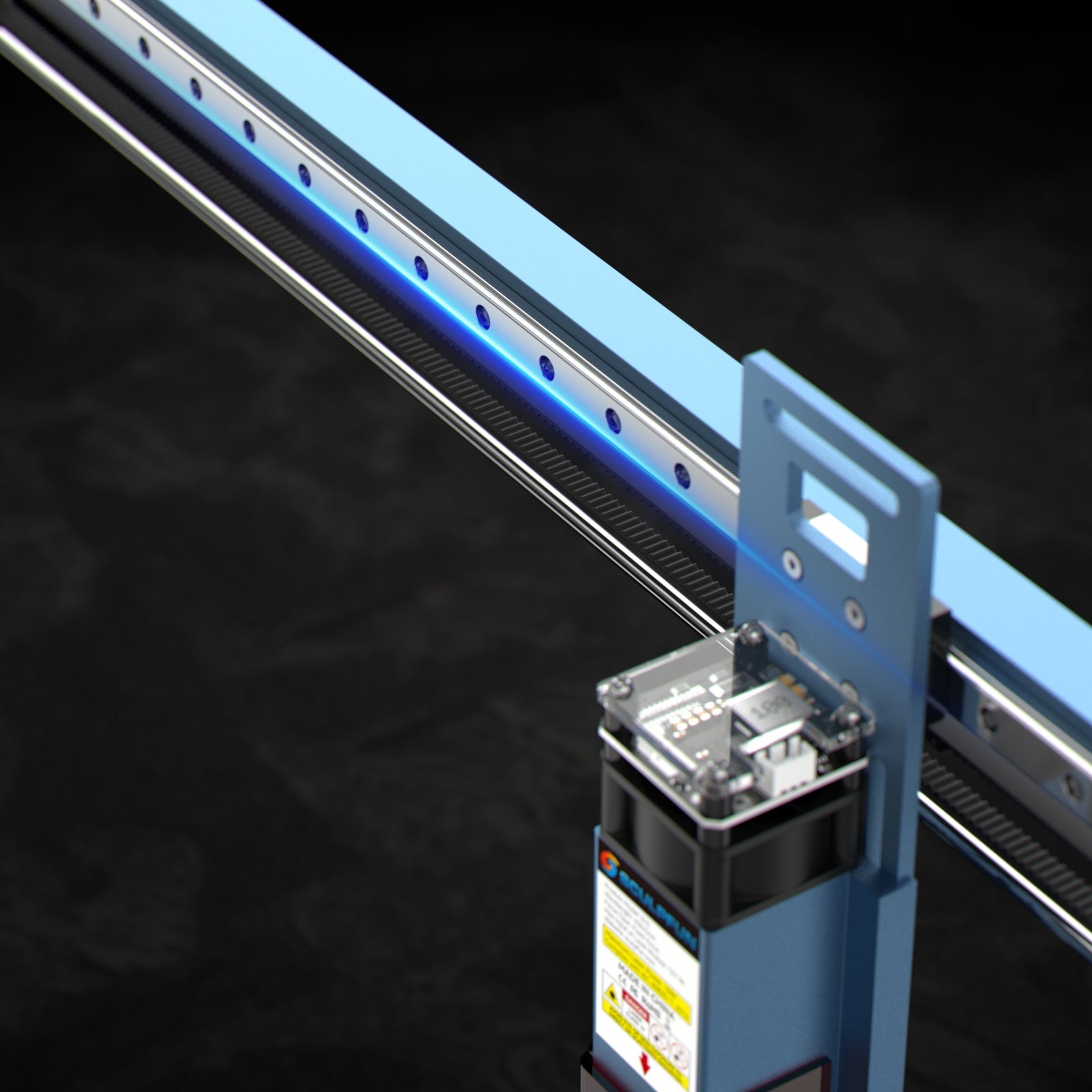

4. Cutting accuracy of industrial quality: The S10 uses a high-precision linear X-axis, enabling industrial-grade engraving accuracy. When comparing small engraving details, the S10 exhibits no wavy lines, which are common with other ordinary engraving machines.

5. Advanced and upgradeable 32-bit motherboard: The S10 motherboard uses 32-bit chips, offering faster processing speeds, and retains Z-axis and limit switch functionality to facilitate upgrades to the engraving machine. It also fully supports laser cutting software such as Lightburn and LaserGRBL.

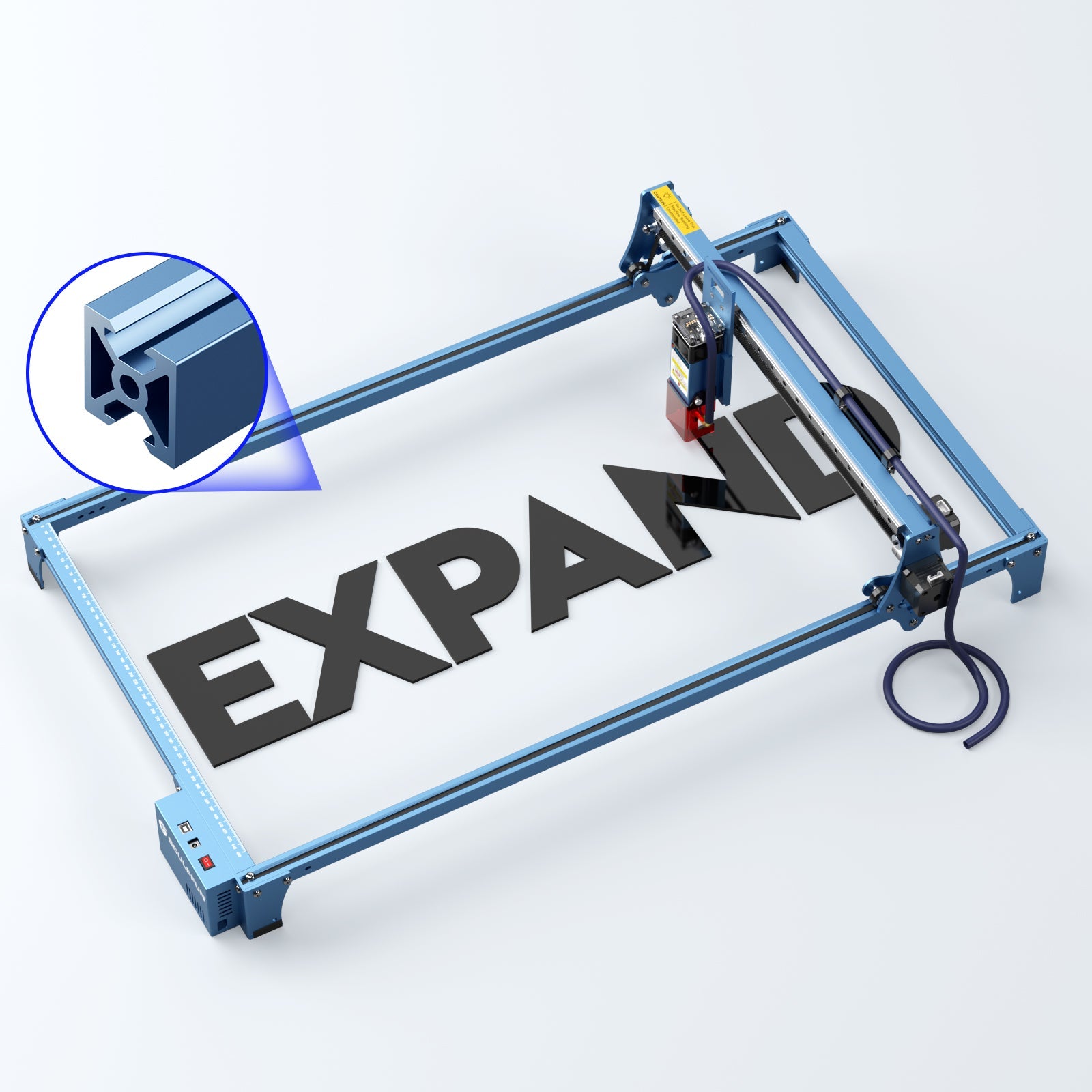

6. Expandable engraving area: The S10 retains the expandable Y-axis design of the S9. The original engraving area is approximately 410 x 400 mm, but you can purchase an S10 Y-axis expansion kit to increase the engraving area to 410 x 940 mm, effectively increasing the engraving area by 230% at a very low price. This can help you better handle large-area engraving or cutting jobs.

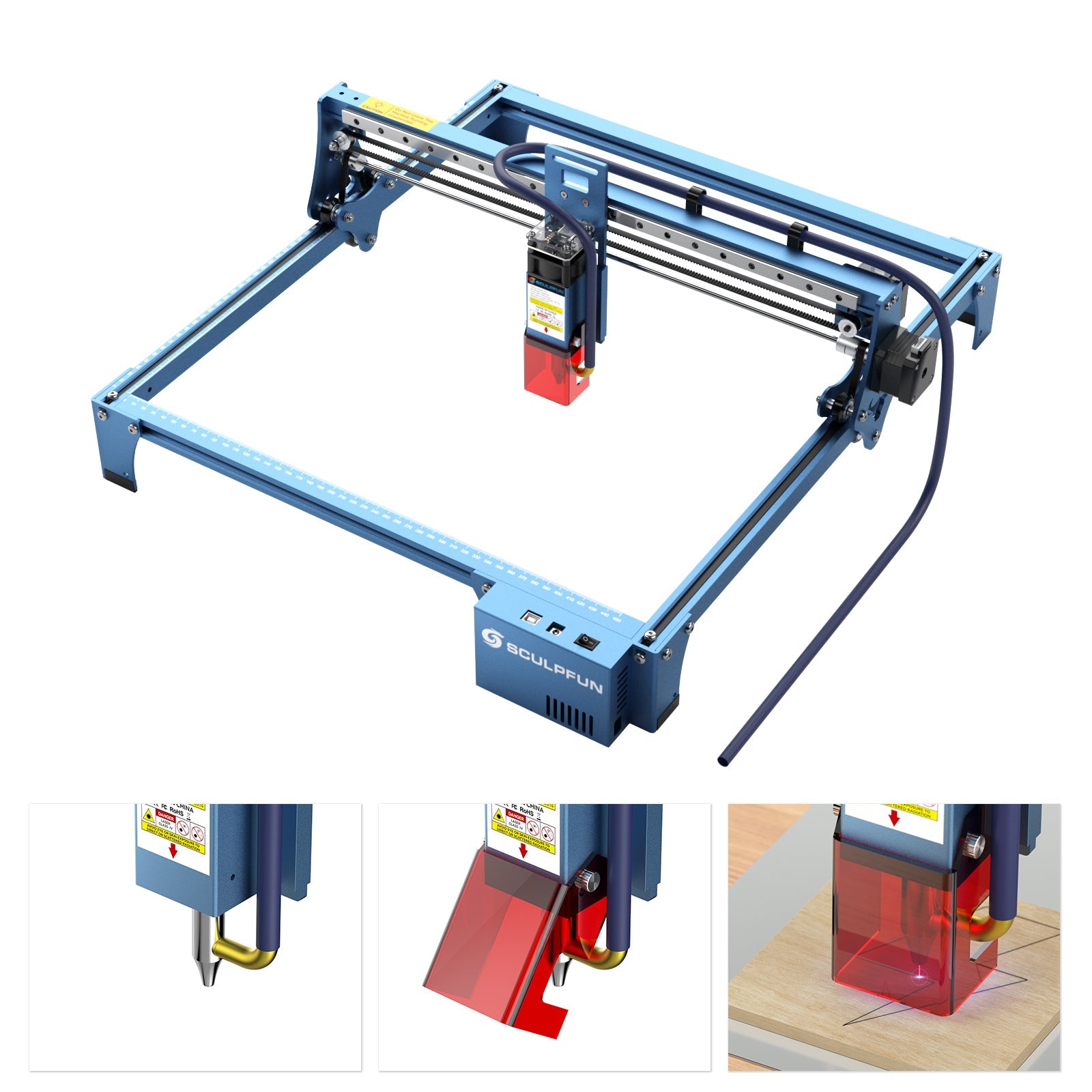

7. Adjustable laser eye protection: The S10 laser is equipped with a removable eye shield that won't cause glare, even without glasses. And if you don't need it, you can simply remove the eye shield.

8. Safe Design: The machine features a very safe and clearly visible power switch, allowing you to quickly and easily shut off the power in an emergency. The all-metal housing makes the machine very robust and durable.

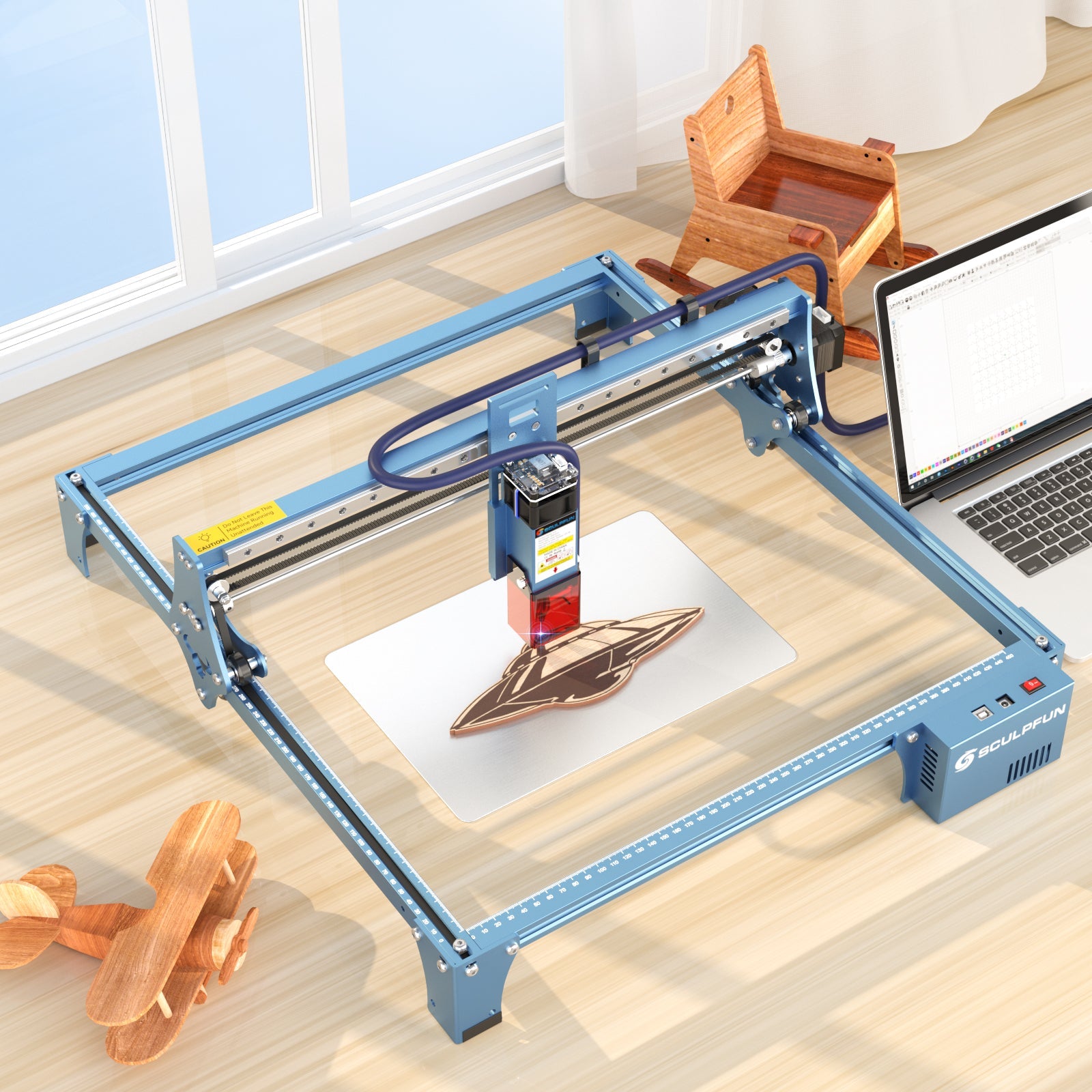

9. A4 steel mat: The free A4 steel mat can protect the table from laser damage. Isolate fire hazards.

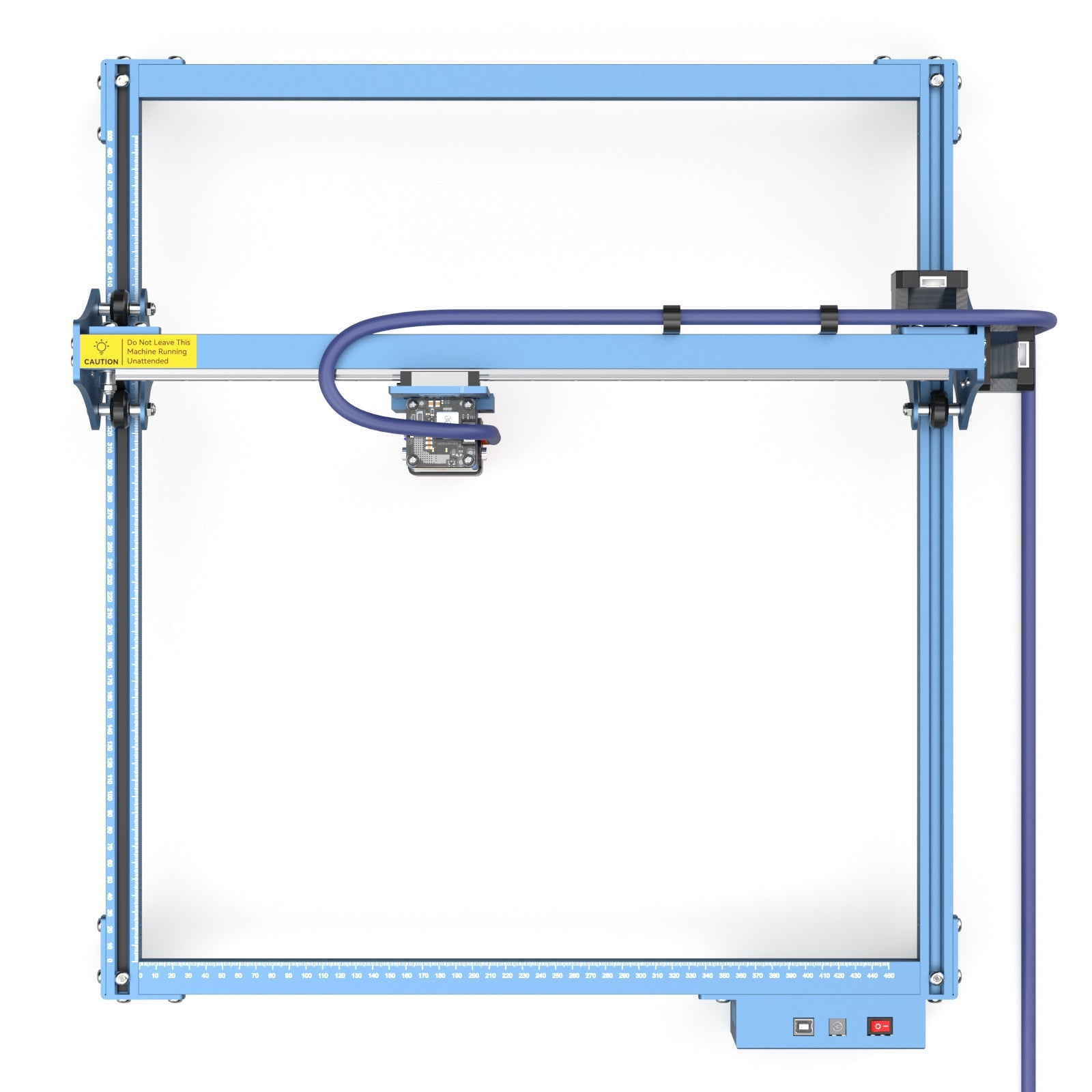

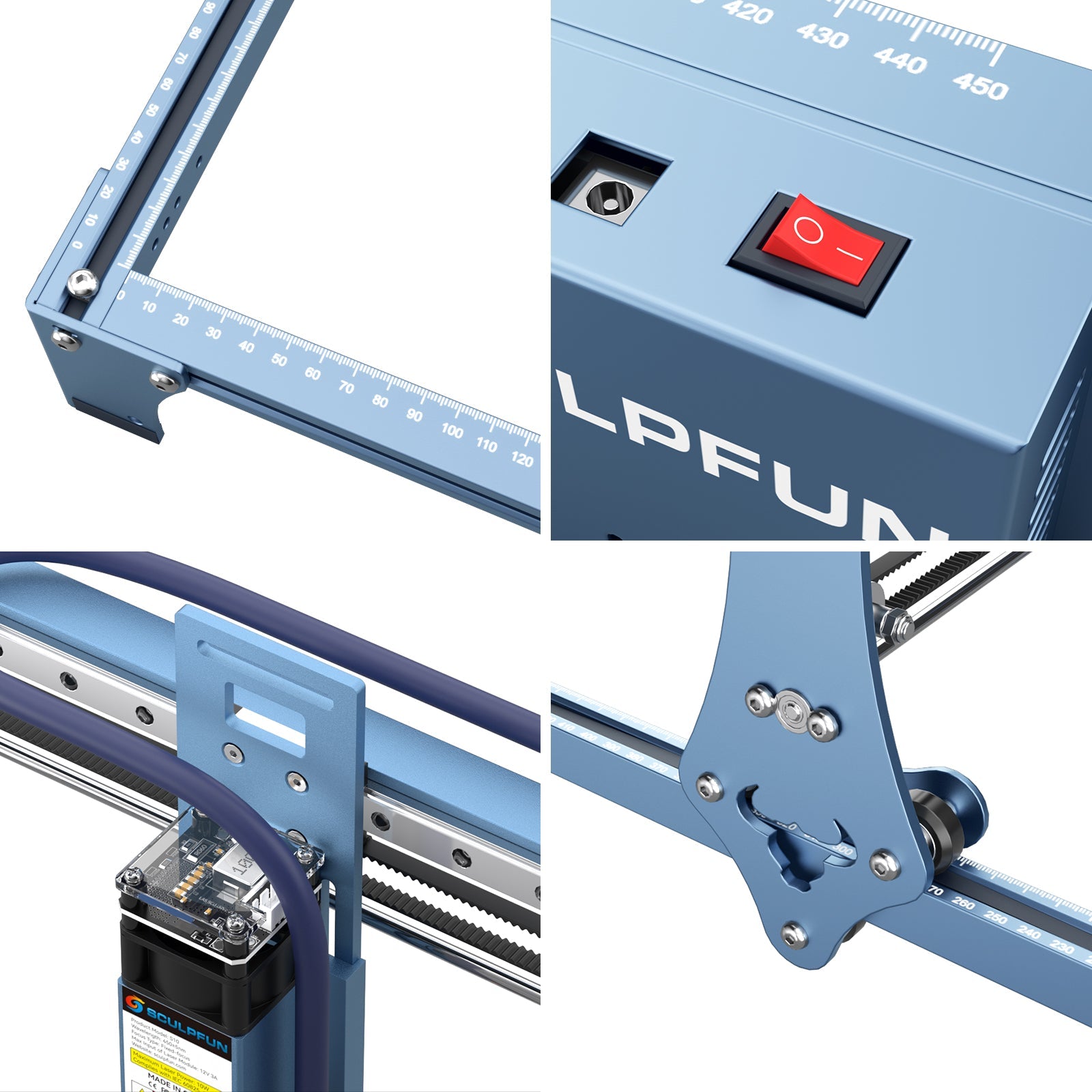

10. Square measuring ruler: The X and Y axes are equipped with precise scale lines, allowing you to quickly measure the size of engraving objects. The large engraving area of ​​400x400mm can meet your various engraving requirements.

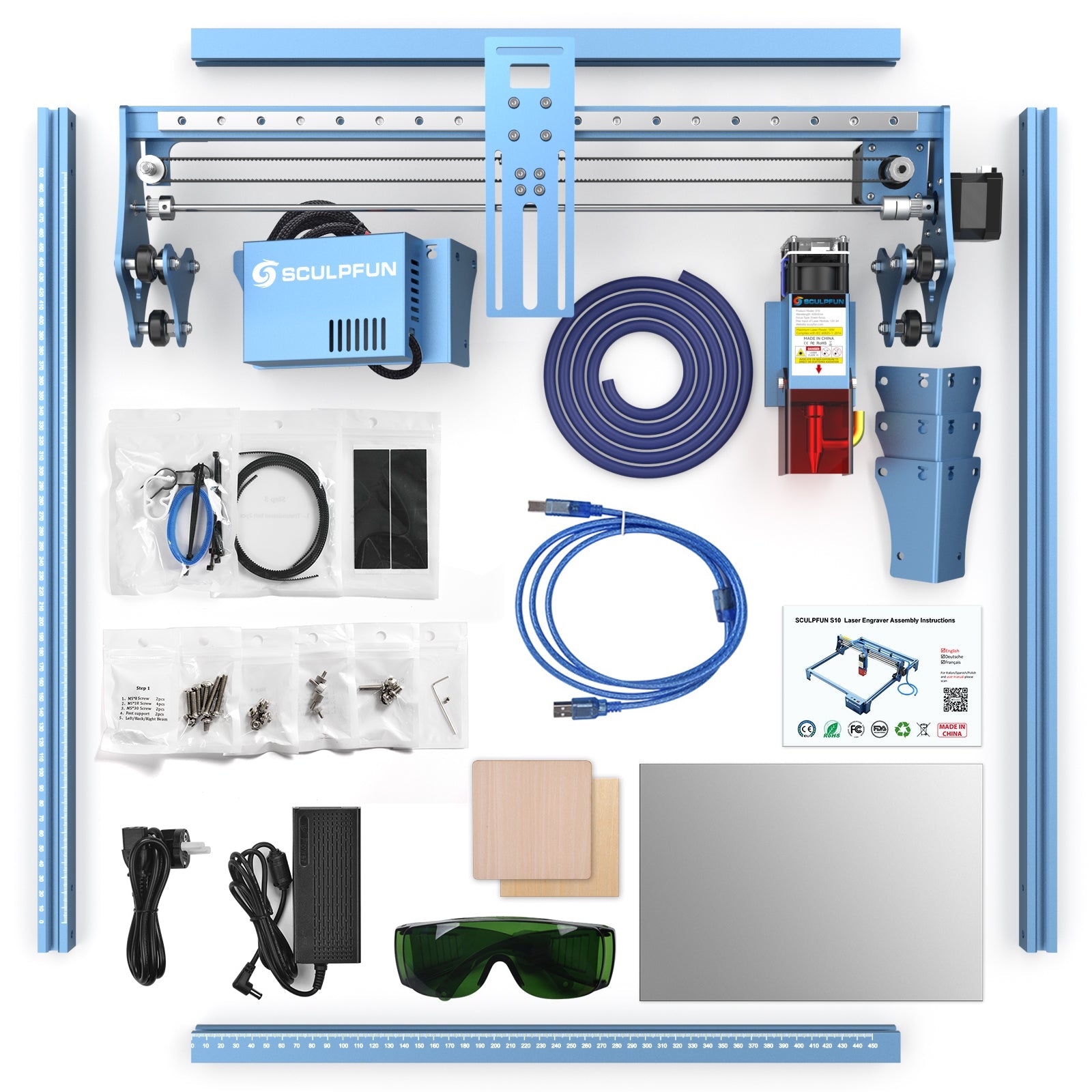

Scope of delivery:

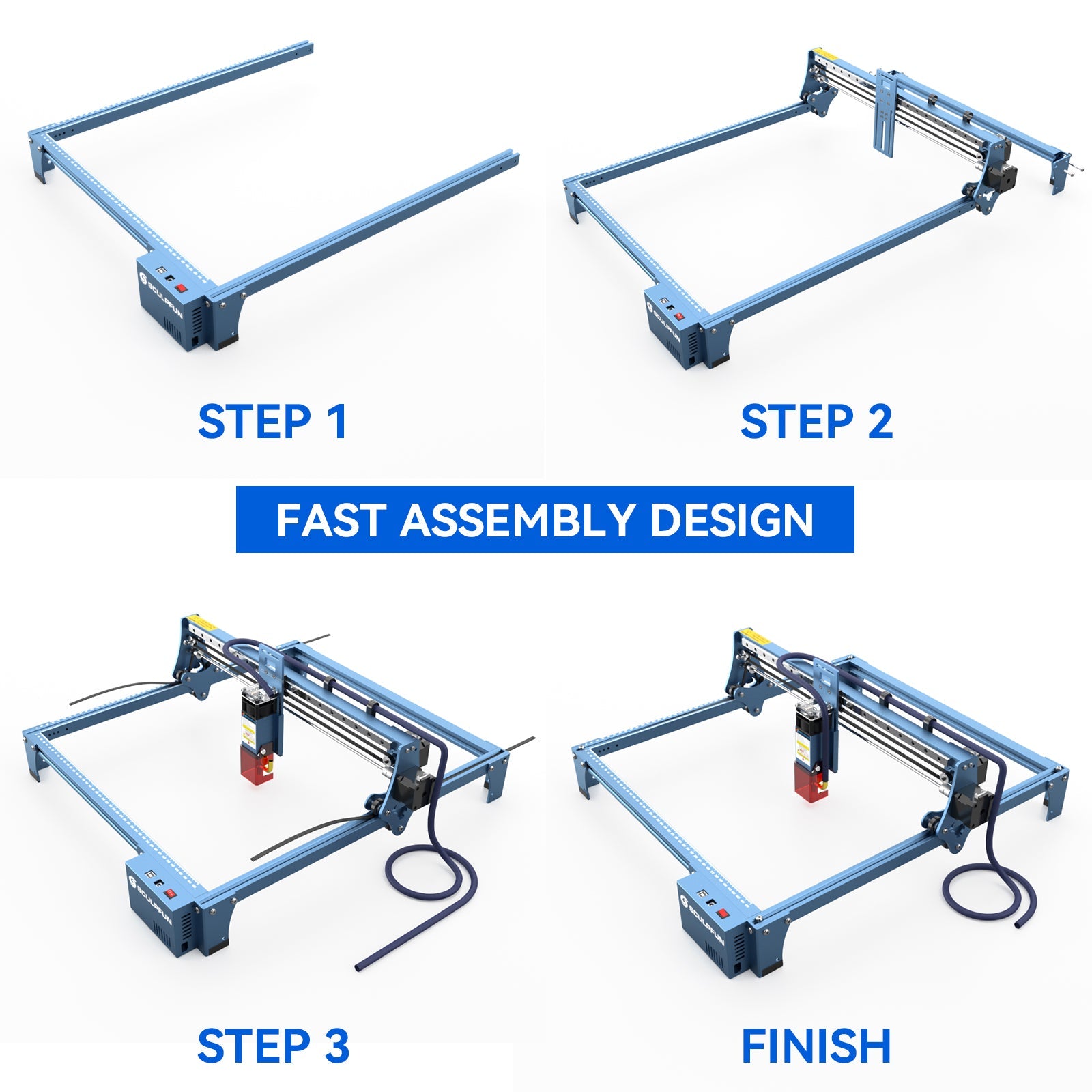

1 × X-axis unit, 2 × X-profiles, 2 × Y-profiles, 1 × control unit, 3 × support feet, 1 × S10 laser module, 1 × 12 V / 5 A power adapter, 1 × power cable, 1 × USB cable, 1 × air hose, 3 × tool bags, 1 × laser safety glasses, 1 × wooden test board, 1 × metal base (size A4), 1 × assembly instructions (steps 1–6), 1 × user manual

Note regarding availability & warranty

When ordering via Makersupply, the device is requested directly from the European warehouse.
The current stock level cannot be guaranteed in real time. Therefore, your order may be considered a pre-order. In this case, delivery will be made as quickly as possible; you will, of course, receive a notification with a confirmed shipping date and tracking link as soon as your order has been dispatched.

Payment is processed only after the device has been confirmed as shipped. The purchase price is therefore only collected by the shop upon shipment.

Returns and warranty claims are handled according to the terms and conditions of the respective manufacturer or retailer. Any warranty claims are processed directly through them.

If you have any questions about availability, delivery time, payment processing or warranty, please feel free to contact us at any time.
