A notice: Please remove the roller before adjusting the chuck angle.
Main features:

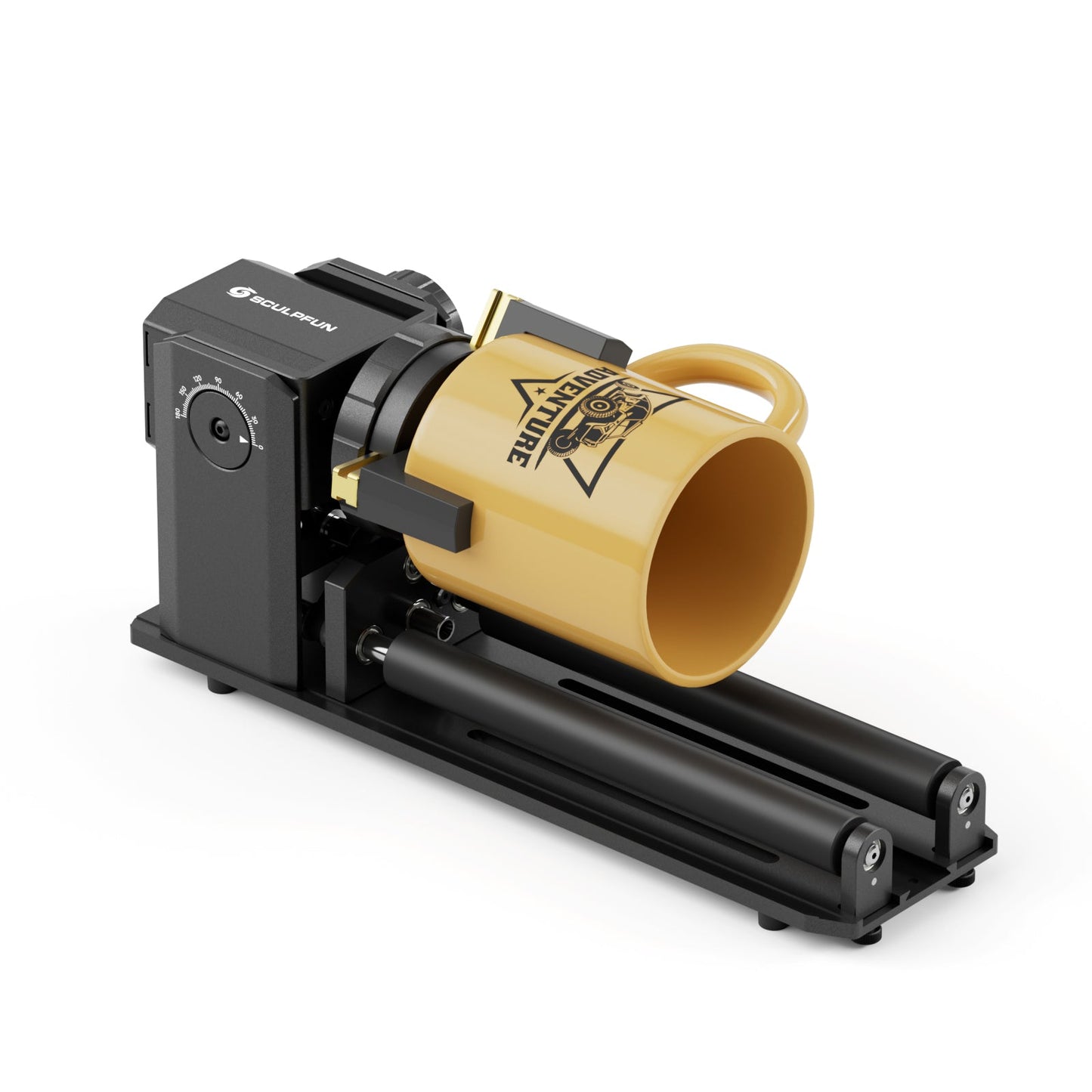

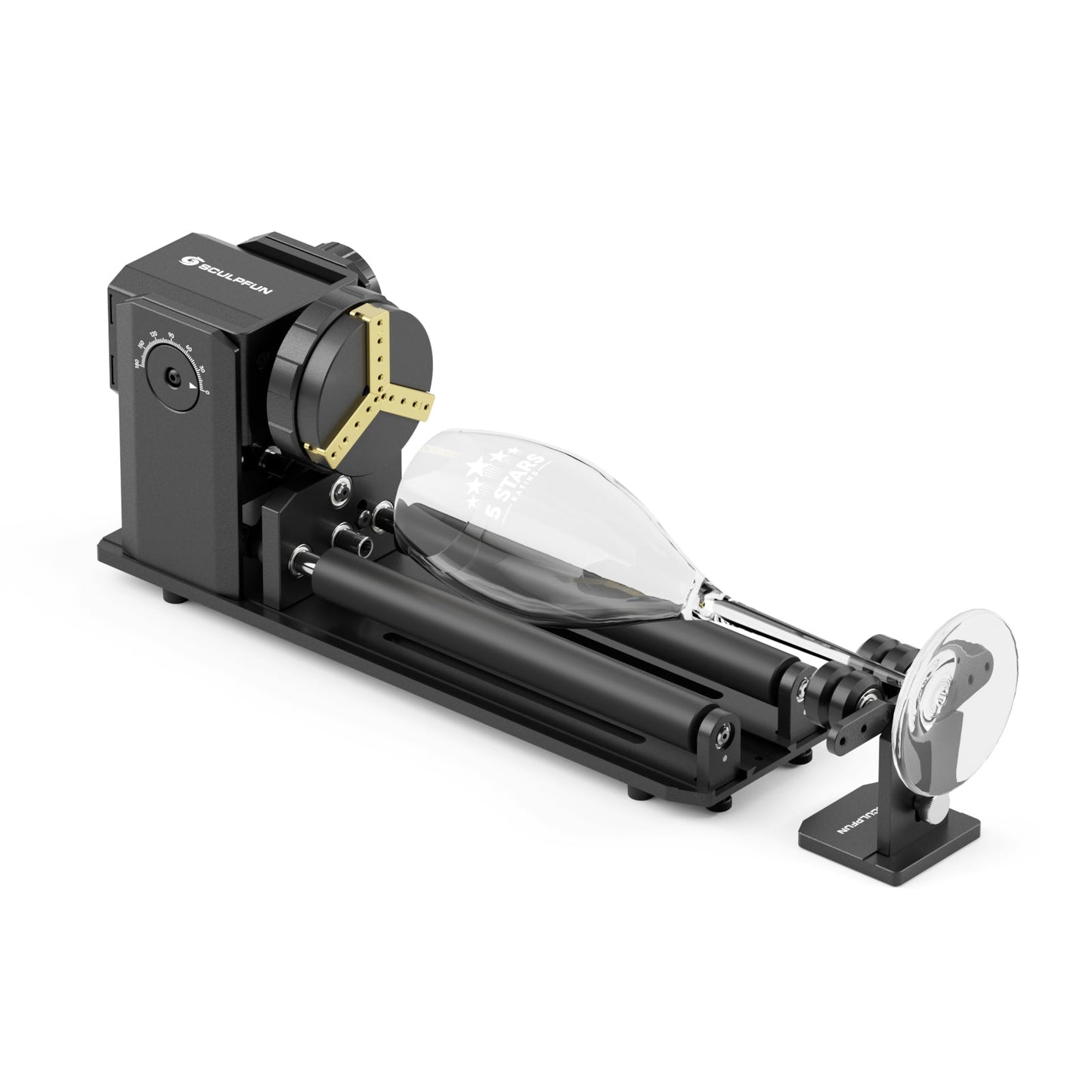

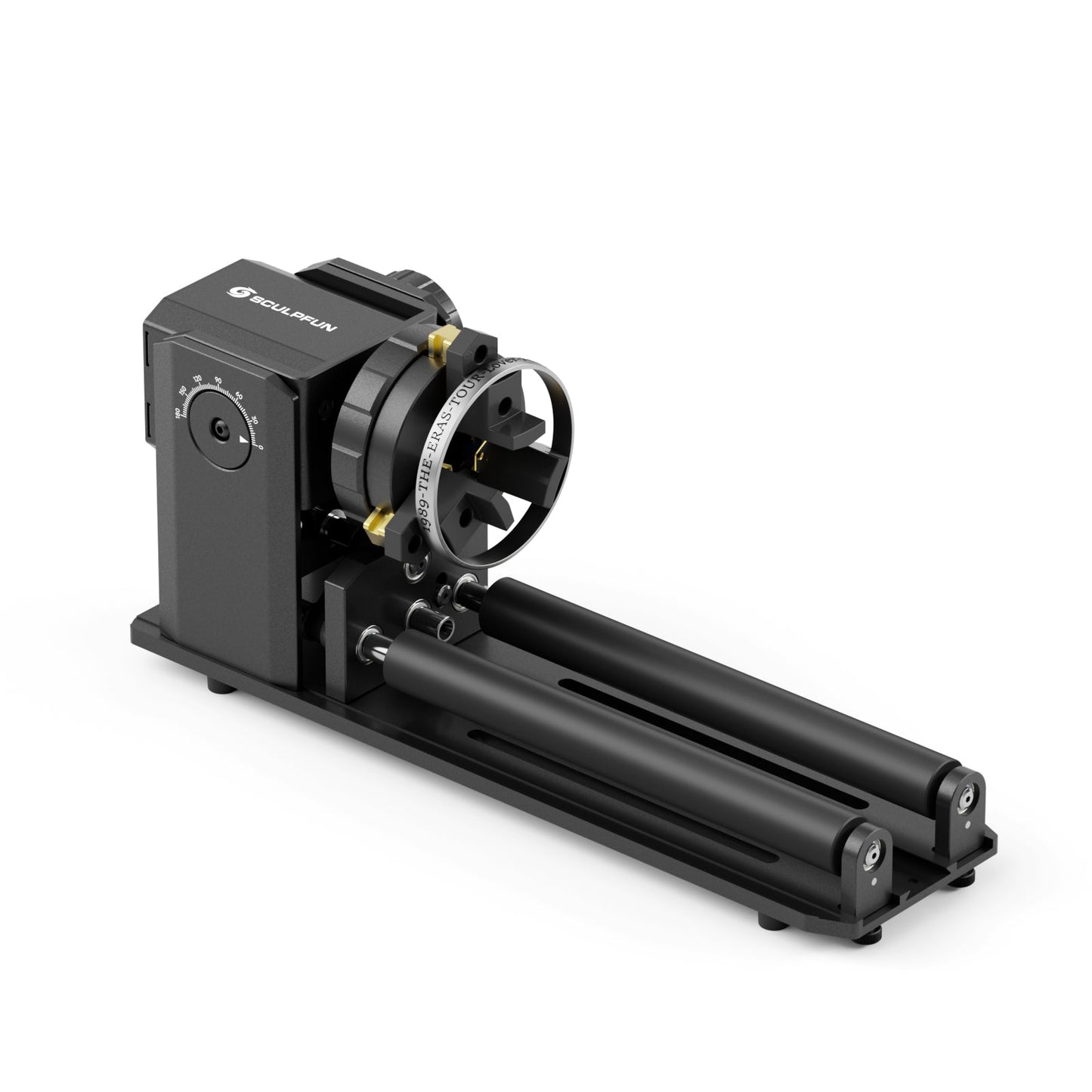

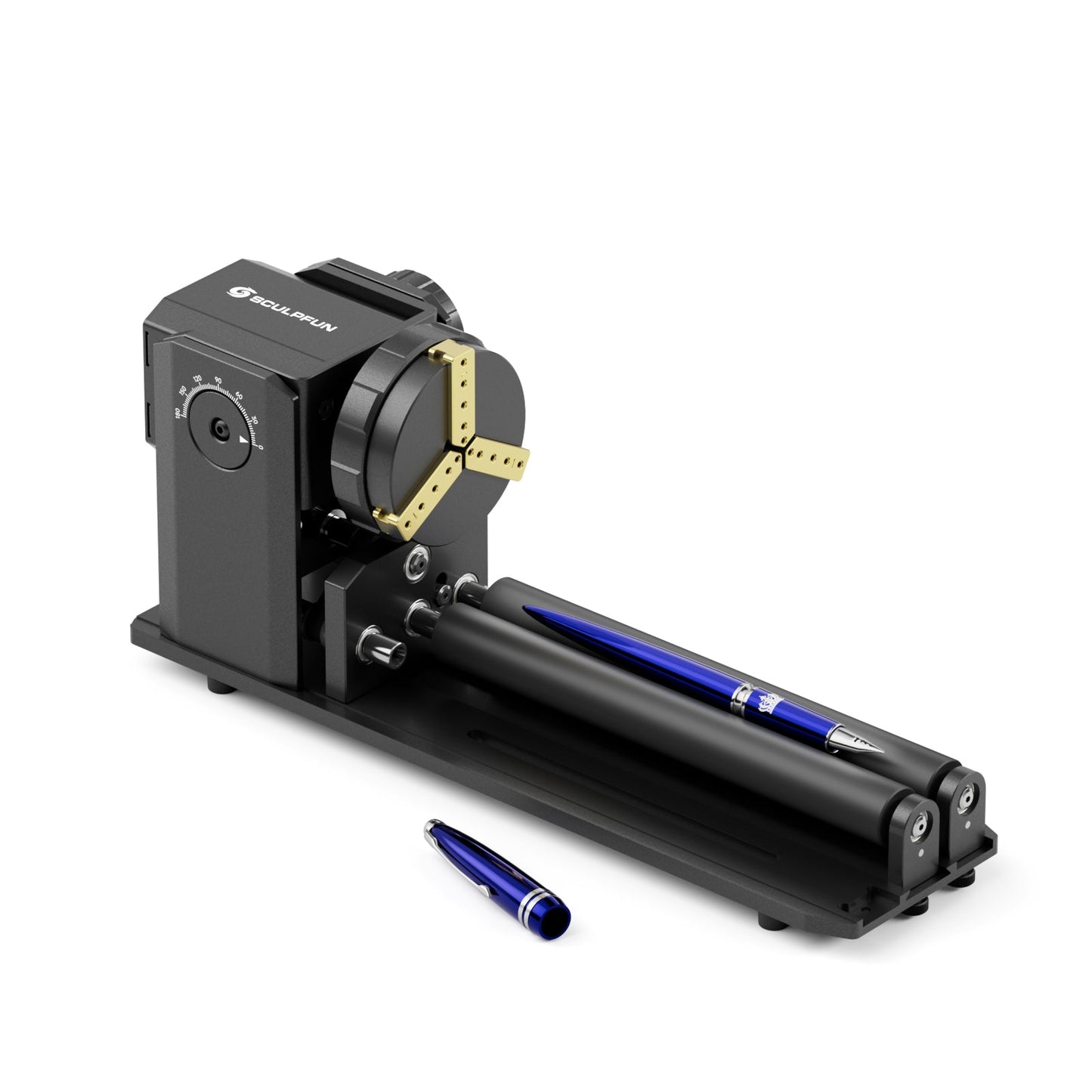

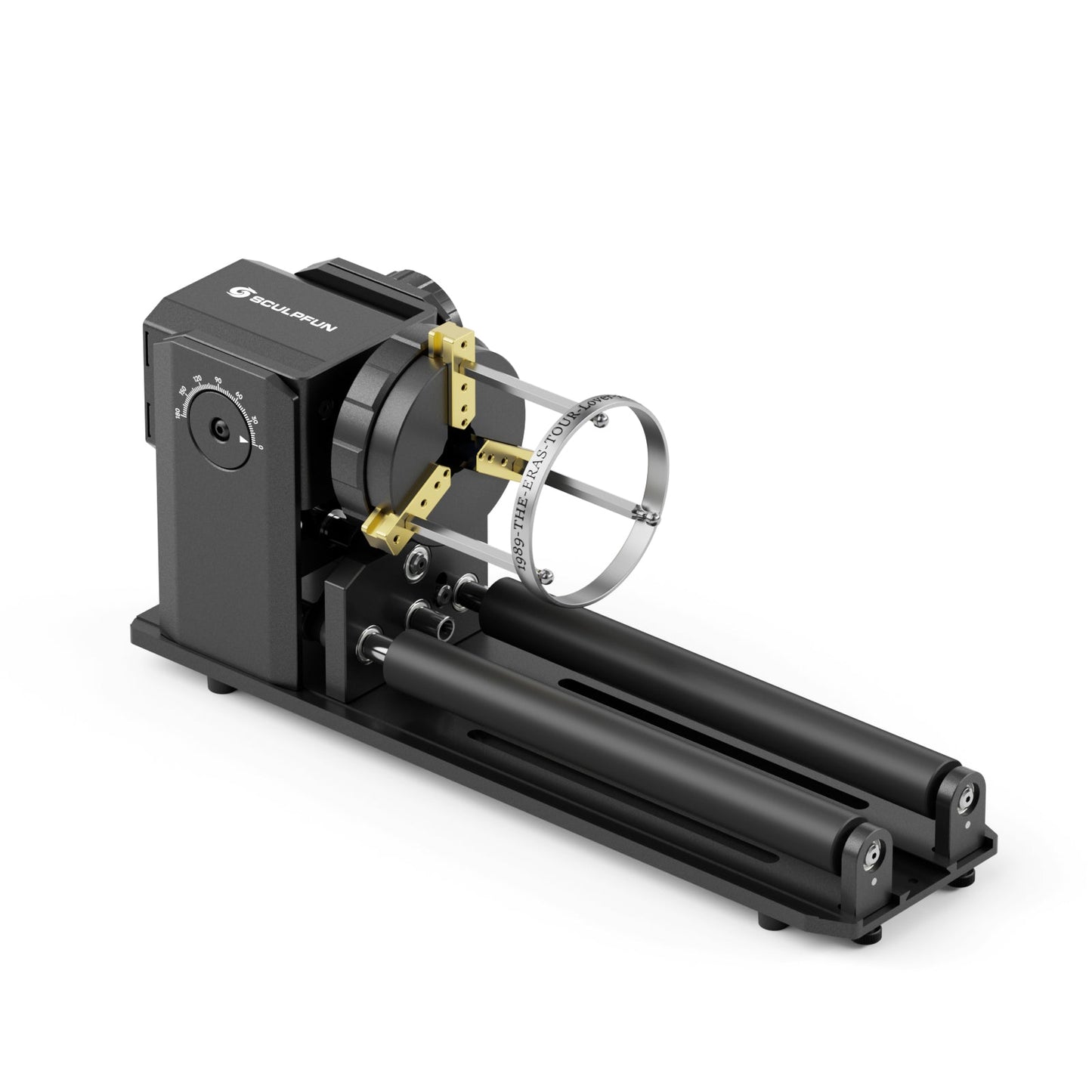

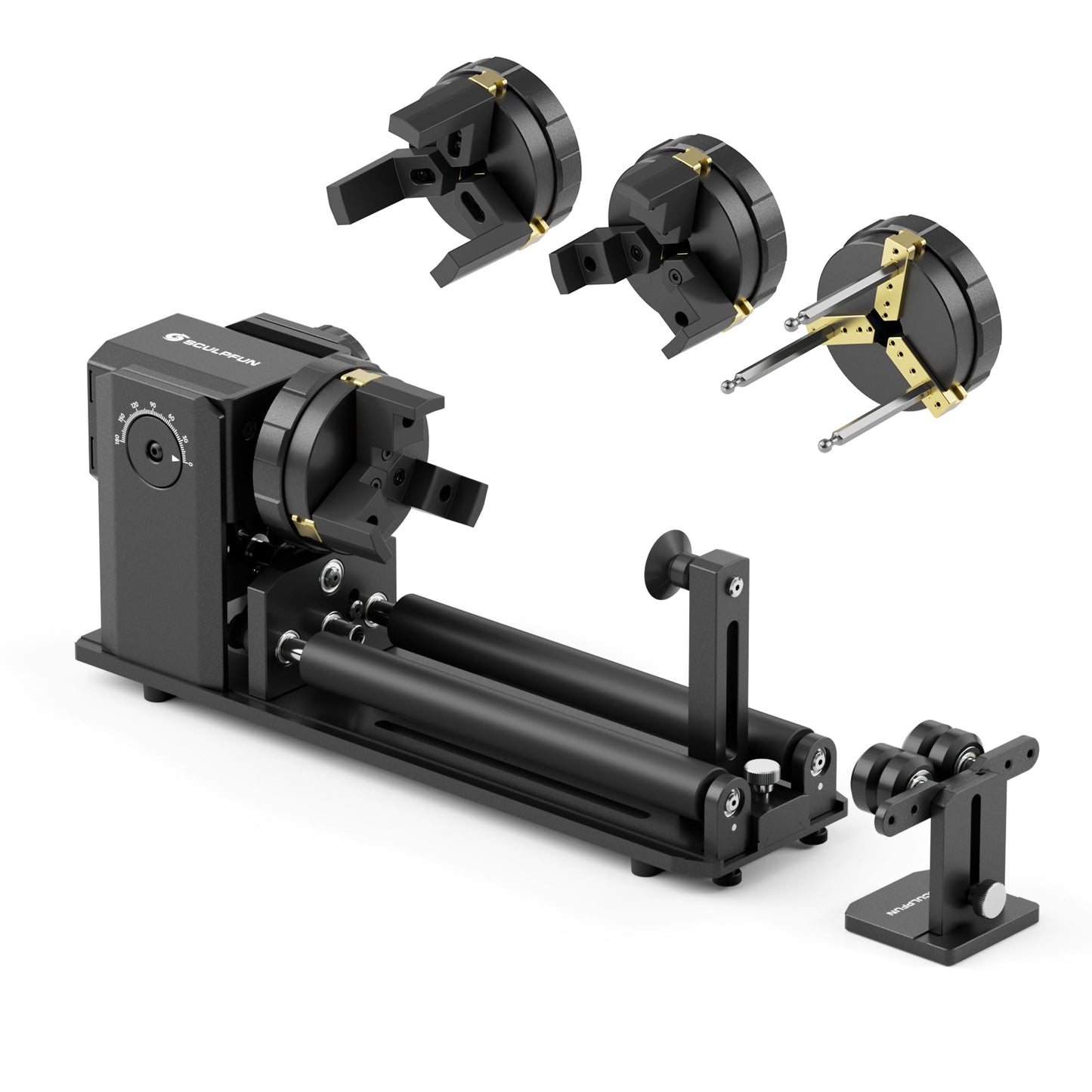

Versatile 4-in-1 rotation module: The Sculpfun RA Pro Max features a roller module with two width adjustment options—ideal for engraving regular cylindrical objects of various sizes. Additionally, three jaw sets are included: stepped jaws, L-shaped jaws, and hexagonal jaws. Easily interchangeable jaws allow for engraving irregular shapes such as wine glasses, baseballs, glass cups, mugs with handles, or baseball bats—for maximum creative freedom and a wide range of applications.

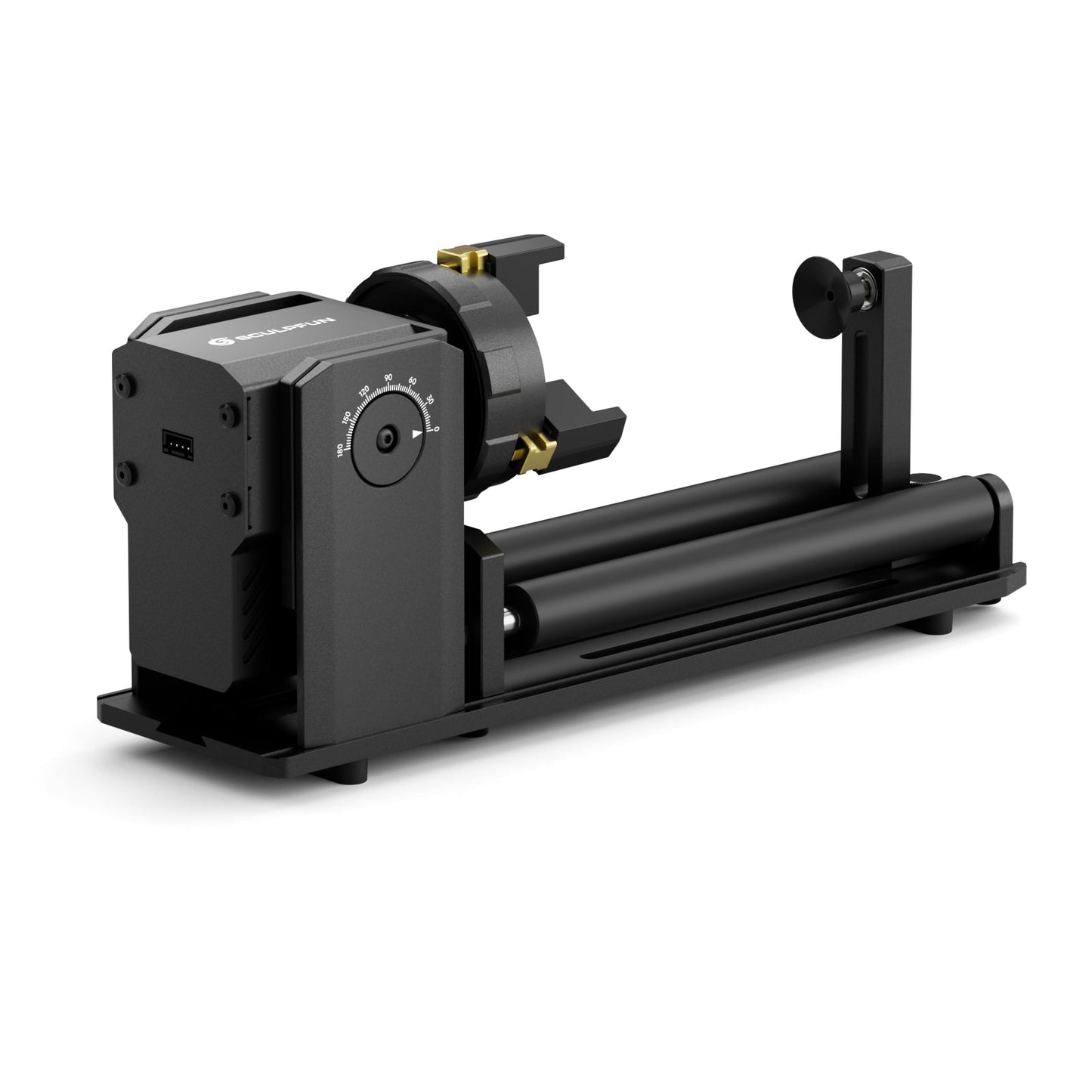

Compact all-in-one frame: The roller and chuck share the same motor, making the entire device particularly space-saving. The roller can be quickly and easily removed using a screw on the base plate. Ideal for quick changeovers and compact storage.
180° adjustable angle: The rotation module can be tilted continuously by 180 degrees, which creates additional flexibility when processing large objects.
Easy plug-and-play use: With the included adapter cables, the device can be connected directly to the Y-axis stepper motor port of the laser engraving machine – no setup required.
Robust metal construction: The chuck is made entirely of anodized aluminum alloy, which is corrosion-resistant and durable. The jaws are made of high-strength brass for reliable grip even during extended use.

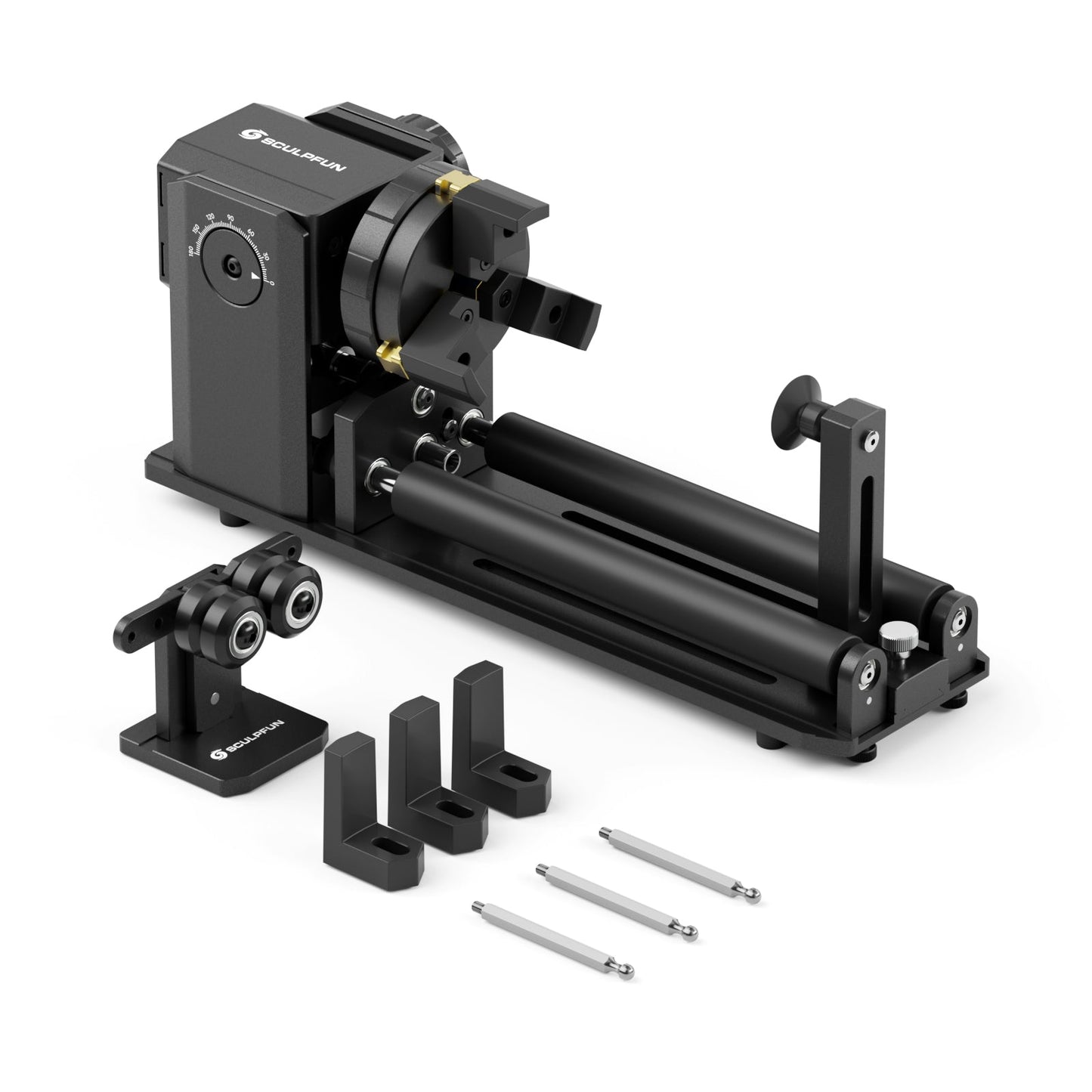

Multifunctional support system: The RA Pro Max support system includes:

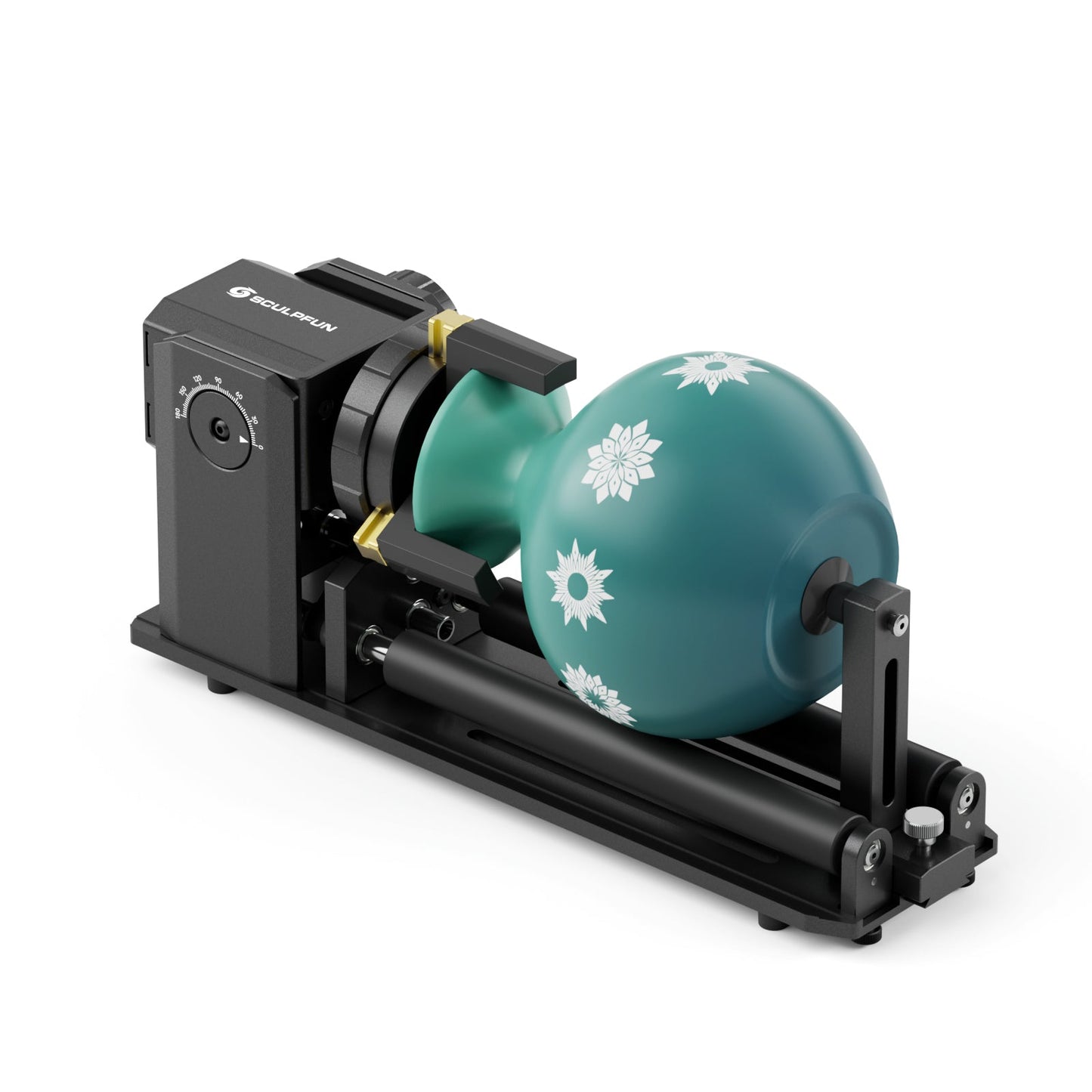

Tailstock with knurled screw for secure fixation of spherical objects
Extension support with double rollers, whose height and width are adjustable – ideal for machining particularly long cylindrical workpieces
Compatible machines: S6 / S6 Pro / S9 / S10 / S30 Series / S30 Ultra Series / SF-A9 Note: For other models please consult the manufacturer.
Compatible software: LightBurn (recommended) and LaserGRBL
