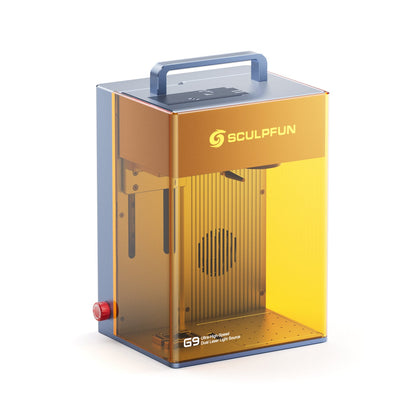

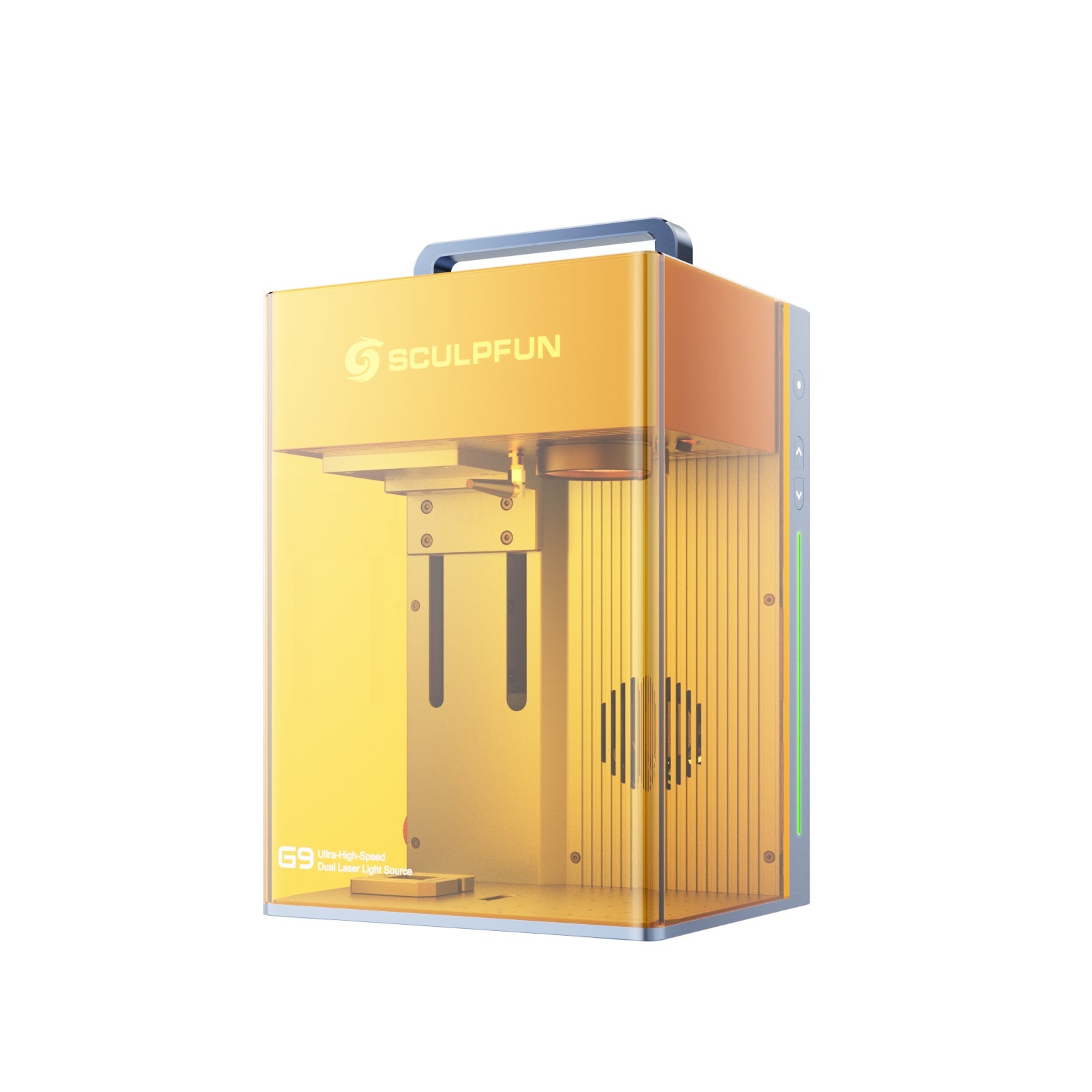

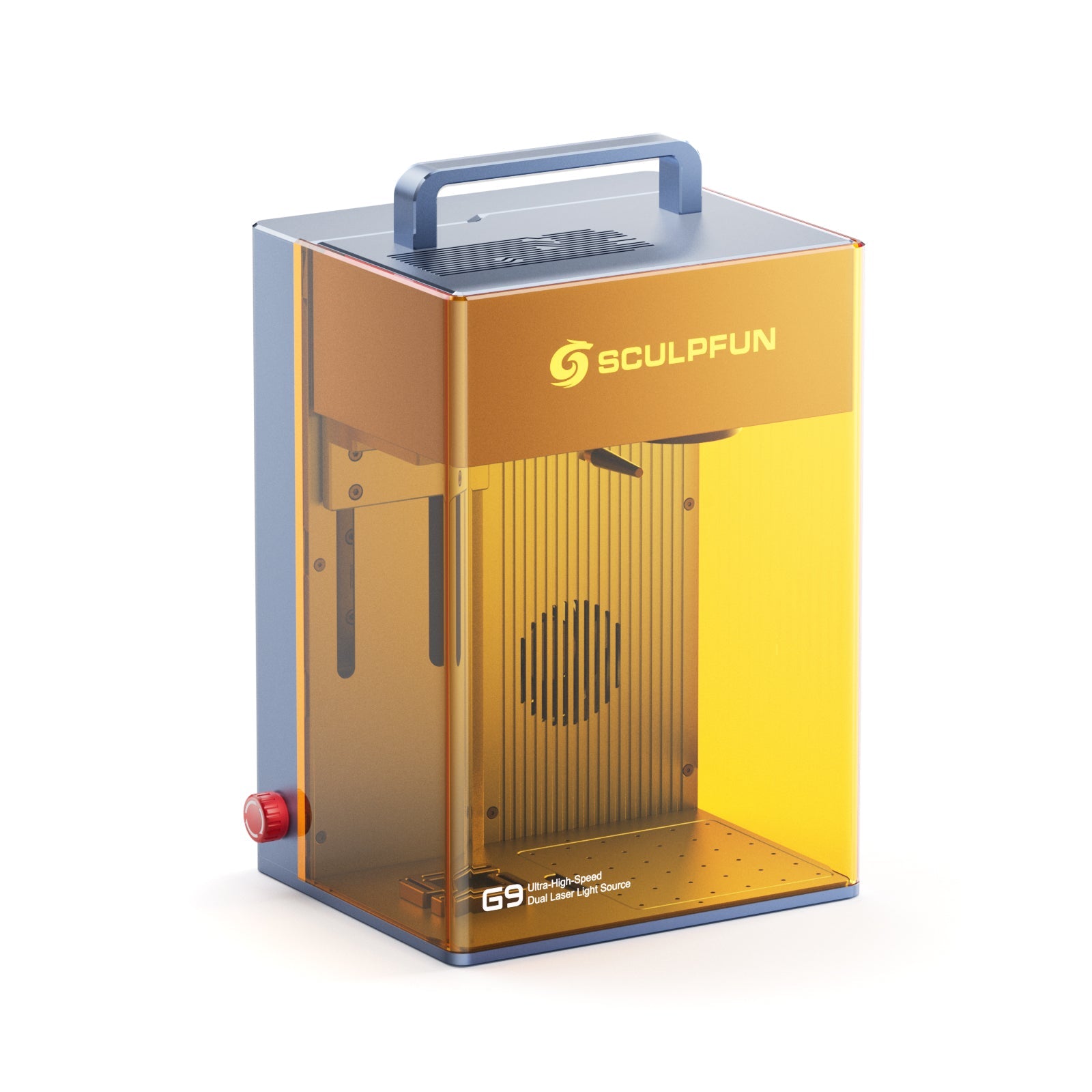

Sculpfun G9 2W IR + 10W laser engraver

Main features:

1. Complies with Class I laser safety standards
The Sculpfun G9 is a dual-laser engraver that meets the requirements of Laser Safety Class I. This eliminates most safety risks and offers a safe, complete solution. The included protective cover eliminates the need for additional housing or safety goggles – for maximum safety during operation. The enclosed work area and pre-assembled design make it particularly easy and safe to use.
Note: When the cover is opened, the laser stops automatically.

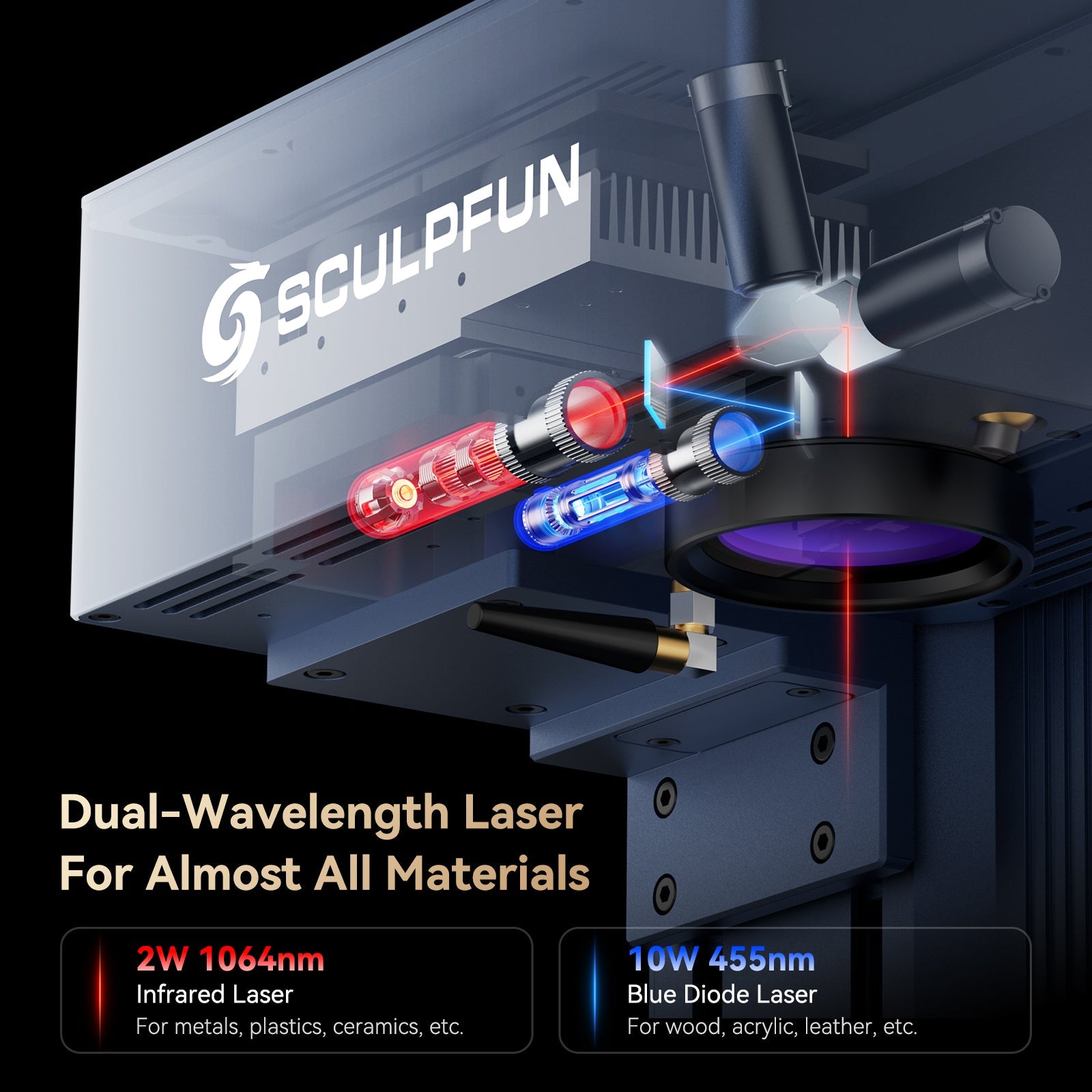

2. Dual laser module with two light sources
The G9 contains two types of lasers: an infrared laser and a blue diode laser.

• The 2 W 1064 nm infrared laser is ideal for engraving on metals and plastics.
• The 10 W 455 nm diode laser is perfect for common materials such as wood, acrylic, etc.

This makes the device versatile – for example, for designing business cards, dog tags or for removing rust.

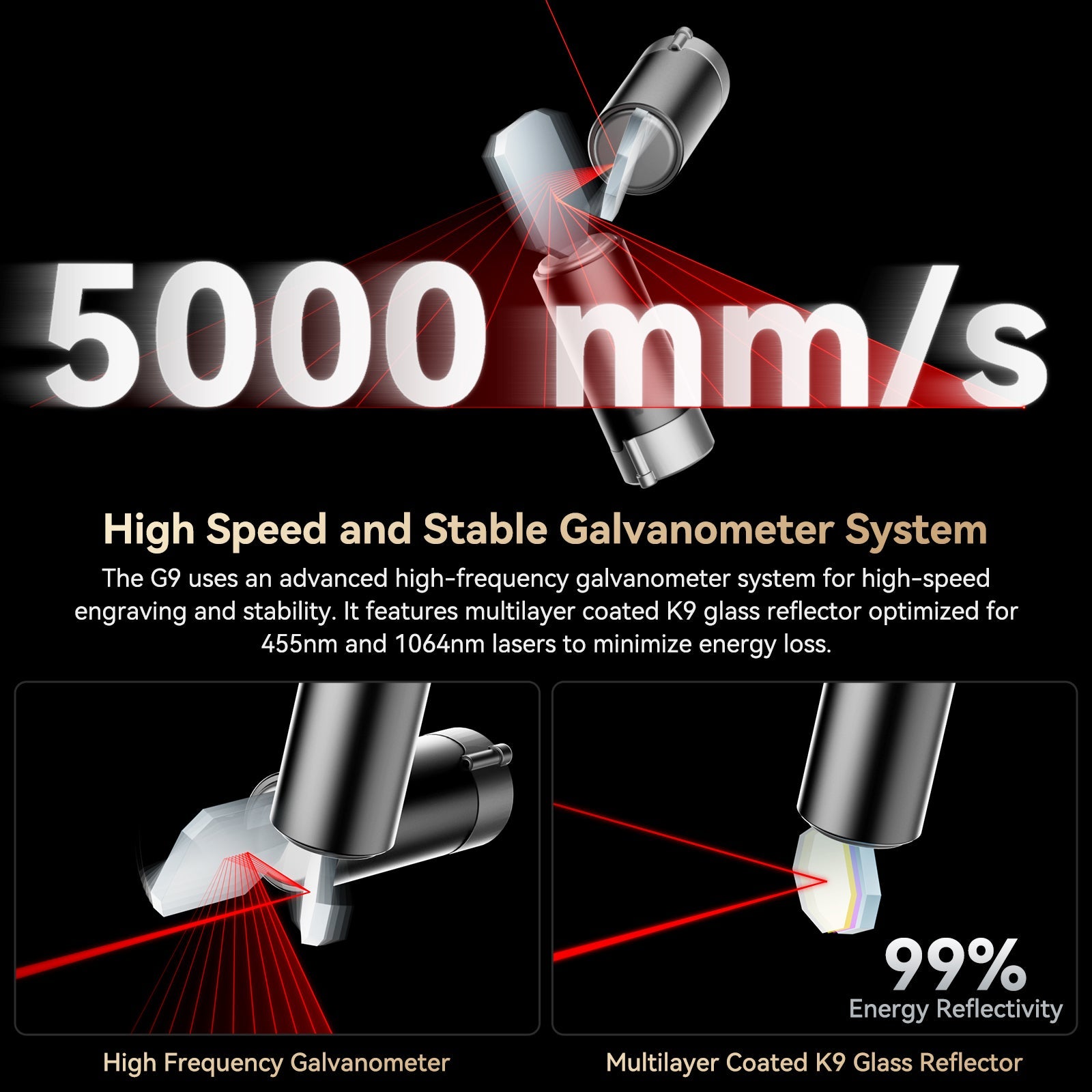

3. Industrial-grade galvanometers – Highest precision at high speed
Thanks to the industrial galvo system, the G9 achieves extremely high engraving performance with engraving speeds of up to 5,000 mm/s and a preview speed of 10,000 mm/s . The repeatability is 0.0001 mm , and the minimum dot size is 0.01 mm – for razor-sharp engravings down to the finest detail.

4. Fully enclosed protective housing
The device is equipped with a fully enclosed protective housing that effectively filters the laser beam. Smoke and fumes can be vented through a window and connected extraction hose. The built-in fan and an optional air purifier filter out odors and smoke – ensuring a safe and clean workplace.
Note: The air purifier must be purchased separately!

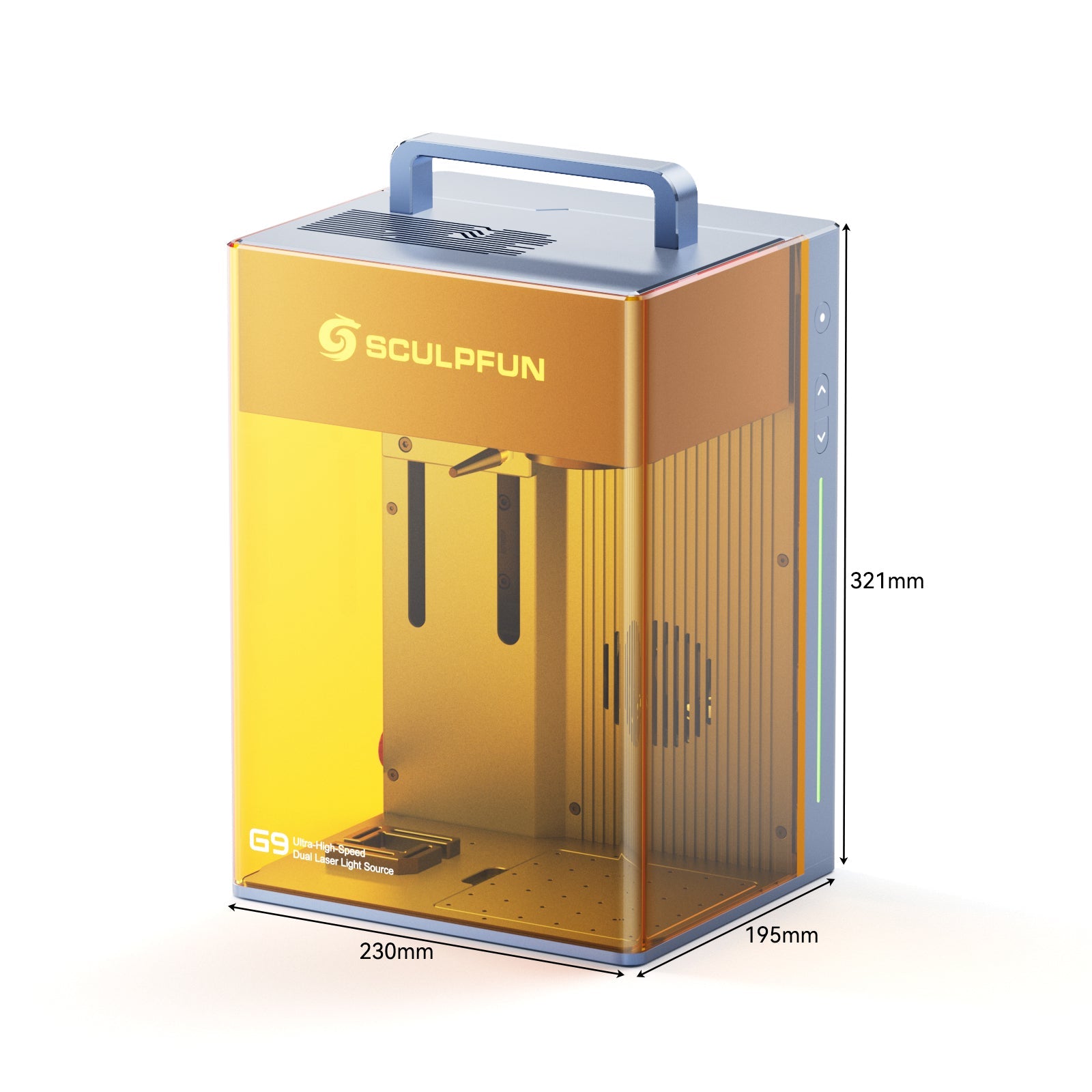

5. Compact design
The portable and space-saving design makes the G9 perfect for trade fairs, markets, souvenir shops and other mobile applications – ideal for turning creative ideas directly into income.

6. User-friendly software application
The free SGD Laser software (for smartphones and PCs) makes projects easy and effective to implement. It offers:

• An intuitive user interface
• Image editing functions such as multi-layer processing, variable engraving parameters and import of many image formats
• Material-dependent settings for optimal results

The G9 is also compatible with LightBurn – perfect for beginners and professionals alike.

7. Compatible with a wide range of accessories
Optionally available are:

• Air purifier : Removes approx. 99.97% of engraving residues
• G9 Slide Extension Kit : Enlarges the work area by up to 3.5 times – ideal for larger or serial work
• RA Pro Max Rotary Attachment (4-in-1) : Allows the processing of cylindrical and spherical objects such as glasses, cups, rings or balls

Note: Accessories must be purchased separately.

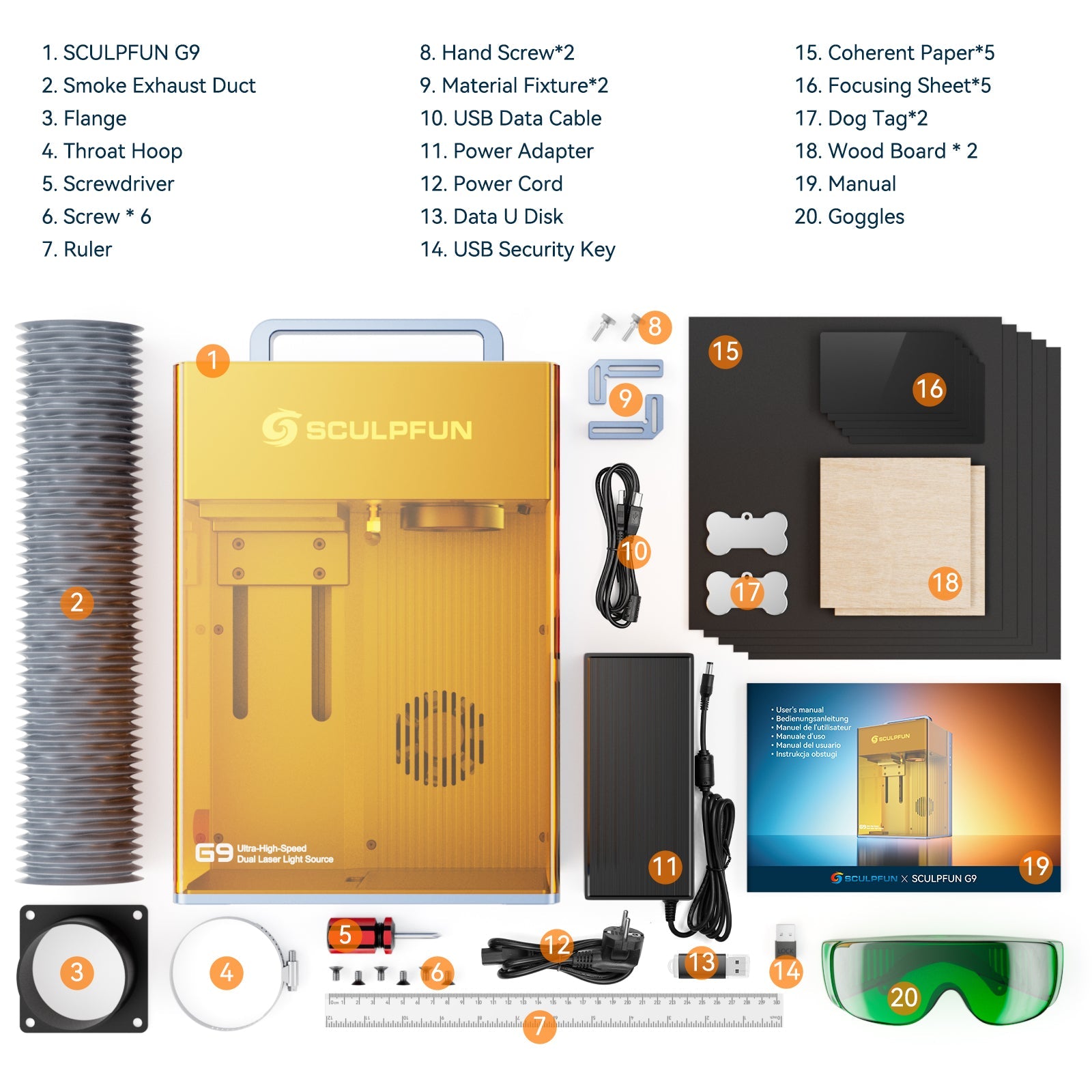

Scope of delivery:

1× Sculpfun G9, 1× Hose clamp, 1× Flange, 1× Exhaust hose, 1× Power supply (adapter + connection cable), 1× USB cable, 1× USB security key, 2× Material clamp + 2× Thumb screw, 2× Wooden plate, 2× Dog tag, 1× Screwdriver, 6× Screws, 1× USB flash drive, 1× Instruction manual, 1× Ruler (300 mm), 5× Coherence paper (210 × 210 mm), 1× Laser safety goggles, 5× Focusing aids (86 × 54 × 0.2 mm)
