Official Sculpfun Camera: Compatible with Sculpfun laser models (S6, S9, S10, S30 series). Not usable with area extension kits. With the S30 Ultra (especially Ultra 33 W), exact centering is not possible due to the height - not recommended for this variant. Note: For S6/S6 PRO/S9/S9 PRO/S10, an additional limit switch is required to use the CAM500 camera.
Industrial camera for laser cutters: Specially designed for laser engraving machines. With true 5 MP resolution, it delivers clear images for precise position detection.

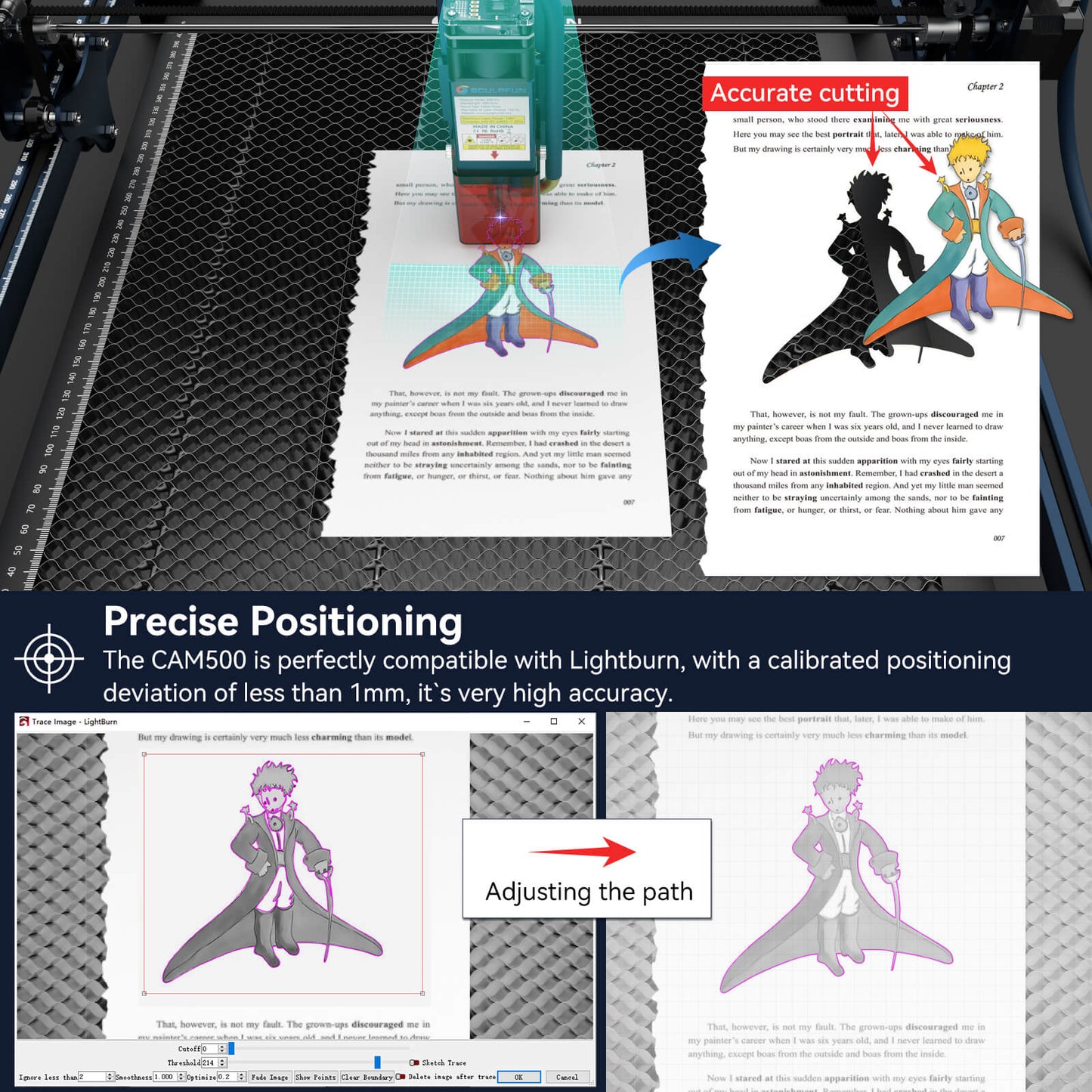

Exact positioning: Seamlessly compatible with the CAM function of the LightBurn software. The camera detects objects with a position deviation of less than 1 mm.

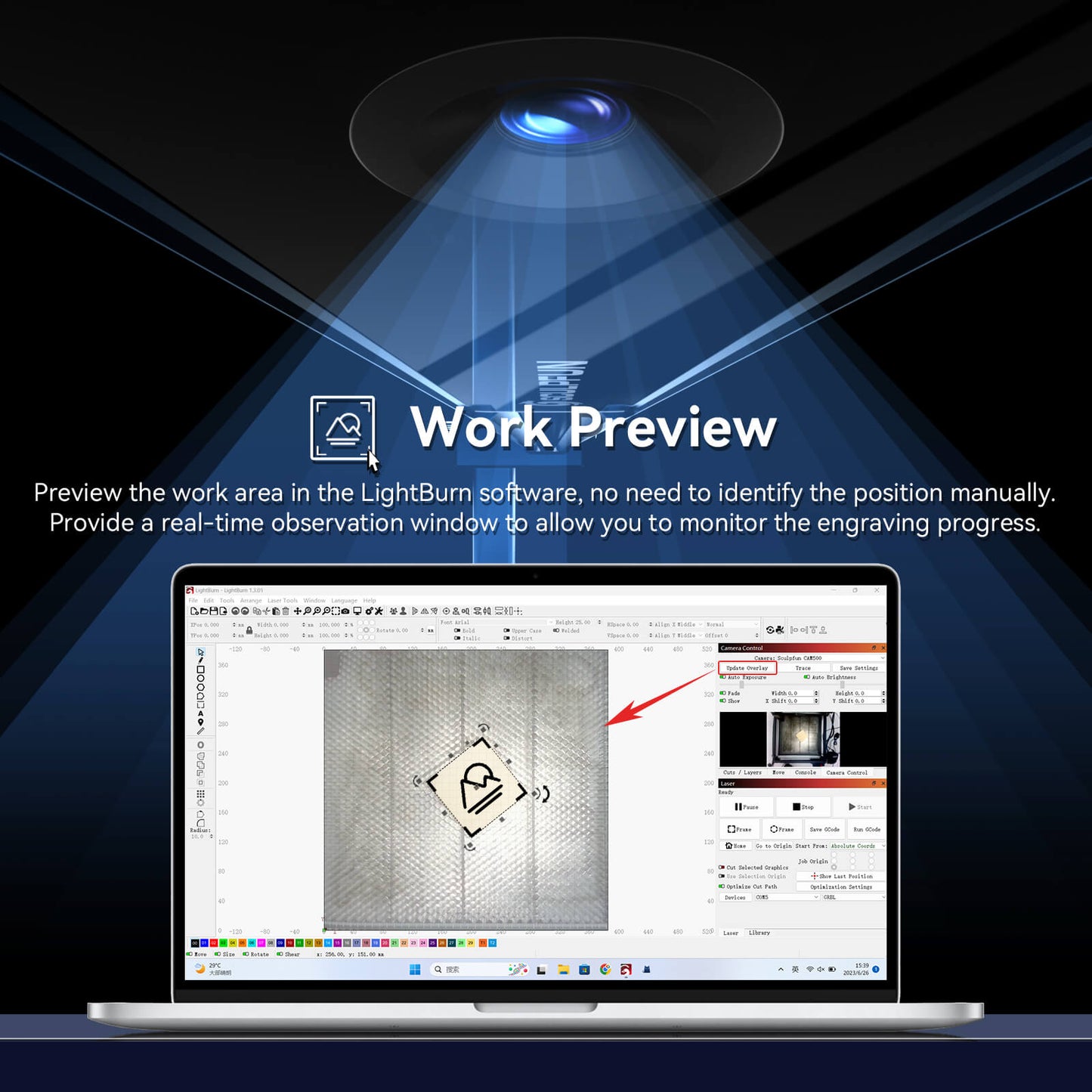

Engraving position control: The motif can be moved directly in the LightBurn interface to a desired material position – the machine will then engrave exactly at this point.

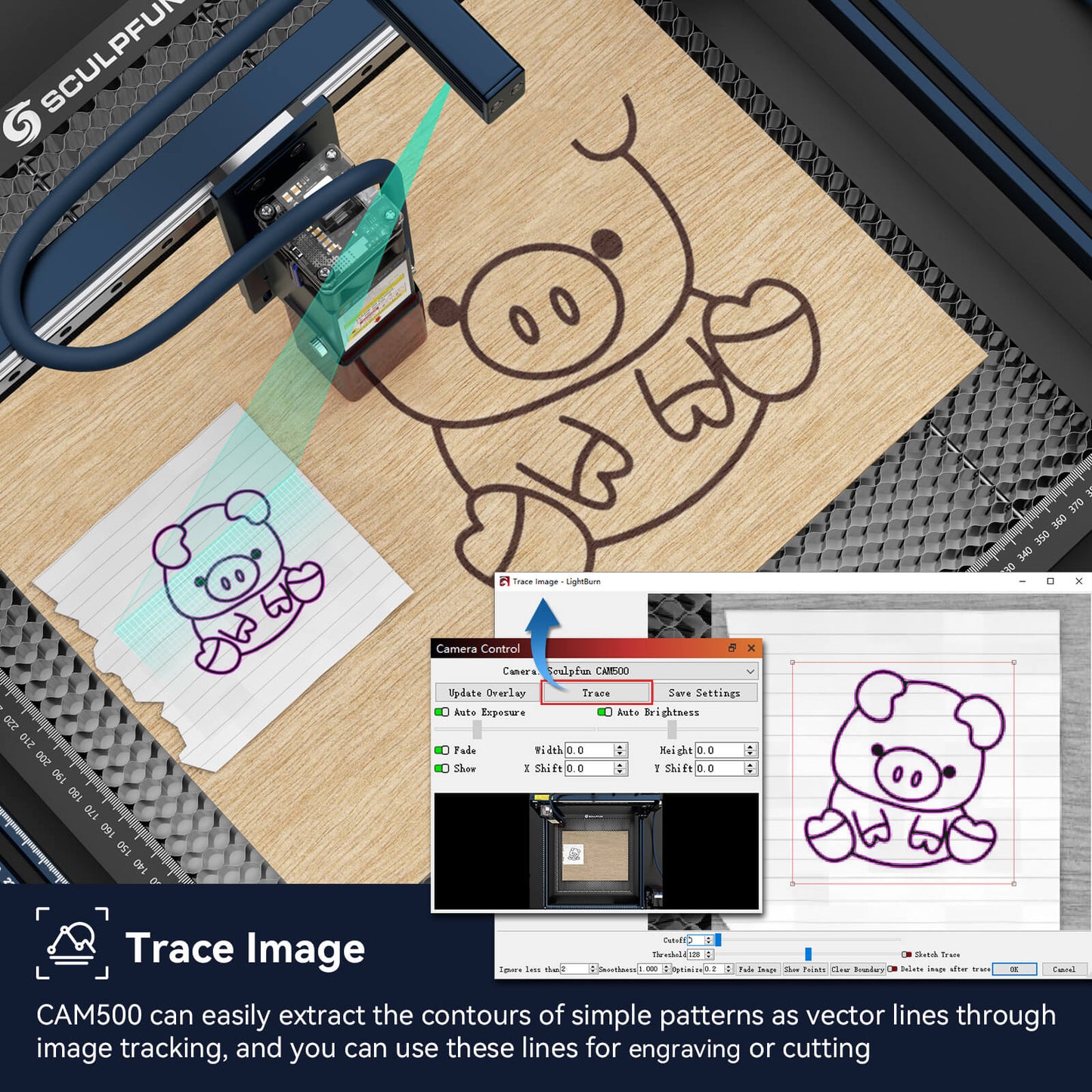

Image tracking: The camera detects patterns on the object surface and automatically converts them into vector engraving files.

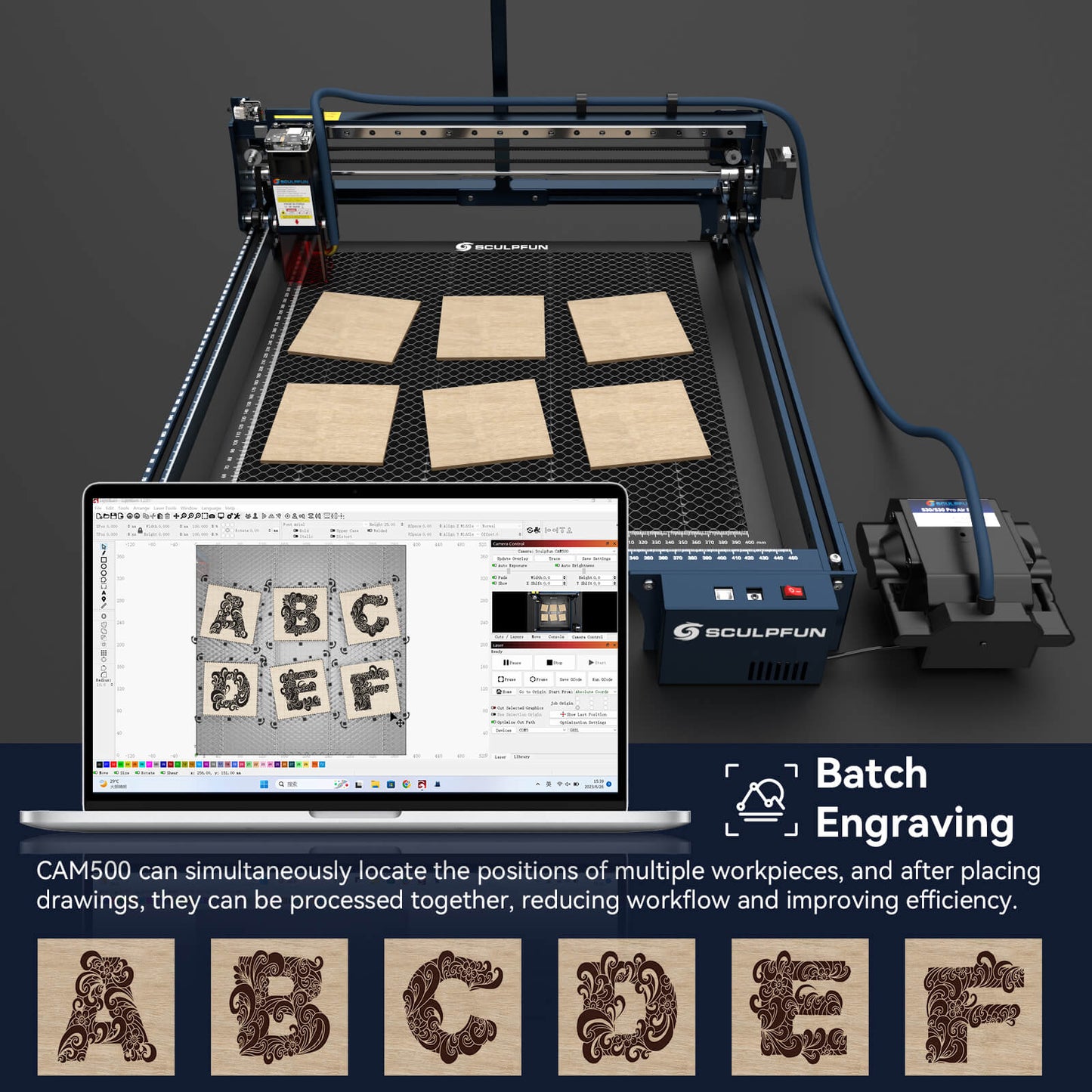

Serial engraving: Multiple engraving objects can be processed simultaneously – ideal for mass production and increased efficiency.

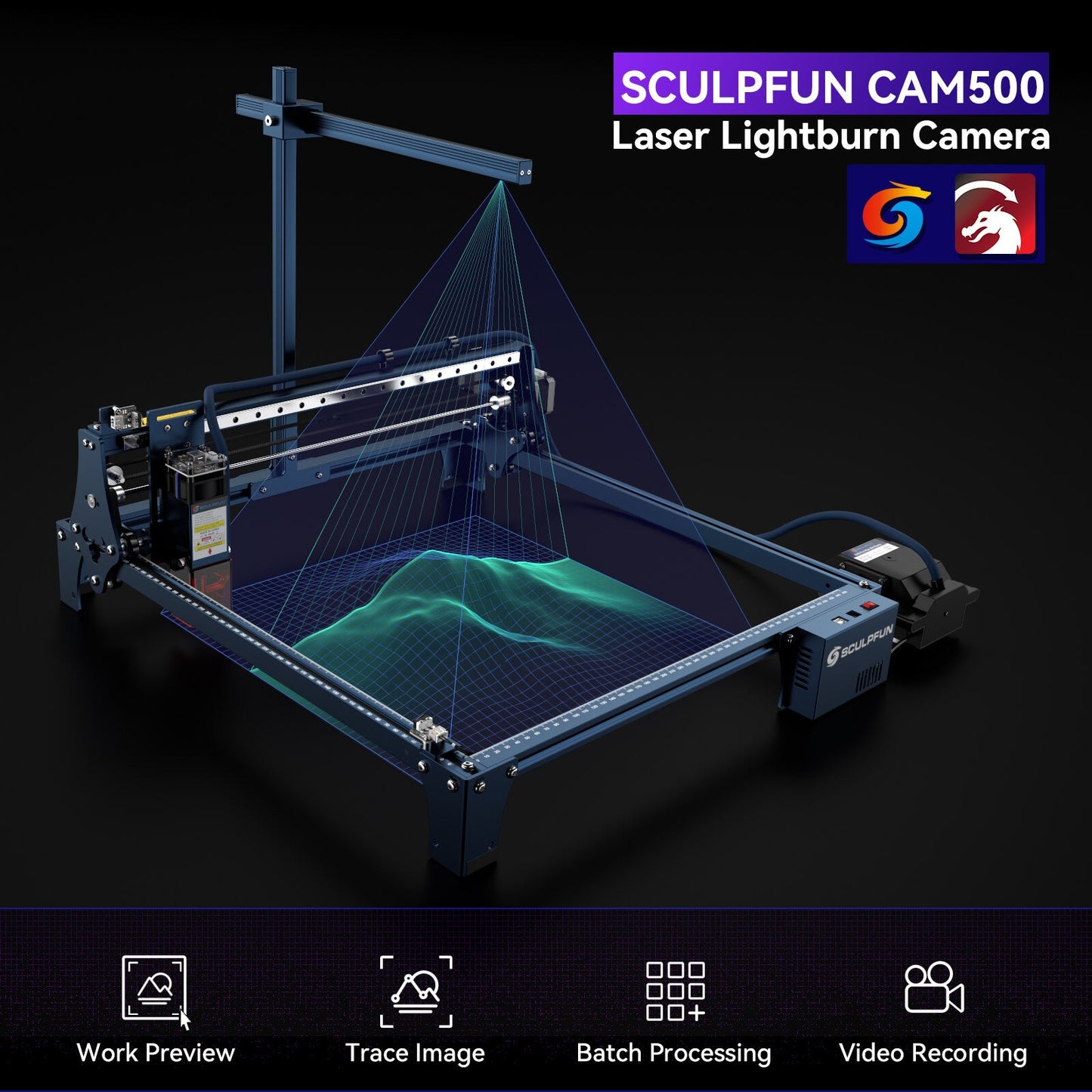

HD video recording: 120° wide-angle lens with a working area of 400 × 400 mm – perfect for documenting the engraving process.

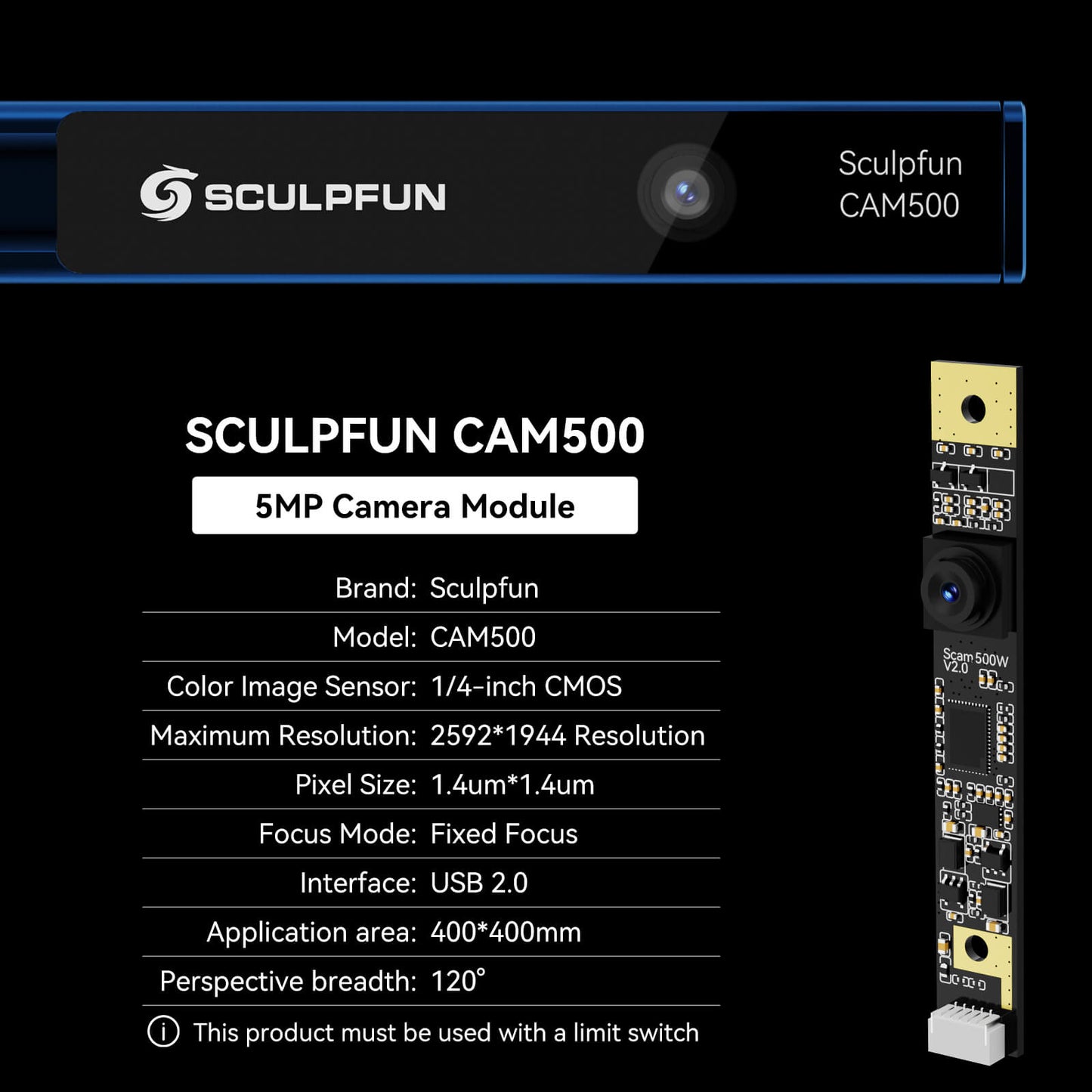

Industrial camera with 5 MP resolution: Professional version for LightBurn with real 500W pixels (equivalent to 5 megapixels), particularly precise and clear in detection.
Large detection range: The 120° wide-angle lens covers an area of 400 × 400 mm.

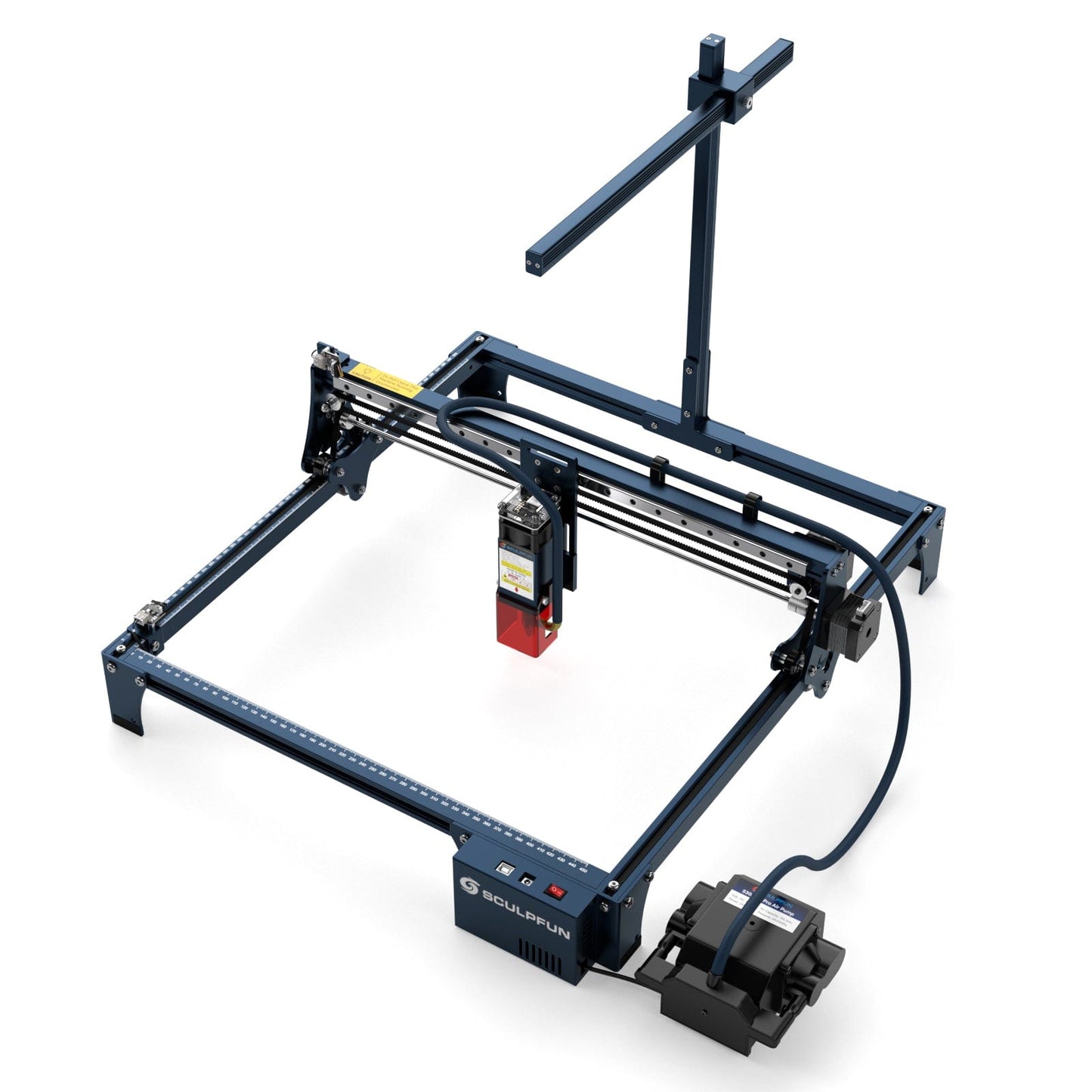

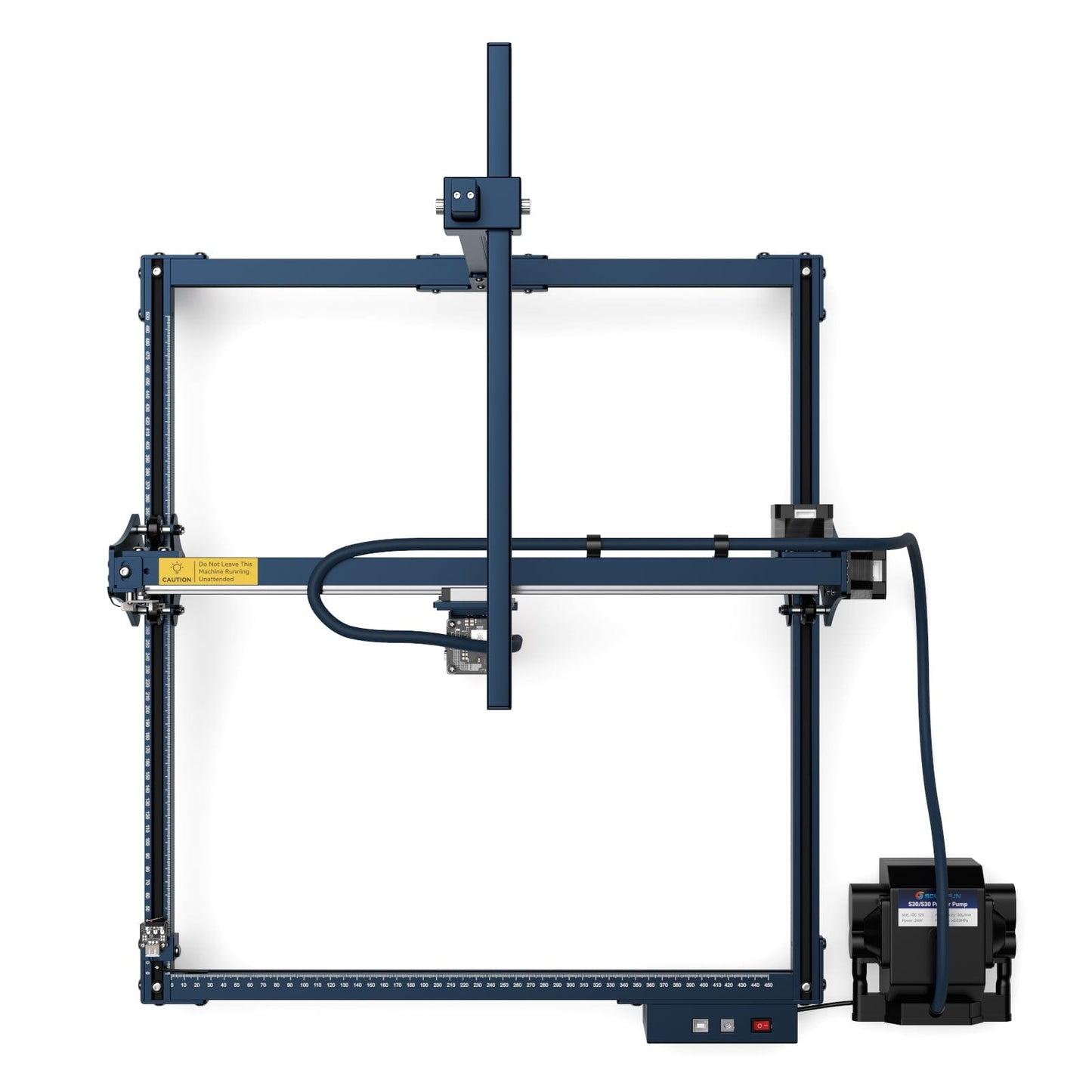

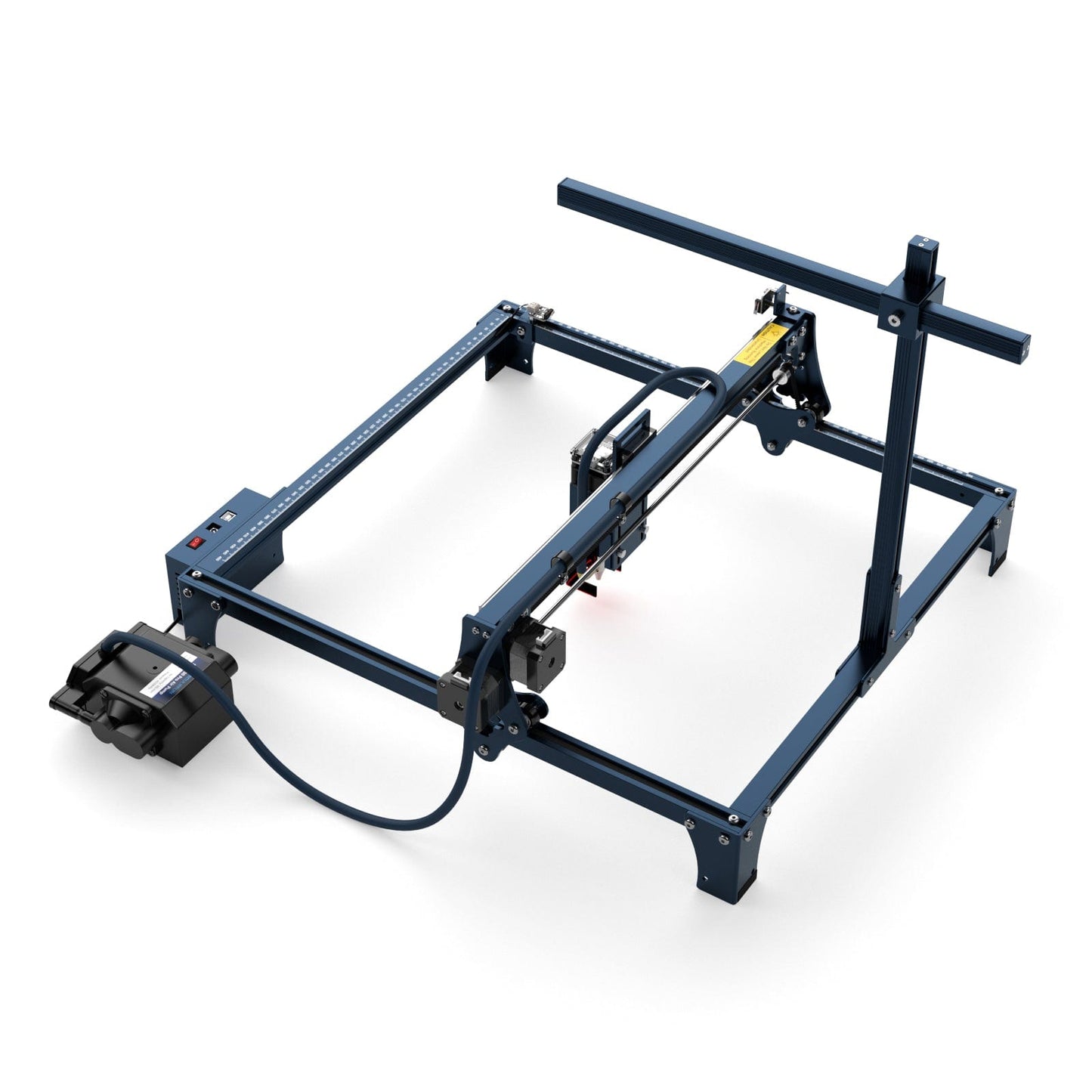

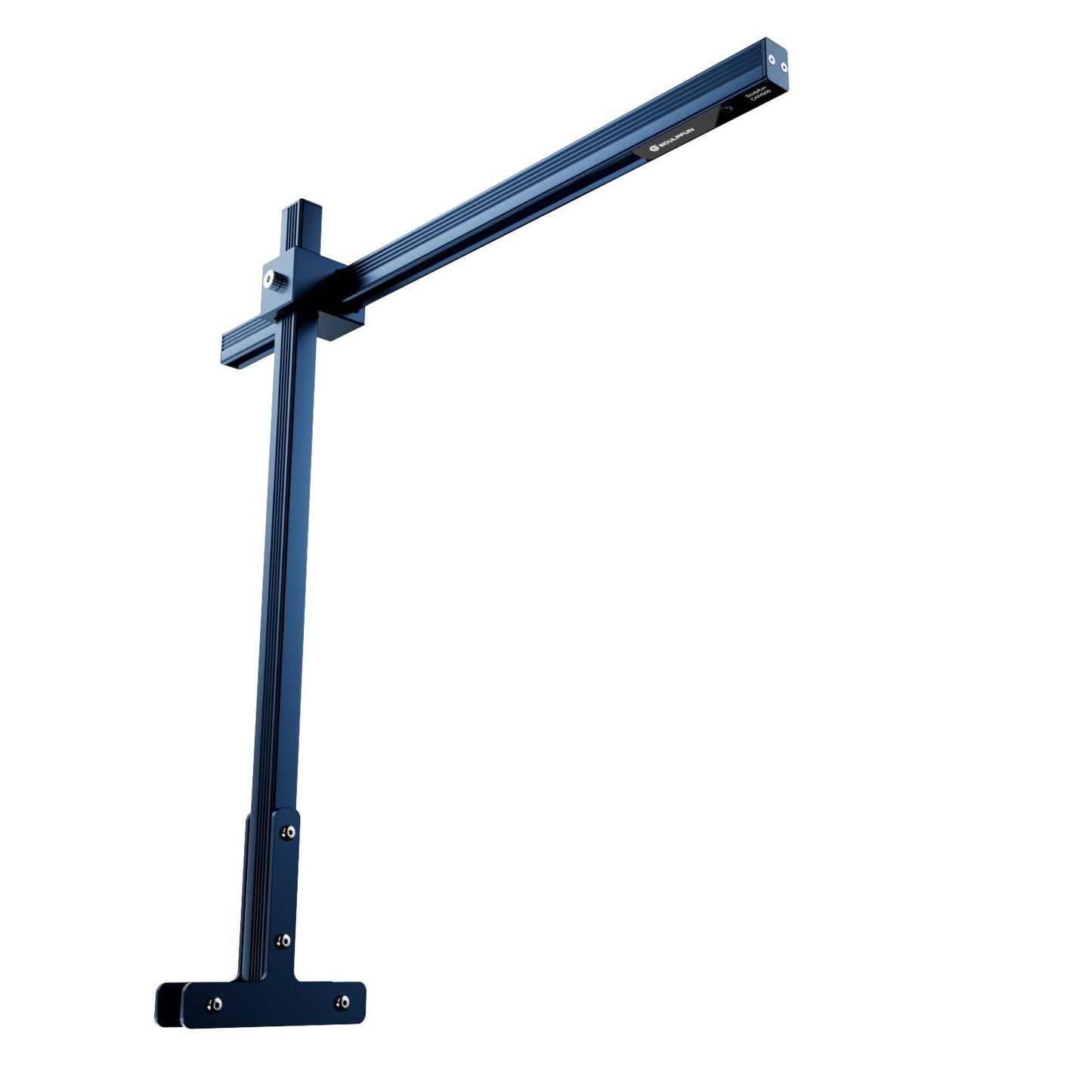

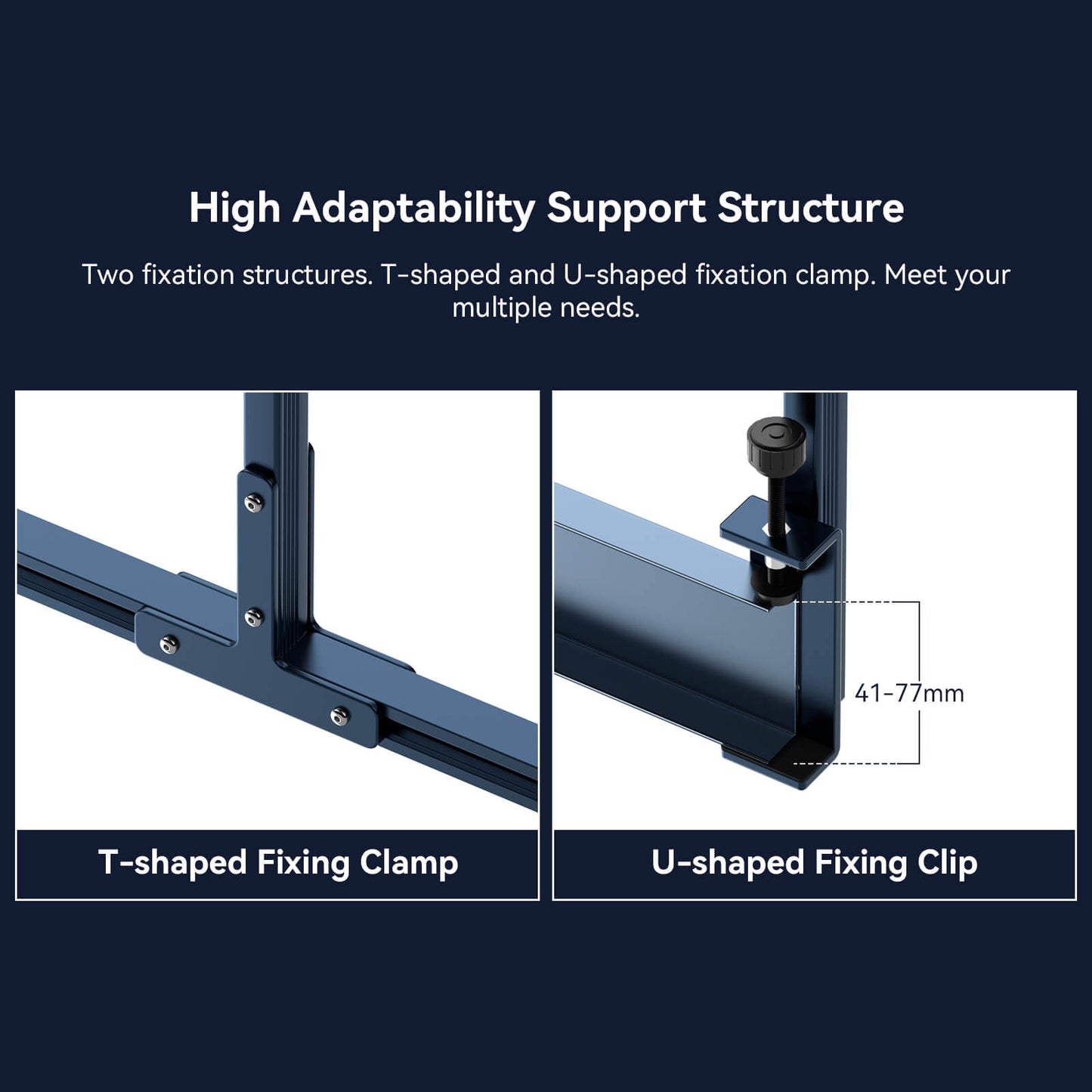

High compatibility: The T-shaped bracket fits all Sculpfun models and almost all engraving machines with V-profile rails. The U-shaped bracket is suitable for machines with a U-shaped cross member. Other compatible models: D1PRO, Falcon2, LM2 PRO S2, 20PRO, 20S, 55, JL3, 3 MAX V2 Note: Not compatible with additional area extension kits.

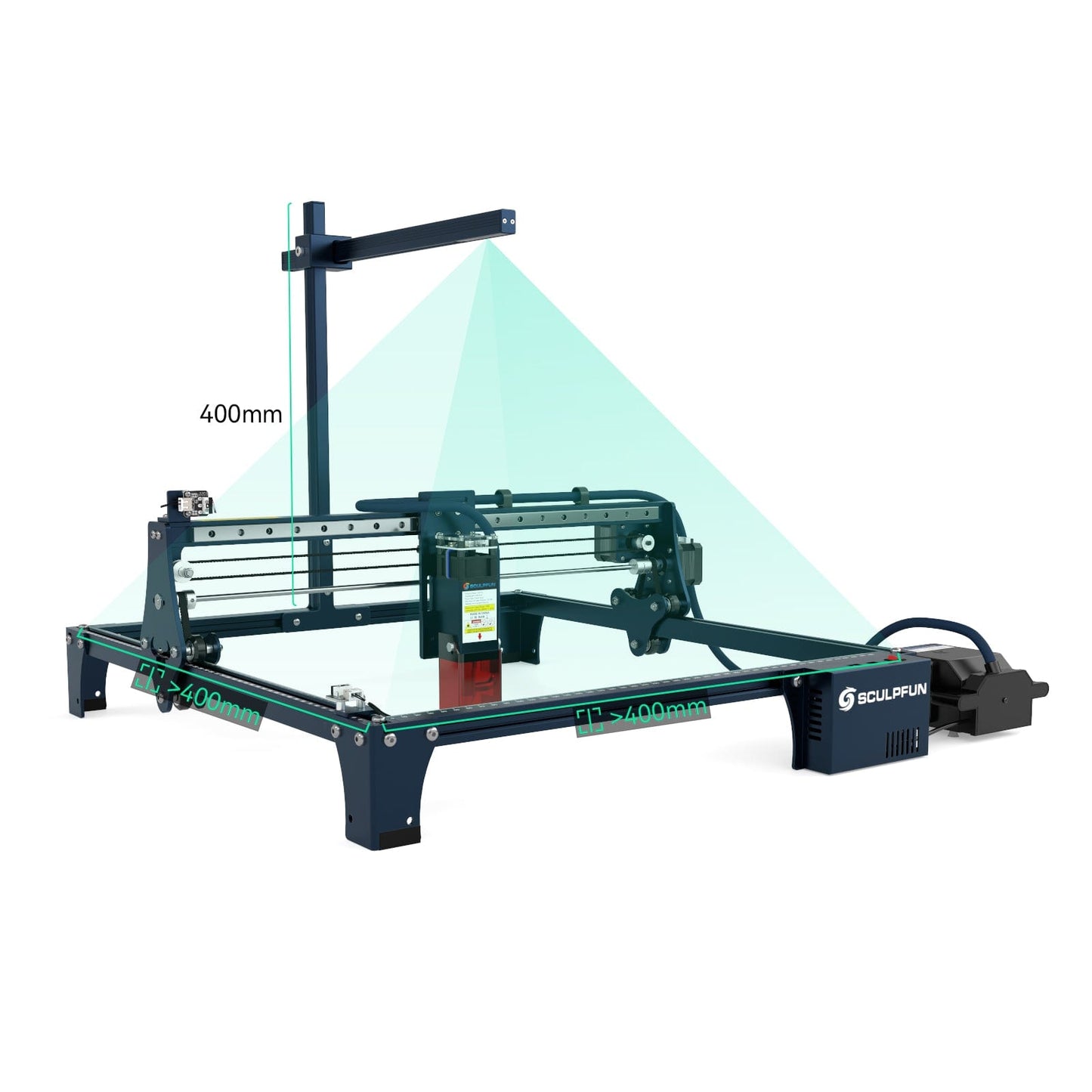

Recommended camera mounting height: 325 mm distance from the object to the camera. For maximum accuracy, the objects to be engraved should be placed as close to the camera center as possible within the 400 × 400 mm area. Precision decreases with greater distance from the center.
