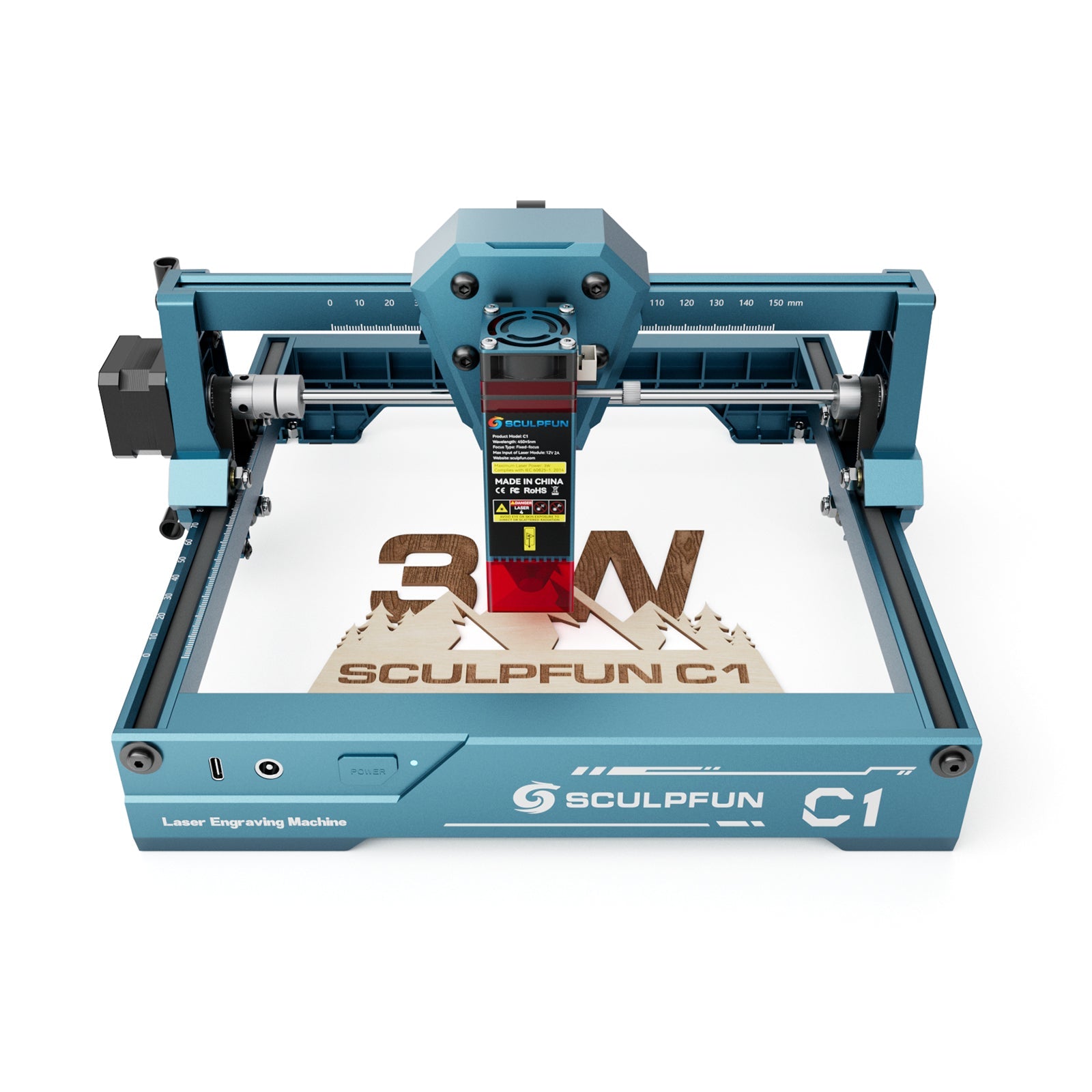

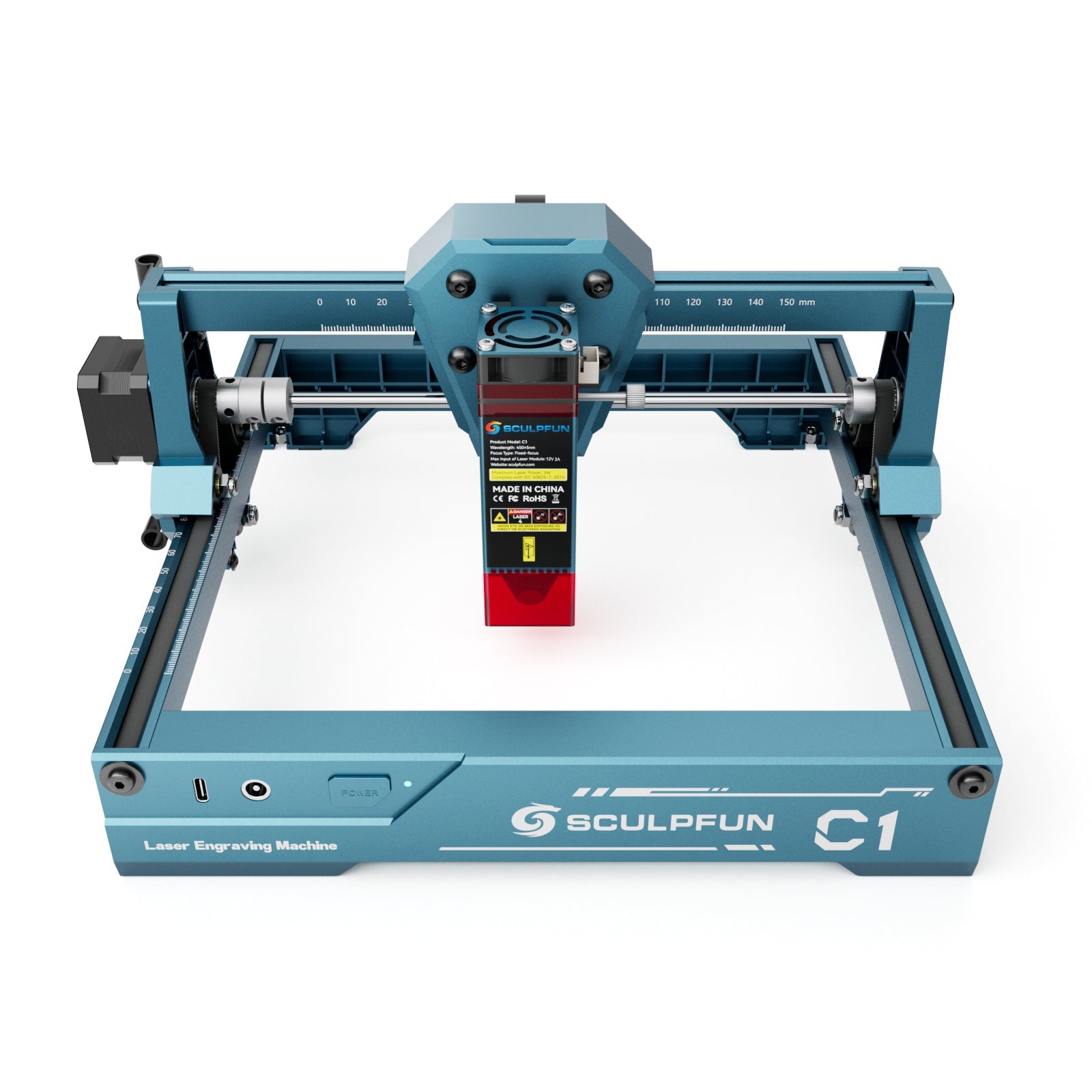

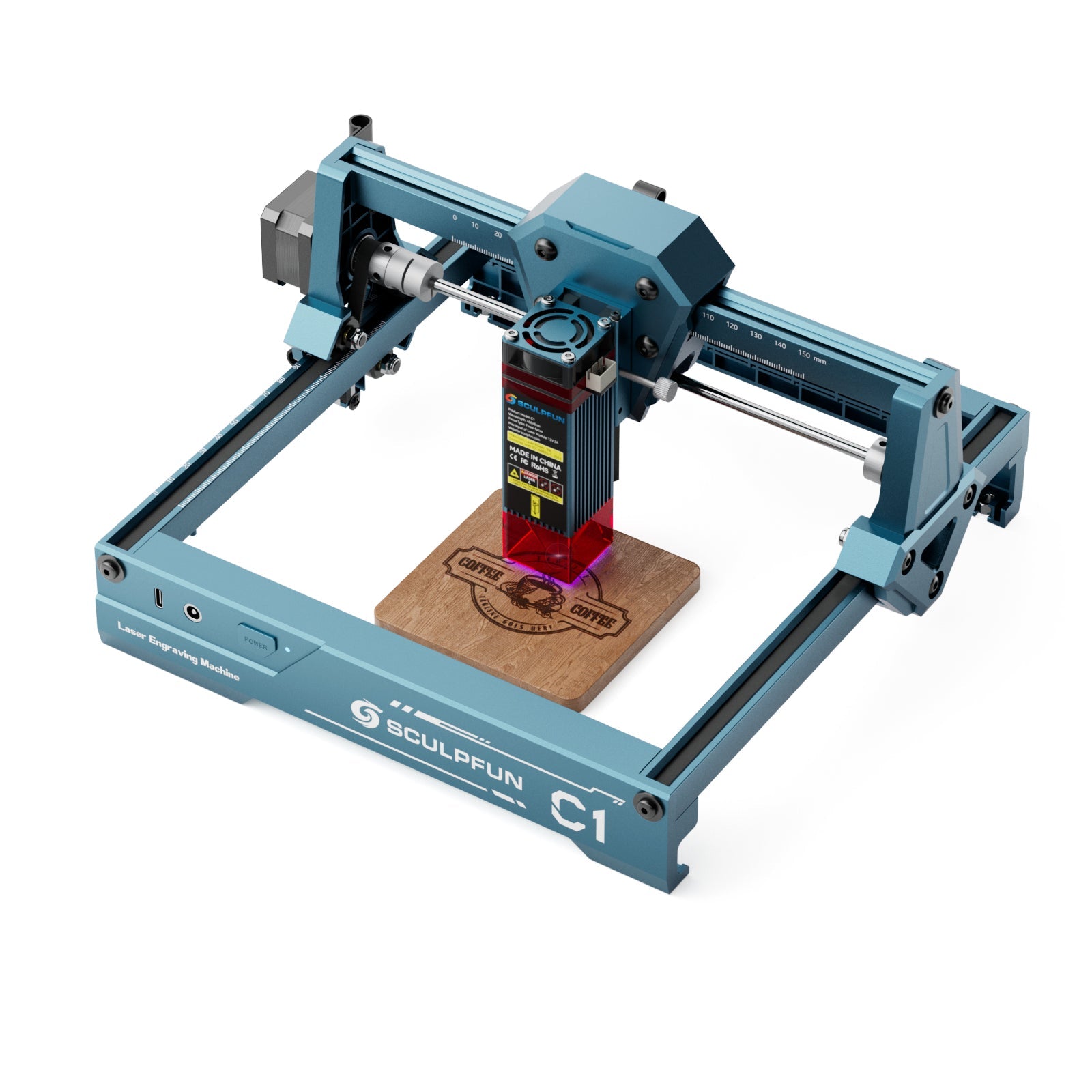

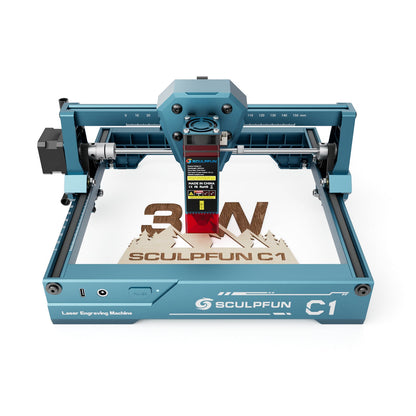

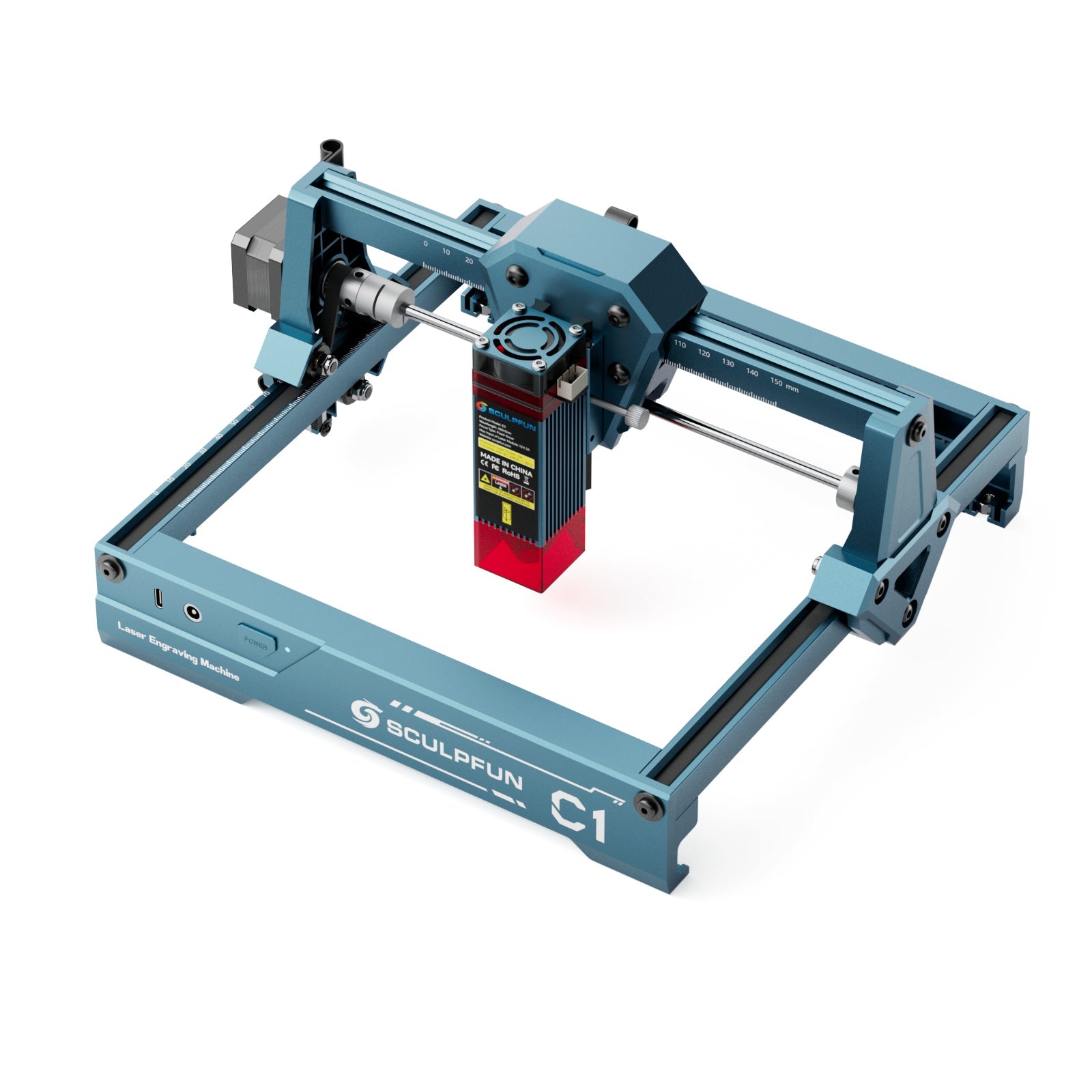

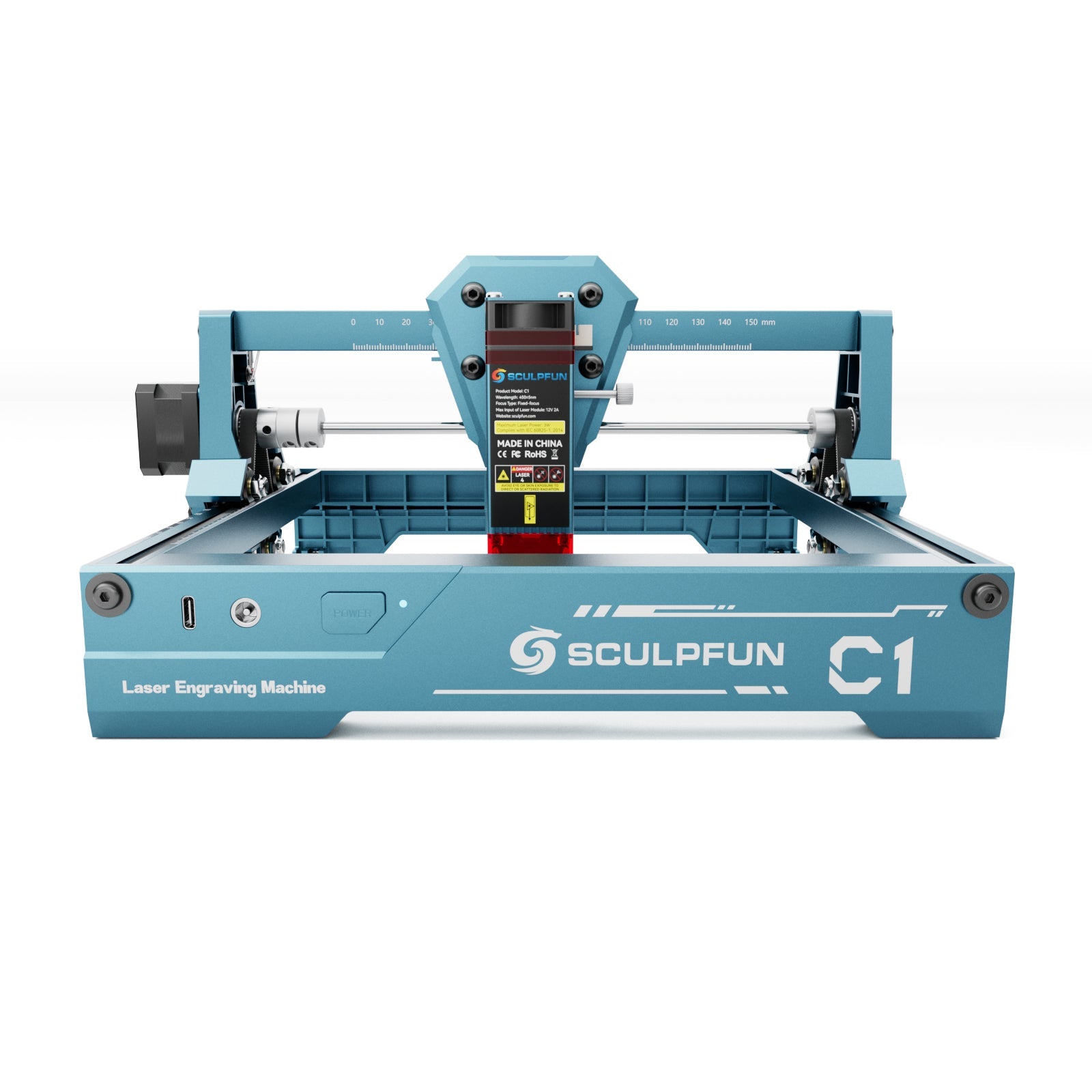

Sculpfun C1 - 3W Portable Mini Laser Engraver

Main features:

1. Portable and compact design:

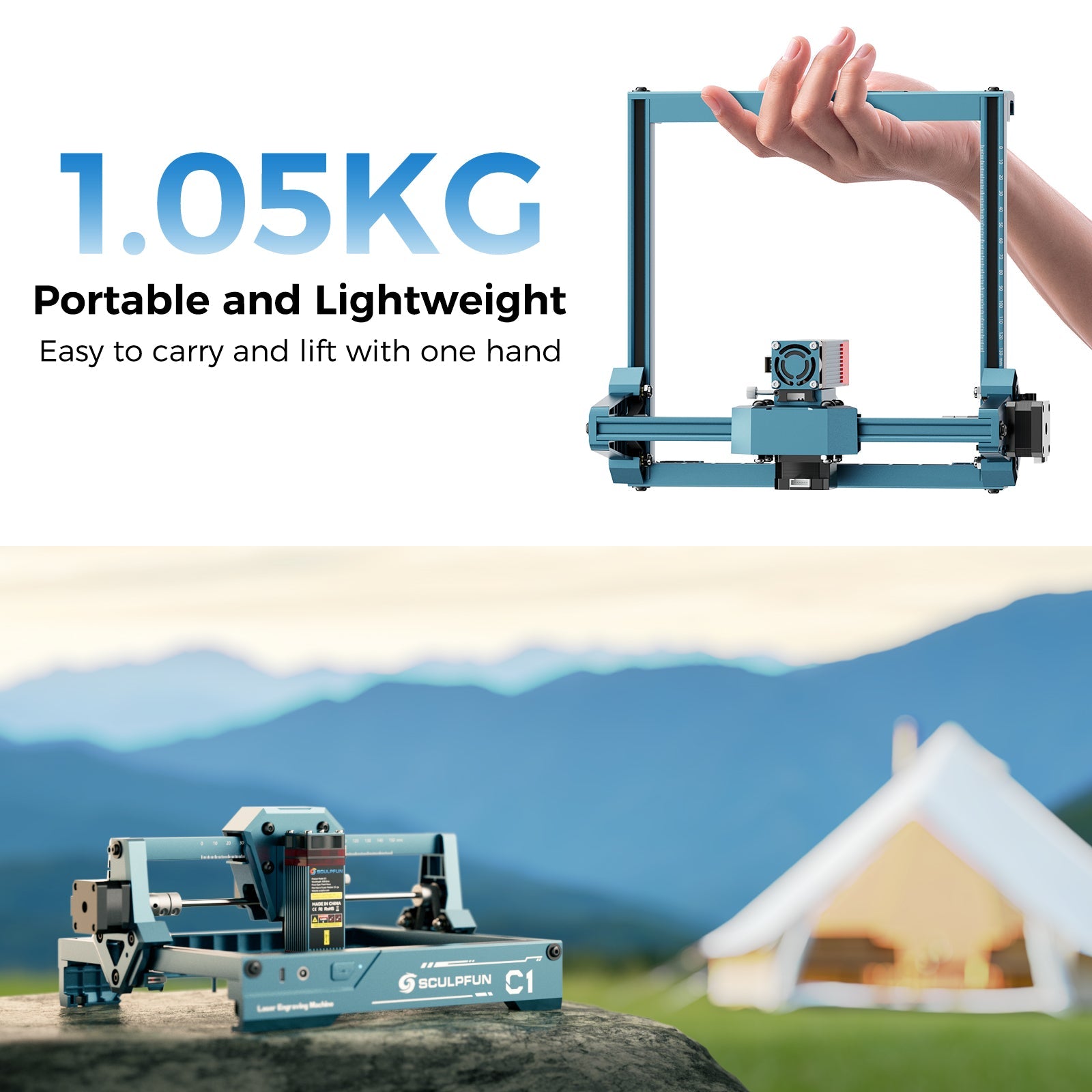

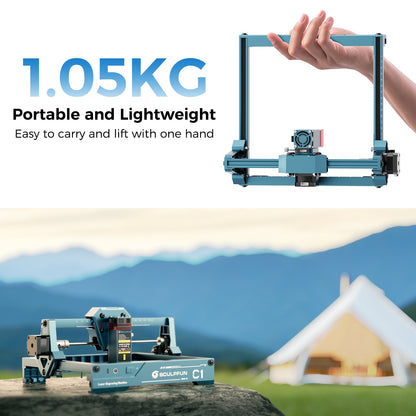

The C1 is one of the smallest portable laser engravers on the market. Thanks to its compact dimensions and low weight, it's highly mobile and easy to take anywhere. It's smaller and lighter than most engraving machines and requires minimal space.

2. Beginner-friendly features:

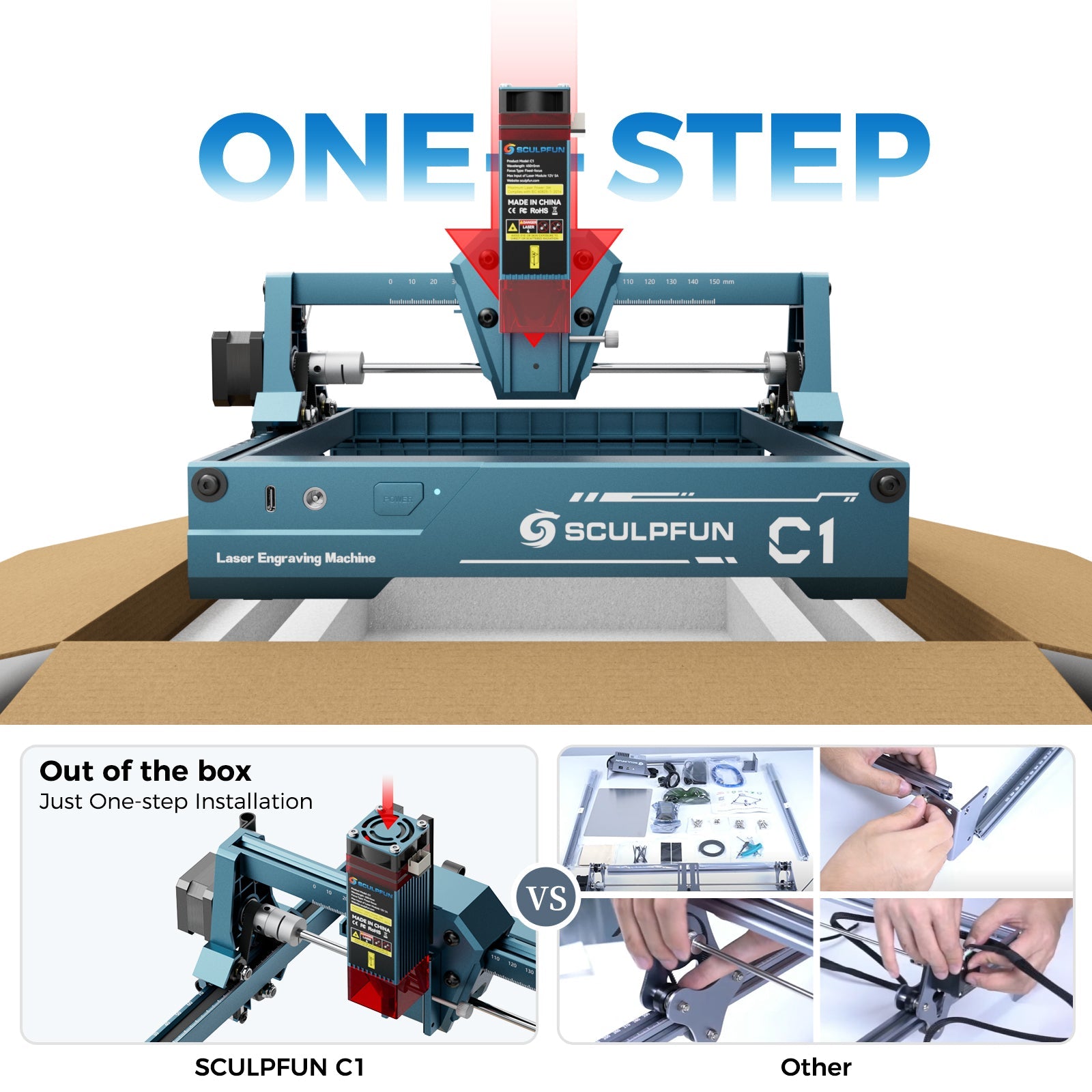

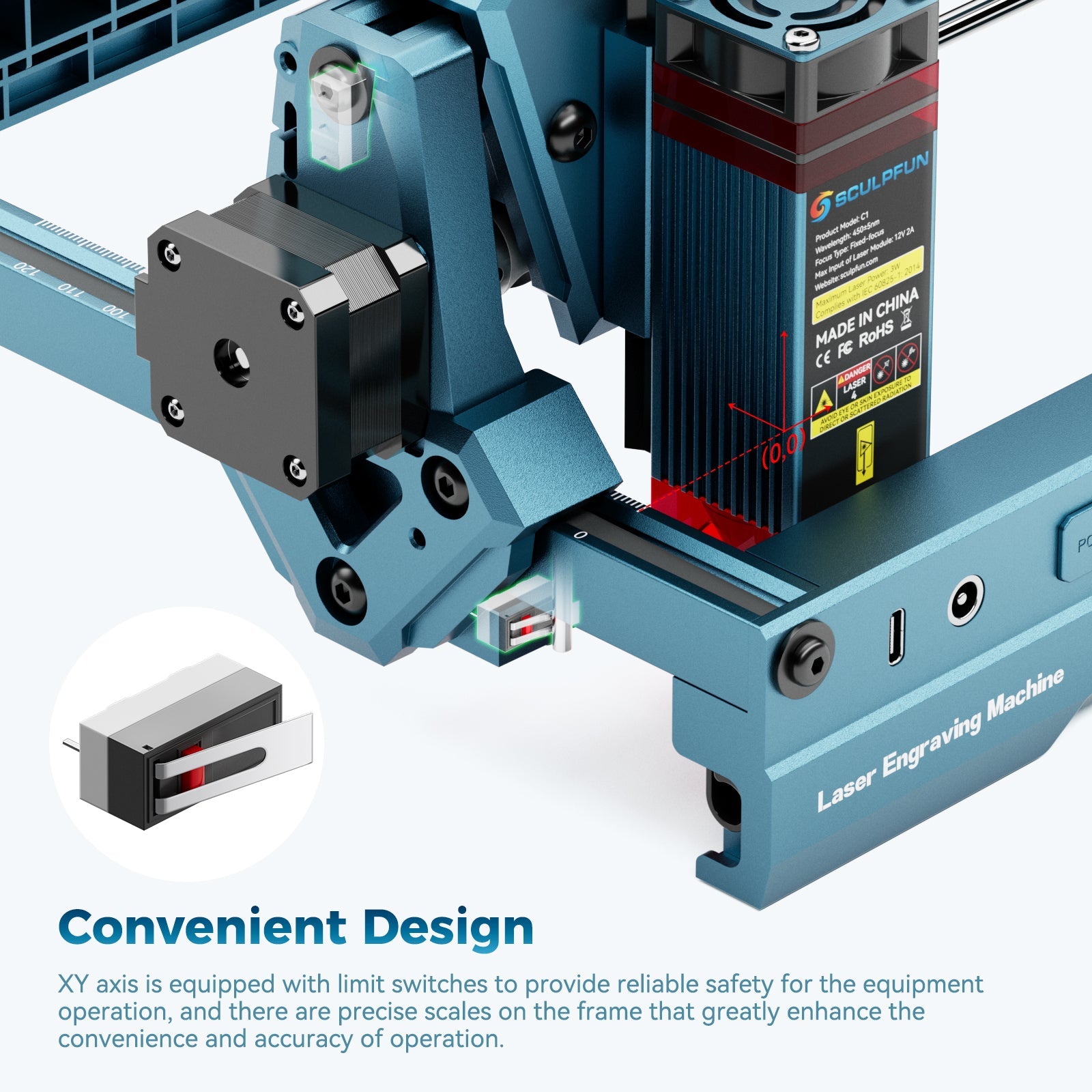

The Sculpfun C1 is ideal for beginners. It comes pre-assembled and is ready to use right away, with no complicated assembly required. Its user-friendly features ensure a pleasant user experience. Limit switches on the X and Y axes increase safety and facilitate resetting.

3. Excellent engraving capabilities:

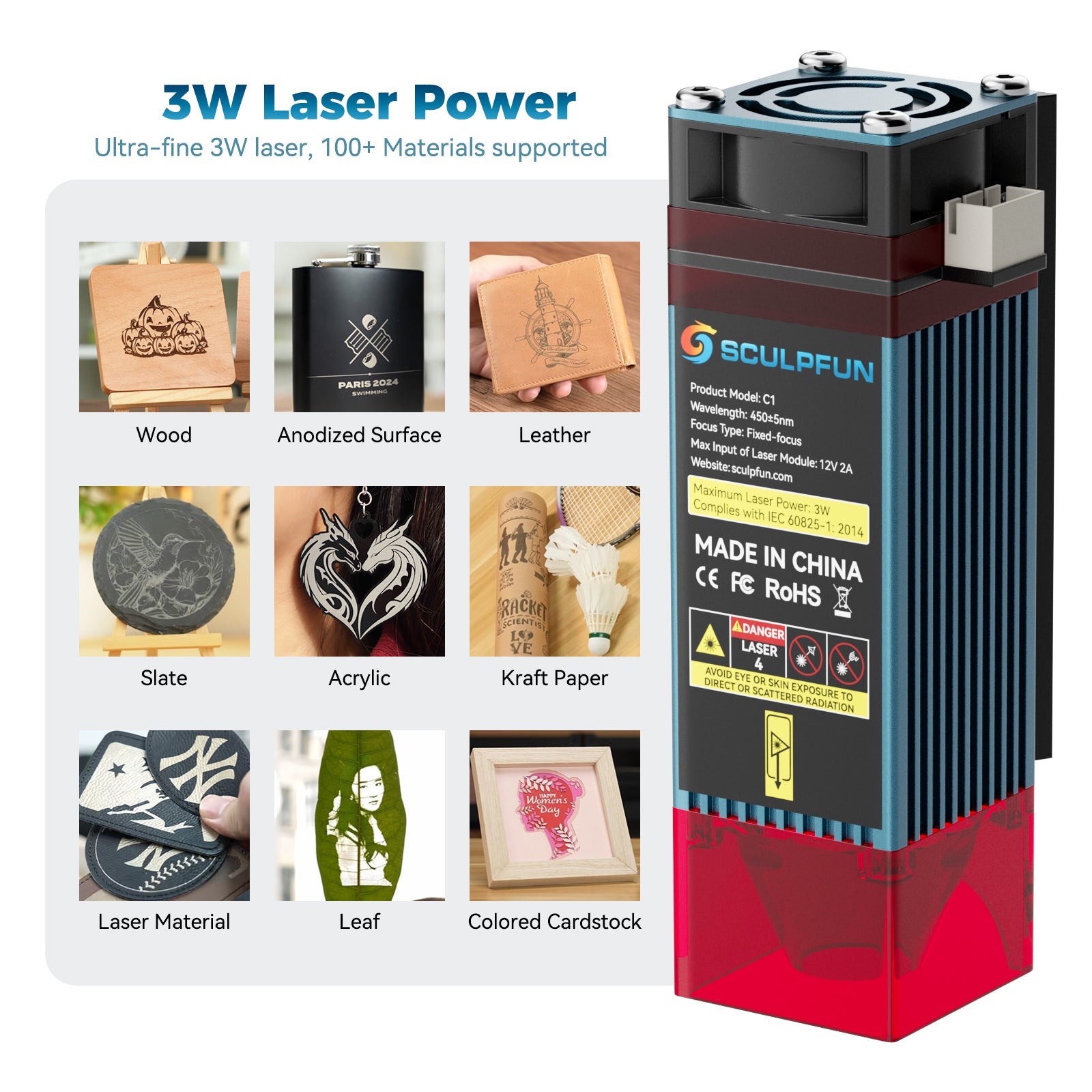

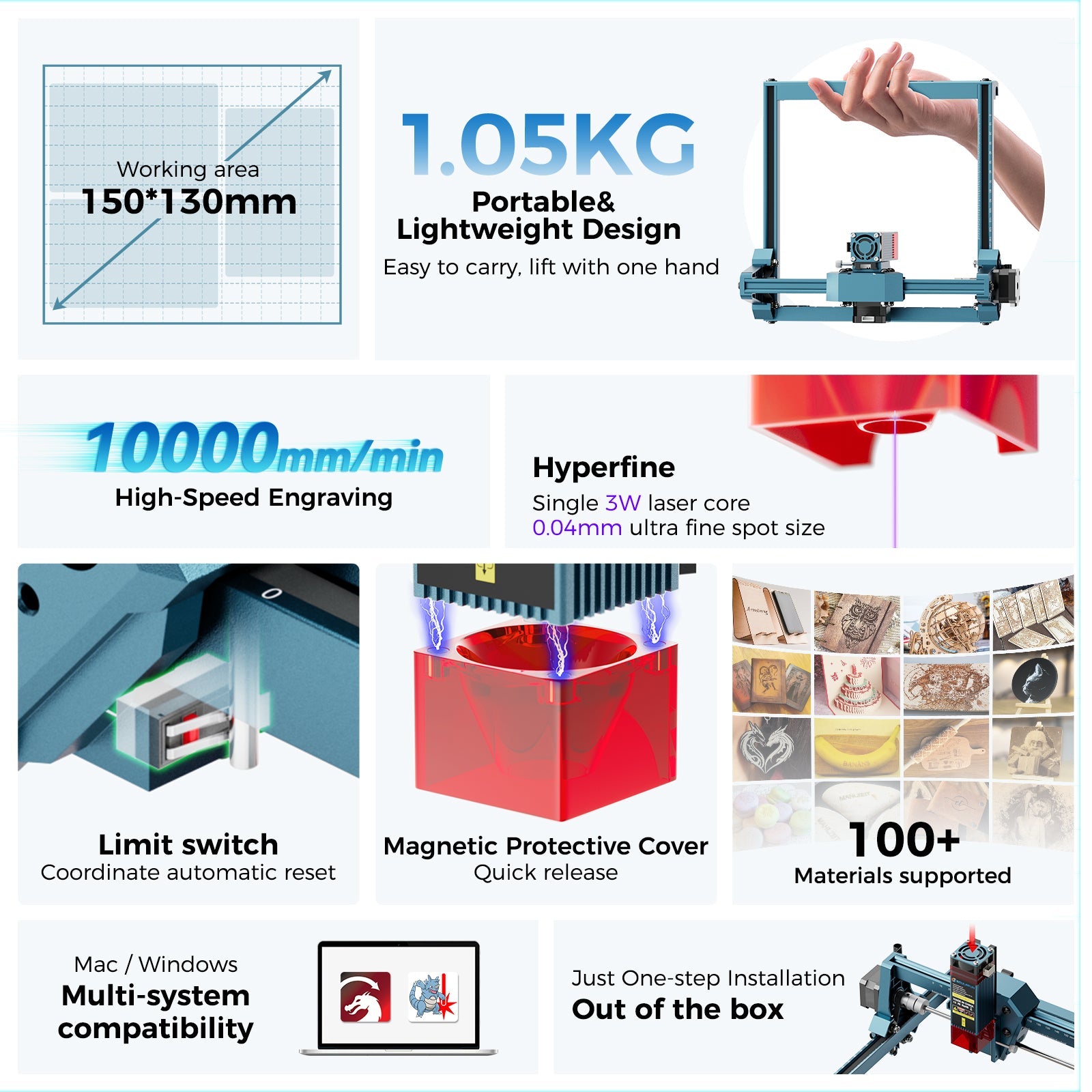

The C1 uses a single 3W laser core with an extremely fine laser spot of 0.04 mm. Despite its low power, the laser beam produces highly precise results and enables detailed engraving on a wide variety of materials.

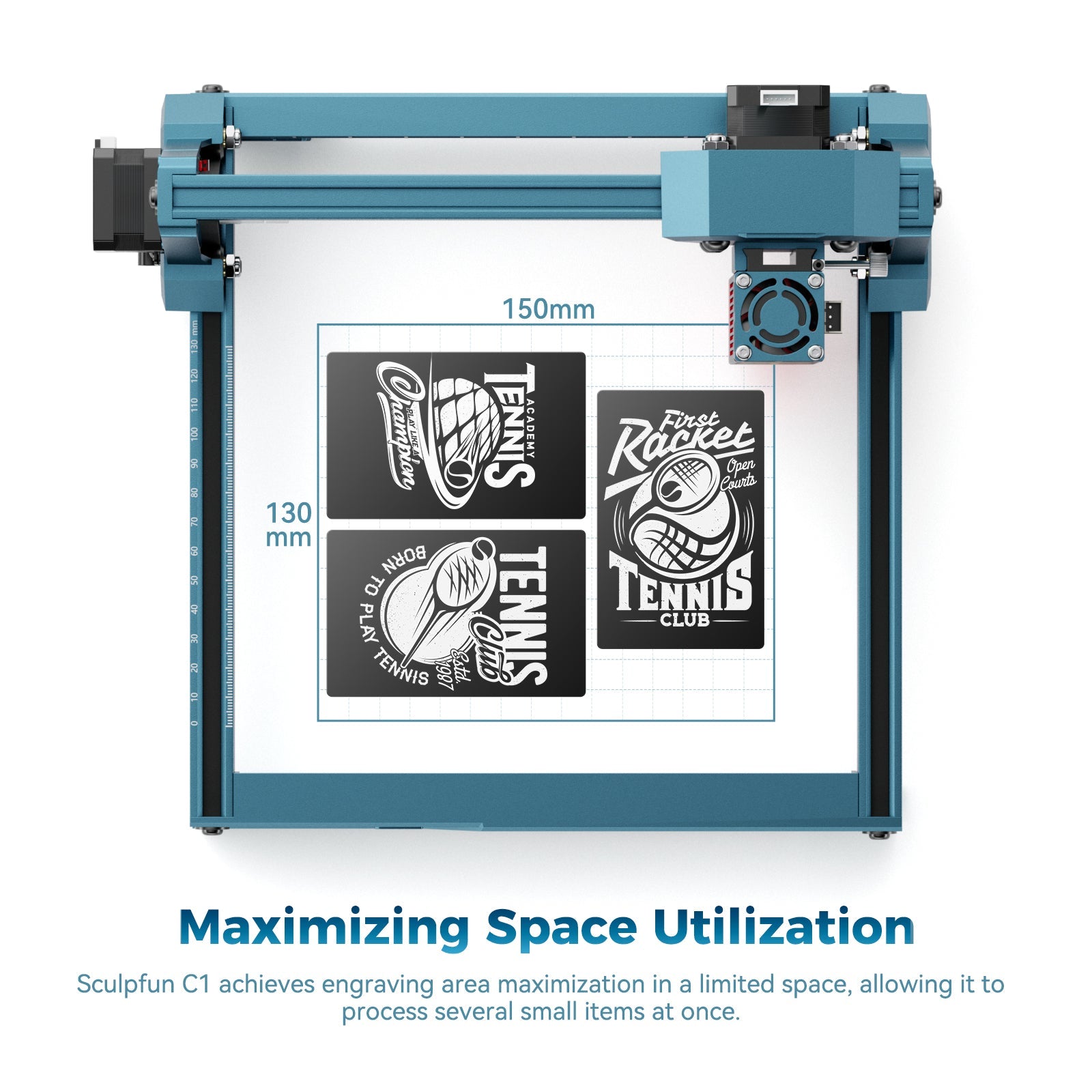

4. Maximum space utilization & precise positioning:
Despite its compact size, the Sculpfun C1 offers a generous 150 × 130 mm engraving area, allowing for efficient processing of multiple small objects simultaneously. Scales on the frame provide clear reference points on the X and Y axes, enabling precise alignment for complex projects.

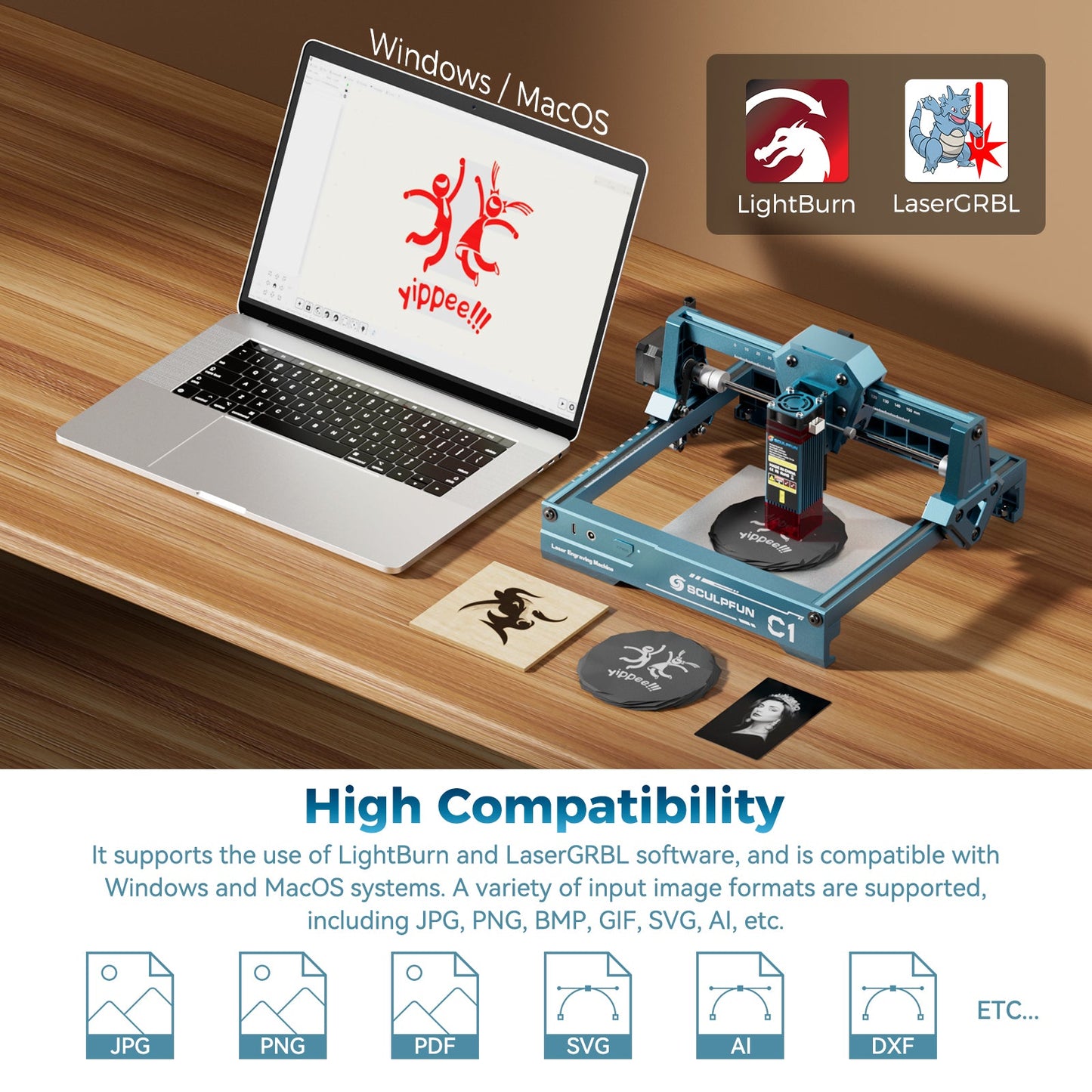

5. High compatibility:

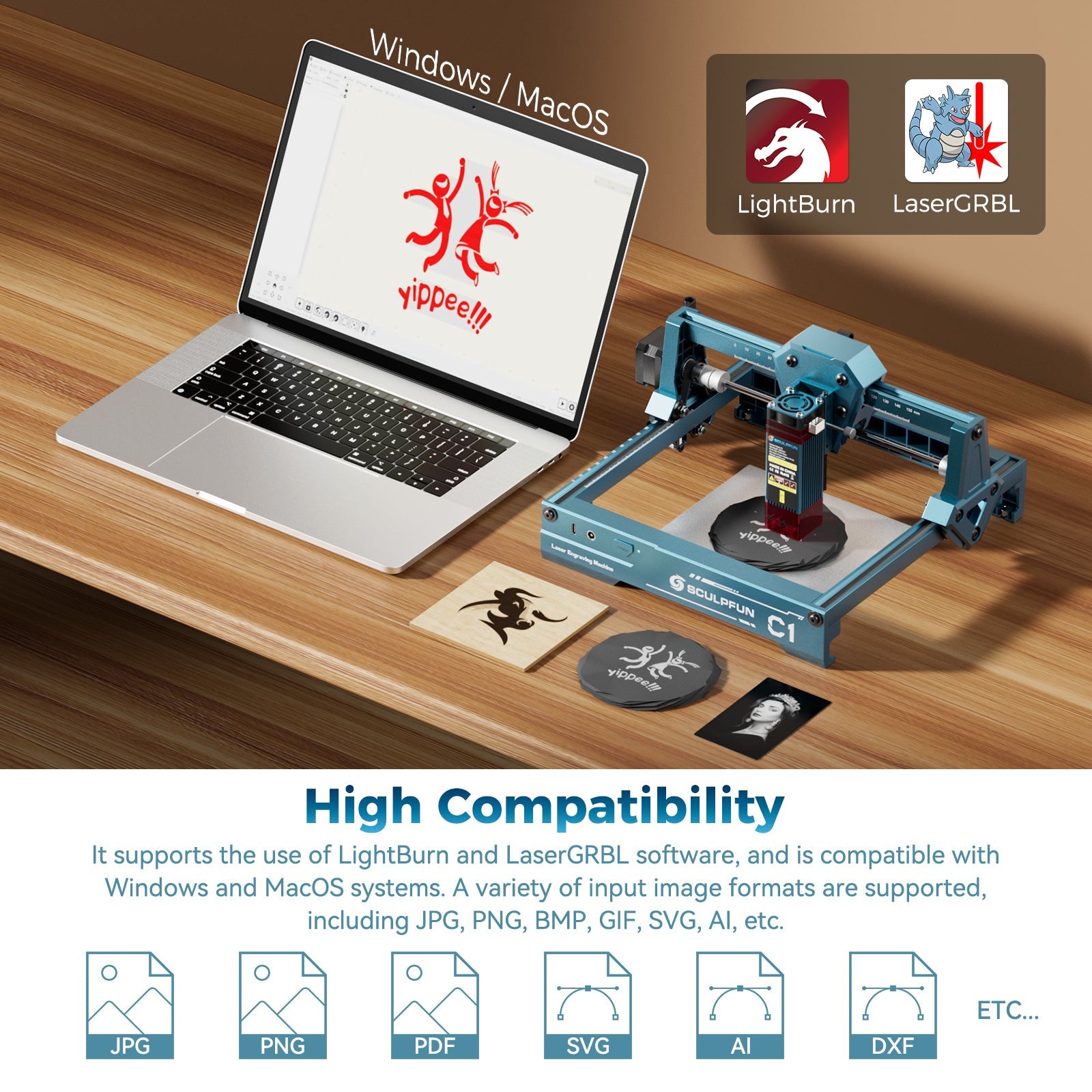

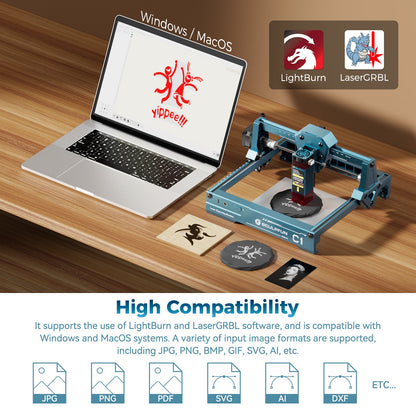

Compatible with professional laser cutting software such as LightBurn and LaserGRBL, it supports Windows and macOS systems for seamless operation. Additionally, it offers a powerful image import function with support for common image formats such as JPG, PNG, BMP, GIF, SVG, AI, etc., opening up a wide range of design possibilities.

6. Accessory compatibility:

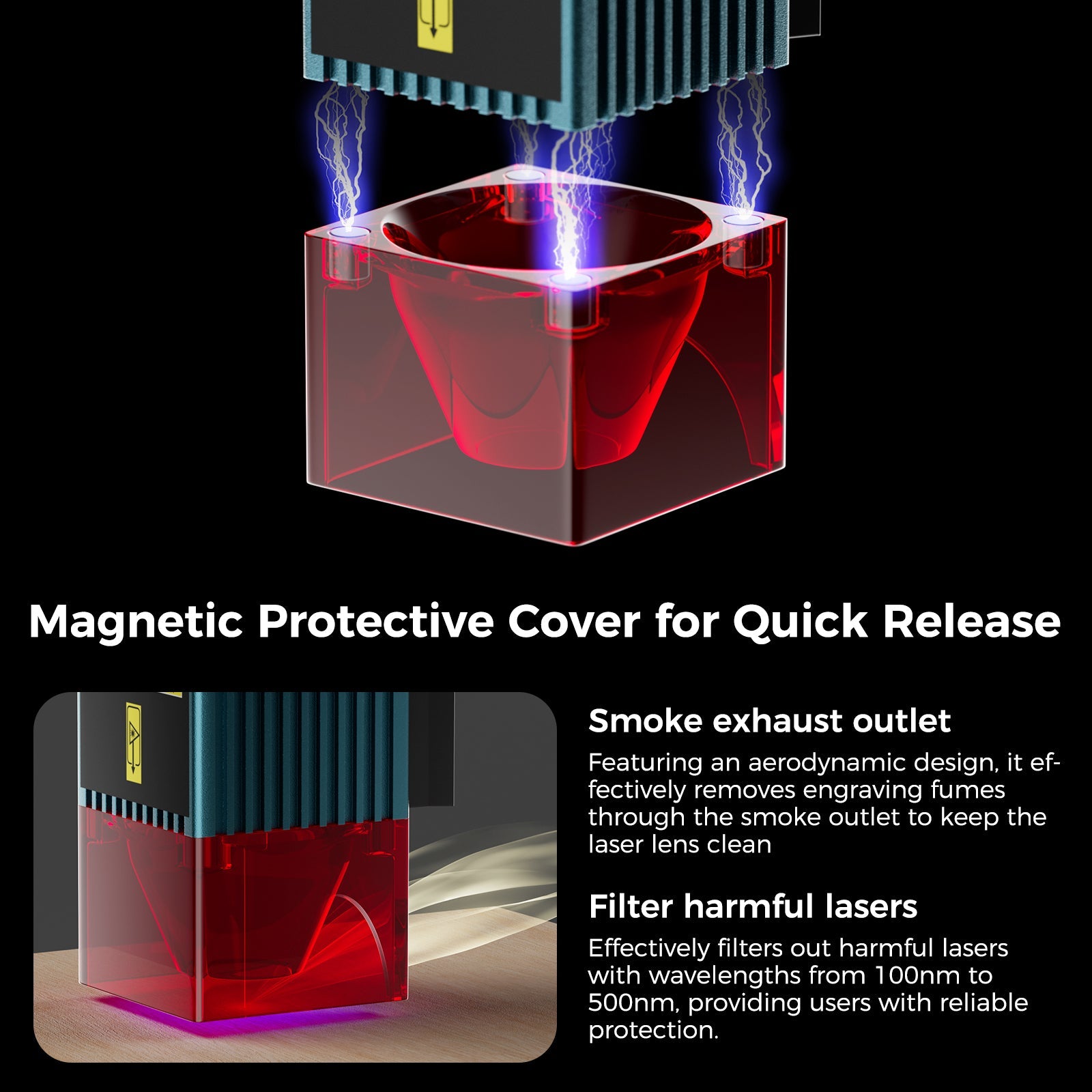

The C1 can be operated with a protective cover, which complies with Class 1 laser standards. If the door is opened, the laser stops automatically—an additional safety feature.

System compatibility information:

• Windows 8 / 10 / 11: No driver installation required – direct connection and use possible.
• Windows 7: Installation of appropriate drivers required.
• Windows XP: Not supported – Unable to connect to the machine.
• macOS version 10.7 and higher: Direct use without driver installation possible.
• macOS below version 10.7: Connection not possible – a system upgrade is required.

Technical data:

• Product name: Sculpfun C1
• Laser power: 3 W
• Laser spot size: 0.04 × 0.04 mm

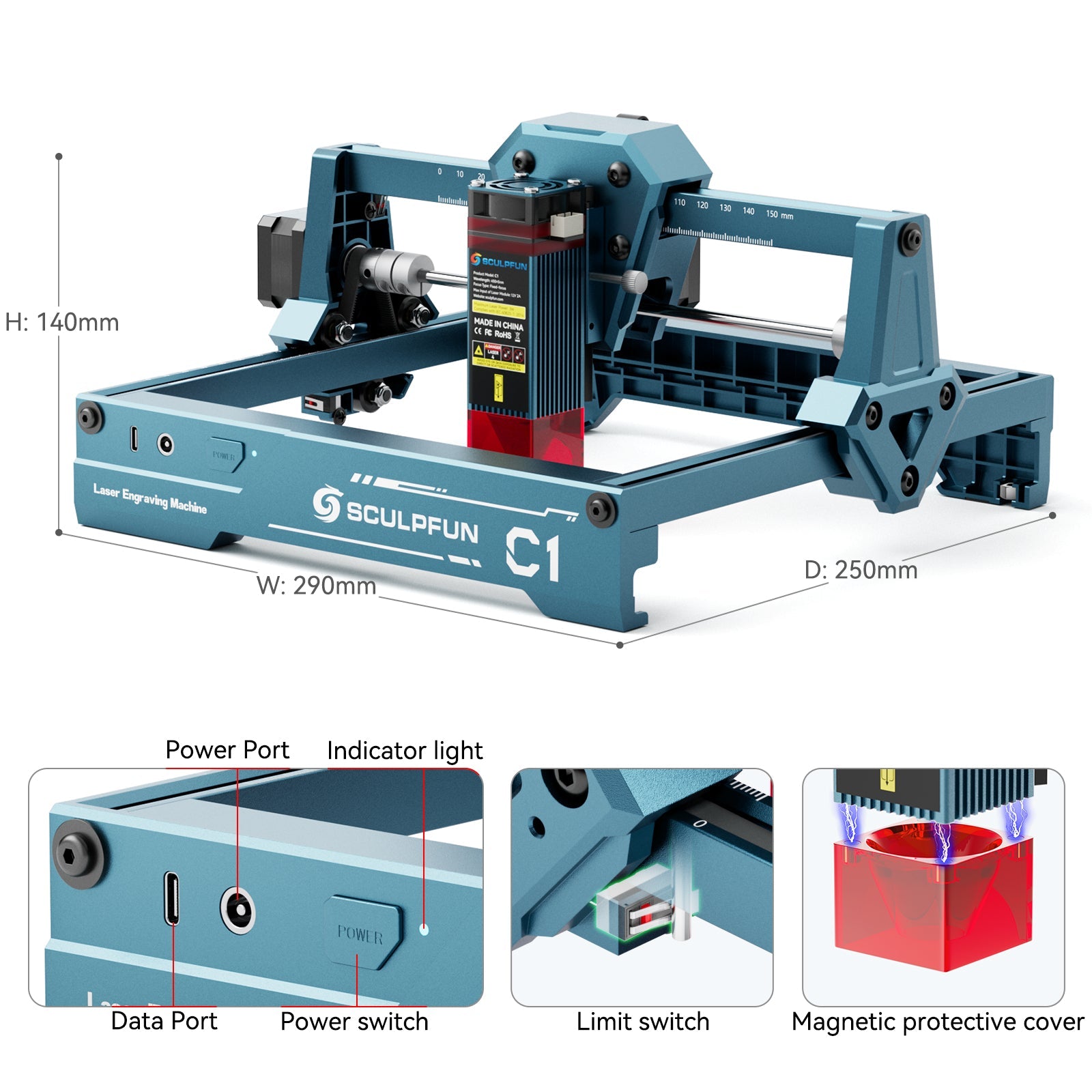

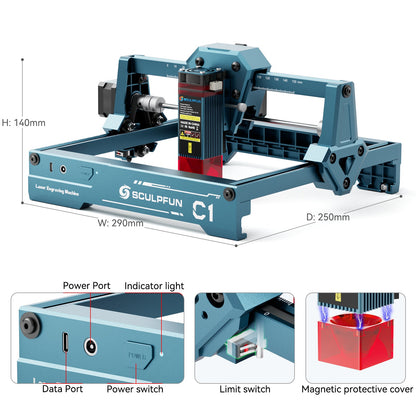

• Machine dimensions: 290 × 250 × 140 mm
• Machine weight: 1.05 kg
• Working area: 150 × 130 mm
• Compatible operating systems: Windows / macOS
• Shipping weight: 1.9 kg
• Packaging dimensions: 332 × 302 × 178 mm

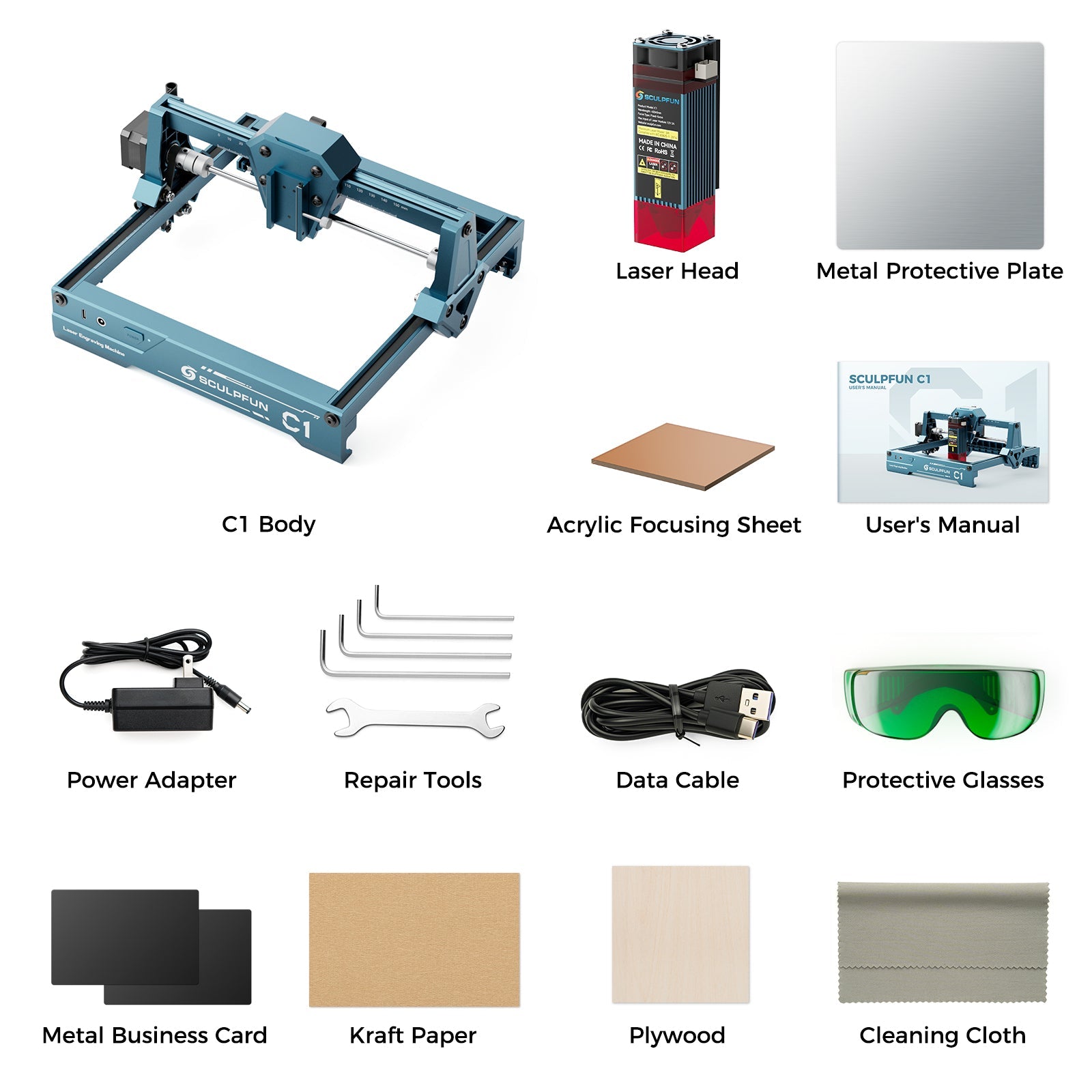

Scope of delivery:

1 × C1 machine, 1 × laser head, 1 × user manual, 1 × USB data cable, 1 × power adapter, 1 × acrylic focusing aid, 1 × tool set, 1 × kraft paper, 1 × plywood board (basswood), 2 × metal business cards, 1 × safety glasses, 1 × glasses cleaning cloth, 1 × metal protective plate
